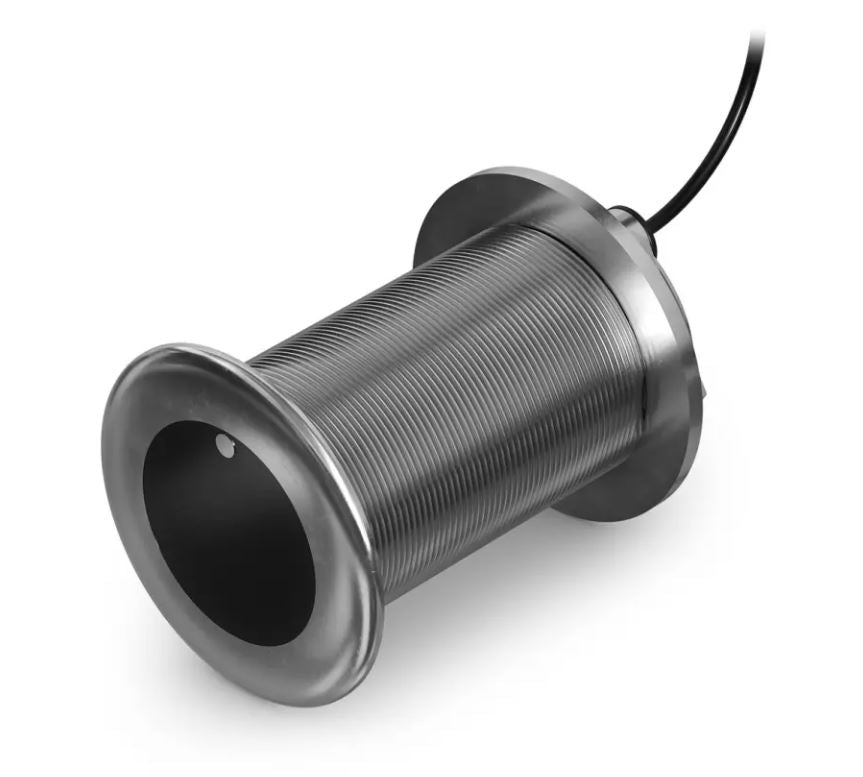

Garmin Thru-Hull Mount Transducer (MPN: 010-02868-01)

Advanced sonar technology for enhanced fishing and cruising experiences.

The Garmin Thru-Hull Mount Transducer is engineered for optimal sonar performance on midsize fishing and cruising vessels. This 600 Watt transducer utilizes medium band CHIRP technology, providing a frequency range of 85 to 165 kHz, which enhances the clarity of fish arches, underwater structures, and bottom depth readings. Designed for a variety of boat hull materials, it supports a transom angle of 8 to 15 degrees and can be configured for dead rise angles of 0 to 20 degrees without the need for a fairing block.

With a maximum depth capability of 1,900 feet in freshwater and 1,200 feet in saltwater, this transducer ensures comprehensive coverage for various fishing environments. The durable stainless steel housing allows for a flush installation that minimizes drag while maintaining optimal beam orientation for clear sonar returns. The 50-foot cable provides ample length for installation, and the 8-pin connector ensures compatibility with Garmin's auto-identification technology for seamless operation.

This transducer is designed to deliver excellent sonar sensitivity, low noise, and high resolution, allowing for effective target separation. The fast-response water temperature sensing feature further enhances its utility, making it a reliable choice for serious anglers and boaters alike.

Features

• See Maximum Depth Performance To 1,900 Feet In Freshwater
• Access CHIRP Sonar Frequency Range From 85 To 165 Kilohertz
• Search With Beam Widths Of 16 To 24 Degree
• Count On Fast-Response Water Temperature Sensing
• Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20 Degree Tilt
• This 8-Pin, 600 Watt Stainless Steel Thru-Hull Transducer Features High-Definition Midband CHIRP Sonar That Clearly Defines Fish Targets
• Use The Perfect Frequency For The Waters You’re Fishing
• Offering Excellent Sonar Sensitivity, Low Noise, High Resolution And Good Separation Of Targets
• Durable Stainless Steel Housing And Stem Offer Straightforward Thru-Hull Flush Mounting For Minimum Drag And Optimum Beam Orientation For Clear Sonar Returns

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02868-01
• Mounting Location: Thru-Hull Mount
• Number Of Pins: 8 Pin
• Depth: 1200 Feet For Saltwater/ 1900 Feet For Freshwater
• Power Rating: 600 Watt
• Frequency Range: 85 To 165 kHz Medium Band CHIRP
• Supported Angle: 8 To 15 Degree Transom Angle
• Cable Length: 50 Feet

Technical Documents

• GT12M-THF_GT15M-THF_Transducer_Install_EN-US.pdf
