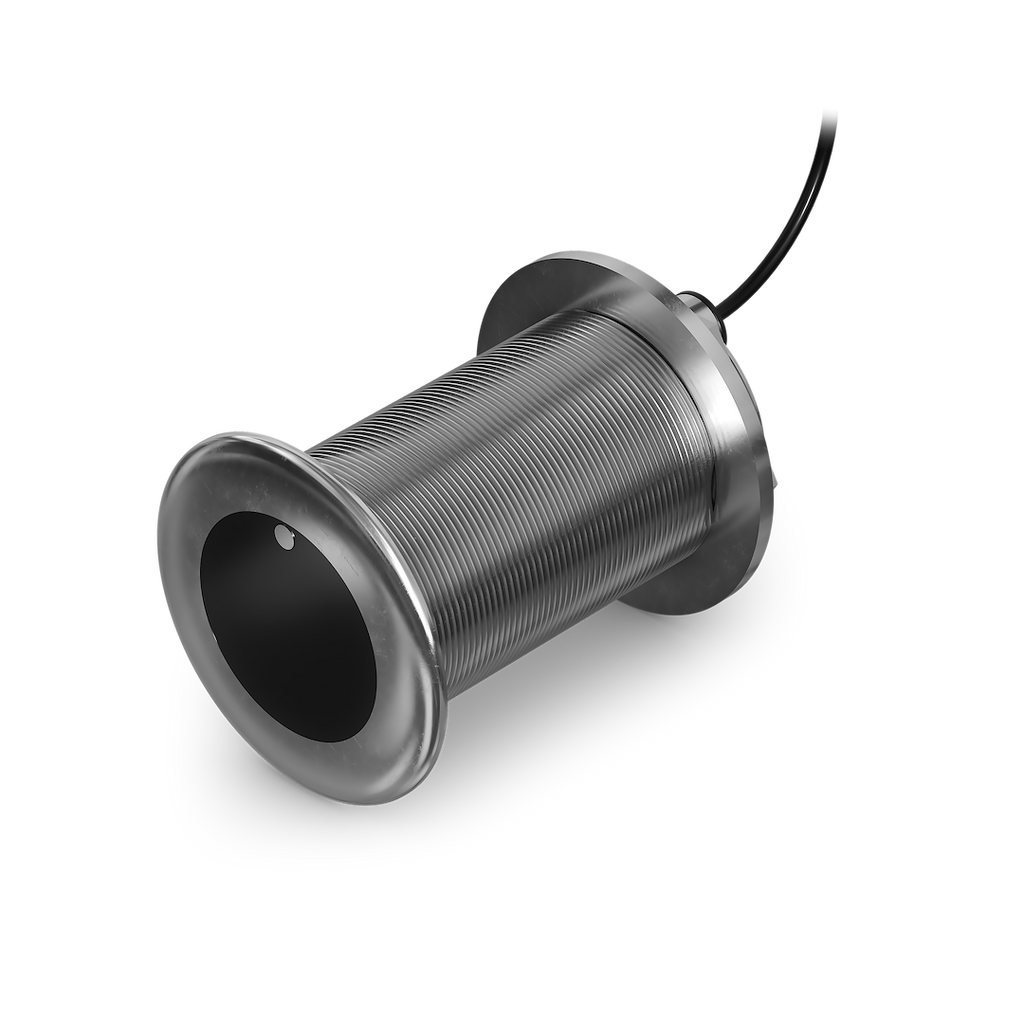

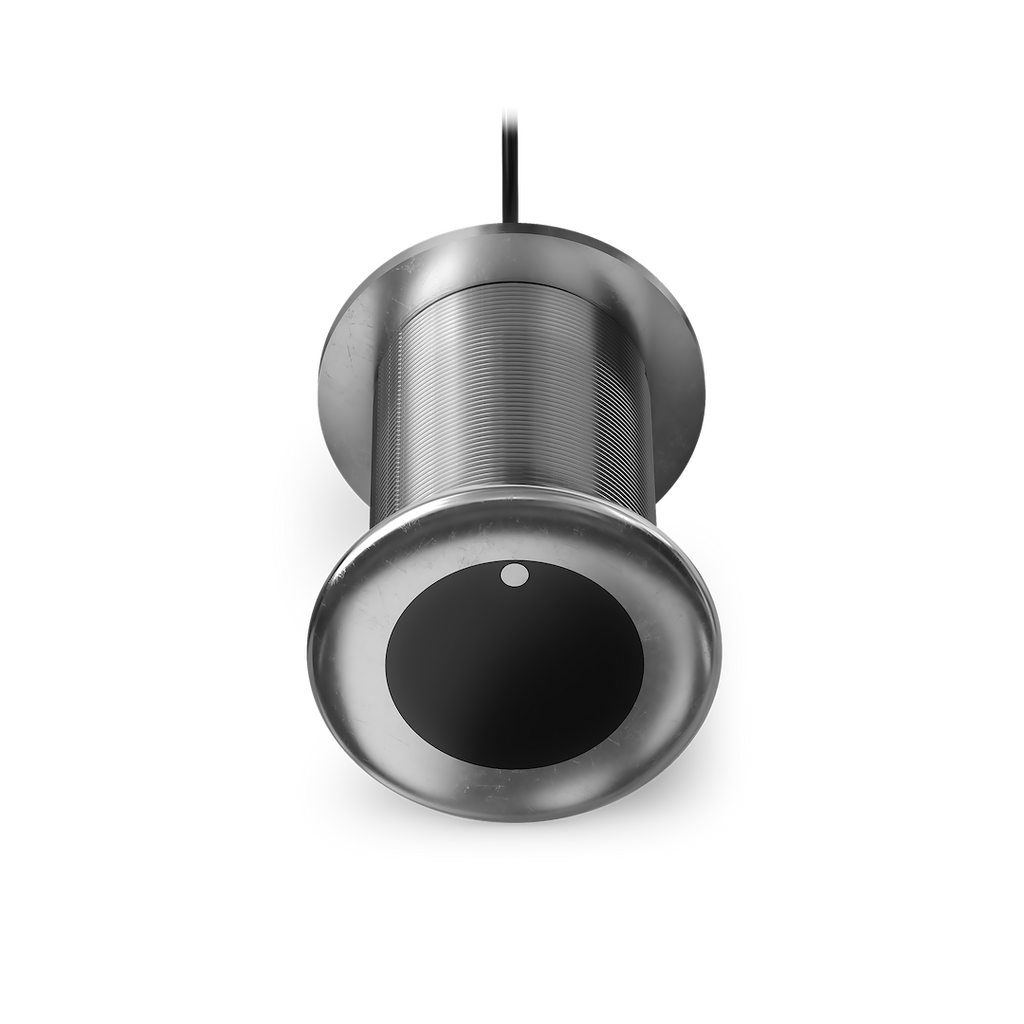

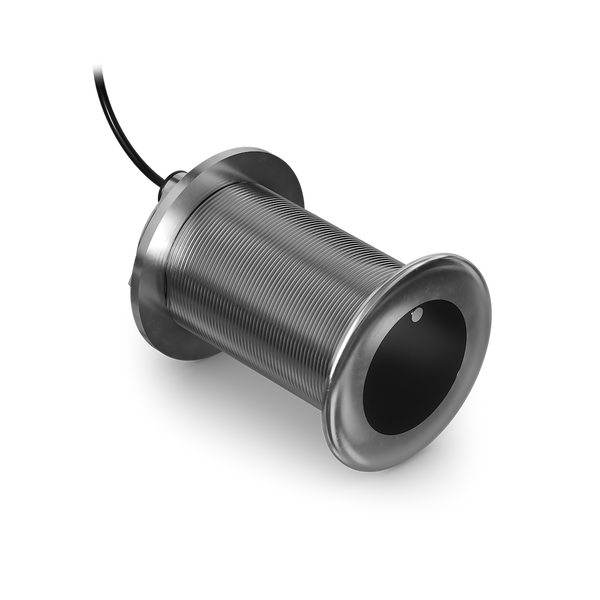

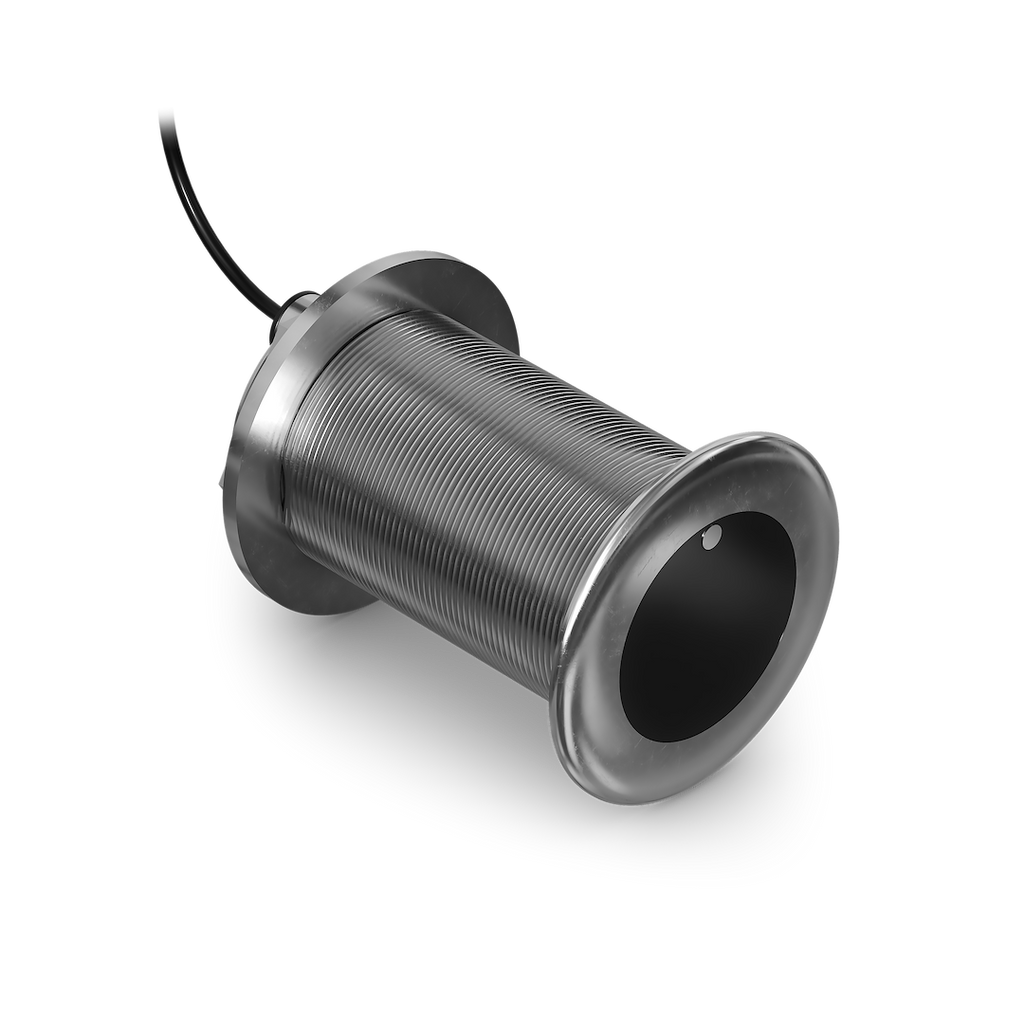

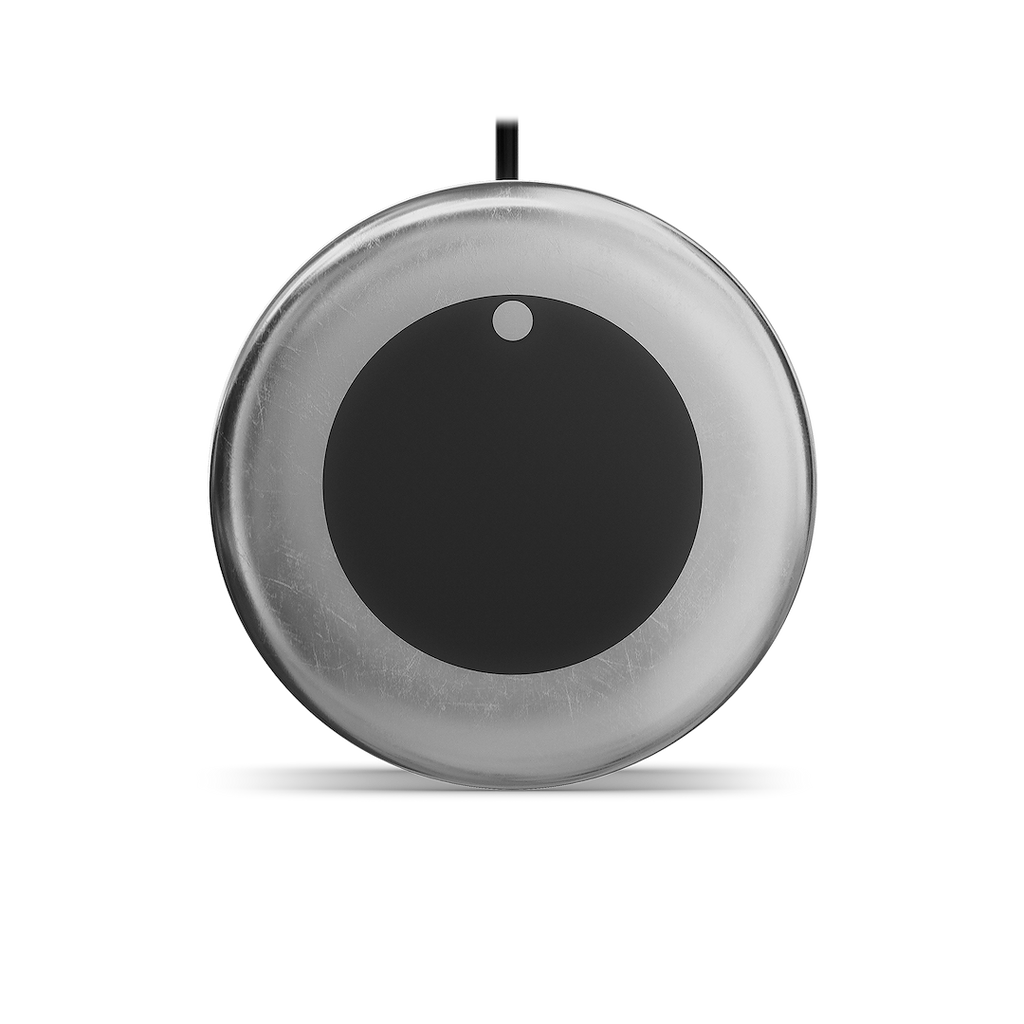

Garmin Thru-Hull Mount Transducer (MPN: 010-02868-00)

Advanced sonar technology for enhanced fishing and cruising experiences.

The Garmin Thru-Hull Mount Transducer is engineered for optimal sonar performance on midsize fishing and cruising vessels. This 600 Watt transducer utilizes medium band CHIRP technology, providing a frequency range of 85 to 165 kHz, which enhances the clarity of fish arches, underwater structures, and bottom depth returns. Designed for a variety of boat hull materials, it supports a transom angle of 0 to 7 degrees and is available in multiple tilt versions to accommodate different hull configurations.

With a maximum depth capability of 1,900 feet in freshwater and 1,200 feet in saltwater, this transducer ensures comprehensive coverage for various fishing environments. The 24 to 16 degree beamwidth allows for effective searching and target separation, while the durable stainless steel housing ensures longevity and resistance to marine conditions. The included 50-foot cable facilitates easy installation, and the flush mount design minimizes drag, enhancing overall vessel performance.

Garmin's auto-identification technology simplifies setup, allowing the sonar to automatically adjust to the transducer in use. This feature, combined with fast-response water temperature sensing, makes the Garmin Thru-Hull Mount Transducer a reliable choice for serious anglers and boaters seeking precision and efficiency in their sonar systems.

Features

• See Maximum Depth Performance To 1,900 Feet In Freshwater
• Access CHIRP Sonar Frequency Range From 85 To 165 Kilohertz
• Search With Beam Widths Of 16 To 24 Degree
• Count On Fast-Response Water Temperature Sensing
• Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20 Degree Tilt
• This 8-Pin, 600 Watt Stainless Steel Thru-Hull Transducer Features High-Definition Midband CHIRP Sonar That Clearly Defines Fish Targets
• Use The Perfect Frequency For The Waters You’re Fishing
• Offering Excellent Sonar Sensitivity, Low Noise, High Resolution And Good Separation Of Targets
• Durable Stainless Steel Housing And Stem Offer Straightforward Thru-Hull Flush Mounting For Minimum Drag And Optimum Beam Orientation For Clear Sonar Returns

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02868-00
• Mounting Location: Thru-Hull Mount
• Number Of Pins: 8 Pin
• Depth: 1200 Feet For Saltwater/ 1900 Feet For Freshwater
• Power Rating: 600 Watt
• Frequency Range: 85 To 165 kHz Medium Band CHIRP
• Supported Angle: 0 To 7 Degree Transom Angle
• Cable Length: 50 Feet

Technical Documents

• GT12M-THF_GT15M-THF_Transducer_Install_EN-US.pdf
