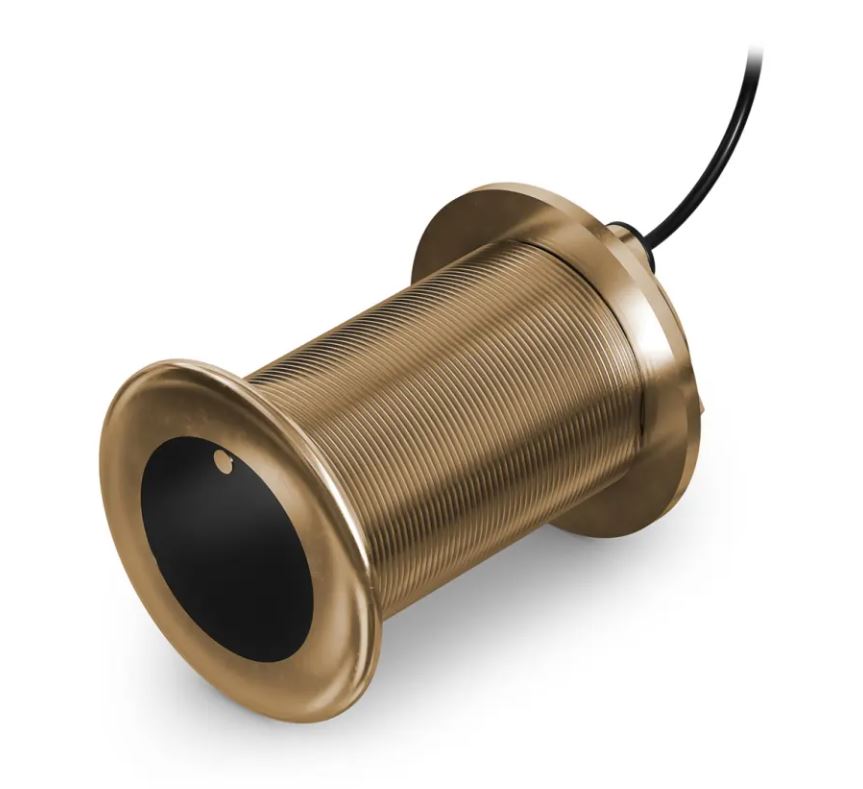

Garmin Thru-Hull Mount Transducer (MPN: 010-02867-01)

High-Definition Sonar Performance for Fishing and Cruising Boats

The Garmin Thru-Hull Mount Transducer is engineered for optimal sonar performance, specifically designed for midsize fishing and cruising vessels. This transducer features a robust bronze housing that allows for a flush installation, minimizing drag while ensuring precise beam orientation for clear sonar returns. With a power rating of 350 Watts and a frequency range of 85 to 165 kHz, it delivers high-definition midband CHIRP sonar that effectively defines fish targets and underwater structures.

This transducer supports a maximum depth of 1,200 feet in freshwater and 800 feet in saltwater, making it suitable for various fishing environments. The beam width ranges from 16 to 24 degrees, providing versatility in sonar coverage. Additionally, the unit includes a 50-foot cable and is compatible with Garmin's auto-identification technology, allowing for straightforward plug-and-play operation. The thru-hull design accommodates transom angles of 8 to 15 degrees, ensuring optimal installation for different boat configurations.

With features such as fast-response water temperature sensing and excellent sonar sensitivity, this transducer is built to enhance your fishing experience. Its low noise and high resolution contribute to superior target separation, making it a valuable tool for both recreational and professional anglers.

Features

• See Maximum Depth Performance To 1,200 Feet In Freshwater
• Access CHIRP Sonar Frequency Range From 85 To 165 Kilohertz
• Search With Beam Widths Of 16 To 24 Degree
• Count On Fast-Response Water Temperature Sensing
• Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20 Degree Tilt
• Auto-ID Enables Simple Plug-And-Play Operation
• This 8-Pin, 350 Watt Bronze Thru-Hull Transducer Features High-Definition Midband CHIRP Sonar That Clearly Defines Fish Targets
• Use The Perfect Frequency For The Waters You’re Fishing
• Offering Excellent Sonar Sensitivity, Low Noise, High Resolution And Good Separation Of Targets

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02867-01
• Mounting Location: Thru-Hull Mount
• Number Of Pins: 8 Pin
• Depth: 800 Feet For Saltwater/ 1200 Feet For Freshwater
• Power Rating: 350 Watt
• Frequency Range: 85 To 165 kHz Medium Band CHIRP
• Supported Angle: 8 To 15 Degree Transom Angle
• Cable Length: 50 Feet

Technical Documents

• GT12M-THF_GT15M-THF_Transducer_Install_EN-US.pdf
