Advanced sonar technology for enhanced fishing and cruising experiences.

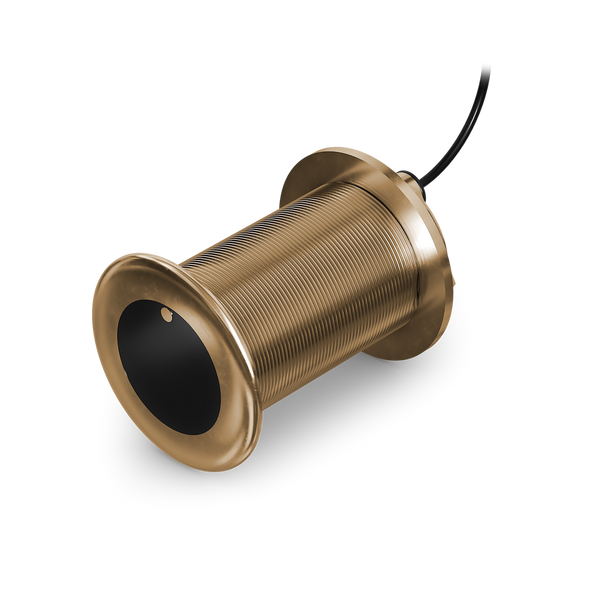

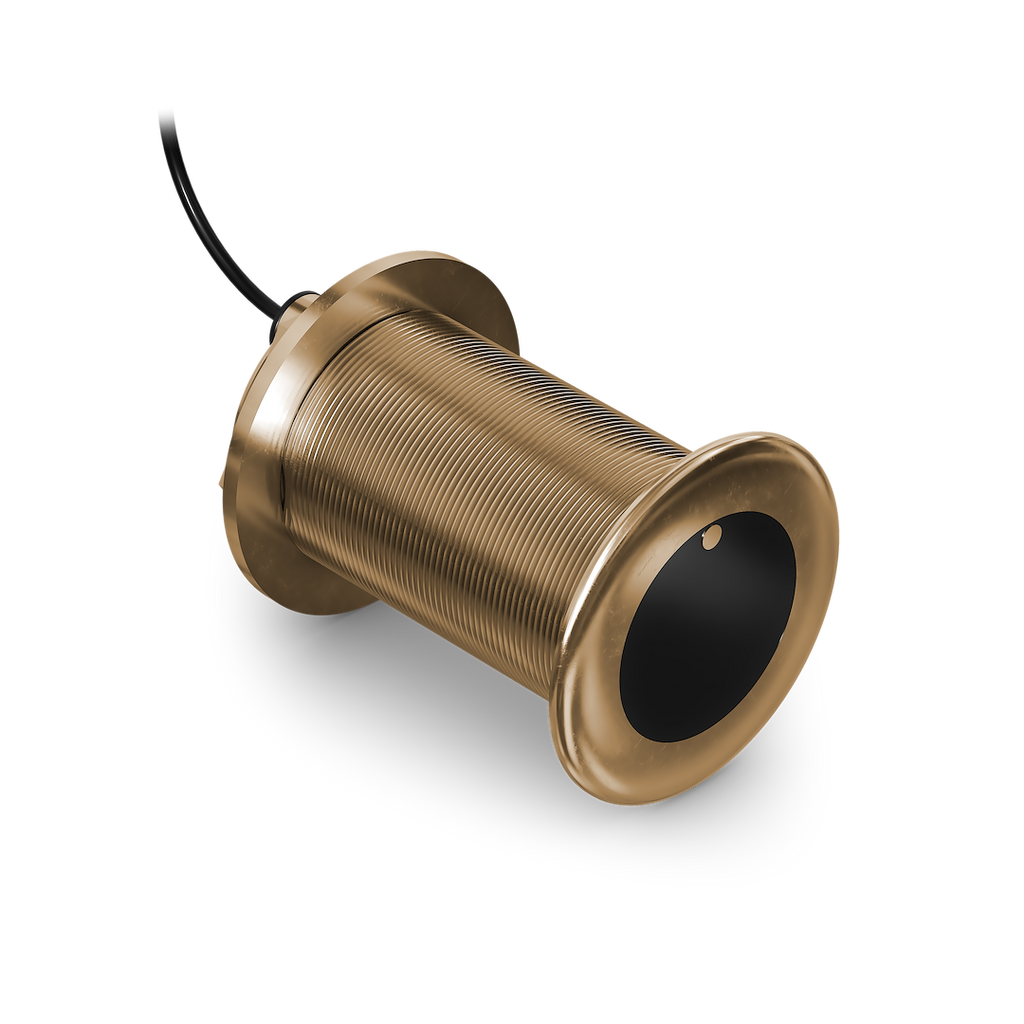

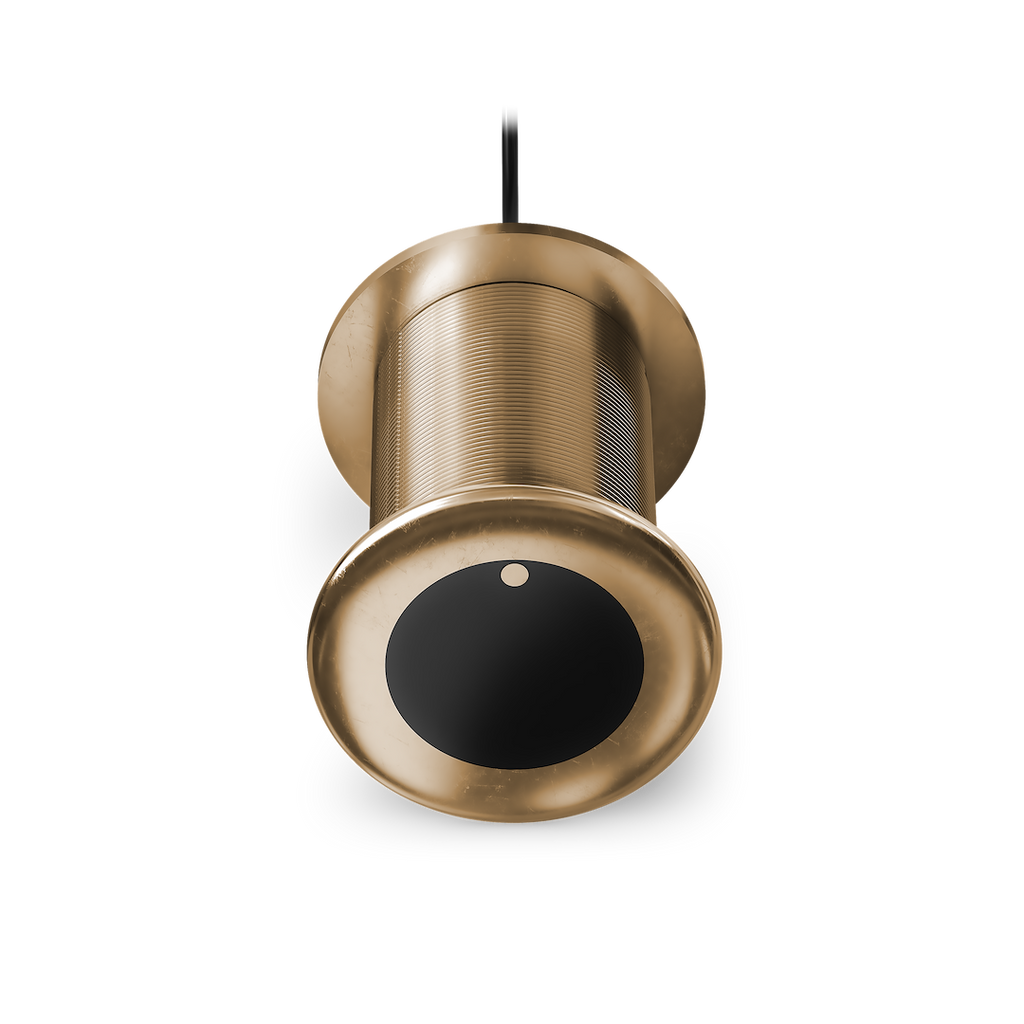

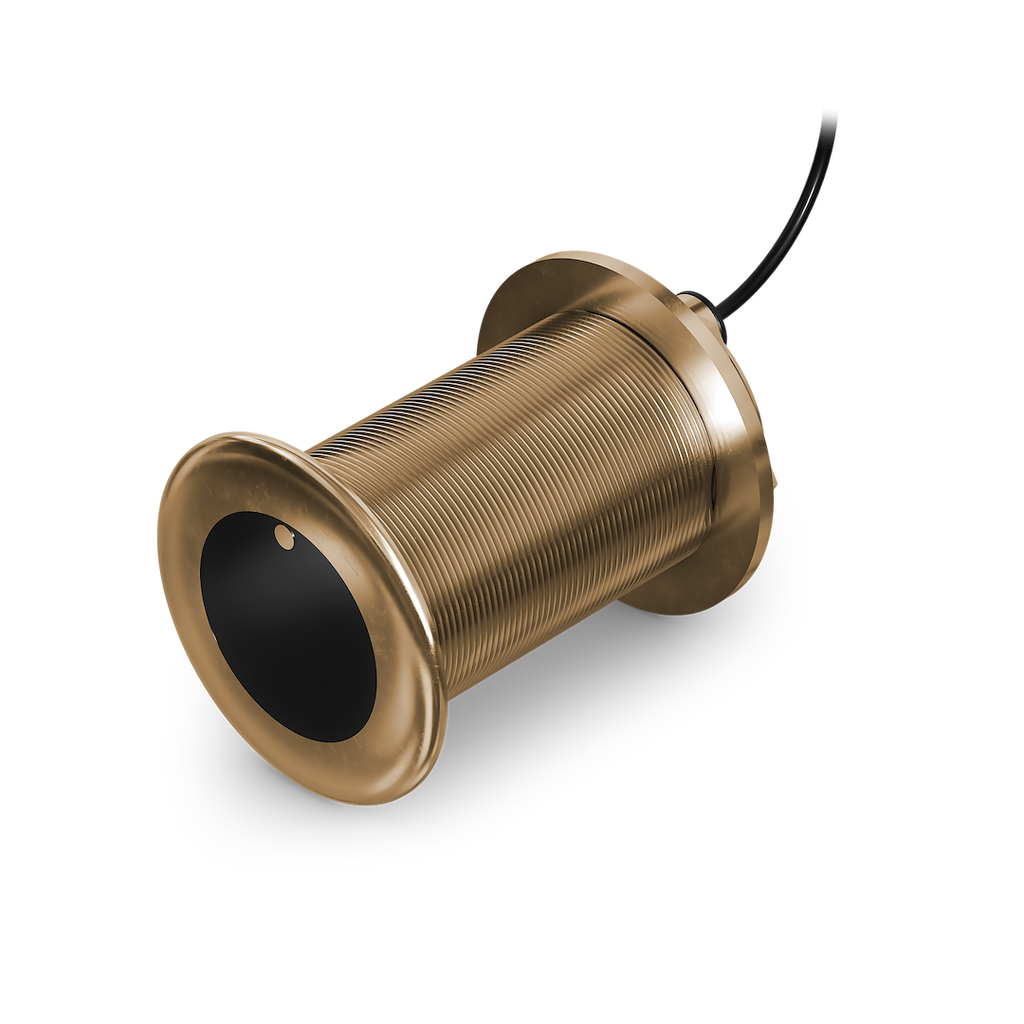

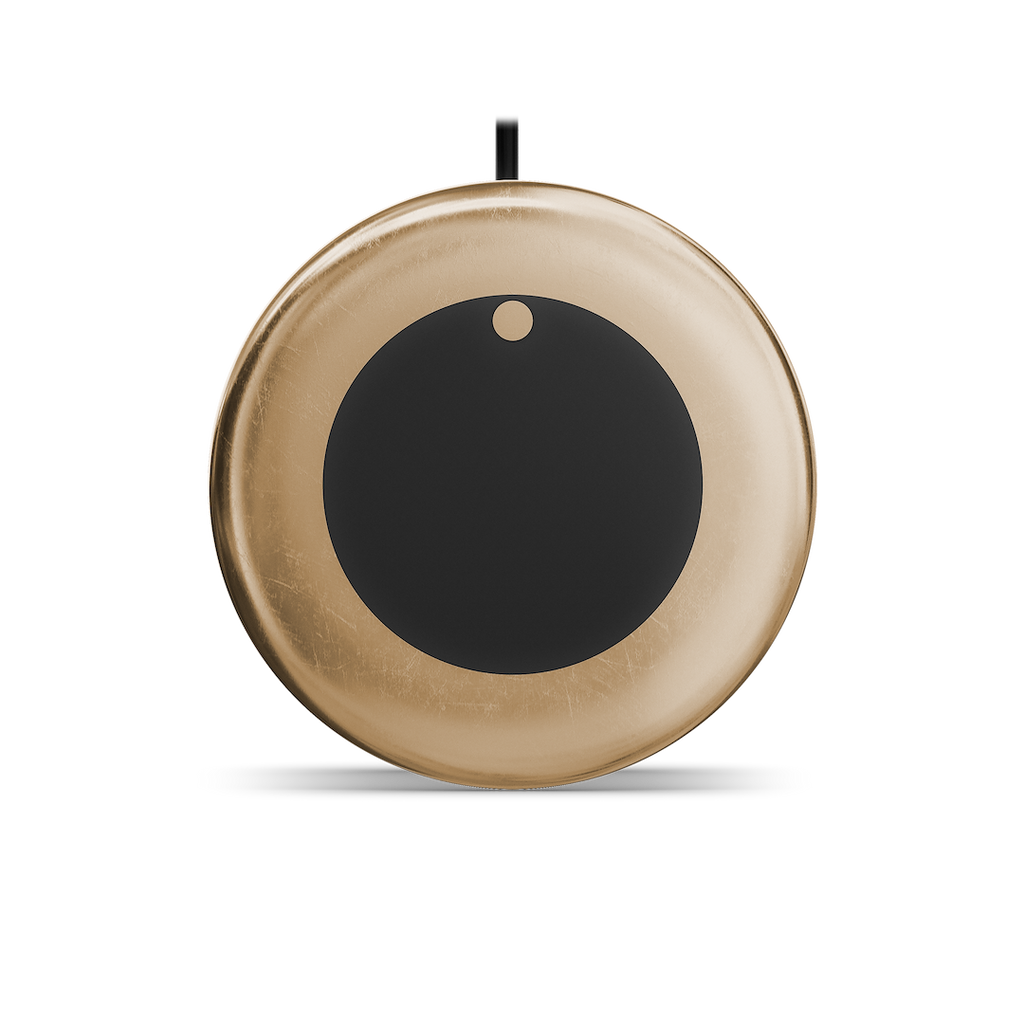

The Garmin Thru-Hull Mount Transducer is engineered for optimal sonar performance, specifically designed for midsize fishing and cruising vessels. This transducer features a robust bronze housing that allows for a flush mount installation, minimizing drag while ensuring precise beam orientation for clear sonar returns. With a power rating of 350 Watts and a frequency range of 85 to 165 kHz, it delivers high-definition midband CHIRP sonar that effectively defines fish targets and underwater structures.
This transducer supports a maximum depth of 1,200 feet in freshwater and 800 feet in saltwater, making it suitable for various fishing environments. The 8-pin configuration and 50-foot cable facilitate straightforward installation and connectivity. Additionally, the auto-identification technology simplifies the setup process, allowing the sonar to automatically adjust to the transducer in use, enhancing user experience and efficiency.
With a beam width range of 16 to 24 degrees and the capability to operate at a transom angle of 0 to 7 degrees, this transducer provides versatility for different fishing conditions. It also includes fast-response water temperature sensing, ensuring that users have access to critical data while on the water. The Garmin Thru-Hull Mount Transducer is a reliable choice for those seeking advanced sonar capabilities.
Features
- See Maximum Depth Performance To 1,200 Feet In Freshwater
- Access CHIRP Sonar Frequency Range From 85 To 165 Kilohertz
- Search With Beam Widths Of 16 To 24 Degree
- Count On Fast-Response Water Temperature Sensing
- Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20 Degree Tilt
- Auto-ID Enables Simple Plug-And-Play Operation
- This 8-Pin, 350 Watt Bronze Thru-Hull Transducer Features High-Definition Midband CHIRP Sonar That Clearly Defines Fish Targets
- Use The Perfect Frequency For The Waters You’re Fishing
- Offering Excellent Sonar Sensitivity, Low Noise, High Resolution And Good Separation Of Targets
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02867-00
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 800 Feet For Saltwater/ 1200 Feet For Freshwater
- Power Rating: 350 Watt
- Frequency Range: 85 To 165 kHz Medium Band CHIRP
- Supported Angle: 0 To 7 Degree Transom Angle
- Cable Length: 50 Feet
