Advanced sonar technology for clear underwater imaging and depth measurement.

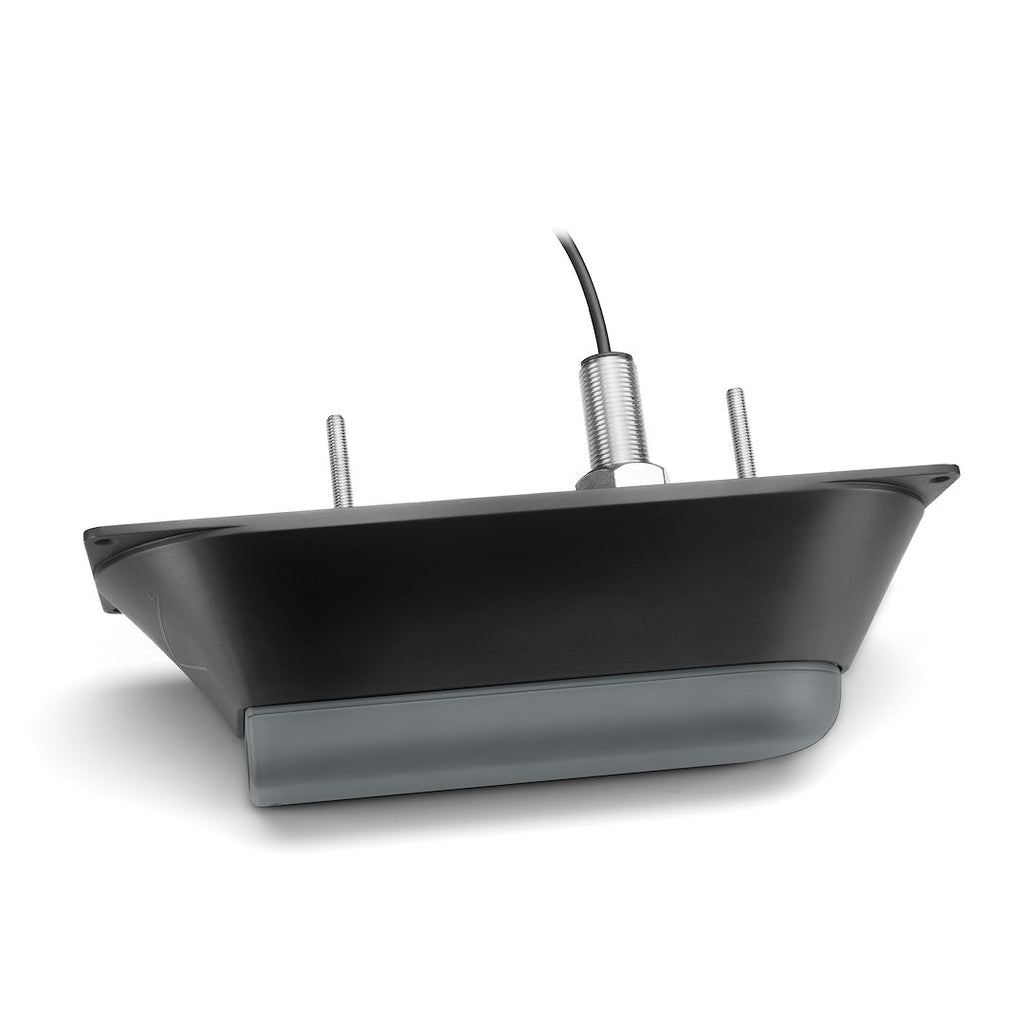

The Garmin Thru-Hull Mount Transducer is designed for marine applications, providing reliable sonar performance for both traditional and advanced scanning. With a maximum depth capability of 1800 feet for traditional sonar and 1000 feet for ClearVü and 750 feet for SideVü, this transducer ensures comprehensive underwater coverage. It operates at frequencies of 80-160 kHz for mid-band CHIRP and 260/455 kHz for ClearVü and SideVü, allowing for detailed imaging and superior target separation.
Constructed with a stainless steel stem, the transducer is optimized for rough sea conditions, ensuring durability and consistent performance. It features a built-in fast response temperature sensor and a power rating of 600 watts for traditional sonar and 500 watts for ClearVü and SideVü. The 12-pin configuration allows for easy connectivity, and the included mounting hardware and installation instructions facilitate straightforward installation.
This transducer is ideal for coastal and offshore fishermen seeking high-quality sonar capabilities. Its thru-hull mounting design consistently displays clear and crisp fish arches, providing valuable insights into underwater structures and fish movements. The 5-foot cable length offers flexibility in installation, making it suitable for various boat configurations.
Features
- Perfect For Coastal And Offshore Fishermen Who Want CHIRP Traditional Sonar And CHIRP ClearVu And CHIRP SideVu Scanning Sonar With A Stainless Steel Stem
- Thru-Hull Mounted Transducers Consistently Displays Clear And Crisp Fish Arches With Superior Target Separation, Clear Pictures Of Objects, Structure And Fish That Pass By Your Boat
- Transducer Is Optimized For Rough Sea Conditions
- Transducer With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt Per Element
- Provides A 12-Pin Transducer With Stainless Steel Stem, Fairing Block, Isolation Plate And Bushings, Mounting Hardware And Installation Instructions
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-01966-10
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 12 Pin
- Depth: 1800 Feet For Traditional, 1000 Feet For ClearVü And 750 Feet For SideVü
- Power Rating: 600 Watt For Traditional And 500 Watt For ClearVü/ SideVü
- Frequency Range: 80-160 kHz For Mid-Band CHIRP And 260/455 kHz For ClearVü/SideVü
- Supported Angle: 0 To 5 Degree Deadrise
- Cable Length: 5 Feet
