Experience superior ultra high-definition sonar imaging for enhanced fishing.

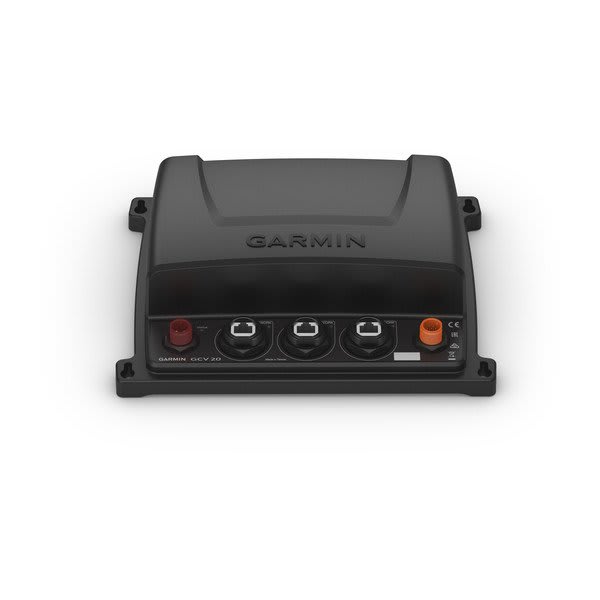

The Garmin GCV 20 sonar sounder module is designed to deliver superior clarity and detail in underwater imaging. This networkable black box allows for the integration of various GT34UHD transducer models, enabling users to access stunning Ultra High-Definition ClearVü and SideVü scanning sonars. Operating at frequencies from 800 kHz to 1200 kHz, the GCV 20 provides exceptional image clarity of structures and fish at greater depths compared to traditional high-frequency scanning sonars.
With a maximum power output of 500 watts, the GCV 20 enhances the visibility of targets beneath the boat, ensuring that users can scout fishing areas efficiently. The module is built to withstand harsh marine environments, featuring an IPX7 waterproof rating and a wide operating temperature range from 5 degrees Fahrenheit to 158 degrees Fahrenheit. Installation is straightforward, making it accessible for various boat setups.
The GCV 20 also supports seamless sharing of sonar images across multiple networked chartplotters, including compatibility with Panoptix all-seeing sonar technology. This capability allows for comprehensive scanning and monitoring of underwater environments, providing users with the tools needed for effective fishing and exploration.
Features
- Stunningly Clear Ultra High-Definition ClearVü And Ultra High-Definition SideVü Scanning Sonars
- Provides Brilliant Image Clarity Of Structure And Fish Below Your Boat At Greater Depths Than Other High-Frequency Scanning Sonars
- Water Rating: IPX7
- Easy To Install
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02055-10
- Size: 9-15/16 Inch Length X 7-5/8 Inch Width X 2-5/8 Inch Height
- Frequency: 760 To 1230 kHz
- With Transducer: No
- Input Voltage: 10 To 35 Volt
- Temperature Range: 5 Degree Fahrenheit To 158 Degree Fahrenheit
- Waterproof: IPX7 Rating Waterproof
- Includes: With Right-Angle Power Cable/ Right-Angle Ethernet Cable/ Mounting Hardware
Technical Documents
- GCV_20_Installation_Instructions_EN.pdf
- ISPI_Marine_All_FCC_ML.pdf
- ISPI_Marine_All_FCC_ML.pdf
- garmin-marine-warranty-policy.pdf
- ISPI_Marine_All_FCC_ML.pdf
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
