Garmin Reactor 40 Autopilot System (MPN: 010-00705-87)

Advanced autopilot for Yamaha Helm Master systems with robust features.

The Garmin Reactor 40 Autopilot System is engineered for both powerboats and sailboats, providing advanced steering capabilities for Yamaha Helm Master systems. This system features a solid-state 9-axis attitude heading reference system that ensures precise navigation and course holding, even in challenging sea conditions. The Reactor 40 is designed for minimal commissioning and calibration, allowing for quick setup and operation.

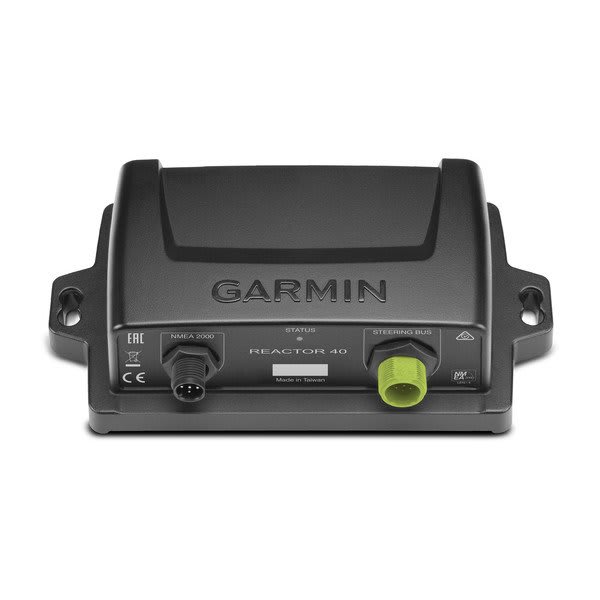

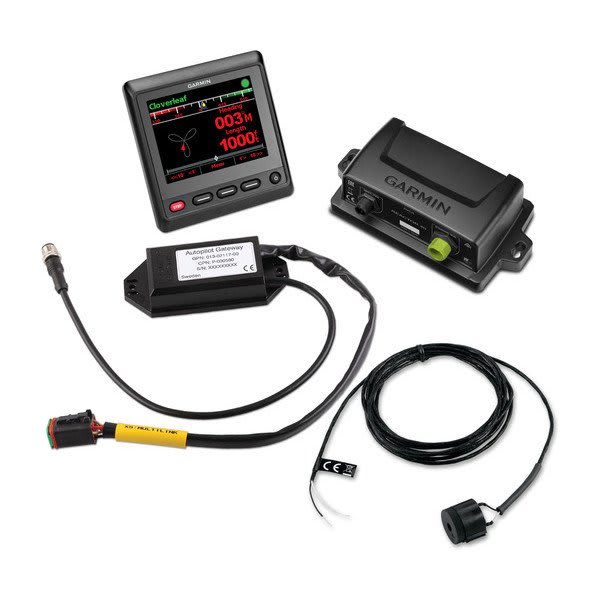

This autopilot system minimizes heading error, course deviation, and rudder movement, resulting in reduced power consumption and a more comfortable ride. Its fully gasketed, high-impact plastic construction meets IEC 529 IPX7 waterproof standards, ensuring durability and reliability in marine environments. The Reactor 40 includes a complete package with essential components such as the GHC 20 helm control display, course computer unit, and necessary cables for seamless integration.

With versatile features including heading hold, wind hold, tack and jibe, and step turns, the Reactor 40 adapts to various boating scenarios. This system is designed to react to the sea, maintaining your desired course even when the boat is pitching and rolling. The Garmin Reactor 40 Autopilot System represents a significant advancement in marine technology, making sophisticated autopilot capabilities accessible to recreational boaters.

Features

• Solid-State 9-Axis Attitude Heading Reference System
• Minimal Commissioning And Calibration
• Minimizes Heading Error, Course Deviation, Rudder Movement And Power Consumption While Providing A Comfortable Ride
• Fully Gasketed, High-Impact Plastic, Waterproof To IEC 529 IPX7 Standards

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-00705-87
• Compatibility: Yamaha Helm Master Systems/ Outboard Engines
• Dimension: CCU 3-5/8 Inch Diameter, Buzzer/ Alarm 15/16 Inch Length X 1 Inch Diameter
• Voltage Rating: 9 To 16 Volt

Technical Documents

• GHP_Reactor_SBW_Yamaha_Addendum_ML.pdf
• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US_(2).pdf
• GHC_20_OM_EN-US.pdf
• GHC_GMI20_Flush_Mount_Template.pdf
• Reactor_40_Steer-by-Wire_Configuration_Guide_EN_(1).pdf
• garmin-marine-warranty-policy.pdf
• GHC_20_OM_EN-US.pdf
• GHC_GMI20_Flush_Mount_Template.pdf
