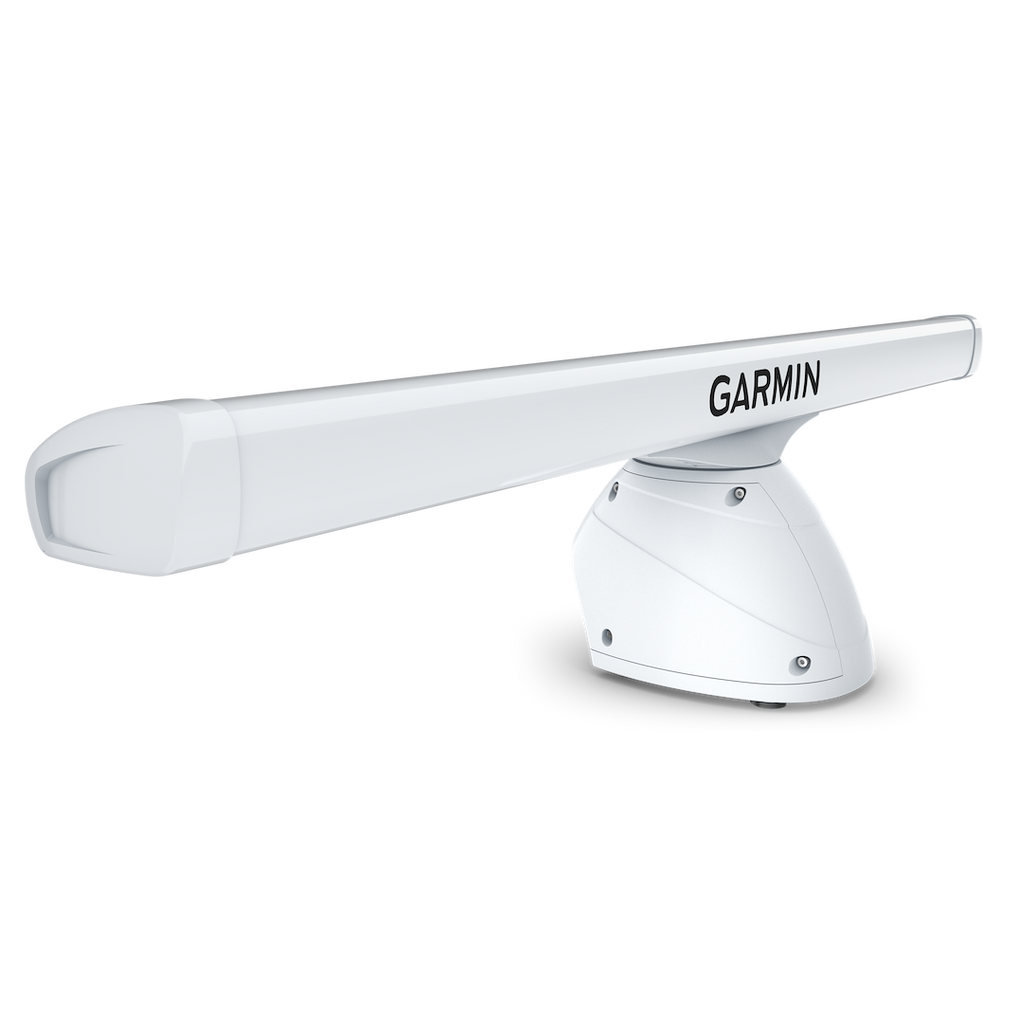

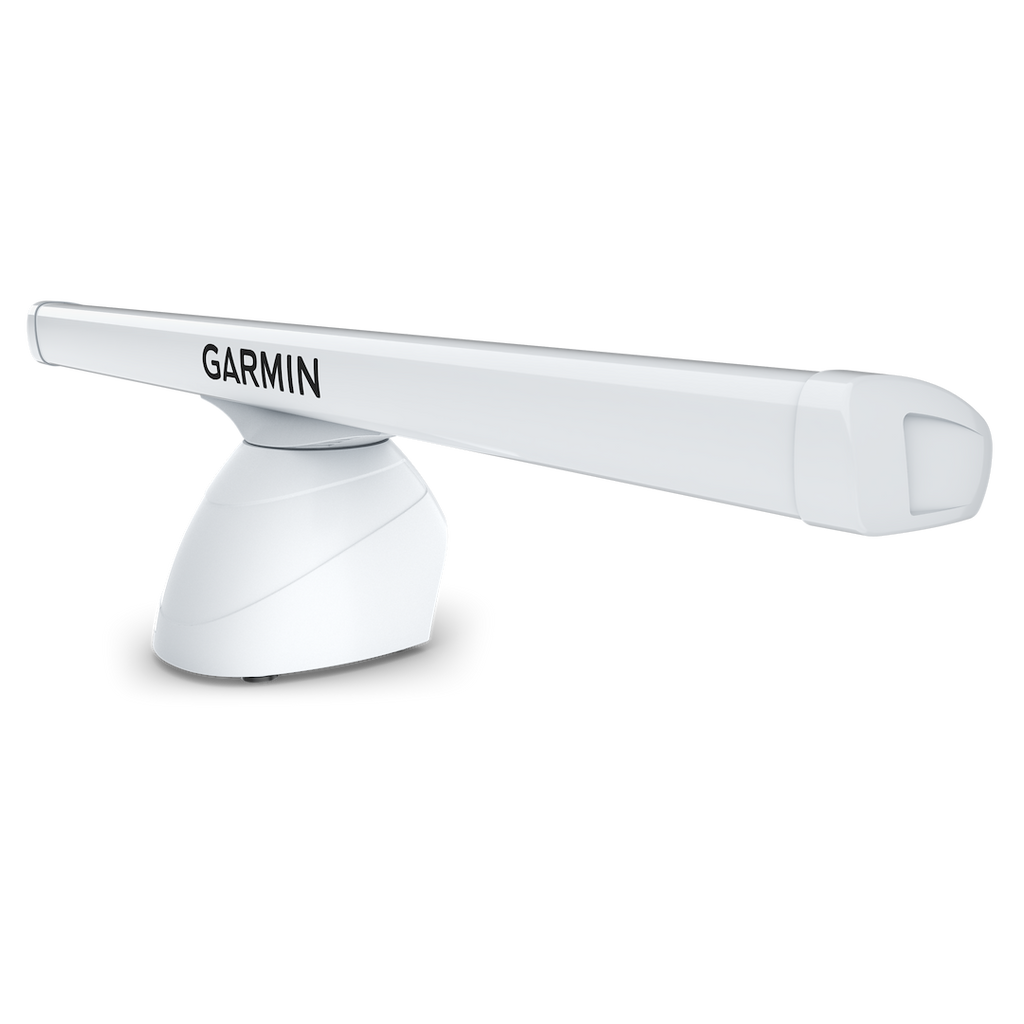

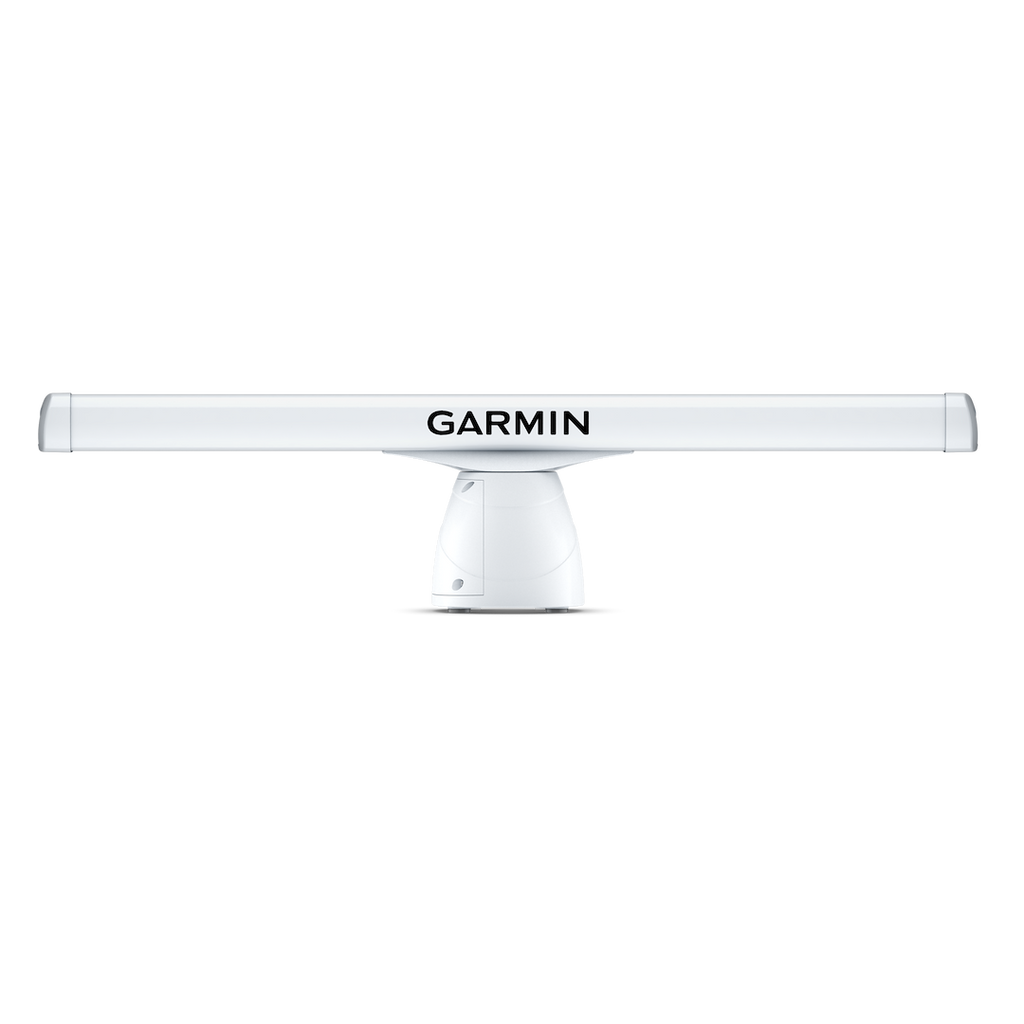

Garmin Radar Antenna GMR XHD3 Series (MPN: 010-02780-10)

Advanced open array radar for superior marine detection and safety.

The Garmin Radar Antenna GMR XHD3 Series is a high-performance open array radar designed for marine applications. With a 6-foot array and a range of 1/8 to 72 nautical miles, this radar provides exceptional weather, obstacle, and traffic detection capabilities. The robust design features an IPX6 waterproof rating, ensuring reliability in various marine conditions.

Utilizing advanced Garmin platform technology, the radar incorporates scan averaging to filter out sea clutter and interference, enhancing target detection. The pulse expansion and angular target-size processing techniques optimize object shapes on-screen, facilitating better interpretation across all range scales. With rotation speeds of 24 and 48 RPM, the radar offers fast redraw rates for real-time situational awareness.

The GMR XHD3 Series supports dual radar functionality, providing redundancy and allowing for independent range settings on compatible chart plotters. Automatic gain adjustments optimize performance in different sea conditions, while the historical trail feature helps identify moving targets and potential collision threats. This radar is an essential tool for mariners seeking to enhance their navigation and safety on the water.

Features

• First For Garmin Magnetron Radar, Scan Averaging Helps Filter Out Sea Clutter And Interference To Enhance The Detection And Display Of Consistent Targets
• Pulse Expansion And Angular Target-Size Processing Techniques Optimize On-Screen Object Shapes For Better Interpretation At All Range Scales
• 100-Knot Wind-Rated Open-Array Antennas1 Have Rotation Speeds Of 24 And 48 RPM For Fast Redraw Rates
• Historical “Trail” Of Boats On The Water Is Displayed On The Screen, Removing Relative Motion Influence To Help You Quickly Identify Moving Targets And Potential Collision Threats
• Single Radar Antenna Is Capable Of Providing Split-Screen, Side-By-Side Images On Your Compatible Chart Plotter, With Independent Range Setting And Controls For Both Close And Long Range
• Gain Automatically Adjusts Levels To Optimum Settings For Harbors, Near Shore And Offshore In Open Waters
• Dual Radar Support: Provides Redundancy And Allows Each Display Unit To Pull Data From Different Sources
• Radar Gain Automatically Adjusts Sea Clutter For Calm, Medium And Rough Sea Conditions
• Locate Flocks Of Birds At The Water’s Surface Where Baitfish Are Also Likely To Be Found

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02780-10
• Radar Type: Open Array
• Distance Range Limit: 72 Nautical Miles
• Size: 72 Inch Array
• Power Output: 4000 Watt
• Beam Width: 1.1 Degree Horizontal/ 23 Degree Vertical
• Color: White
• Range Scale: 1/8 To 72 Nautical Miles
• Near Range Limit: 1/8 Nautical Miles
• Waterproof Rating: IPX6 Rating Waterproof
