Achieve precise heading information with advanced GPS technology.

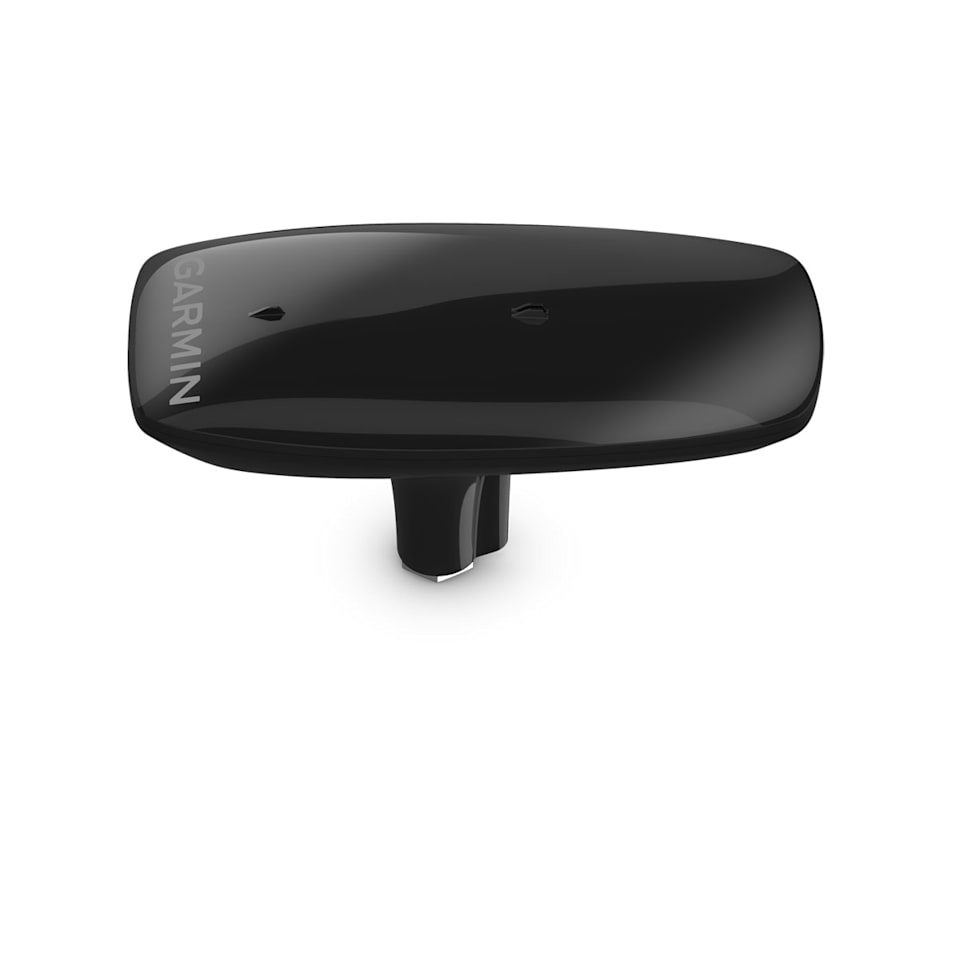

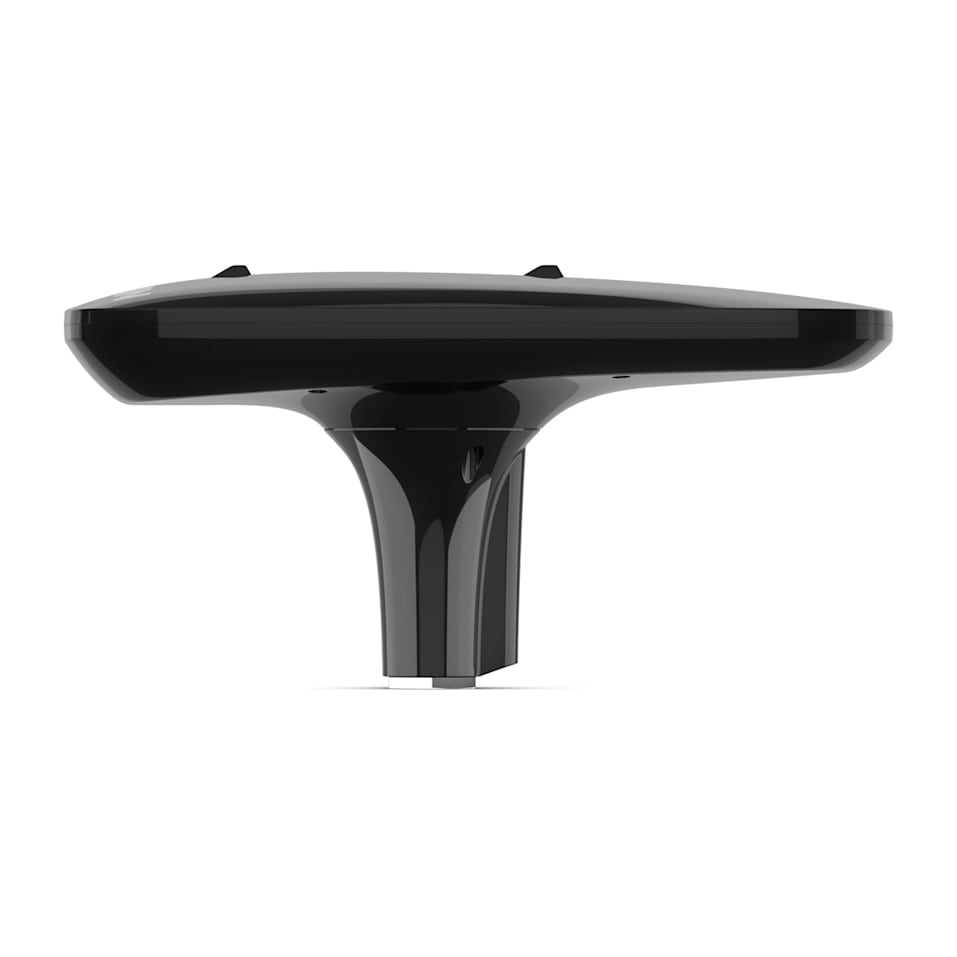

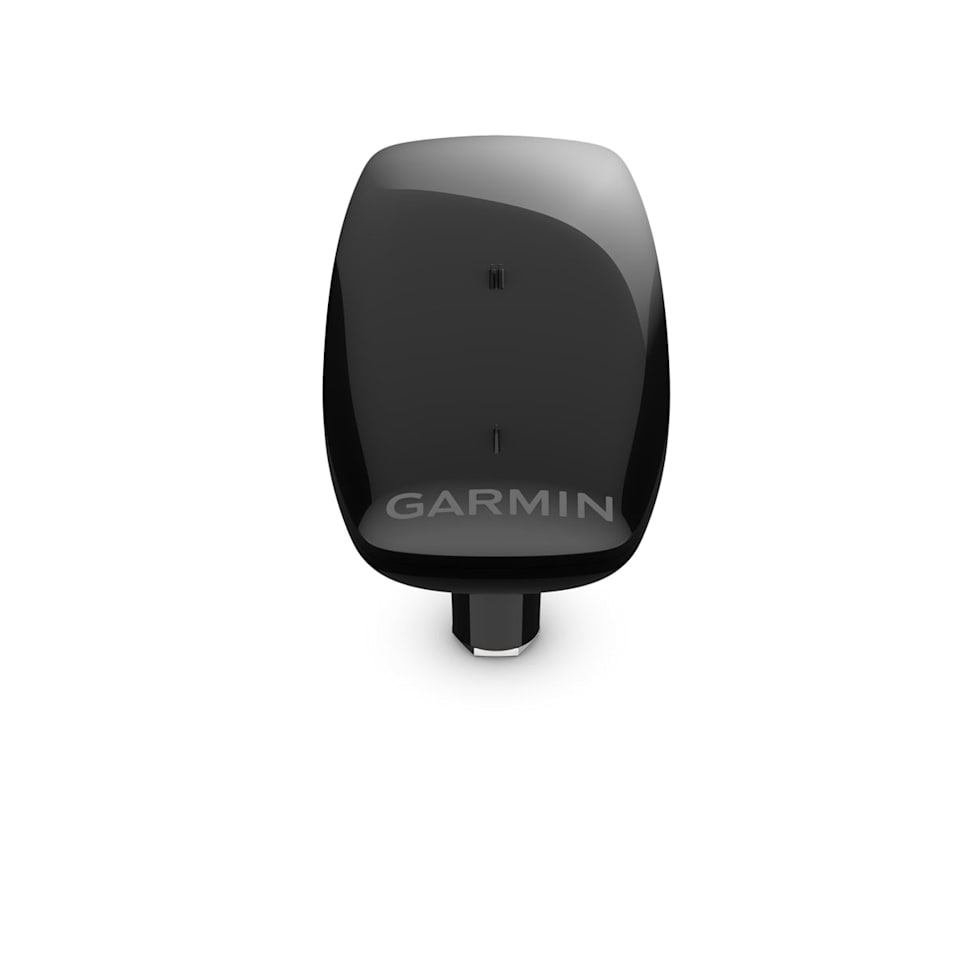

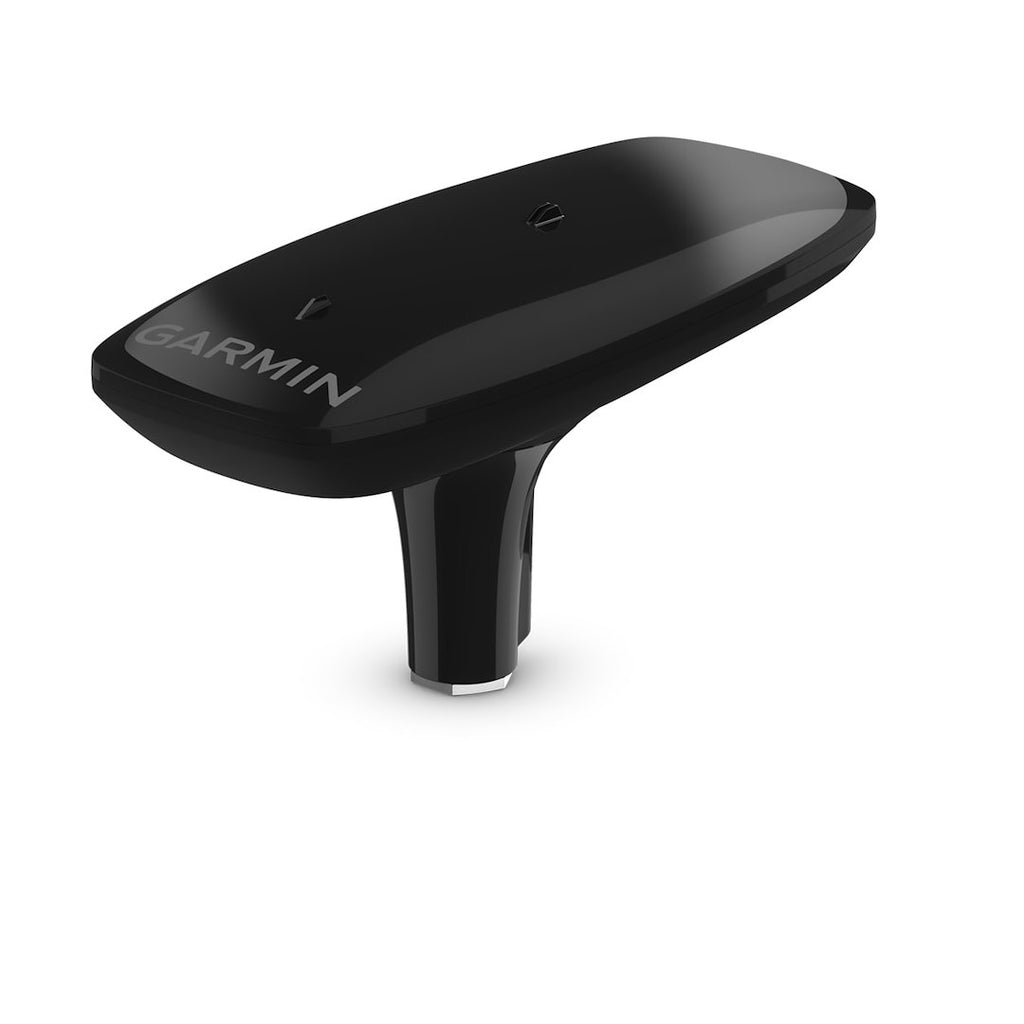

The Garmin Marine Satellite Compass MSC 10 is designed to provide reliable and accurate heading information for marine applications. With a compact size of 13 inches in length, 6 inches in width, and 3 inches in height, this device is built from high-impact plastic alloy, ensuring durability in harsh marine environments. Operating within a temperature range of 5 to 150 degrees Fahrenheit, it is suitable for various weather conditions and can function with an input voltage of 9 to 32 volts.
Equipped with a multi-band GNSS and multi-constellation receiver, the MSC 10 delivers precise positioning and heading accuracy within 2 degrees, eliminating concerns about magnetic interference. Its built-in attitude heading reference system enhances GPS heading performance at all speeds, making it effective even in rough seas. The device can serve as the primary sensor for autopilots and other onboard systems that require accurate heading data.
The MSC 10 is NMEA 2000 network compatible, allowing it to transmit heading, pitch, heel, and heave information directly to compatible Garmin chart plotters. With a 10 Hertz update rate, it provides detailed tracking information, while a backup heading sensor ensures continuity in heading data by switching from GPS to magnetometer-based heading in rare signal loss situations. This easy-to-install device integrates seamlessly into the Garmin marine ecosystem, making it a valuable addition for any boating enthusiast.
Features
- Multi-Band GNSS AND Multi-Constellation: The Multi-Band GPS And Multi-Constellation Receiver Delivers Precise Positioning 1
- Accurate Heading Data: Multiple Receivers Deliver Heading Accuracy Within 2 Degree, Because It Uses Satellite Signals, You Don’t Have To Worry About Magnetic Interference
- Built-In Attitude Heading Reference System: With A Fully Integrated Attitude And Heading Reference System For Better GPS Heading At All Speeds, Including Pitching In Rough Seas
- Primary Sensor Across Multiple Systems: You Can Use MSC 10 As The Primary Sensor For Autopilots And Other Onboard Systems That Need Accurate Heading Information
- NMEA 2000 Network Compatible: Get Heading, Pitch, Heel And Heave Information Delivered Straight To Your Compatible Garmin Chart Plotter Via The NMEA 2000 Network
- 10 Hertz Update Rate: Get Better, More Detailed Tracking Information, Thanks To The 10 Hertz Position Update Rate
- Backup Heading Sensor: In The Extremely Rare Case That You Lose Satellite Signal, MSC 10 Will Seamlessly Transition From GPS-Based To Magnetometer-Based Heading 2
- Boat Heave And More: Get Reliable, Accurate Boat Heave, Pitch And Roll Information Even In Rough Waters
- Easy To Install: This Compact Device Is Simple To Install And Easily Integrates Into Your Garmin Marine Ecosystem
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02407-10
- Dimensions: 13 Inch Length X 6 Inch Width X 3 Inch Height
- With Transducer: No
- Temperature Range: 5 Degree Fahrenheit To 140 Degree Fahrenheit
- Ampere Rating: 0.18 Amp
- Voltage: 9 To 32 Volt
- Color: Black
- Material: Plastic

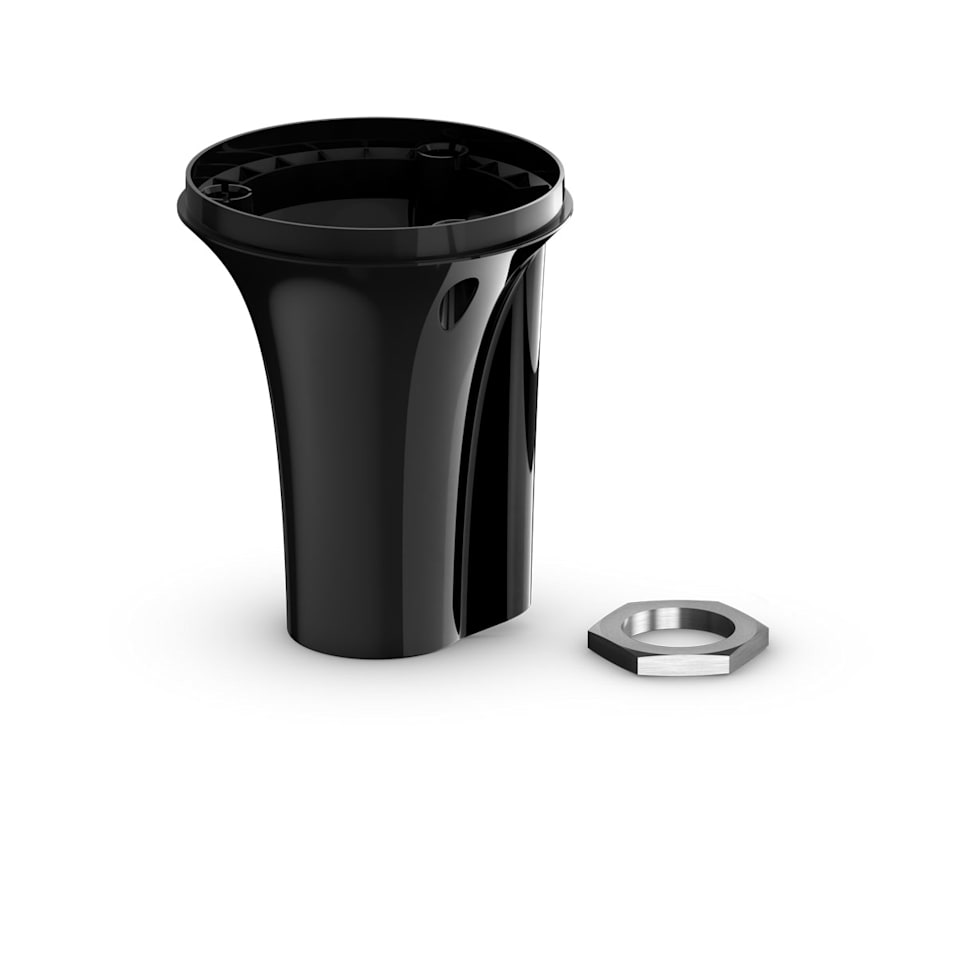

- Includes: With Pole Mount/ Mounting Hardware/ NMEA 2000 T-Connector/ NMEA 2000 Backbone/Drop Cable
