Garmin GT8HW-IF Transducer (MPN: 010-12401-20)

High Wide CHIRP Transducer for Enhanced Ice Fishing Performance

The Garmin GT8HW-IF Transducer is designed specifically for ice fishing, providing exceptional clarity and target separation. With a maximum depth capability of 800 feet in freshwater, this transducer operates within a frequency range of 150-240 kHz, utilizing High Wide CHIRP technology to deliver detailed sonar images. The 24-16 degree beamwidth allows for a wider coverage area, ensuring that users can effectively locate fish beneath the ice.

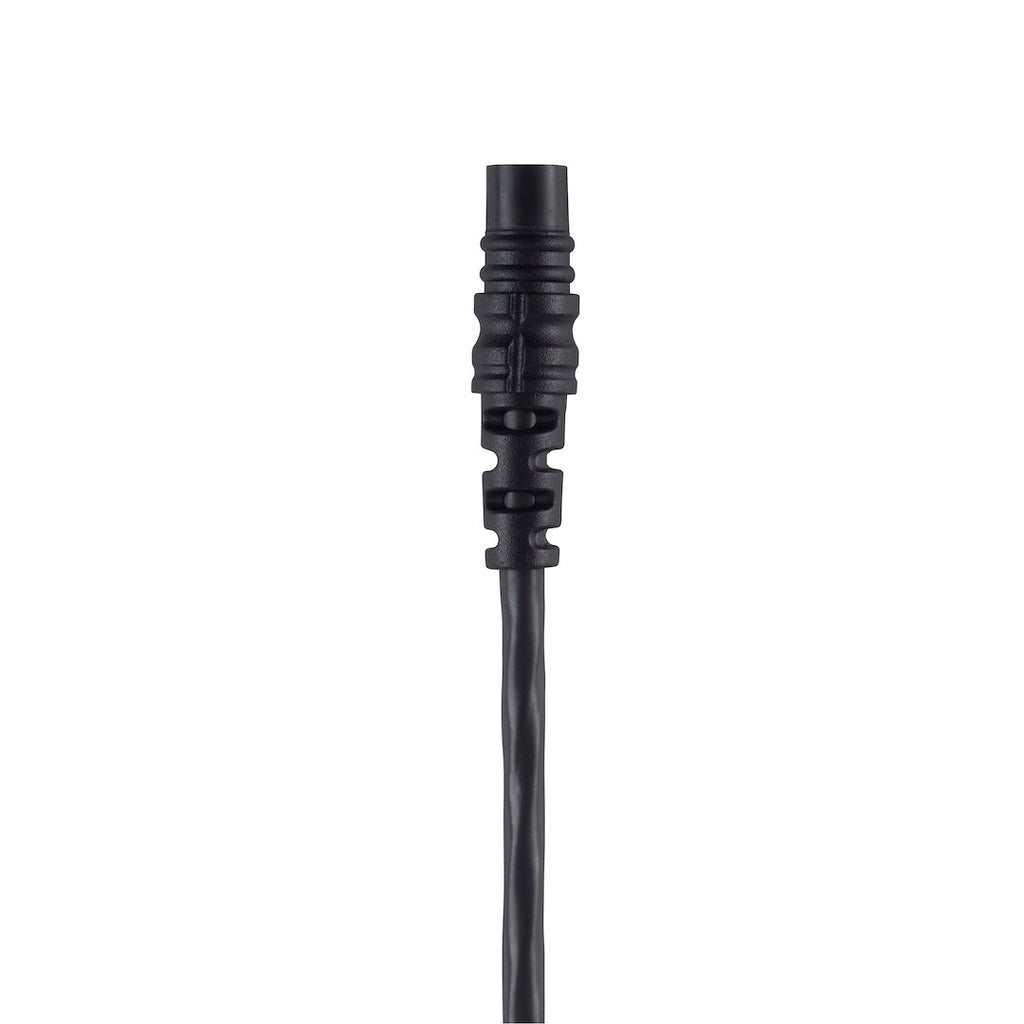

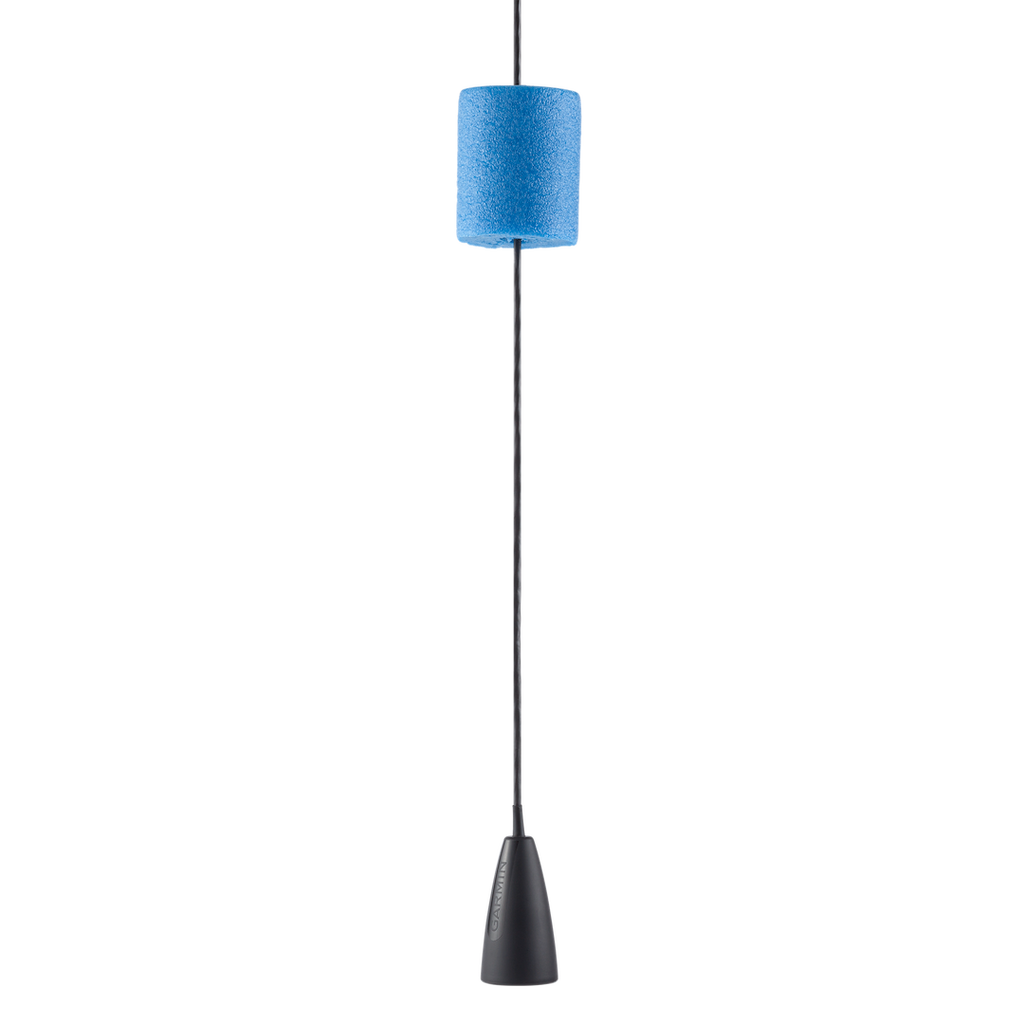

Constructed with a 250-watt power rating, the GT8HW-IF features a 4-pin connection and an 8-foot silicon-coated cable that remains flexible even in harsh winter conditions. This design optimizes the shape and beam widths for ice fishing applications, making it a reliable tool for anglers seeking clear bottom definition and wide fish arches. The included float and documentation enhance usability, ensuring that users can quickly set up and start fishing with confidence.

Features

• GT8HW-IF Transducer Is Perfect For Ice Fishermen Who Want Clear Bottom Definition Under The Ice As Well As Crisp, Clear And Wide Fish Arches With Excellent Target Separation
• Wider Beam Width Up To 24 Degree Beam Angle Provides A Larger Coverage Area In The Water
• 250 Watt 4-Pin Transducer Features High Wide Band Chirp Traditional Sonar
• Shape And Beam Widths Have Been Optimized For Ice Fishing
• Feature A Silicon-Coated Cable That Remains Flexible In Harsh Winter Conditions

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-12401-20
• Mounting Location: Ice Mount
• Number Of Pins: 4 Pin
• Depth: 800 Feet For Freshwater
• Power Rating: 250 Watt
• Frequency Range: 150-240 kHz High Wide CHIRP Operating Frequency
• Cable Length: 8 Feet

Technical Documents

• Ice_Transducer_Install.pdf
• garmin-marine-warranty-policy.pdf
