Advanced sonar technology for superior fish finding and structure imaging.

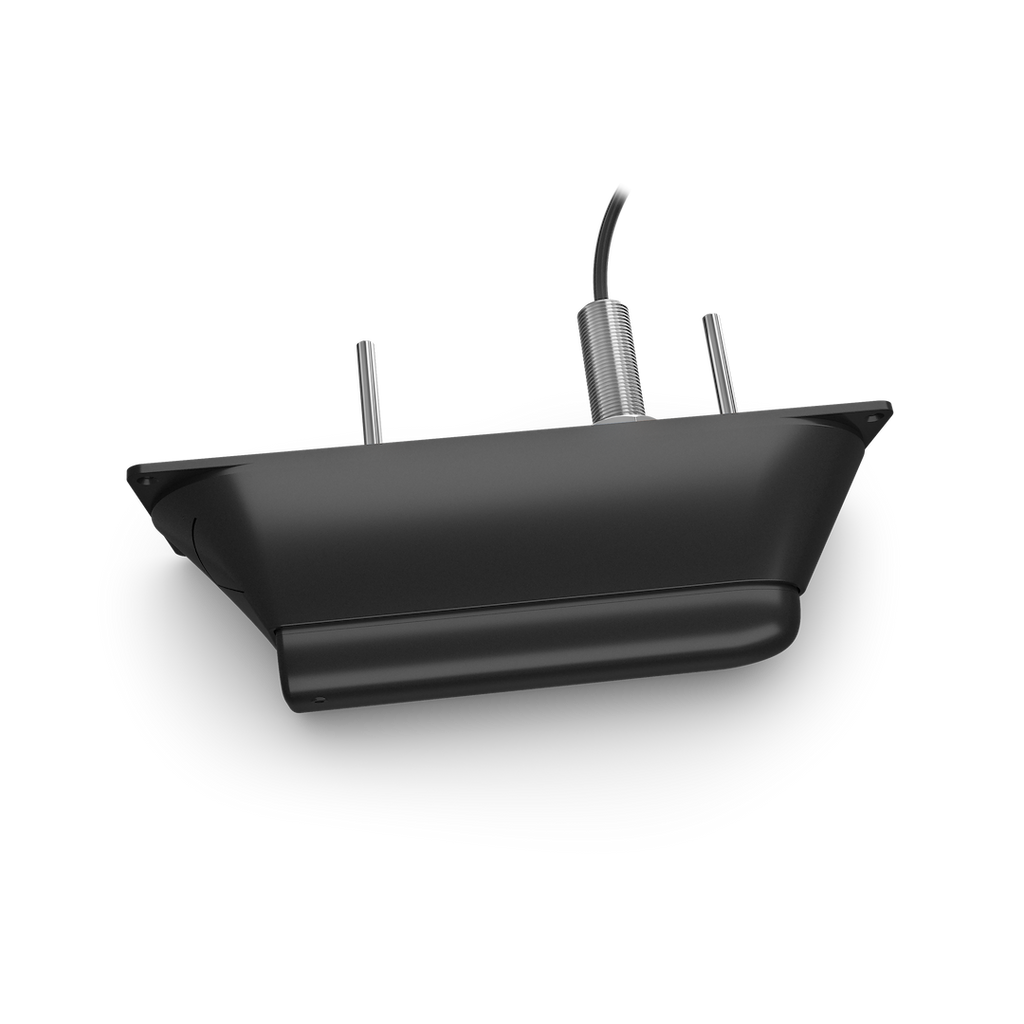

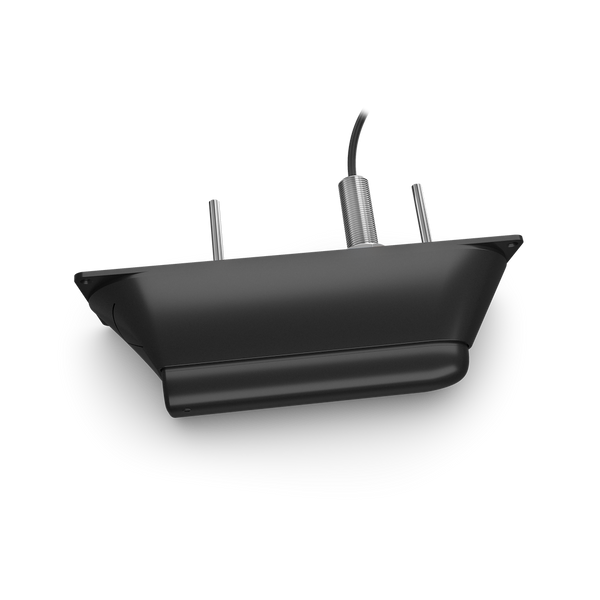

The Garmin GT56UHD-TH Transducer is designed for serious anglers seeking advanced sonar capabilities. This all-in-one transducer features Ultra High-Definition ClearVü and SideVü scanning sonars, along with traditional high wide CHIRP sonar, providing a comprehensive view of underwater environments. With a power rating of 350 watts for traditional sonar and 500 watts for ClearVü/SideVü, it delivers exceptional image clarity and target separation at greater depths.
Equipped with a 12-pin connector and a 25-foot cable, the transducer is suitable for thru-hull mounting, ensuring a secure installation. It supports a transom angle of 0 to 70 degrees, making it versatile for various boat types. The ClearVü and SideVü sonar capabilities allow for stunningly clear images of structures and fish, with a 20 percent greater range at 1,000 kilohertz, enhancing the fishing experience.
The Garmin GT56UHD-TH is engineered to provide high contrast vivid scanning sonar color palettes, making it easier to distinguish between targets and underwater structures. With a depth capability of 800 feet for freshwater and 400 feet for ClearVü and 500 feet for SideVü, this transducer is a powerful tool for any fishing expedition.
Features
- Get Brilliant Image Clarity Of Structure And Fish Below Your Boat At Greater Depths Than Other High-Frequency Scanning Sonars; It Puts More Power On Targets Via A Downward-Facing Element
- See Everything The First Time With Stunningly Clear Images Of Structure And Fish Off To The Sides Of Your Boat; SideVü Sonar Now Has 20 Percent Greater Range At 1,000 Killohertz
- Experience Remarkably Clear Target Separation And Definition Up To 800 Inch Below Your Boat
- High Contrast Vivid Scanning Sonar Color Palettes Make It Easier Than Ever To Distinguish Targets And Structure
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02732-10
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 12 Pin
- Depth: 800 Feet For Freshwater, 400 Feet For Clearvü And 500 Feet For Sidevü
- Power Rating: 350 Watt For Traditional And 500 Watt For ClearVu/SideVu
- Frequency Range: Traditional 150-240 kHz CHIRP High-Wide, ClearVu/SideVu 455/800/1000 kHz
- Supported Angle: 0 To 70 Degree Transom Angle
- Cable Length: 25 Feet
