Advanced sonar technology for superior fishfinding and bottom tracking.
The Garmin GSD 25 Sonar Sounder Module is a premium remote network solution designed to enhance fishfinding and bottom tracking capabilities. With a compact size of 9.9 inches in length, 7.6 inches in width, and 2.6 inches in depth, this module operates at a frequency of 50 kHz and delivers 27 watts of power. It is engineered to function within a voltage range of 10 to 35 volts and can withstand operating temperatures from 5 degrees Fahrenheit to 158 degrees Fahrenheit, making it suitable for various marine environments.
This sonar module features dual-channel 1 kilowatt CHIRP technology, along with Garmin CHIRP ClearVü and SideVü scanning capabilities. This combination provides exceptional clarity and target resolution, allowing users to distinguish between small and closely spaced fish at depths of up to 5,000 feet. The advanced CHIRP technology, which stands for Compressed High-Intensity Radiated Pulse, significantly improves the quality of sonar images compared to traditional systems.
The GSD 25 is constructed from durable polycarbonate material and is rated IPX7 for waterproofing, ensuring reliable performance in wet conditions. It includes essential components such as a right-angle power cable, right-angle network cable, and mounting hardware, facilitating straightforward installation and integration with compatible Garmin chartplotters. This module is an essential tool for serious sport fishers seeking to optimize their fishing experience.
Features
- Premium Remote Network Sonar Solution
- Provides Serious Sport Fishers Outstanding Fishfinding And Bottom Tracking Capabilities
- Helps Distinguish Between Small And Closely Spaced Fish At Key Fishing Depths

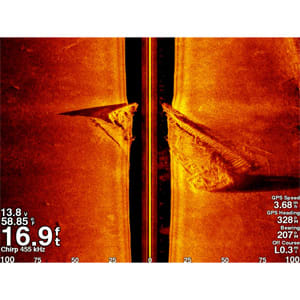

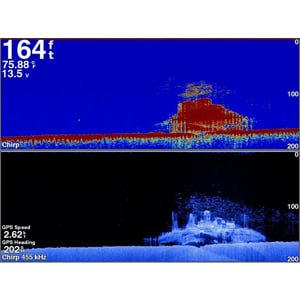

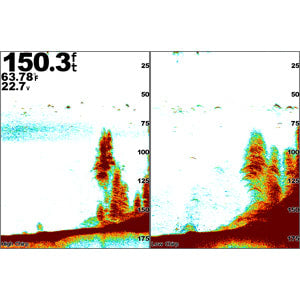

- Features True Dual-Channel 1 KW CHIRP, Plus CHIRP SideVü And ClearVü Scanning Sonar For The Clearest Images On The Water
- Depth Capability To 5,000 Feet
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-01159-00
- Size: 9-15/16 Inch Length X 7-5/8 Inch Width X 2-5/8 Inch Height
- Frequency: 50 To 200 kHz
- With Transducer: No
- Input Voltage: 10 To 35 Volt
- Temperature Range: 5 Degree Fahrenheit To 158 Degree Fahrenheit
- Material: Polycarbonate
- Waterproof: IPX7 Rating Waterproof
- Includes: With Right-Angle Power Cable/ Right-Angle Network Cable/ Mounting Hardware
Technical Documents
- GSD_25_Install_EN.pdf
- ISPI_Marine_All_FCC_ML.pdf
- ISPI_Marine_All_FCC_ML.pdf
- garmin-marine-warranty-policy.pdf
- ISPI_Marine_All_FCC_ML.pdf
