Garmin GPS Navigation System Antenna (MPN: 010-02316-20)

Achieve precise location tracking with advanced multi-band GNSS technology.

The Garmin GPS 24xd Navigation System Antenna is designed to provide accurate positioning and heading information for marine applications. Utilizing multi-band GNSS technology, this antenna ensures location accuracy within 1 meter, making it compatible with various marine multifunction displays and autopilots. The integrated magnetic heading sensor enhances navigation by delivering accuracy within 3 degrees, stabilizing charts and radar overlays even at slow speeds.

This antenna supports multiple global navigation satellite systems, allowing for improved tracking in challenging conditions compared to traditional GPS systems. With multi-SBAS compatibility, it corrects signal measurement errors and provides critical information regarding signal accuracy and availability. The device operates effectively within a temperature range of -22 to 149 degrees Fahrenheit, ensuring reliability in diverse environments.

Installation is straightforward with multiple mounting options, including pole, surface, and under-deck mounts. The antenna is constructed from high-impact plastic alloy and features an IPX7 waterproof rating, making it resilient against harsh weather conditions. Additionally, it is compatible with NMEA 2000 networks, facilitating seamless integration with other marine devices.

Features

• Navigate In More Locations With Expanded GNSS Support
• Get High-Sensitivity Tracking With Fast GPS Update Rate
• Accurately Pinpoint Your Heading: Regardless Of Speed
• It’s Water-Resistant IPX7 To Withstand The Elements
• Install It Easily With Multiple Mounting Options
• The Antenna Is Compatible With NMEA 2000 Devices
• Fast 10 Hertz Position Update Rates Provide High-Sensitivity Position, Velocity And Time Data
• Installation Is Easy With Under-Deck, Pole And Surface-Mount Options

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02316-20

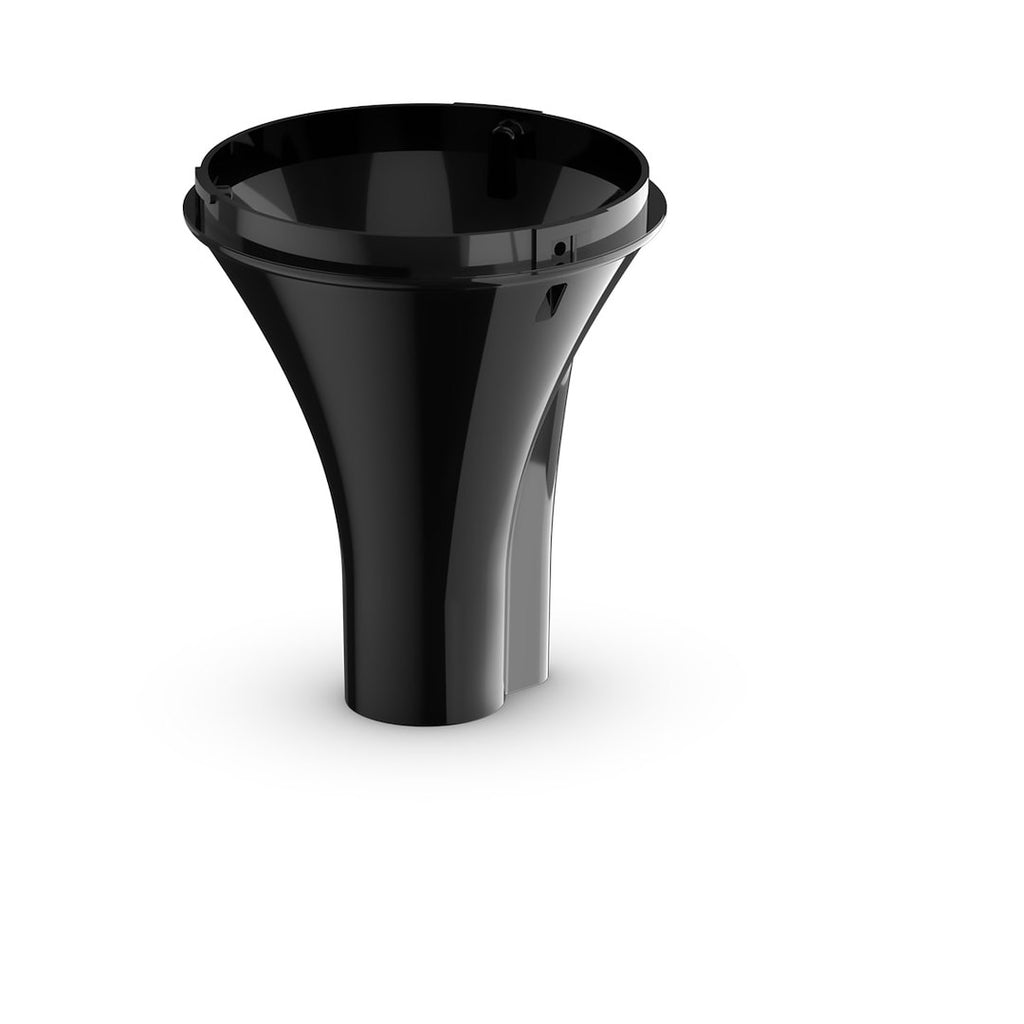

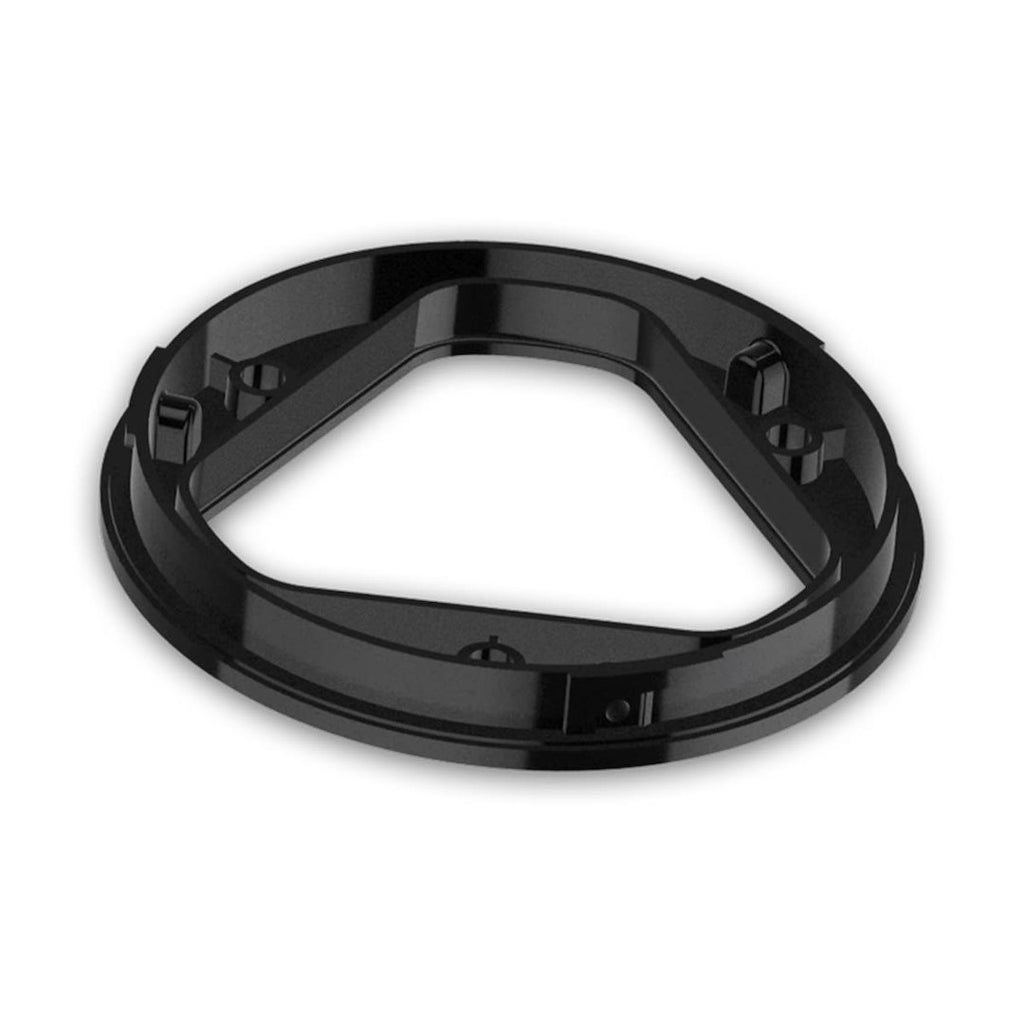

• Mounting Location: Pole/ Surface/ Under-Deck Mount
• Color: Black
• Temperature Range: -22 Degree Fahrenheit To 149 Degree Fahrenheit
• Dimensions: 3-19/32 Inch Diameter x 1-15/16 Inch Height
• Material: Plastic
• Waterproof Rating: IPX7 Waterproof Rating
• Includes: Pole Mounting Bracket/ Surface Mounting Bracket/ Mounting Hardware/ 32 Feet BNC-SMA Antenna Cable

Technical Documents

• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
• GPS_24xd_NMEA_2000_Install_Instructions_EN-US.pdf
• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
