Achieve precise location accuracy with multi-band GNSS technology.

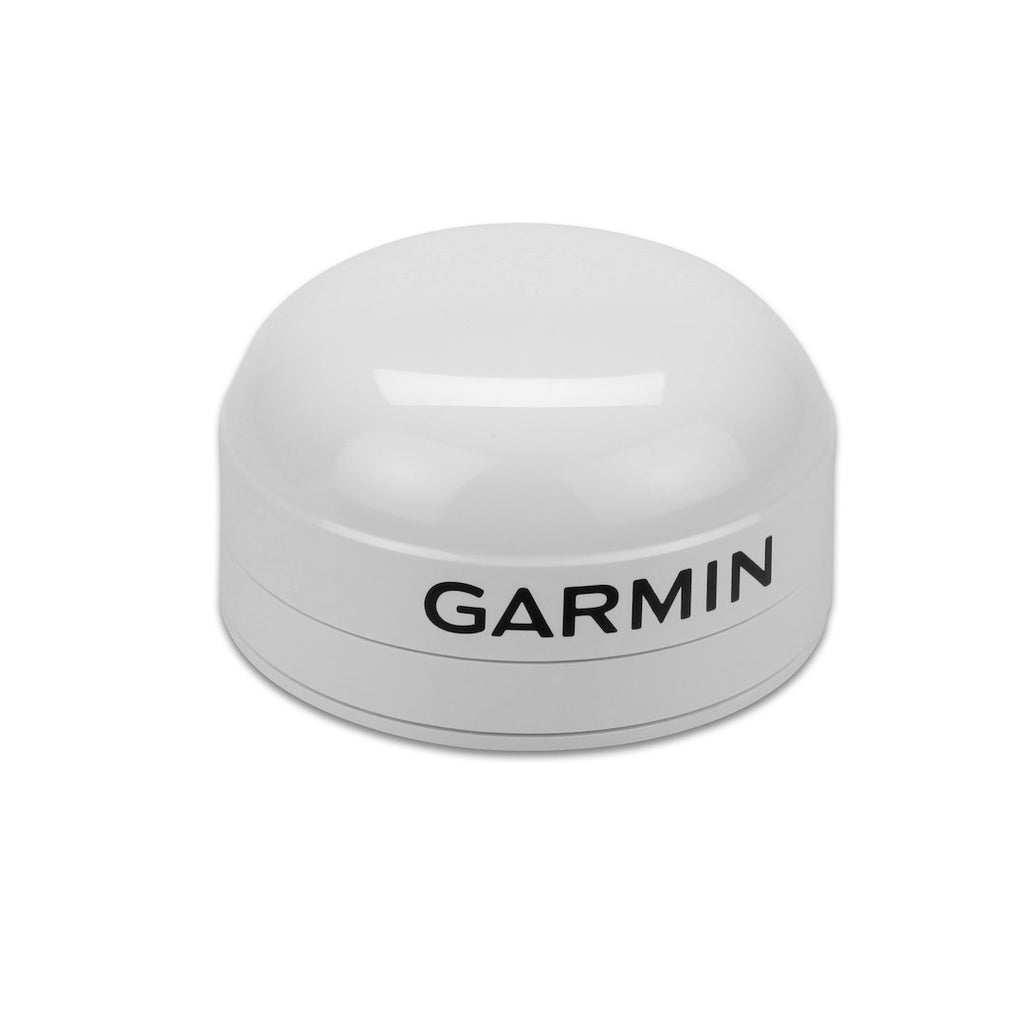

The Garmin GPS 24xd HVS position receiver and antenna is designed to deliver precise location tracking with multi-band GNSS capabilities. This system ensures accurate heading information, even at slow speeds, making it suitable for various marine applications. With an operating temperature range of -22 to 176 degrees Fahrenheit, it is built to withstand harsh environmental conditions. The antenna features a water-resistant IPX7 rating, ensuring reliable performance in wet conditions.
Installation is straightforward with multiple mounting options available, including pole, surface, and under-deck mounts. The device supports fast 10 Hertz position update rates, providing high-sensitivity position, velocity, and time data. Additionally, the multi-SBAS compatibility enhances signal accuracy and integrity, making it a robust choice for navigating challenging environments. The compact design, measuring 3-19/32 inches in diameter and 1-15/16 inches in height, allows for versatile placement on various vessels.
Features
- Multi-Band GNSS Provides Precise Location Accuracy1 to Within 1 Meter To Compatible Marine Multifunction Displays, Instrument Displays And Autopilots
- Magnetic Heading Sensor Provides Accuracy To Within 3 Degrees, Stabilizing Charts, Radar Overlay And MARPA Even At Slow Speeds
- Fast 10 Hertz Position Update Rates Provide High-Sensitivity Position, Velocity And Time Data
- GPS 24xd Provides Access To Four Key Global Navigation Satellite Systems To More Accurately Track In Challenging Conditions Than GPS Alone
- Multi-SBAS Compatibility Corrects Signal Measurement Errors And Provides Information About The Accuracy, Integrity, Continuity And Availability Of Its Signals
- Water-Resistant IPX7 to Withstand The Elements
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02316-10

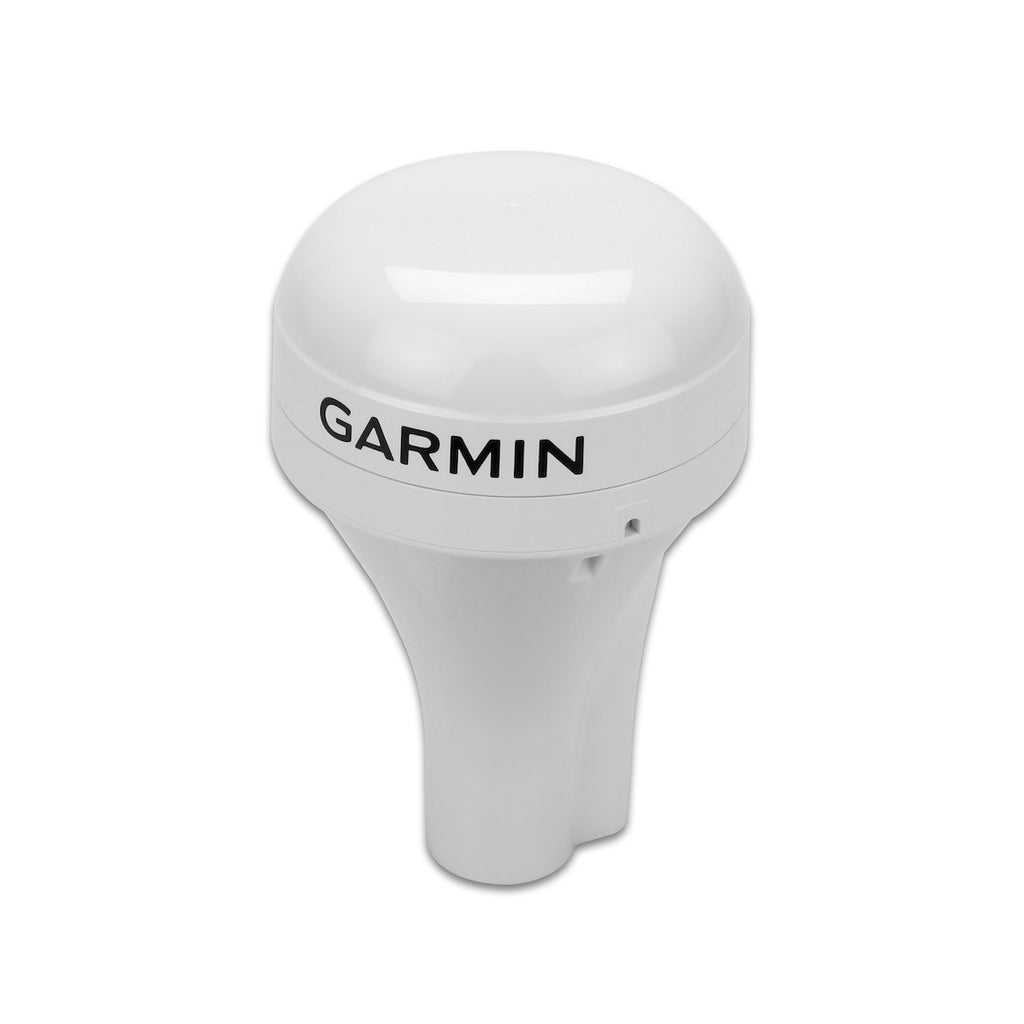

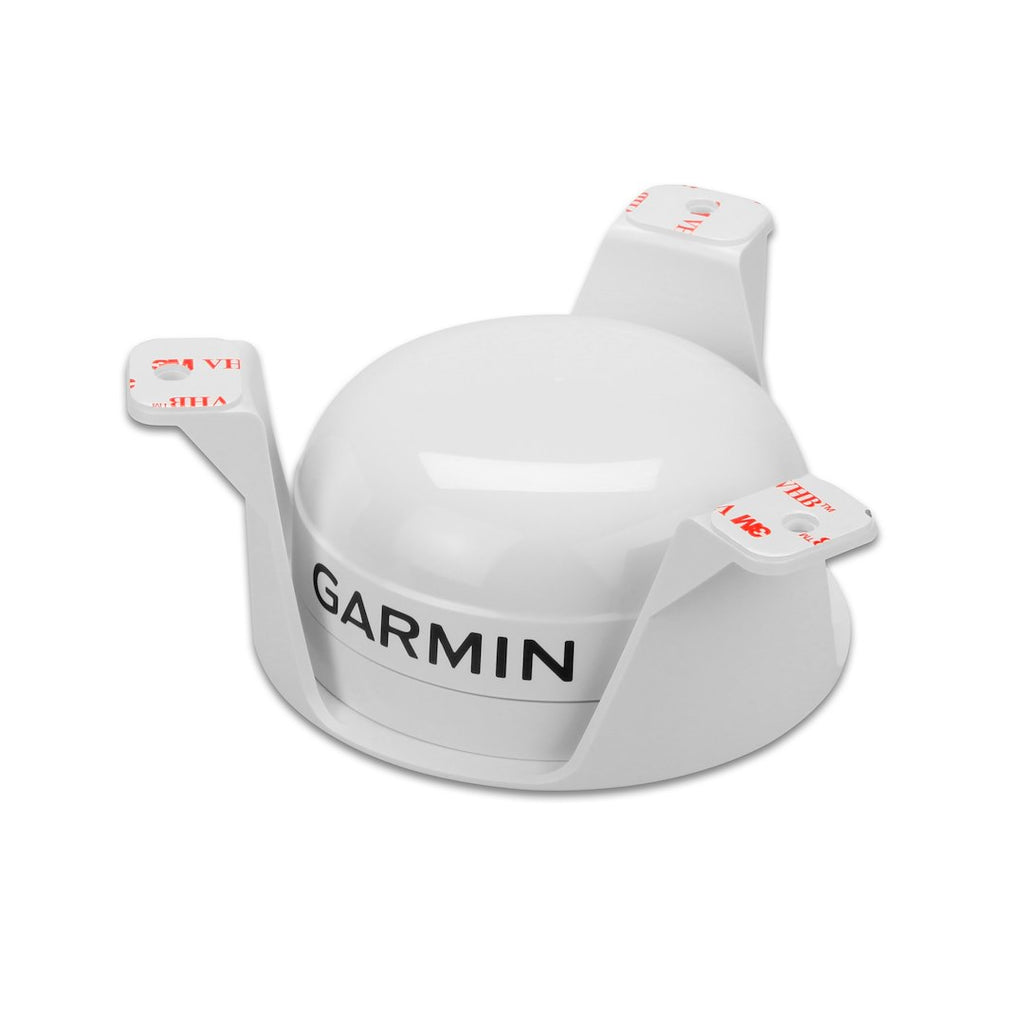

- Mounting Location: Pole/ Surface/ Under-Deck Mount
- Color: White
- Temperature Range: -22 Degree Fahrenheit To 176 Degree Fahrenheit
- Dimensions: 3-19/32 Inch Diameter x 1-15/16 Inch Height
- Material: Plastic
- Waterproof Rating: IPX7 Waterproof Rating

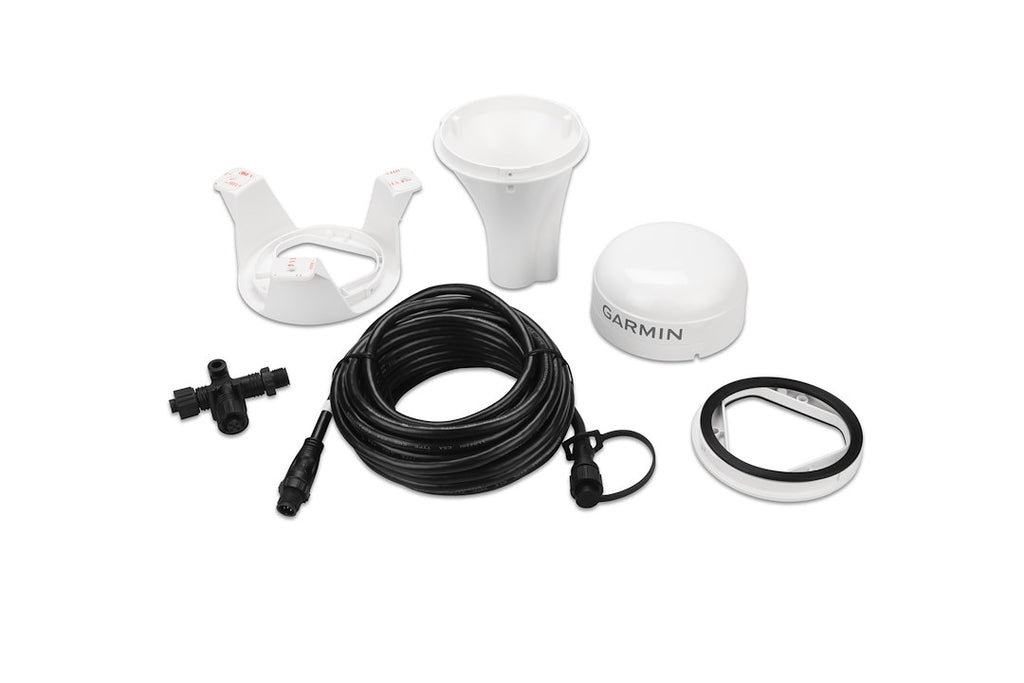

- Includes: Pole Mount/ Surface Mount/ Under Deck Mount/ NMEA 2000 Backbone/6 Meter Drop Cable
