Accurate wind data and boat speed for confident sailing decisions.

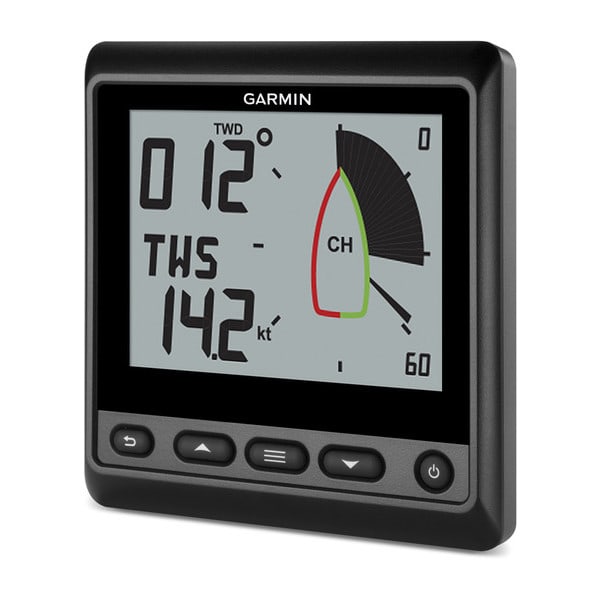

The Garmin GNX Wind Sailboat Instrument Kit is designed for 20- to 40-foot sailboats lacking a wind system or those with outdated equipment. This instrument provides essential wind data, boat speed, and more, ensuring sailors have the information needed for effective navigation. Featuring a high-visibility, glass-bonded backlit monochrome LCD display, the GNX Wind allows for customizable background colors, enhancing visibility in various lighting conditions.
With its NMEA 2000 compatibility, the GNX Wind displays two data fields and a digital wind rose simultaneously, showcasing true and apparent wind data, steer pilot, and boat speed. The auto-scroll feature enables hands-free operation, making it easier to monitor critical information while sailing. Its low power consumption of 0.35 watts during the day and 0.4 watts at night makes it an efficient choice for marine environments.
Installation is straightforward, with options for flush or flat mounting. The GNX Wind can also wirelessly connect to compatible devices, such as chartplotters and quatix 3 GPS marine smartwatches, allowing for real-time wind data access directly on your wrist. This instrument is built to withstand marine conditions, featuring an IPX7 waterproof rating and a durable design.
Features
- Glass-Bonded Backlit Monochrome LCD Display Lens Avoids Fogging
- Large, Easy-To-Read Black Digits On White Or Customizable Background Colors For High Contrast And High Visibility In All Lighting Conditions

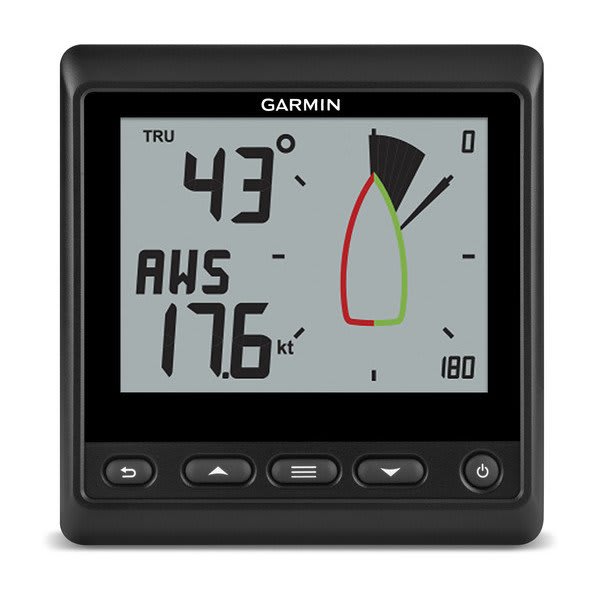

- 2 Data Fields And A Digital Wind Rose Simultaneously Display True And Apparent Wind Data, Steer Pilot, Boat Speed And More

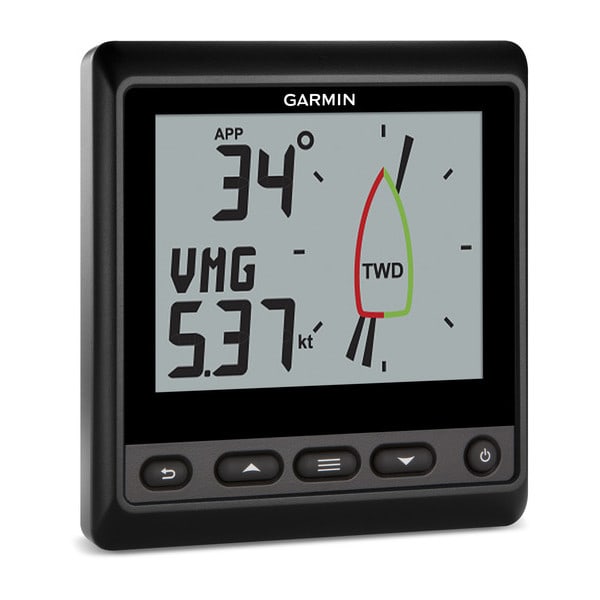

- Displays True And Apparent Wind Speed And Wind Angles, True Wind Direction, Boat Speed, Speed Over Ground, VMG, Heading, Course Over Ground And Closed Haul
- NMEA 2000 Network And ANT Technology Interfaces
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-01142-30
- Mounting Style: Flush Mount
- Display Type: LCD
- With Transducer: No
- Operational Temperature Range: 5 To 158 Degree Fahrenheit Operating Temperature
- Power Usage: 0.35 Watt At Day/ 0.4 Watt At Night
- Boat Speed: No
- Coarse Information: No
- Multi Language: Yes
- Race Timer: No
- Time: No
- Water Current: No
- Water Depth: No
- Water Temperature: No
- Wind Direction: No
- Wind Speed: No
- Wind Instrument Display Size: 4.33 Inch Length X 4.53 Inch Width X 1.18 Inch Height
- Compass-Safe Distance: 8.25 Inch
- NMEA 2000 Certified: Yes
- Waterproof Rating: Yes
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
