Comprehensive sailing data with advanced instrument technology.

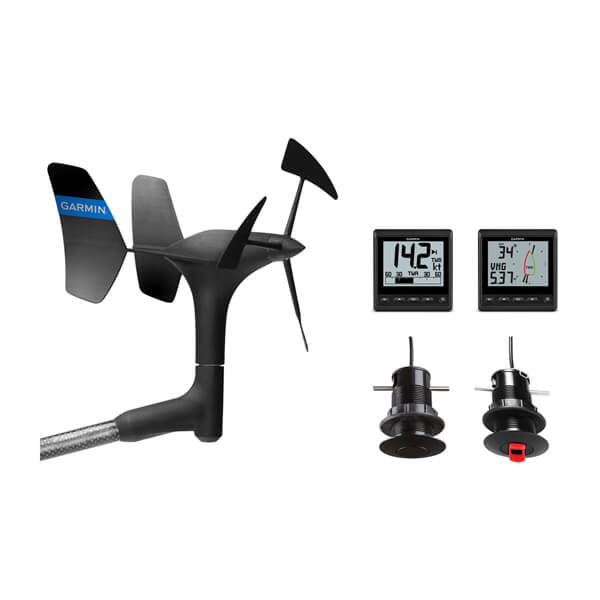

The Garmin GNX Sailboat Instrument Kit is designed to enhance the sailing experience by providing critical data such as wind speed, boat speed, water depth, and water temperature. This kit includes the GNX Wind and GNX 20 Marine Instruments, which feature highly visible glass-bonded monochrome LCD displays for easy readability in various lighting conditions. The included gWind transducer utilizes twin-fin technology to deliver accurate true wind angle readings, while the 3-bladed propeller ensures precise wind speed measurements even in lighter air conditions.
Installation is straightforward with a plug-and-play design compatible with the NMEA 2000 network, allowing for seamless integration into existing systems. The kit is equipped with a 43 millimeter thru-hull transducer, providing reliable data on water depth and temperature. With an operational temperature range of 5 to 158 degrees Fahrenheit and an IPX6 waterproof rating, the GNX Sailboat Instrument Kit is built to withstand the marine environment, ensuring durability and performance.
This comprehensive instrument kit not only offers essential sailing metrics but also includes features such as a race timer, multi-language support, and a time display. The GNX instruments are powered efficiently, consuming only 0.33 watts for the transducer and 0.4 watts for the wind instrument, making them an energy-efficient choice for sailors. Overall, the Garmin GNX Sailboat Instrument Kit is a valuable addition to any sailing vessel, providing the necessary tools for informed navigation and enhanced performance.
Features
- Features GNX Wind And GNX 20 Marine Instruments, GWind Wired Transducer Plus GDT 43 And GST 43 Transducers With 43 Mm Fittings
- GNX Wind And GNX 20 Instruments Have Highly Visible Glass-Bonded Monochrome LCD Displays
- GWind Transducer Features Twin-Fin Technology For True Wind Angle
- 3-Bladed Propeller Provides Accurate Wind Speed In Lighter Air
- Accurate Water Depth, Water Speed, Water Temperature Data And More
- Easy Plug-And-Play Installation With NMEA 2000 Network
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-01248-60
- Mounting Style: Flush/ Flat Mount
- Display Type: LCD
- With Transducer: Yes
- Operational Temperature Range: 5 To 158 Degree Fahrenheit
- Voltage Rating: 9 To 16 Volt
- Power Usage: 0.33 Watt For Transducer/ 0.4 Watt For Wind Instrument
- Amperage Rating: 28 mA
- Connection Type: Wired
- Boat Speed: Yes
- Coarse Information: Yes
- Multi Language: Yes
- Race Timer: Yes
- Time: Yes
- Water Depth: Yes
- Water Temperature: Yes
- Wind Direction: Yes
- Wind Speed: Yes
- Cable Length: 25 Meter
- Wind Instrument Display Size: 3.3 Inch Width x 2.4 Inch Height
- Compass-Safe Distance: 8-1/4 Inch
- NMEA 2000 Certified: Yes
- Waterproof Rating: IPX6 Waterproof
- Includes: With gWind Transducer/ GNX 20 Marine Instrument/ GNX Wind Marine Instrument
