Garmin ECHOMAP UHD Boat Kit (MPN: 020-00200-22)

Advanced transducer for superior sonar performance and easy installation.

The Garmin ECHOMAP UHD Boat Kit is designed to enhance your boating experience with advanced sonar capabilities. This transom mount transducer features a 12 pin connection and supports a maximum depth of 800 feet for traditional sonar, while offering 400 feet for ClearVu and 500 feet for SideVu. Operating at frequencies of 150 to 240 kHz for high-band CHIRP and 455 kHz, 800 kHz, and 1000 kHz for ClearVu and SideVu, it provides detailed underwater imaging for improved navigation and fishing success.

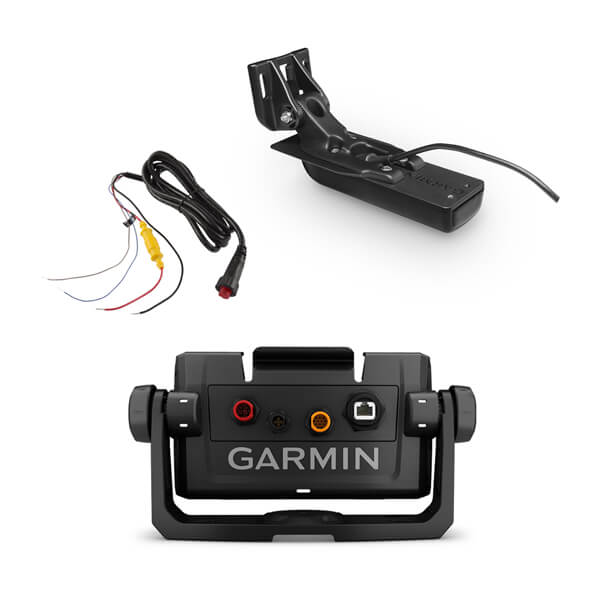

With a power rating of 350 watts for traditional sonar and 500 watts for ClearVu and SideVu, this transducer ensures reliable performance in various water conditions. The supported transom angle ranges from 0 to 70 degrees, allowing for versatile installation options. The kit includes a 25-foot cable, a power cable, and a 7-inch bail mount quick release cradle, making it easy to set up and use.

Garmin's commitment to innovation is evident in this product, which combines essential utility with leading-edge technology. The ECHOMAP UHD Boat Kit is engineered for life on the water, providing users with the tools needed for effective navigation and exploration.

Features

• Transducer For Garmin Traditional CHIRP And ClearVu Scanning Sonar
• 4-Pin To 8-Pin Transducer Adapter Cable
• Bail Mount And Quick Release Cradle
• Easy To Install

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 020-00200-22
• Mounting Location: Transom Mount
• Number Of Pins: 12 Pin
• Depth: 800 Feet Freshwater For Traditional/ 400 Feet For ClearVu And 500 Feet SideVu
• Power Rating: 350 Watt For Traditional And 500 Watt For ClearVu/ SideVu
• Frequency Range: 150 To 240 kHz For High-Band CHIRP And 455 kHz/ 800 kHz/ 1000 kHz For ClearVu/ SideVu
• Supported Angle: 0 To 70 Degree Transom Angle
• Cable Length: 25 Feet
