Advanced transducer for superior sonar performance and easy installation.

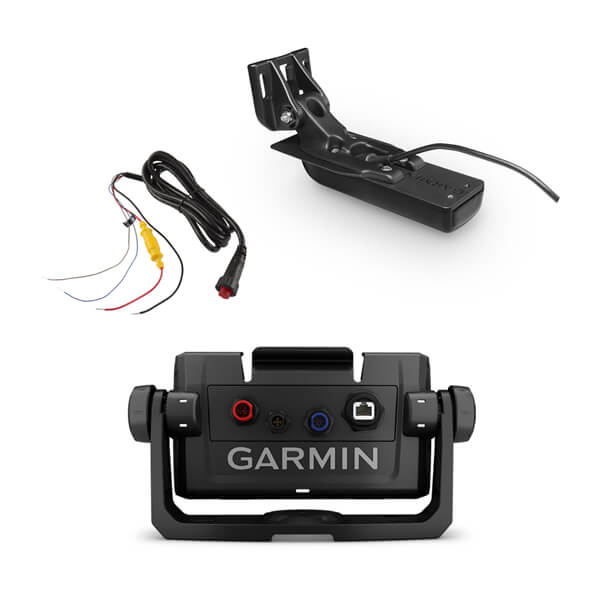

The Garmin ECHOMAP UHD Boat Kit is designed to enhance your boating experience with advanced sonar capabilities. This transducer supports both traditional CHIRP and ClearVu scanning sonar, providing maximum depth capabilities of 800 feet for traditional sonar and 200 feet for ClearVu. Operating at frequencies of 150 to 240 kHz for high-band CHIRP and 800 kHz for UHD ClearVu, it ensures precise and detailed underwater imaging.
Engineered for ease of use, the kit includes a transom mount and a bail mount with a quick release cradle, allowing for straightforward installation and removal. The 20-foot cable provides ample length for various boat configurations, while the 350-watt power rating ensures reliable performance. With a transom angle support of 0 to 70 degrees, this transducer adapts to different boat designs, making it a versatile choice for marine applications.
Features
- Transducer For Garmin Traditional CHIRP And ClearVu Scanning Sonar
- 4-Pin To 8-Pin Transducer Adapter Cable
- Bail Mount And Quick Release Cradle
- Easy To Install
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 020-00200-21
- Mounting Location: Transom Mount
- Number Of Pins: 8 Pin
- Depth: 800 Feet For Traditional And 200 Feet For ClearVu
- Power Rating: 350 Watt
- Frequency Range: 150 To 240 kHz For High-Band CHIRP And 800 kHz For UHD ClearVu
- Supported Angle: 0 To 70 Degree Transom Angle
- Cable Length: 20 Feet
