Garmin ECHOMAP UHD Boat Kit (MPN: 020-00200-20)

Advanced transducer for superior sonar performance and easy installation.

The Garmin ECHOMAP UHD Boat Kit is designed to enhance your marine navigation experience with its advanced transducer capabilities. This transom mount transducer features an 8-pin connection and supports traditional CHIRP sonar with a maximum depth of 800 feet, as well as ClearVu scanning sonar with a depth of 200 feet. Operating at frequencies ranging from 150 to 240 kHz for high-band CHIRP and 800 kHz for UHD ClearVu, it provides detailed underwater imagery and accurate depth readings.

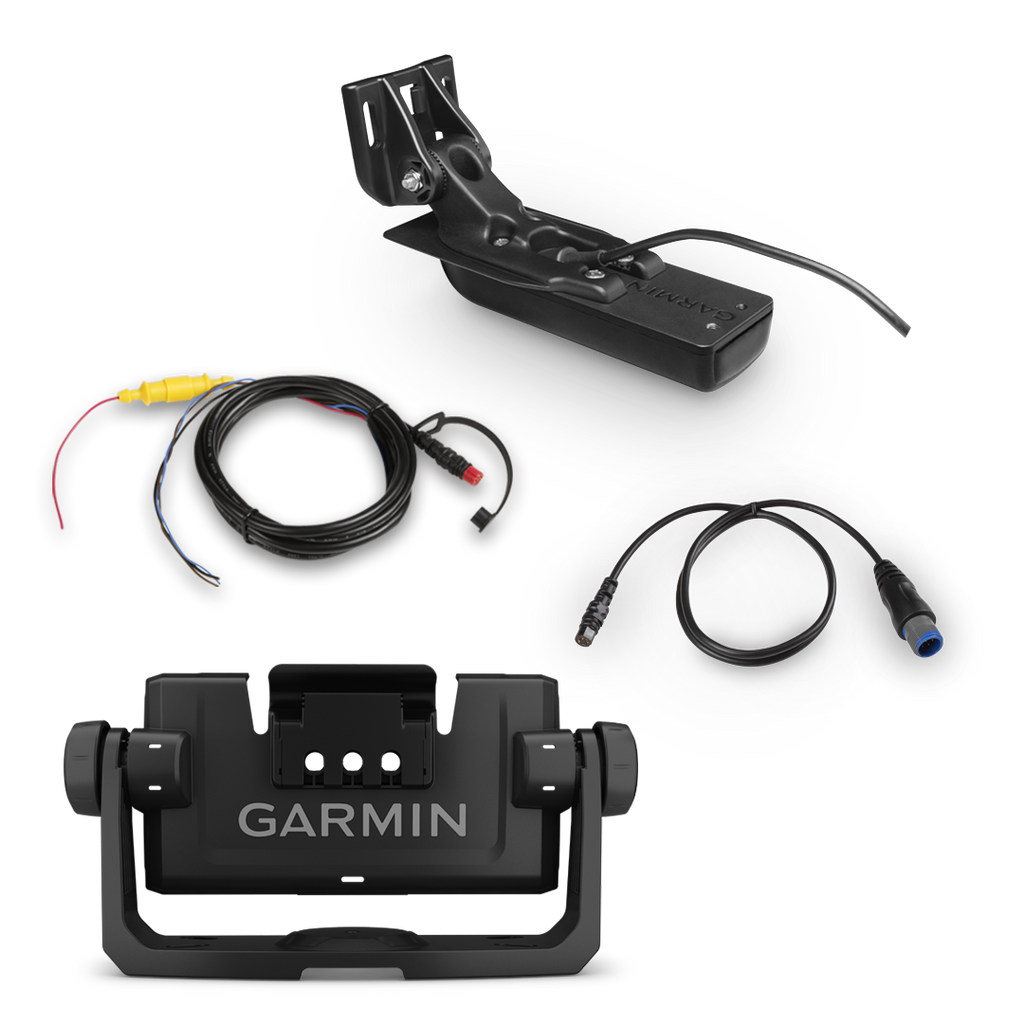

With a power rating of 350 watts, the transducer is engineered to perform effectively in various marine environments. It accommodates a transom angle of 0 to 70 degrees, ensuring compatibility with a wide range of boat designs. The kit includes a 20-foot cable, a 4-pin to 8-pin transducer adapter cable, and a bail mount with a quick release cradle, facilitating straightforward installation and removal.

Garmin's commitment to innovation is evident in this product, which combines essential utility with leading-edge technology. The ECHOMAP UHD Boat Kit is an essential tool for boaters seeking reliable sonar performance and ease of use, making it a valuable addition to any marine setup.

Features

• Transducer For Garmin Traditional CHIRP And ClearVu Scanning Sonar
• 4-Pin To 8-Pin Transducer Adapter Cable
• Bail Mount And Quick Release Cradle
• Easy To Install

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 020-00200-20
• Mounting Location: Transom Mount
• Number Of Pins: 8 Pin
• Depth: 800 Feet For Traditional And 200 Feet For ClearVu
• Power Rating: 350 Watt
• Frequency Range: 150 To 240 kHz For High-Band CHIRP And 800 kHz For UHD ClearVu
• Supported Angle: 0 To 70 Degree Transom Angle
• Cable Length: 20 Feet
