Advanced transom mount transducer for depth and temperature measurement.

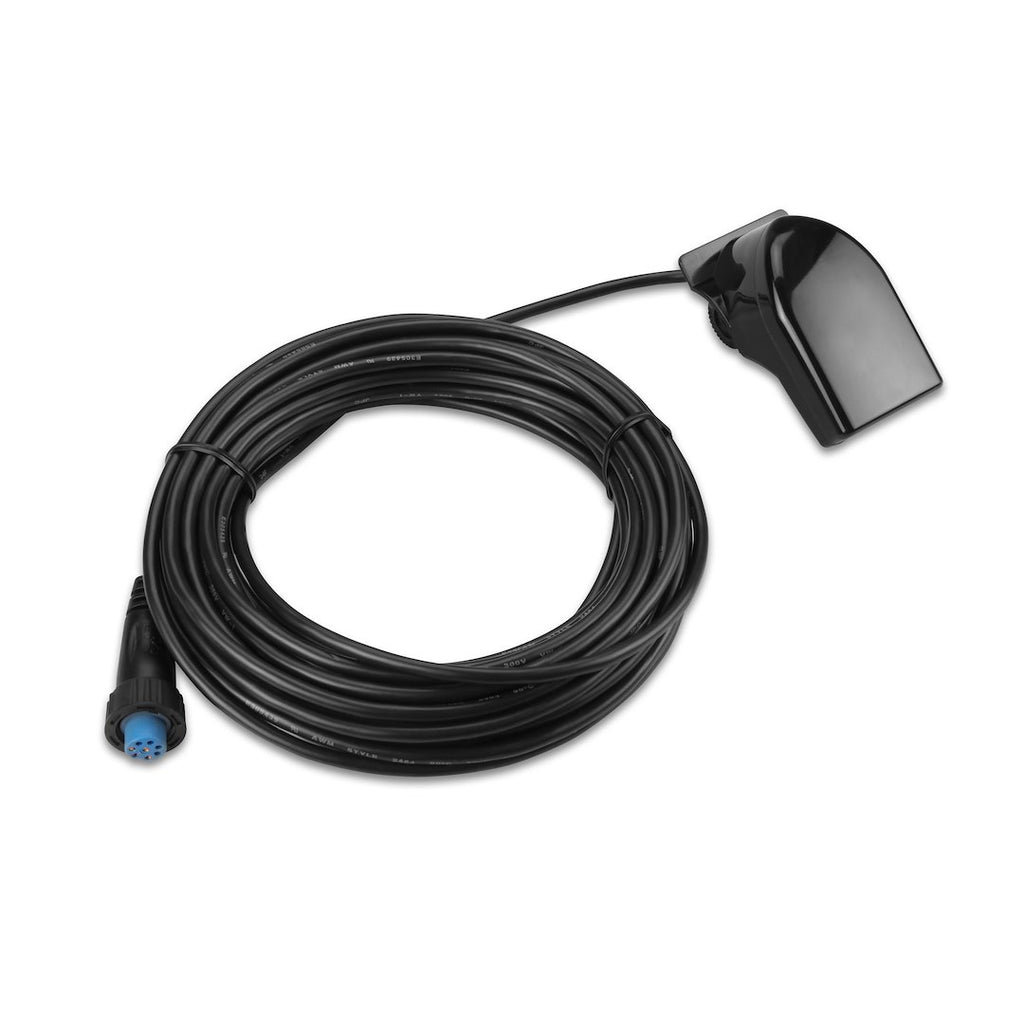

The Garmin Dual Beam Transducer is designed for use with the Echo Series Fishfinder, providing enhanced depth and temperature readings. This transducer operates at frequencies of 77 and 200 kHz, allowing for precise underwater imaging and data collection. With a maximum depth capability of 1900 feet and a power rating of 500 watts, it ensures reliable performance in various marine environments.
Engineered for easy installation, the transducer mounts on transoms with angles ranging from 0 to 70 degrees. It features an 8-pin connector and comes with a 30-foot cable, facilitating flexible installation options. The dual beamwidth of 45 and 15 degrees allows for versatile scanning capabilities, making it suitable for both shallow and deep water applications.
Garmin's commitment to innovation is evident in this product, which combines essential utility with advanced technology. The transducer is built to withstand the rigors of marine use, ensuring durability and longevity. With clear installation instructions included, users can quickly set up the transducer for immediate use.
Features
- Dual Beam Transducer Replaces The One Provided With Your Echo Series Fishfinder
- 500 Watt 8-Pin Transducer, It Has An Operating Frequency Of 77/200 Kilohertz
- Mounts On A 0 To 70 Degree Transom
- Transducer Kit Features Installation Instructions
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-10249-40
- Mounting Location: Transom Mount
- Number Of Pins: 8 Pin
- Depth: 1900 Feet
- Power Rating: 500 Watt
- Frequency Range: 77/ 200 kHz
- Supported Angle: 0 To 70 Degree Transom Angle
- Cable Length: 30 Feet
