Garmin Automatic Identification System Transponder (MPN: 010-02087-00)

Enhance maritime safety with advanced vessel tracking technology.

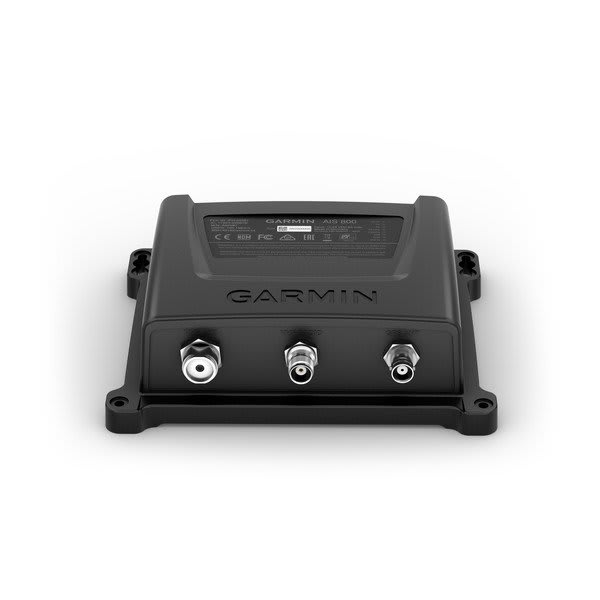

The Garmin Automatic Identification System Transponder, model AIS 800, is designed to transmit vessel position data to AIS receivers while simultaneously receiving AIS target information. This device operates on a voltage range of 9.6 to 31.2 Volt DC and is compatible with both NMEA 2000 and NMEA 0183 protocols, ensuring seamless integration with various marine electronics. The built-in GPS enhances positioning accuracy and can connect to an optional external antenna for improved signal reception.

With a robust 5-watt transmit power, the AIS 800 provides rapid position reporting, significantly enhancing situational awareness on the water. The internal VHF antenna splitter allows for the sharing of a single antenna between VHF and AIS systems, optimizing space and reducing installation complexity. The unit is housed in a compact, easy-to-install black box design, making it suitable for various vessel types.

The device is rated IPX7 for waterproofing, ensuring reliable performance in challenging marine environments. Included with the transponder are essential accessories such as a NMEA 2000 T-Connector, NMEA 2000 drop cable, VHF antenna extension, USB adapter cable, power cable, and mounting hardware, facilitating a straightforward installation process.

Features

• Reliable Communication Transmits Your Vessel Information To Other AIS Receivers In Your Area While Receiving AIS Target Data
• 5 Watt Of Transmit Power With Class B/SO Provides Faster Positioning Reporting Than Ever Before
• Built-In GPS With Connector For Optional External Antenna
• NMEA 2000 Connectivity For Easy Integration With Compatible Chartplotters And Multifunction Displays
• Internal VHF Antenna Splitter Allows VHF And AIS To Share A Single Antenna
• Easy To Use

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02087-00
• Compatibility: Transmit Vessel Position To AIS Receiver While Receiving AIS Target Data
• Ampere Rating: 250 mA/ 400 mA
• Waterproof Rating: IPX7 Waterproof
• Approval: Class-B Approved
• Includes: With NMEA 2000 T-Connector/ NMEA 2000 Drop Cable/ VHF Antenna Extension/ USB Adapter/ Power Cable

Technical Documents

• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
• AIS_800_Install_Instructions_EN.pdf
• ISPI_Marine_AIS.pdf
• garmin-marine-warranty-policy.pdf
• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf

Product Videos
