Advanced transducer for accurate depth, speed, and temperature readings.

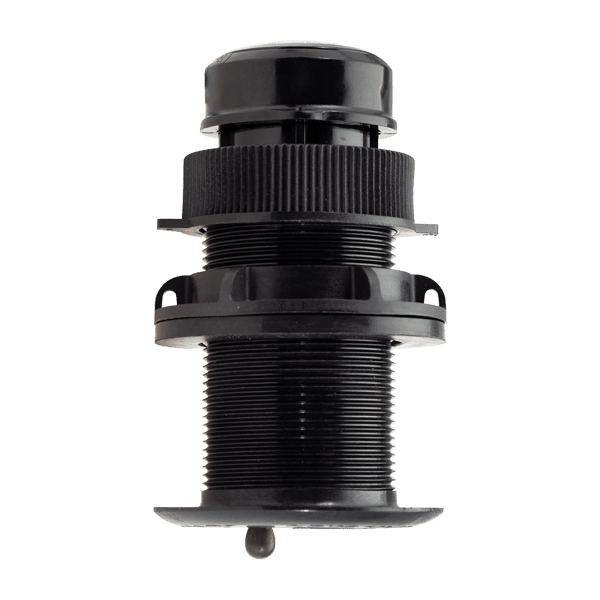

The Garmin AIRMAR DST 810 is a sophisticated thru-hull transducer designed to deliver precise depth, speed, and temperature measurements. With a maximum depth capability of 330 feet and an operating frequency of 235 kHz, this transducer ensures reliable performance even in challenging marine environments. Its advanced features include a fast 5 Hertz water speed signal output, which enhances visualization on compatible chartplotters and displays.
Constructed from durable plastic, the AIRMAR DST 810 is engineered for longevity and reliability. It features a wide beam width of 10 x 44 degrees, allowing it to effectively locate the bottom even when installed on steep deadrise hulls or heeling sailboats. The transducer also incorporates wireless Bluetooth connectivity, enabling easy calibration management through the AIRMAR Cast app interface.
This transducer is compatible with NMEA 2000 systems and provides attitude sensing for heel, trim, and pitch/roll data, making it a versatile addition to any marine setup. With its combination of essential utility and advanced technology, the Garmin AIRMAR DST 810 is a valuable tool for serious mariners.
Features
- Plastic Thru-Hull NMEA 2000 Smart Transducer Combines Precise Depth, Speed And Temperature Signals With Attitude Sensing For Heel/Trim And Pitch/Roll Data
- It Can Read Depths To 330 Feet And Offers Fast 5 Hertz Water Speed Signal Output For Smoother Visualization On Compatible Chartplotters Or Other Displays
- Wireless BLUETOOTH (R) Connectivity Makes It Easy To Manage Calibration Of Sensor Data Through The AIRMAR Cast App Interface
- 235 Kilohertz Sensor Operating Frequency Helps Prevent Mutual Interference With Other Echosounder Devices On The Vessel
- Transducer's Wide, Fan-Shaped Beam Width Of 10 X 44 Degrees Enables It To Find Bottom Even When Installed On Steep Deadrise Hulls Or Heeling Sailboats
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-11051-20
- Mounting Location: Thru-Hull Mount
- Number Of Pins: Not Applicable
- Depth: 330 Feet
- Power Rating: 100 Watt
- Frequency Range: 235 kHz
- Supported Angle: 0 To 22 Degree Transom Angle
- Cable Length: 20 Feet
