Enhance your marine audio experience with powerful amplification.

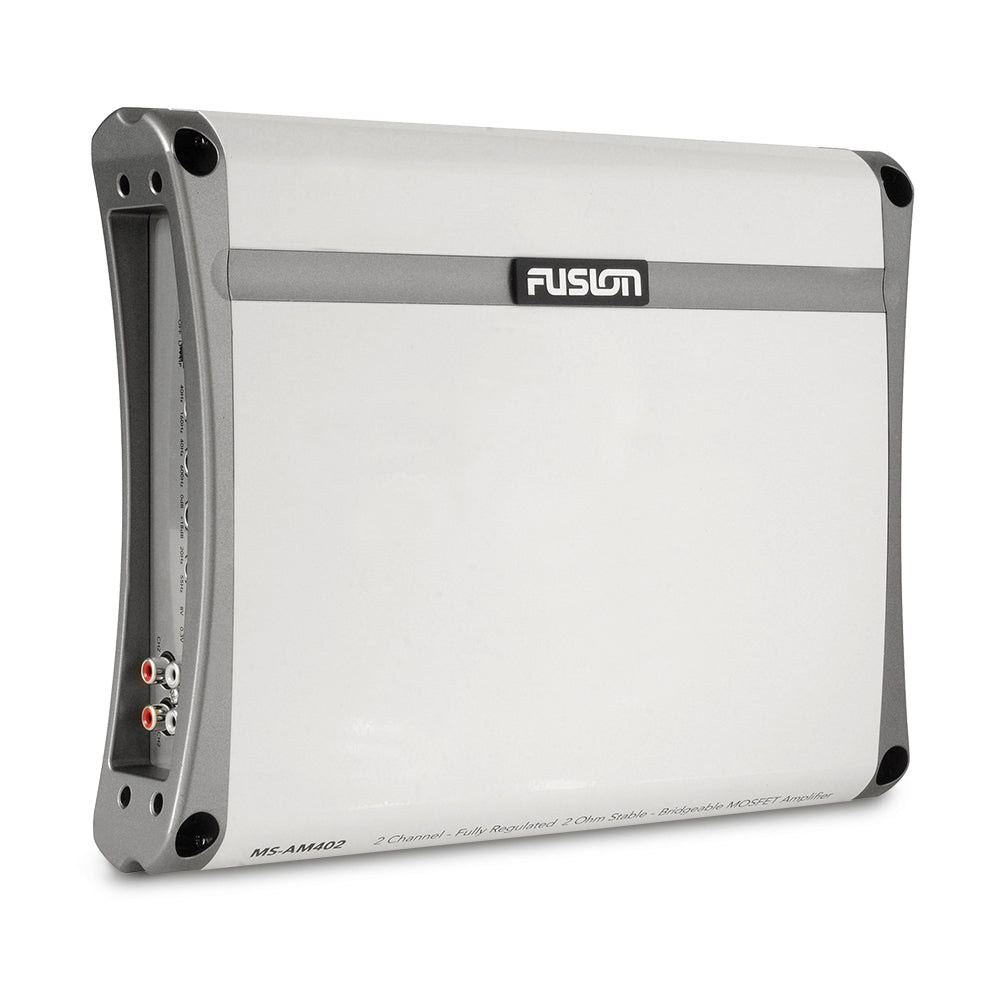

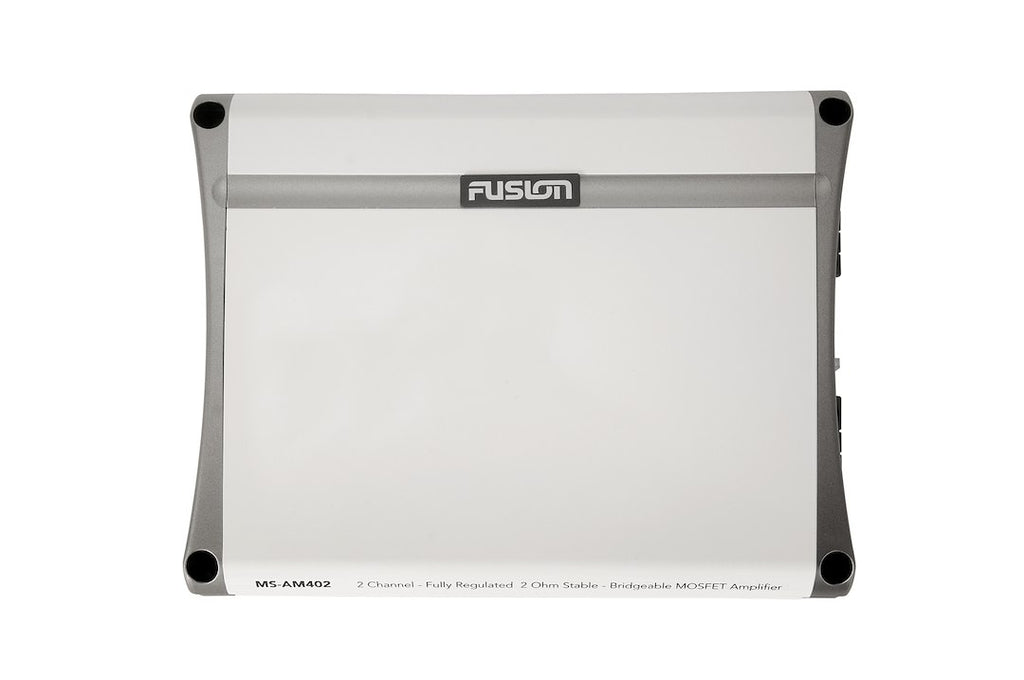

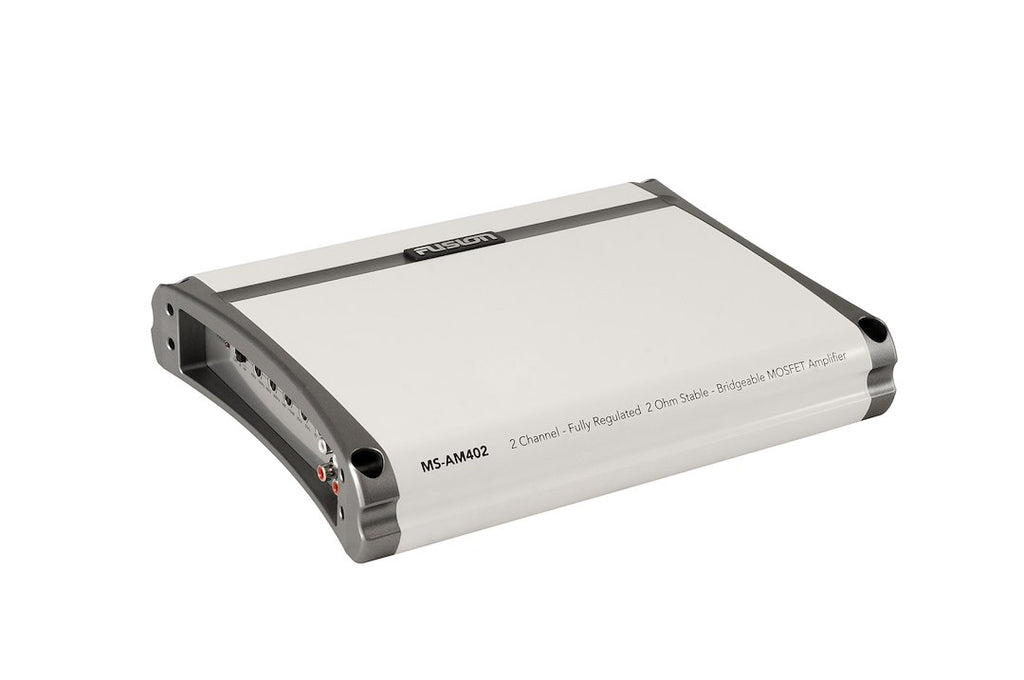

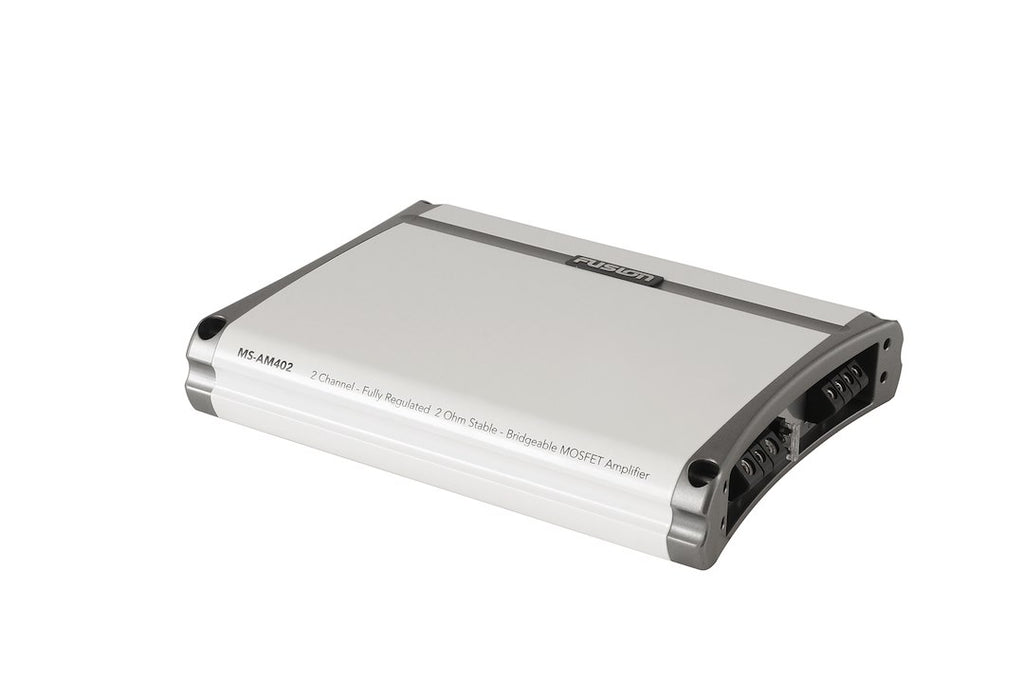

The Fusion Electronics AM Series marine amplifier is engineered specifically for the marine environment, delivering high-quality audio amplification to enhance your on-water listening experience. This Class-AB amplifier offers a peak power output of 400 watts, ensuring robust performance while minimizing distortion for connected speakers and subwoofers. With features such as built-in variable bass boost and adjustable crossover filters, the AM Series provides flexibility in audio configuration and system protection.
Designed with durability in mind, the amplifier incorporates conformal coated PCBs that are water resistant, protecting against salt air and moisture. The F.R.A.T. regulated amplifier technology allows for higher power output from a lower input, while the F.I.S.T semi-conductor technology efficiently dissipates heat, ensuring thermal stability and low distortion. The compact dimensions of 11.65 inches in length, 9.02 inches in width, and 2.09 inches in height make it suitable for various installation scenarios.
The AM Series amplifier can power up to two pairs of speakers or one subwoofer, making it a versatile choice for marine audio systems. With a signal-to-noise ratio of 98 decibels, it ensures clear and crisp sound quality. This amplifier is designed to extend the life of your audio equipment, providing reliable performance in challenging marine conditions.
Features
- Class AB Amplifier Technology Has Good Power Efficiency And Less Cross-Over Distortion
- Conformal Coated PCBs Are Water Resistant And Protected From Salt Air And Moisture
- F.R.A.T. Regulated Amplifier Produces Higher Power From A Lower Input
- F.I.S.T Semi Conductor Technology Removes Heat Efficiently For Low Distortion And Thermal Stability
- Designed And Engineered For The Marine Environment
- Class-AB Design Provides High Power Output With Reduced Distortion To The Connected Speakers Or Subwoofers For An Enhanced Level Of Audio Performance
- Helping To Extend The Life Of Your Amplifiers, The AM Series Amplifiers Are Designed With Conformal Coated PCBs To Provide Extra Protection From The Marine Elements
- Incorporated Heat Sink Is Designed To Dissipate Heat Efficiently, Providing More Thermal Stability And Enhanced Component Reliability
- Multiple Configurations To Suit Your Audio Needs
Specifications
- Manufacturer: Fusion Electronics
- Manufacturer Part Number: 010-01499-00
- Class: AB
- Number Of Channels: 2
- RMS Power At 4 Ohms: 65 Watt
- RMS Power At 2 Ohms: 100 Watt
- Bridged RMS Power: 200 Watt
- Peak Power Output: 400 Watt
- Signal-To-Noise Ratio: 98 Decibel
- Color: White
- High-Pass Crossover Frequency: 40 To 600 Hz
- Low-Pass Crossover Frequency: 40 To 160 Hz
- Length (IN): 9.02 Inch
- Width (IN): 11.65 Inch
- Height (IN): 2.09 Inch
- Logo Design: Fusion Logo
- With Bass Boost: Yes
- With Cooling Fan: No
- Includes Installation Tools: No
Technical Documents
- MS-AM402-Manual_Nov17Update.pdf
- ISPI_FUSION_FCC_SAR_1-year.pdf
- ISPI_FUSION_FCC_SAR_1-year.pdf
- MS-AM402_line_drawing.pdf
- ISPI_FUSION_FCC_SAR_1-year.pdf
