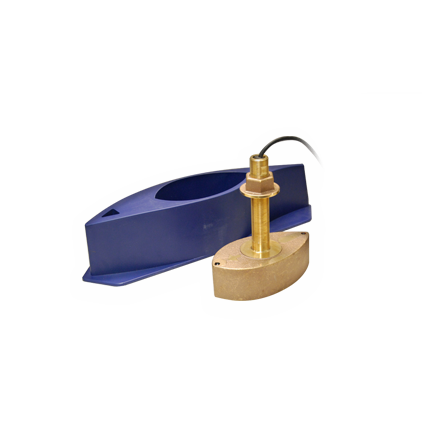

Furuno Thru-Hull CHIRP Transducer (MPN: B265LH-12P)

Advanced sonar technology for superior fish and bottom detection.

The Furuno Thru-Hull CHIRP Transducer is designed for marine applications, providing exceptional depth and temperature readings. With a maximum depth capability of 3000 feet, this transducer operates across a frequency range of 42 to 65 kHz for low CHIRP and 130 to 210 kHz for high CHIRP, ensuring comprehensive coverage for various fishing conditions. The 12-pin configuration and 39.3 feet cable length facilitate easy installation and connectivity to compatible fish finders.

Utilizing CHIRP technology, this transducer transmits sound energy that is 10 to 1,000 times greater than conventional marine fish finders, resulting in enhanced echo returns and improved detection of fish and underwater structures. The combination of a broadband transducer and advanced digital signal processing from Furuno significantly increases the accuracy and reliability of sonar readings. The bronze housing ensures durability and longevity in harsh marine environments.

With a beamwidth of 25 x 16 degrees for low CHIRP and 10 x 6 degrees for high CHIRP, the Furuno Thru-Hull CHIRP Transducer provides precise targeting and coverage, making it a valuable tool for serious anglers and marine professionals.

Features

• Operate At Discrete Frequencies Such As 50 Kilohertz And 200 Kilohertz
• Equivalent Sound Energy Transmitted Into The Water Is 10 To 1,000 Times Greater Than A Conventional Marine Fish Finder
• Echo Energy Returning To The Transducer Is Likewise Superior To That Generated By A Conventional Transducer
• Combination Of CHIRP, A Broadband Transducer, And Furuno’s Superior Digital Signal Processing, Results In Dramatically Increased Fish And Bottom Detection

Specifications

• Manufacturer: Furuno
• Manufacturer Part Number: B265LH-12P
• Mounting Location: Thru-Hull Mount
• Number Of Pins: 12 Pin
• Depth: 3000 Feet
• Power Rating: 1000 Watt
• Frequency Range: 42 To 65 kHz For Low CHIRP And 130 To 210 kHz For High CHIRP
• Supported Angle: 25 X 16/ 10 X 6 Degree Beamwidth
• Cable Length: 39.3 Feet
