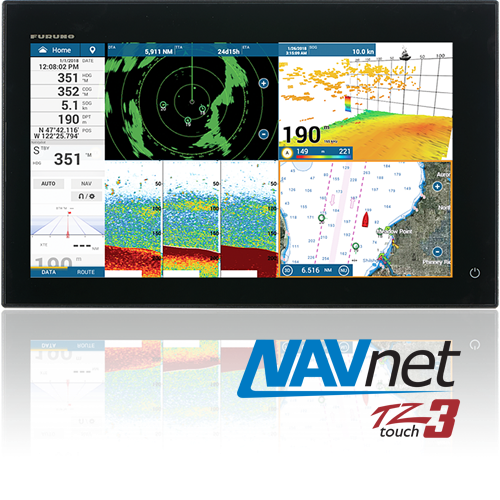

Furuno Multi Function Display NavNet TZtouch3 16 (MPN: TZT16F)

Advanced navigation and sonar technology for enhanced marine experiences.

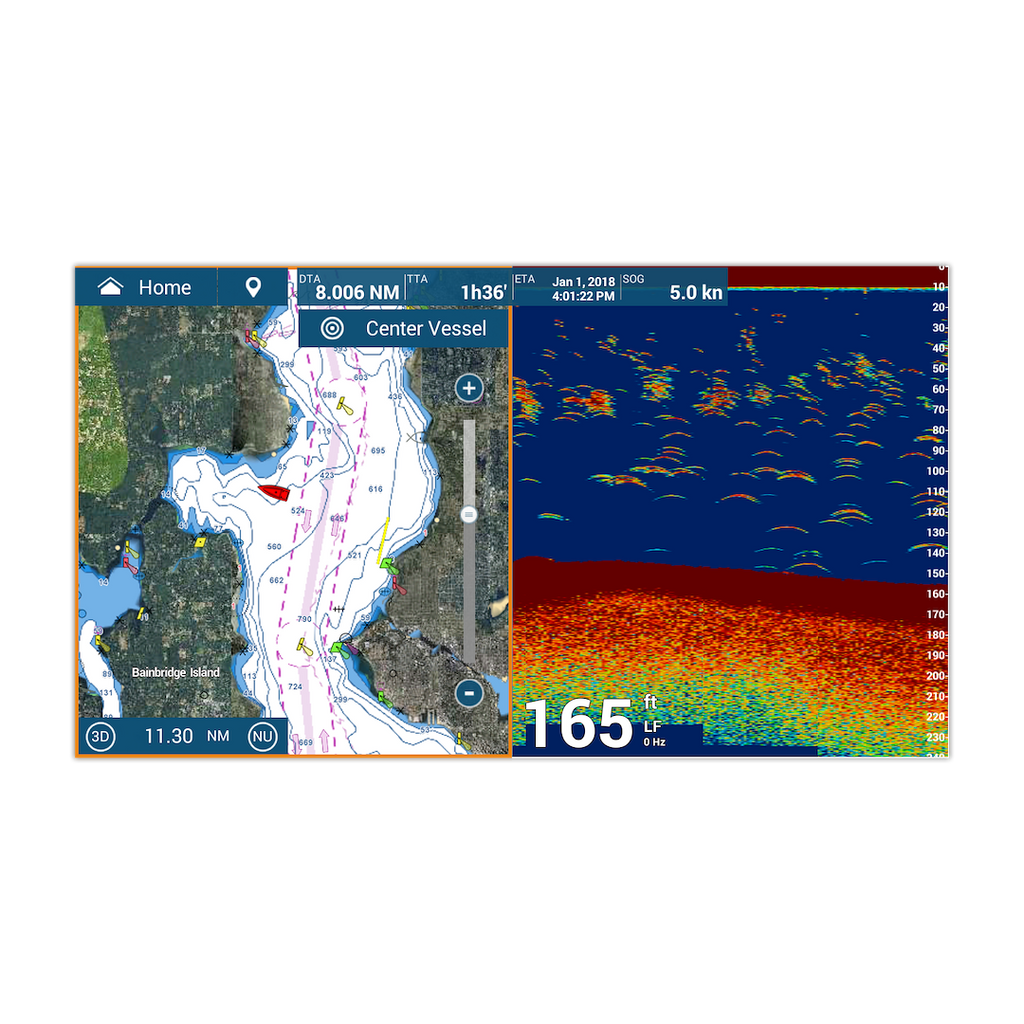

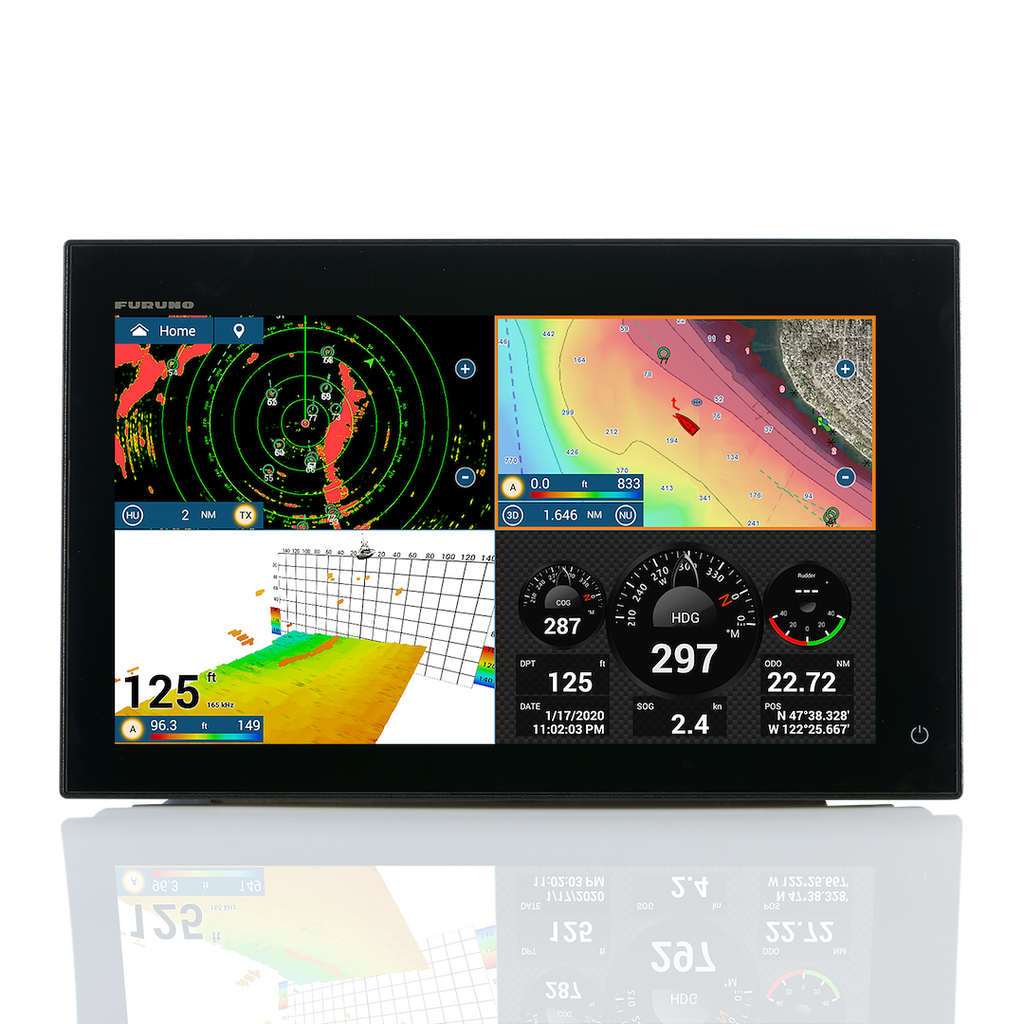

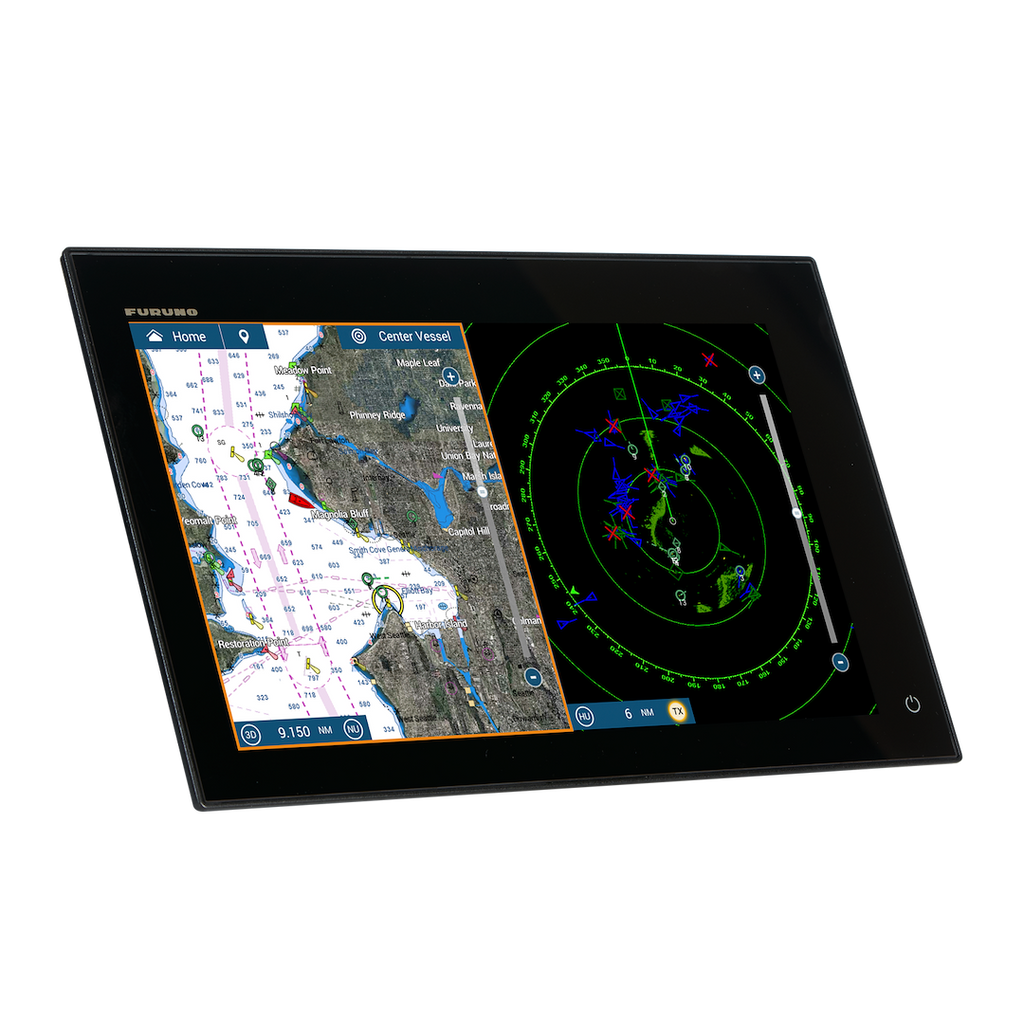

The Furuno NavNet TZtouch3 16 is a sophisticated multi function display designed for marine navigation and fishing. Featuring a 16 inch LCD screen with a resolution of 1920 x 1080 pixels, this display offers clear and detailed visuals for various chart types including vector, raster, and 3D data. The device is equipped with a powerful quad-core processor that ensures rapid response times, enhancing user experience even in challenging sea conditions.

This model incorporates hybrid controls, combining a full multi-touch interface with a built-in keyboard that includes a RotoKey and dedicated buttons. This design allows for intuitive navigation, making it easier to access features and settings while at sea. The TZtouch3 also includes unique functionalities such as Fish-It and Drift-It, which assist users in locating and drifting over fishing spots effectively.

With an IP56 waterproof rating, the NavNet TZtouch3 16 is built to withstand harsh marine environments. Additional features include PIN code security to protect user data, TZ Cloud for saving waypoints and settings, and compatibility with various transducers for enhanced sonar capabilities. This display is a comprehensive solution for both navigation and fishing, providing users with the tools needed for successful marine outings.

Features

• With Edge-Swipe Features And Single Tap Menu Options, You’re Never More Than A Tap Or Swipe Away From What You Want To See Or Do
• Get The Best Of Both Worlds With A Full Multi Touch Display And A Handy, Built-In Keyboard That Features A Rotokey , Cursor Pad And Dedicated Buttons
• Protect Your Livelihood With New PIN CODE Security
• Never Lose Waypoints, Routes Or Settings Again With TZ Cloud
• Deep Impact Allows You To Connect A 5 Kilowatt Or 10 Kilowatt Transducer With The BT-5

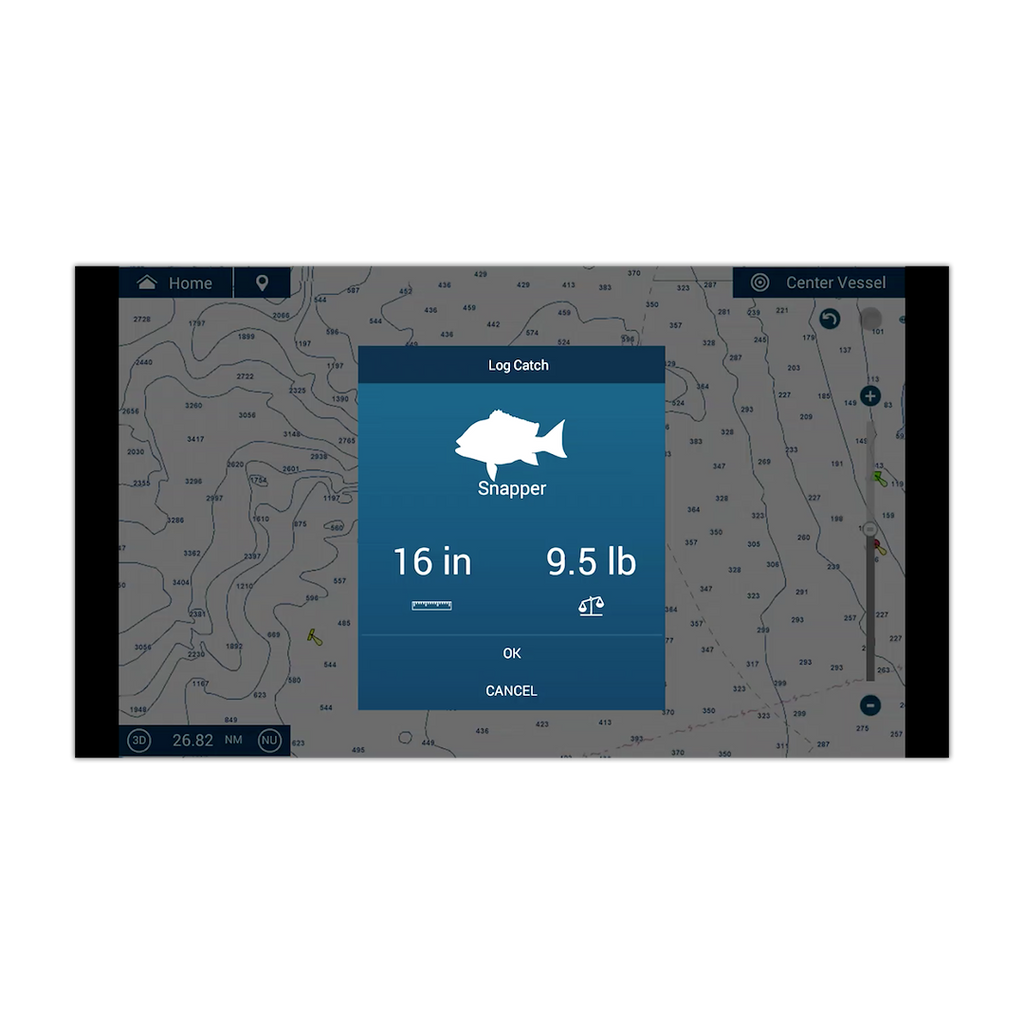

• Revolutionary New Features For Fishermen - Fish-It And Drift-It
• More Power To See 120 Degree Port-To-Starboard; Giving You An Edge Over The Competition
• Create Stunning Shaded Relief Charts On Your NavNet TZtouch3 MFD With PBG
• Easily Select Either Raster, Vector Or Fishing Charts, Mapmedia Brings An Authentic Vector And Raster Chart Library To Your NavNet TZtouch3

Specifications

• Manufacturer: Furuno
• Manufacturer Part Number: TZT16F
• Display: 16 Inch LCD
• Charts/ Maps: 3D Data/ C-Map/ CMOR/ Raster/ Vector/ Satellite Photo Charts/ Maps
• Sonar Type: 1 KW Dual Channel TruEcho CHIRP Sonar/ DFF3D Multibeam Sonar
• Mounting Type: Bracket Mount/ Flush Mount
• With Transducer: No
• Resolution: 1920 X 1080 Pixels
• Universality: Semi-Universal
• Interface: Multi-Touch
• Dimensions: 16.1 Inch Width X 4.9 Inch Depth X 10.1 Inch Height
• Waterproof: IP56 Rating Waterproof
• Color: Black

Technical Documents

• navnet_tzt3_brochure-final-lr.pdf
