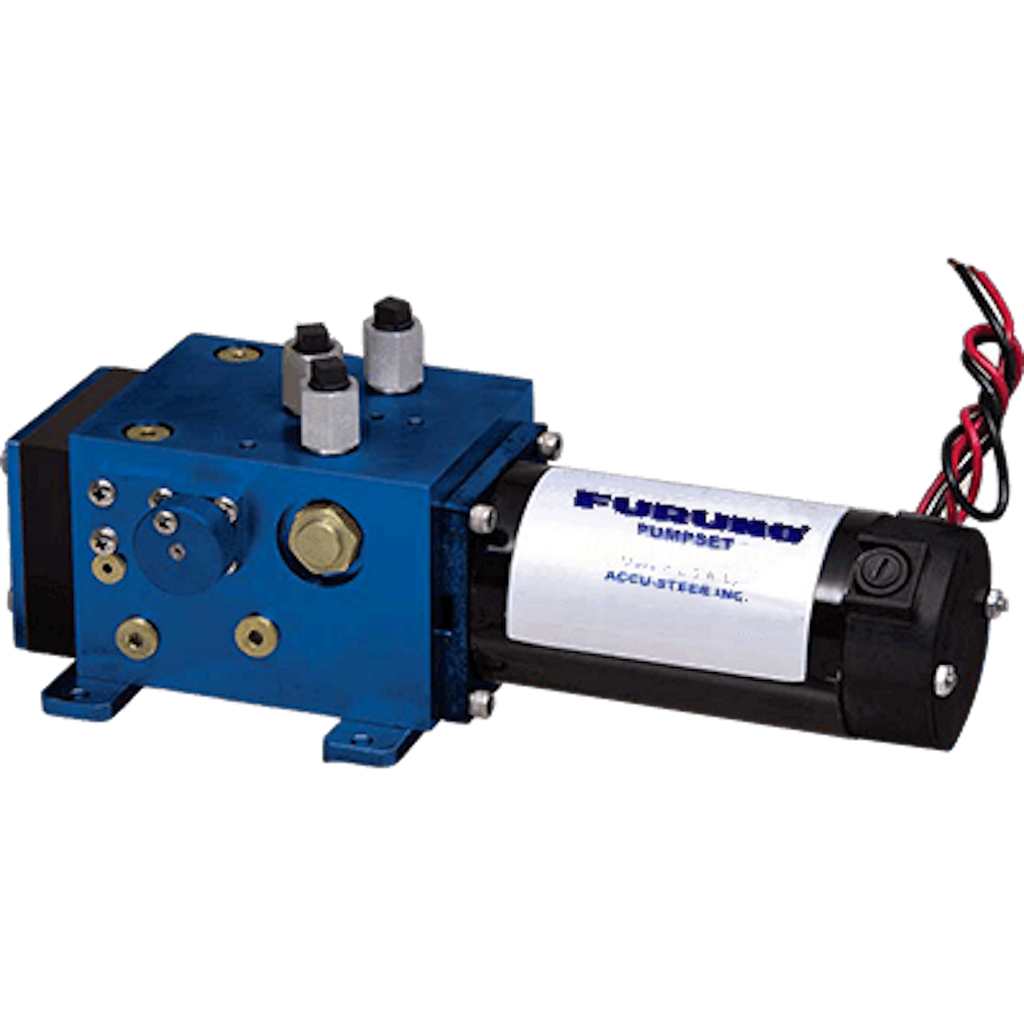

Furuno Hydraulic Reversing Pump (MPN: PUMPHRP35-12)

Efficiently integrates hydraulic steering with autopilot systems.

The Furuno Hydraulic Reversing Pump is engineered for seamless integration with hydraulic steering systems and autopilot controls. This pump operates at a maximum pressure of 1000 PSI and supports a cylinder capacity ranging from 35 to 60 cubic inches, making it suitable for various marine applications. With an adjustable output flow of up to 3.5 cubic inches per second, it allows for precise rudder control, enhancing navigational accuracy.

Constructed for durability, the pump features high temperature windings and is ignition protected, ensuring safe operation in demanding marine environments. Its compact design facilitates easy installation, while the heavy-duty drive motor is equipped with oversized accessible brush gear and ball bearing construction for long-lasting performance. The built-in pressure relief valves, factory set at 500 PSI, provide additional safety and reliability.

This pump is compatible with most autopilot systems, making it a versatile choice for both new installations and retrofitting existing setups. The Furuno Hydraulic Reversing Pump is an essential component for those seeking to enhance their boat's steering capabilities.

Features

• Adjustable Flow Control
• Pressure Relief
• High Temperature Windings
• Ignition Protected
• Can Be Used With Most Autopilots
• Ideal For New And Retrofit Applications
• Heavy-Duty, High Efficiency Drive Motor With Oversized Accessible Brush Gear And Ball Bearing Construction

Specifications

• Manufacturer: Furuno
• Manufacturer Part Number: PUMPHRP35-12
• Compatibility: Hydraulically Steered Boats And Applications
• Maximum Pressure: 1000 PSI
• Cylinder Capacity: 35 Cubic Inch To 60 Cubic Inch Capacity
• Voltage Rating: 12 Volt
• Ampere Rating: 10 To 35 Amp
• Mounting Type: Floor Mount
