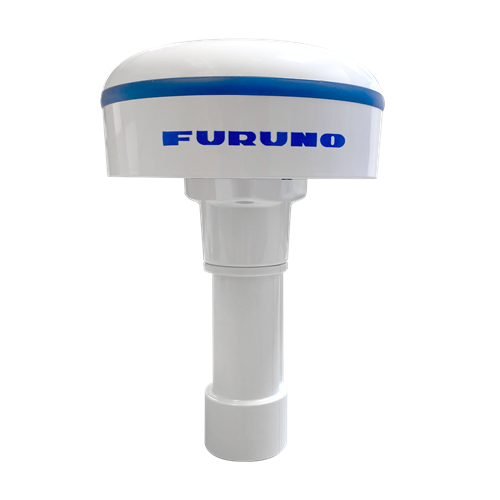

Furuno GPS Navigation System Antenna (MPN: GP340)

High performance GNSS receiver for precise maritime positioning.

The Furuno GPS Navigation System Antenna is engineered for high-performance GNSS applications across various vessel types. This compact receiver integrates a 75-channel GNSS core, ensuring accurate position fixes within 3 meters, which is essential for maritime, industrial, and survey operations. With a 10 Hertz refresh rate, it provides real-time data output in both NMEA2000 and NMEA0183 formats, making it compatible with a wide range of systems, including the NavNet series.

Designed for durability, the antenna features a waterproof rating of IPX6, allowing it to withstand harsh marine environments. It operates effectively within a temperature range of -25 to 70 degrees Celsius, ensuring reliable performance in diverse conditions. The device supports multiple satellite systems, including GPS, GLONASS, Galileo, and QZSS, enhancing its versatility and accuracy.

Included with the antenna is a 6-meter NMEA2000 cable and necessary mounting hardware, facilitating easy installation on either pole or deck mounts. This GPS sensor is a robust solution for users requiring high-precision navigation and positioning data.

Features

• Compatible With GPS L1/L5, GLONASS L1, Galileo E1/E5, QZSS L1/L5 And Beidou B1/B2
• Compatible With SBAS
• 75 Channel GNSS Core
• Waterproof Rating Of IPX6
• High Position Accuracy Less Than 3 Meter 95 Percentage Of The Time
• 10 Hertz Update Rate
• Ideal Position-Fixing Sensor For NAVnet Series Including TZtouch, TZtouch2, TZtouch3, And TZtouchXL
• NMEA2000 Certified

Specifications

• Manufacturer: Furuno
• Manufacturer Part Number: GP340
• Mounting Location: Pole Mount/ Deck Mount
• Color: White
• Temperature Range: -25 Degree To 70 Degree Celsius
• Dimensions: 4 Inch Diameter
• Waterproof Rating: IPX6 Rating
• Includes: 6 Meter NMEA2000 Cable And Mounting Hardware

Technical Documents

• gp340_installation_guide.pdf
• gp340_packing_list.pdf
