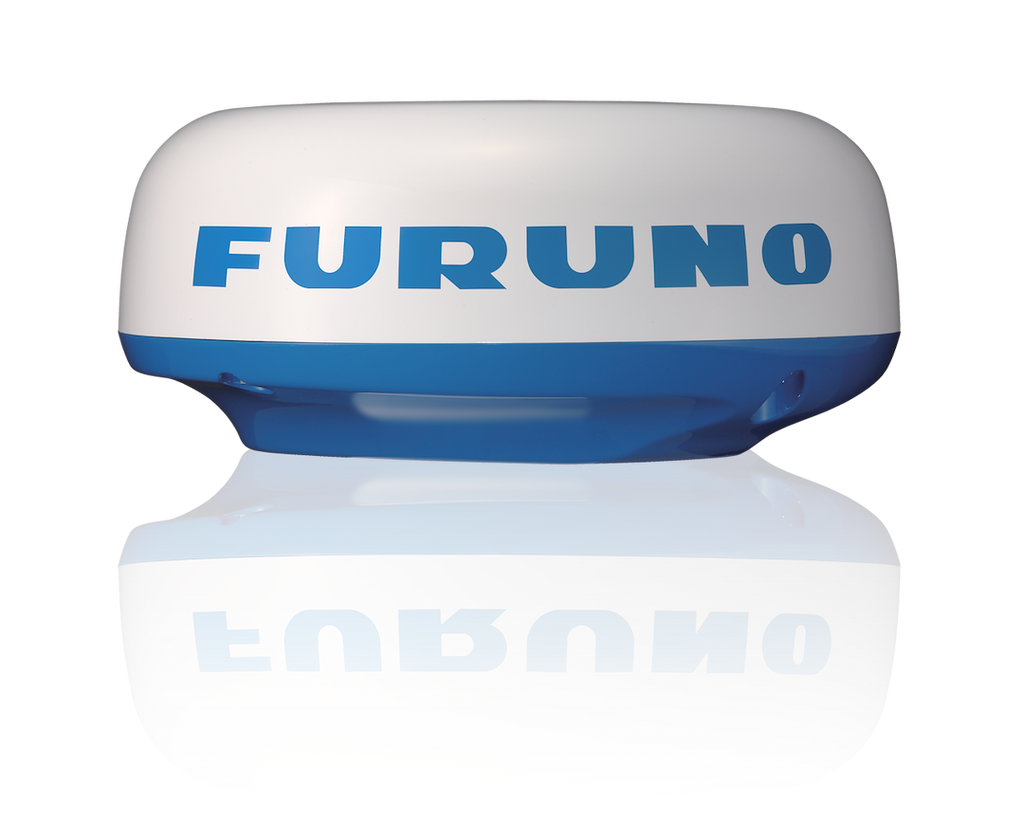

Furuno DRS4DL+ Radar Antenna (MPN: DRS4DL+)

Compact 19 Inch Dome Radar with Advanced Target Tracking Features

The Furuno DRS4DL+ is a sophisticated 19 Inch dome radar sensor designed for seamless integration with NavNet TZtouch and TZtouch2 systems. This radar operates at a power output of 4 kilowatts, providing a range of 0.0625 to 36 nautical miles, making it suitable for various marine navigation needs. With a horizontal beam width of 5.2 degrees, it ensures precise target detection and tracking, enhancing navigational safety and efficiency.

Equipped with advanced automatic digital signal processing, the DRS4DL+ delivers clear and accurate target information, allowing users to easily estimate the course and speed of other vessels. The radar's IPX6 waterproof rating ensures reliable performance in challenging marine environments, while its compact design facilitates straightforward installation. The single-wire connection with compatible NavNet systems simplifies setup, making it accessible for both professional and recreational mariners.

Overall, the Furuno DRS4DL+ radar antenna combines robust construction with advanced technology, providing users with a reliable tool for effective navigation and vessel monitoring.

Features

• Designed To Work With NavNet TZtouch And TZtouch2 Systems
• Fast Target Tracking
• With Accurate Tracking Information, Estimation Of Other Vessel's Course And Speed Is Made Simple
• IPX6 Waterproof

Specifications

• Manufacturer: Furuno
• Manufacturer Part Number: DRS4DL+
• Radar Type: Radome
• Distance Range Limit: 36 Nautical Miles
• Size: 19 Inch Dome
• Power Output: 4000 Watt
• Beam Width: 5.2 Degree
• Color: White
• Range Scale: 1/16 To 36 Nautical Miles
• Near Range Limit: 1/16 Nautical Miles
• Rotation Speed: 24 RPM
• Dimension: 19.2 Inch Diameter X 8.6 Inch Height
• Input Voltage: 12 Volt To 24 Volt
• Waterproof Rating: IPX6 Rating Waterproof

Technical Documents

• drs4dl_plus_installation_manual.pdf
