Reliable hydraulic reversing pump for efficient steering control.

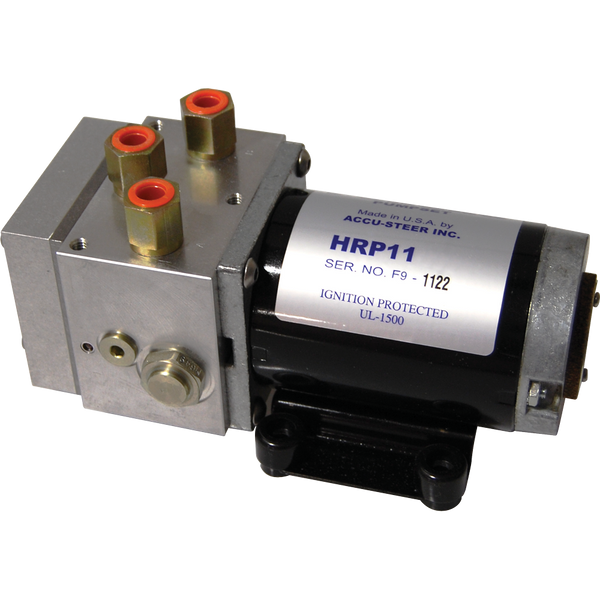

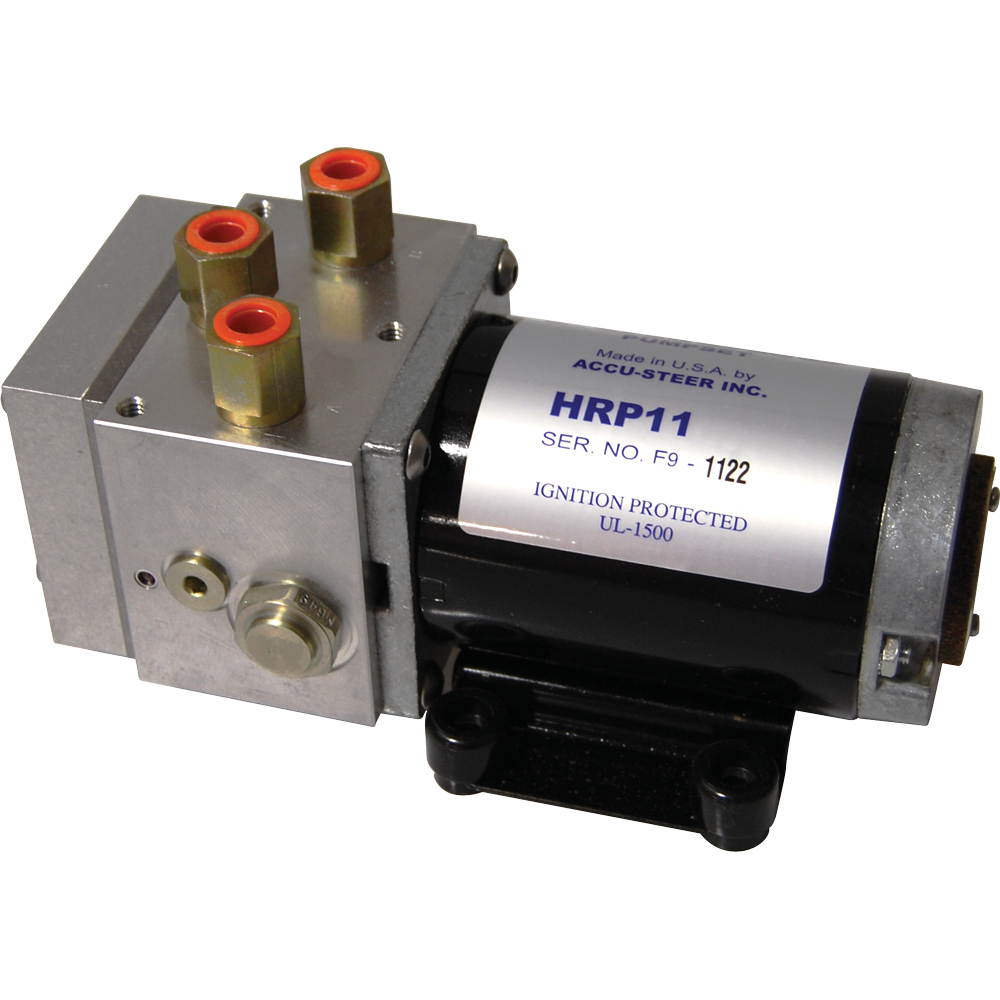

The Furuno Boat Autopilot Pump is engineered for use in most hydraulically steered boats and applications, providing a robust solution for steering control. This hydraulic reversing pump operates at a maximum pressure of 1000 PSI and accommodates cylinder capacities ranging from 5 cubic inches to 9 cubic inches, ensuring compatibility with various systems. Designed for 12 Volt DC operation, it draws between 5 to 25 Amps, making it suitable for medium-duty applications.
Constructed with a compact and rugged design, the pump features a complete assembly that includes a reversing gerotor gear pump, hydraulic lock valves, and a valve housing manifold. The integrated electric permanent magnet motor enhances performance and reliability. The hydraulic manifold is equipped with a directional valve, flow control, pressure relief, and by-pass valve, facilitating seamless integration with hydraulic steering systems and autopilot controls.
Installation is straightforward, thanks to the floor mount design, which allows for easy setup in various boat configurations. The operational temperature range of 14 degrees Fahrenheit to 122 degrees Fahrenheit ensures functionality in diverse environmental conditions, making this pump a versatile choice for boat owners seeking dependable steering solutions.
Features
- Its Compact And Rugged Construction
- Designed To Interface Hydraulic Steering Systems With Electric Or Autopilot Control
- Hydraulic Manifold Features Directional Valve, Flow Control, Pressure Relief And By-Pass Valve
- Provides Ease Of Installation
Specifications
- Manufacturer: Furuno
- Manufacturer Part Number: PUMPHRP05-12
- Compatibility: Hydraulically Steered Boats And Applications
- Maximum Pressure: 1000 PSI
- Cylinder Capacity: 5 Cubic Inch To 9 Cubic Inch
- Voltage Rating: 12 Volt
- Ampere Rating: 5 To 25 Amp
- Mounting Type: Floor Mount
