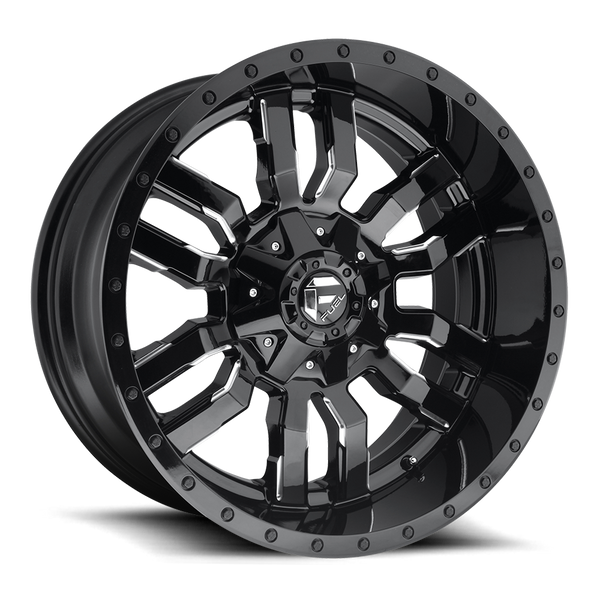

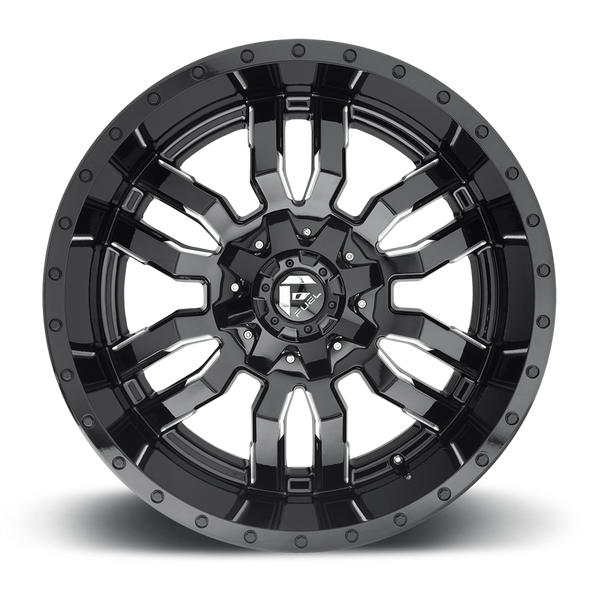

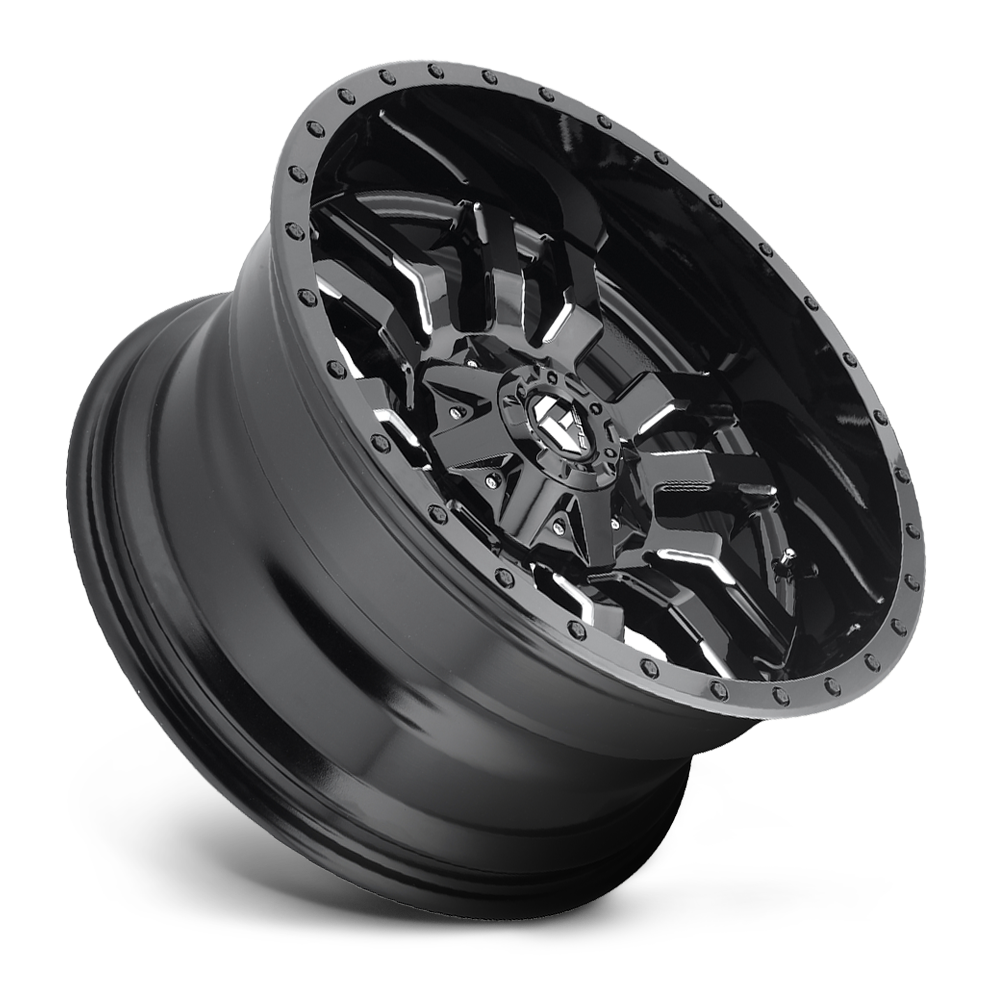

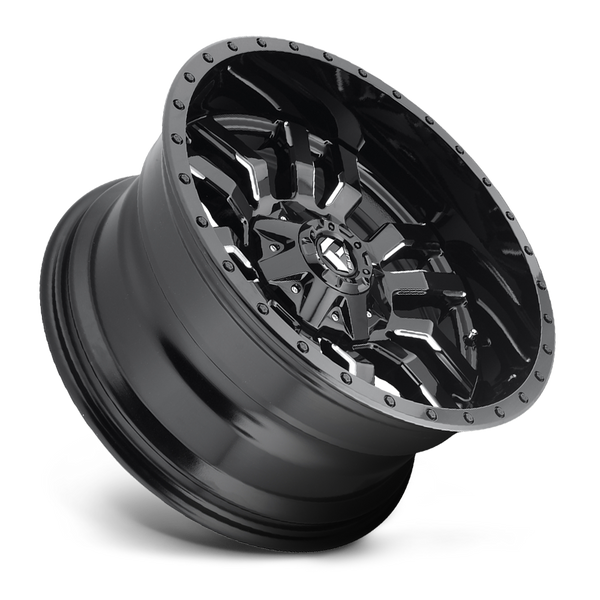

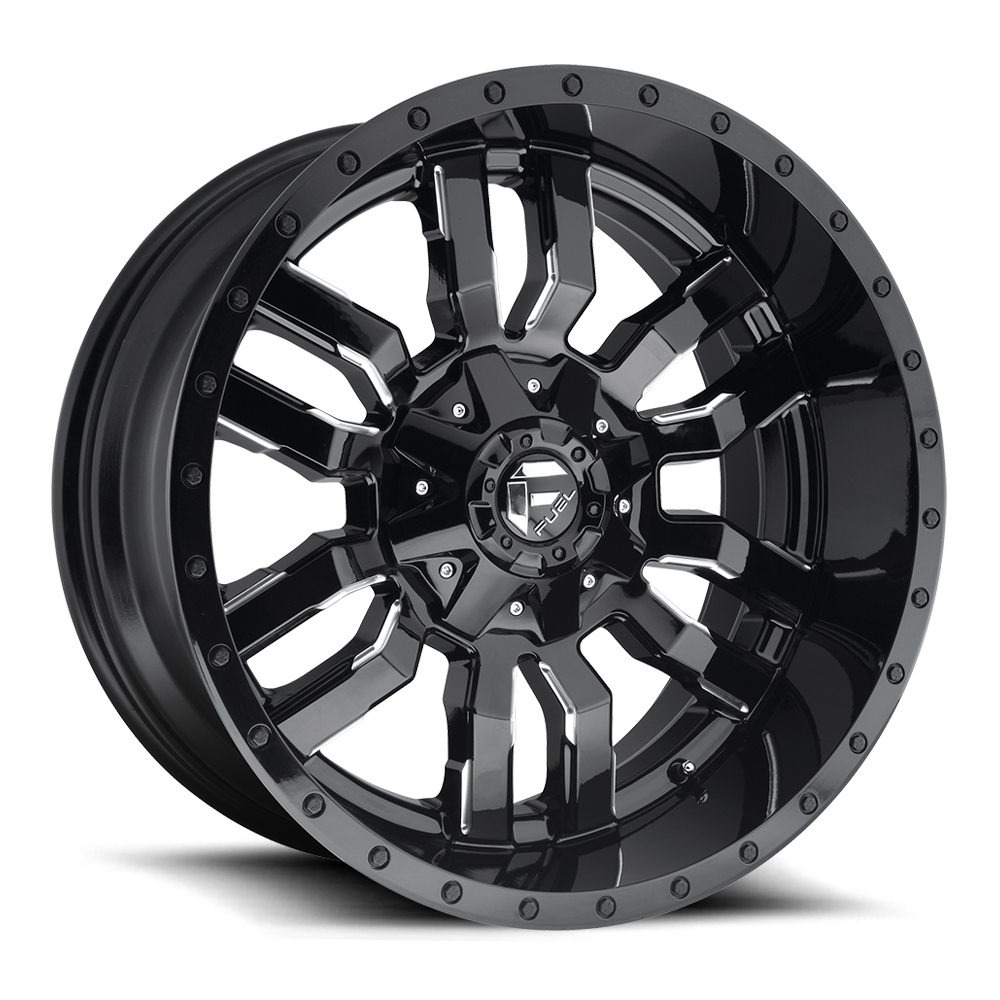

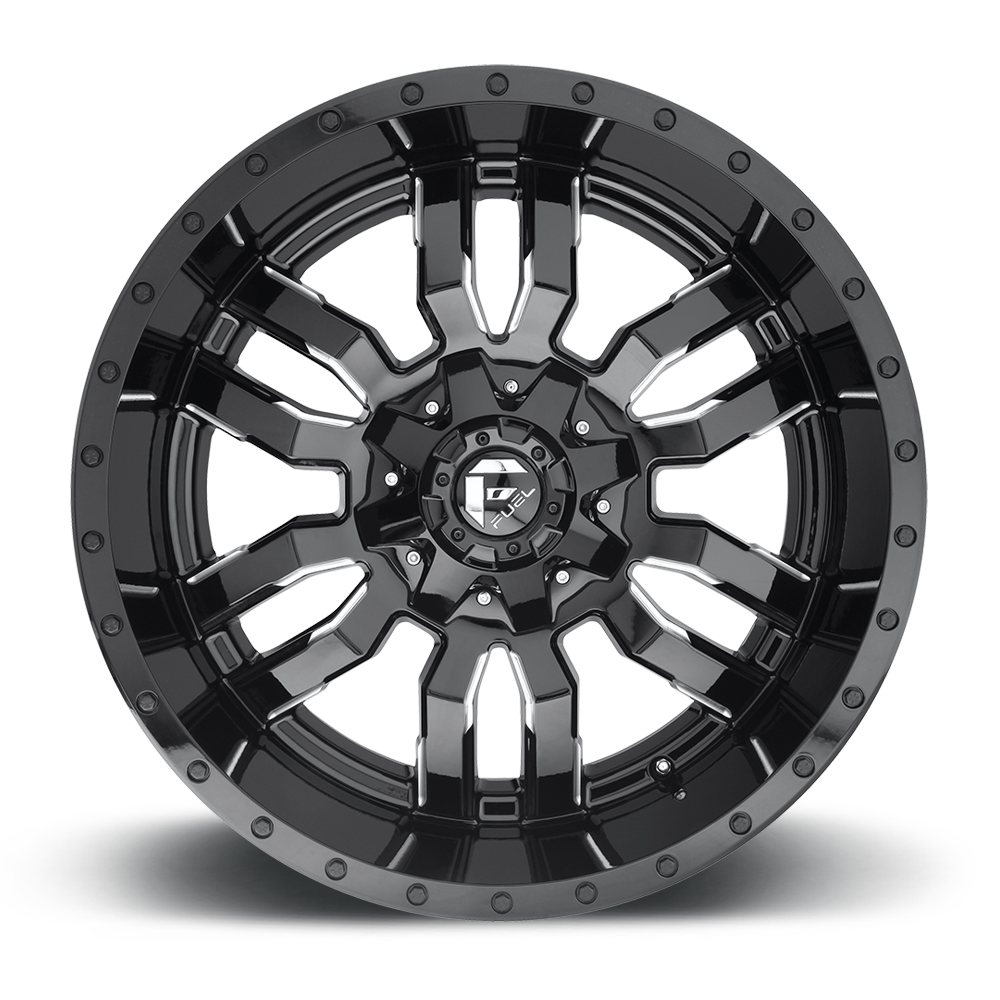

Fuel Off Road Wheel Sledge D595 (MPN: D59520007047US)

Advanced off-road wheel with innovative design and high load capacity.

The Fuel Off Road Wheel Sledge D595 is engineered for off-road enthusiasts seeking durability and style. With a diameter of 20 inches and a width of 10 inches, this wheel features a robust one-piece cast aluminum construction that supports a load capacity of 2500 pounds. The design includes a striking gloss black finish with milled accents, enhancing both aesthetics and performance.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and accommodates a maximum tire diameter of 42 inches, making it a versatile choice for various off-road applications. The 6 split spoke design not only adds to its visual appeal but also contributes to its structural integrity.

With a -18 millimeter offset and 4.79 inches of backspacing, the Sledge D595 is designed to fit a range of vehicles, ensuring optimal performance on rugged terrains. The 60-degree conical seat lug nut design and a center bore of 110.10 millimeters further enhance its compatibility and ease of installation.

Features

• Matte Gun Metal With Black Bead Lock Ring Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D59520007047US
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: 5x5.91
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: 5x150
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2010 Dodge Ram 1500
• 1987-1996 Ford Bronco
• 1980-1983 Ford F-100
• 1980-1994 Ford F-150
• 1970-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
