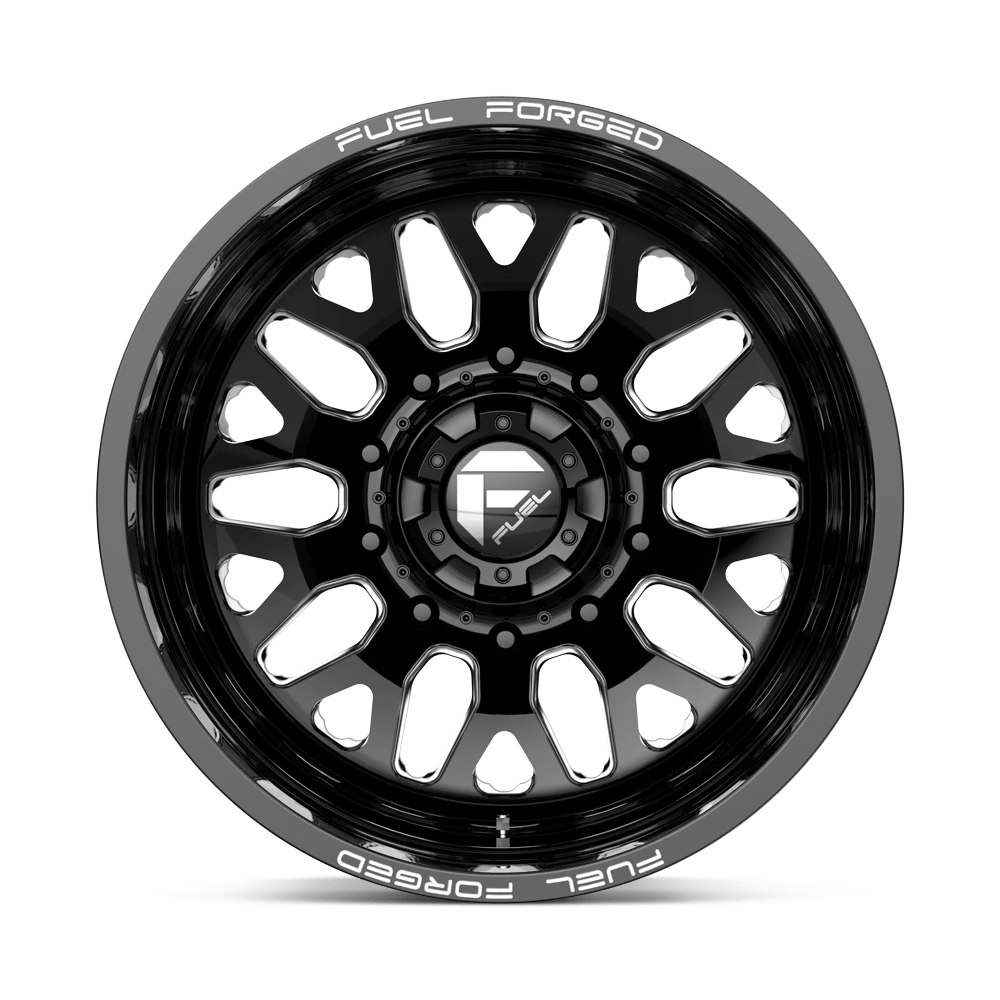

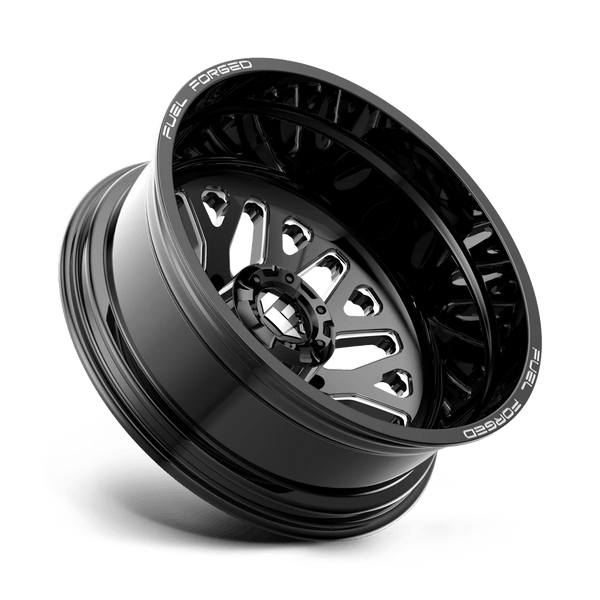

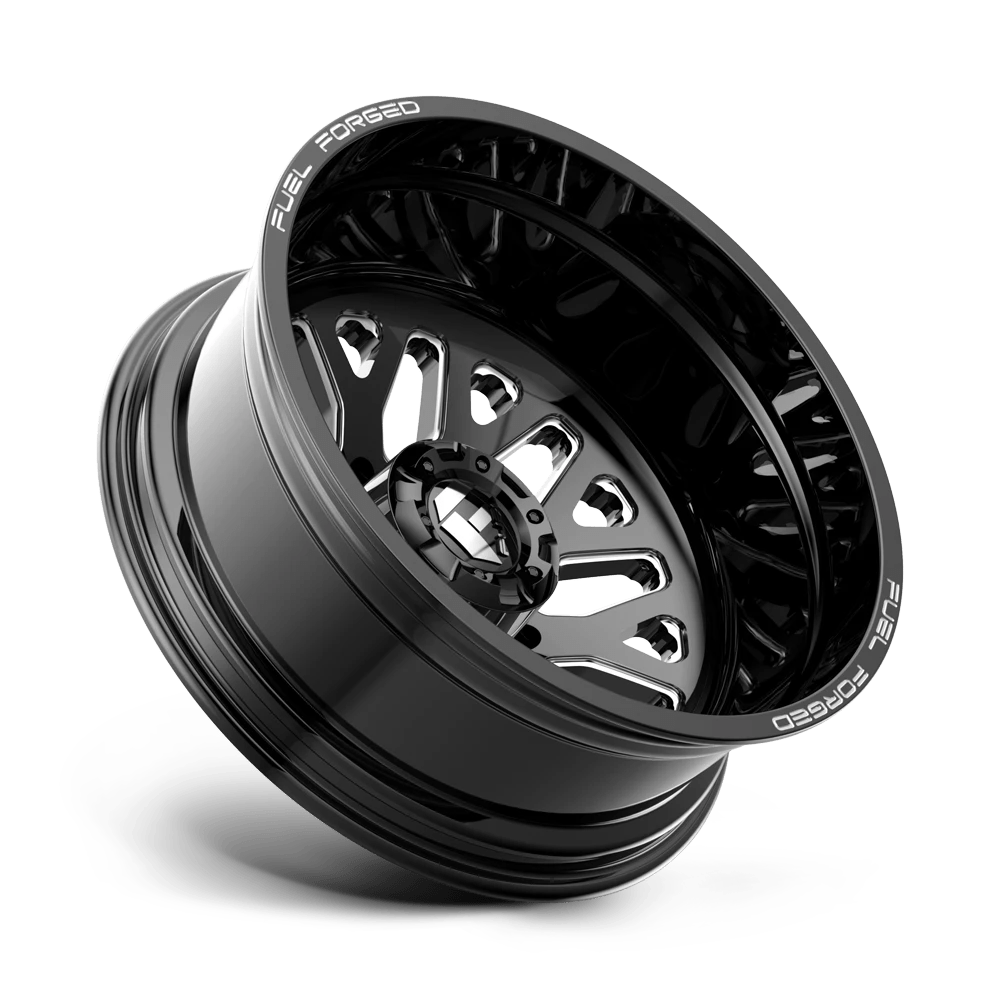

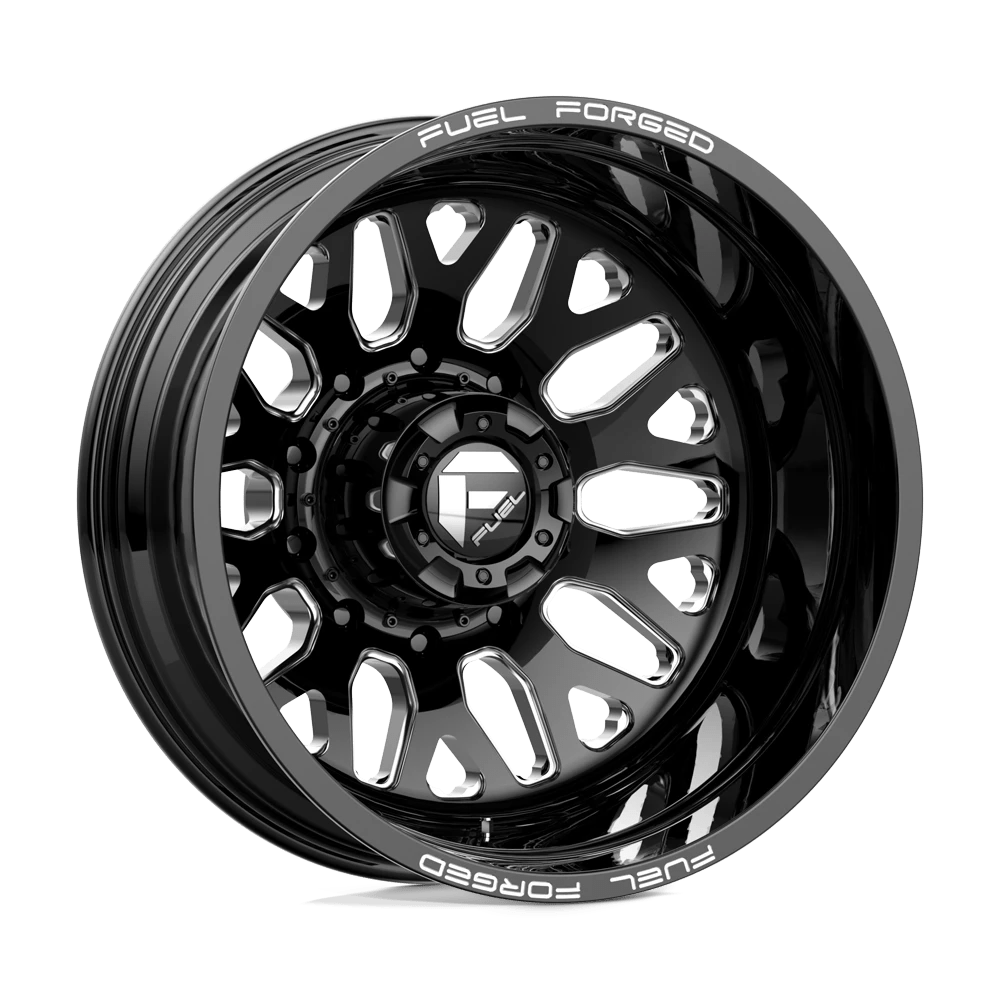

Fuel Off Road Wheel (MPN: DE192282A935)

Advanced off-road wheel with innovative design and robust construction.

The Fuel Off Road Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 22 inches and a width of 8.5 inches, this wheel features a 10 split spoke design that enhances both aesthetics and performance. Constructed from one piece forged aluminum, it offers a load capacity of 2500 pounds, making it suitable for various off-road applications. The gloss black finish with milled accents not only provides a striking appearance but also ensures longevity against harsh conditions.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for real-time monitoring of tire pressure, which is crucial for safety and performance. The 60 degree conical seat lug design ensures a secure fit, while the 170.10 millimeter center bore accommodates a wide range of vehicles. With a maximum tire diameter of 37 inches, this wheel is designed to support larger tires, enhancing off-road capability.

Fuel Off Road is committed to delivering high-quality products backed by a lifetime structural warranty and a one-year finish warranty. The dedicated team of designers and engineers continuously pushes the boundaries of wheel design, ensuring that each product meets the highest standards of performance and style. Choose the Fuel Off Road Wheel for a combination of cutting-edge design and reliable functionality.

Features

• Gloss Black Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: DE192282A935
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 8.5
• Offset: -202
• Backspacing: -3.20
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 10x8.85
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 10x225
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 170.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 22x8.5
• Max Tire Diameter: 37
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Forged
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5
