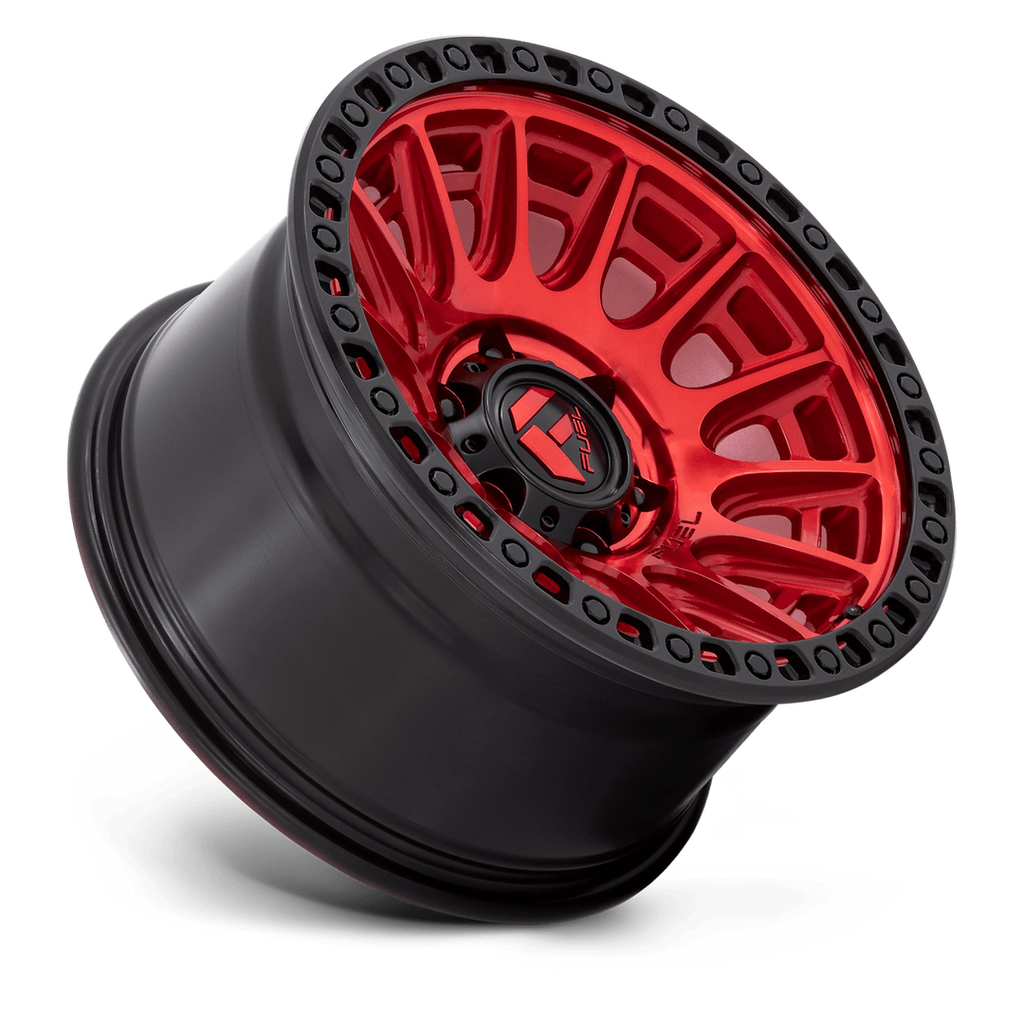

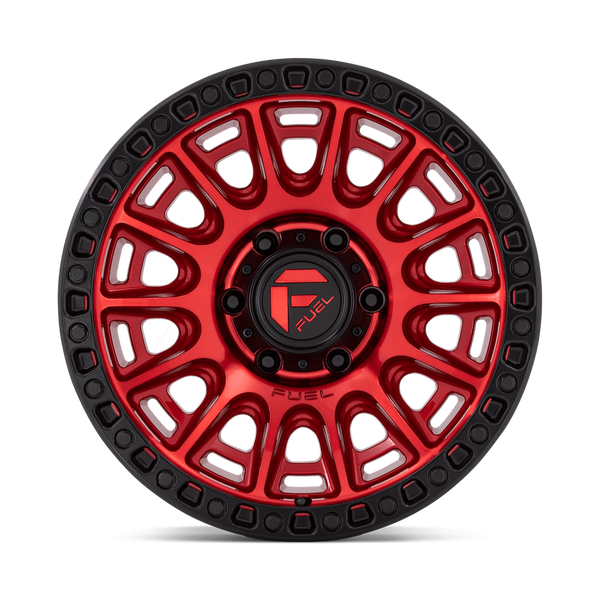

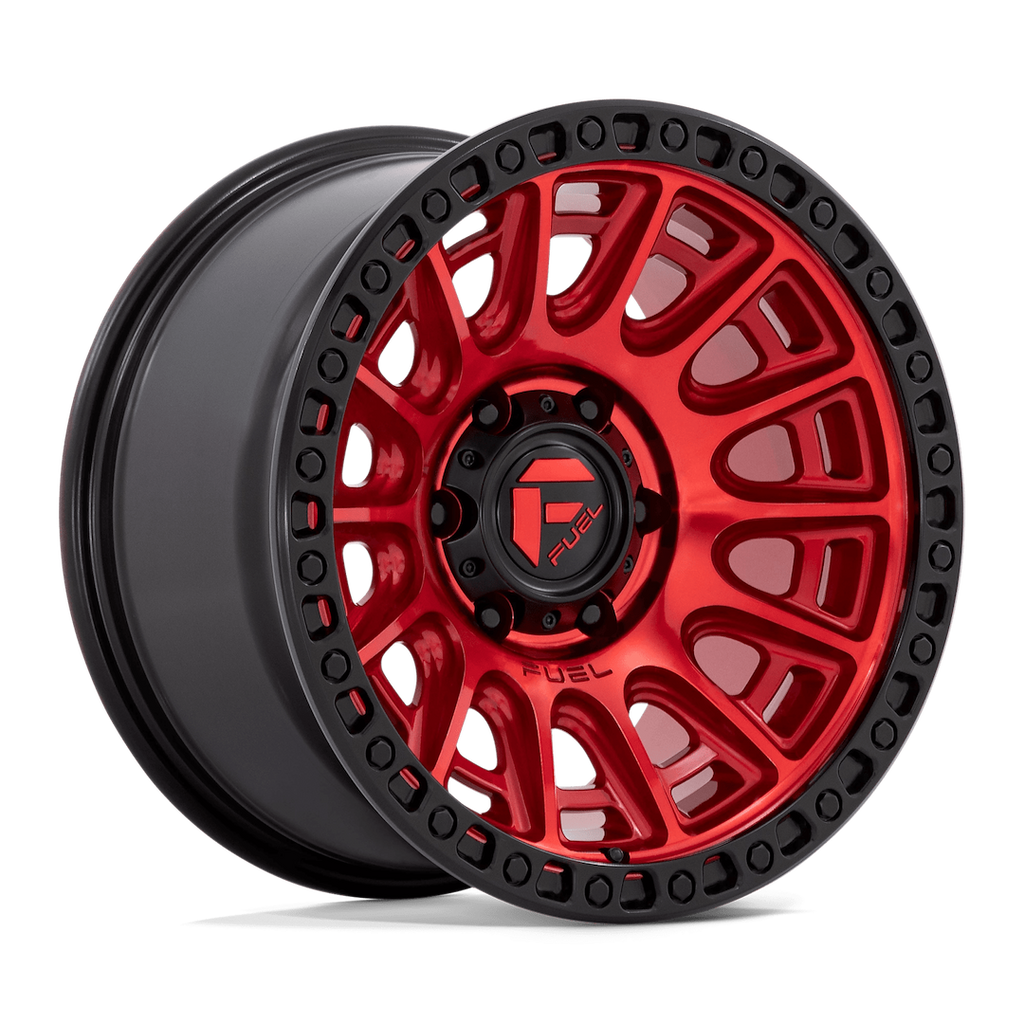

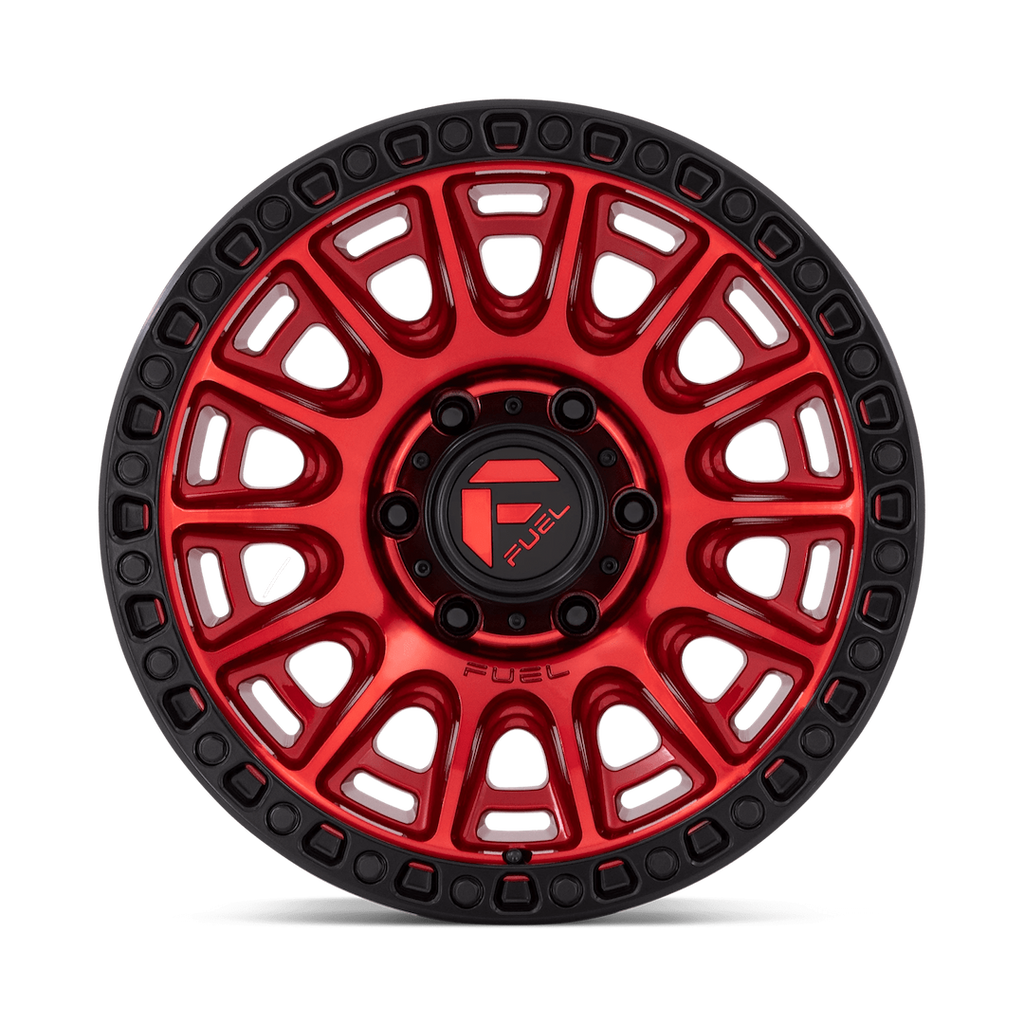

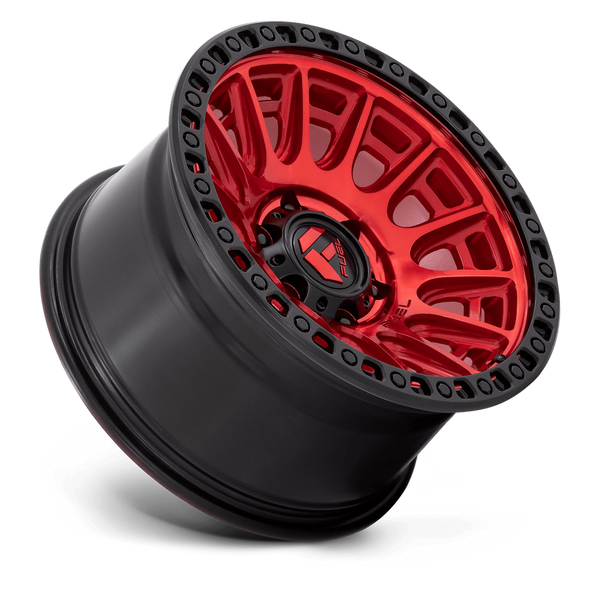

Fuel Off Road Wheel (MPN: D83417907550)

Advanced off-road wheel with innovative design and high load capacity.

The Fuel Off Road Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 17 inches and a width of 9 inches, this wheel features a robust one-piece cast aluminum construction that ensures longevity and performance under demanding conditions. The candy red finish with a black beadlock ring not only enhances aesthetic appeal but also provides a functional design that withstands the rigors of off-road driving.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), making it a practical choice for modern vehicles. It boasts a load capacity of 2500 pounds, accommodating larger tires with a maximum diameter of 40 inches. The 14 spoke design and 60-degree conical seat lug nut configuration contribute to its strength and reliability, while the 71.50 millimeter center bore ensures a proper fit for various applications.

Fuel Off Road is committed to delivering high-quality products backed by a lifetime structural warranty and a one-year finish warranty. This wheel is designed to meet the needs of serious off-road drivers, combining cutting-edge technology with a stylish appearance. With the Fuel logo center cap included, this wheel stands out in both performance and design.

Features

• Candy Red With Black Ring Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D83417907550
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 1
• Backspacing: 5.04
• Finish: Painted
• Color: Candy Red
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 14 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
