Durable 17 Inch Wheel with Candy Red Finish and Beadlock Ring

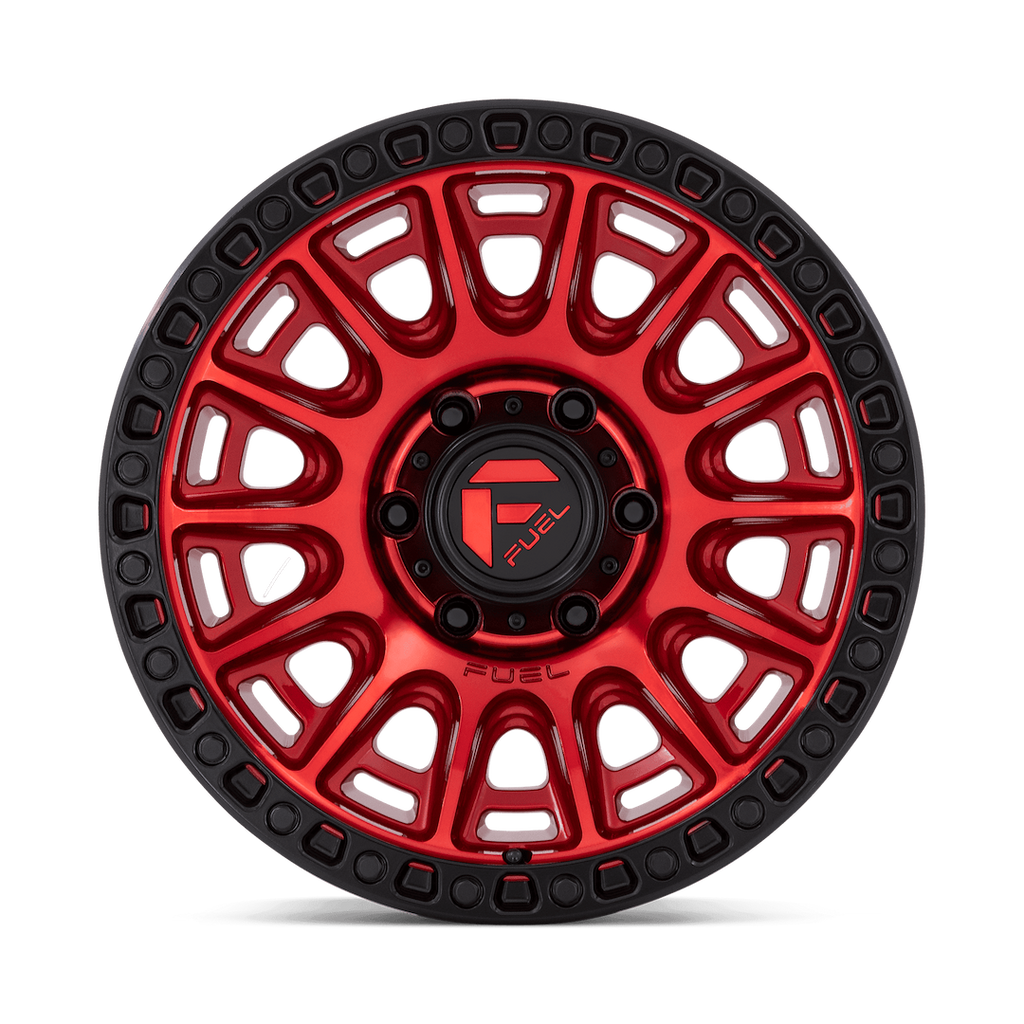

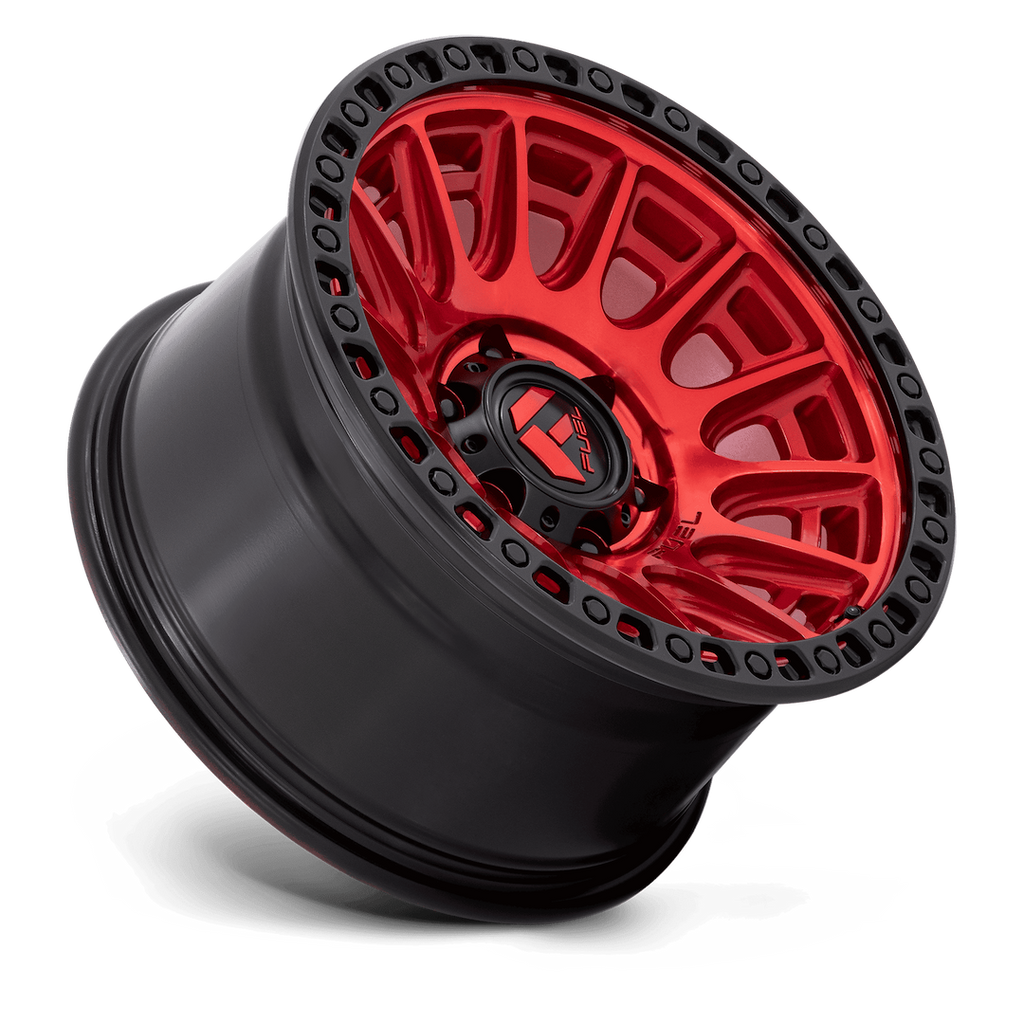

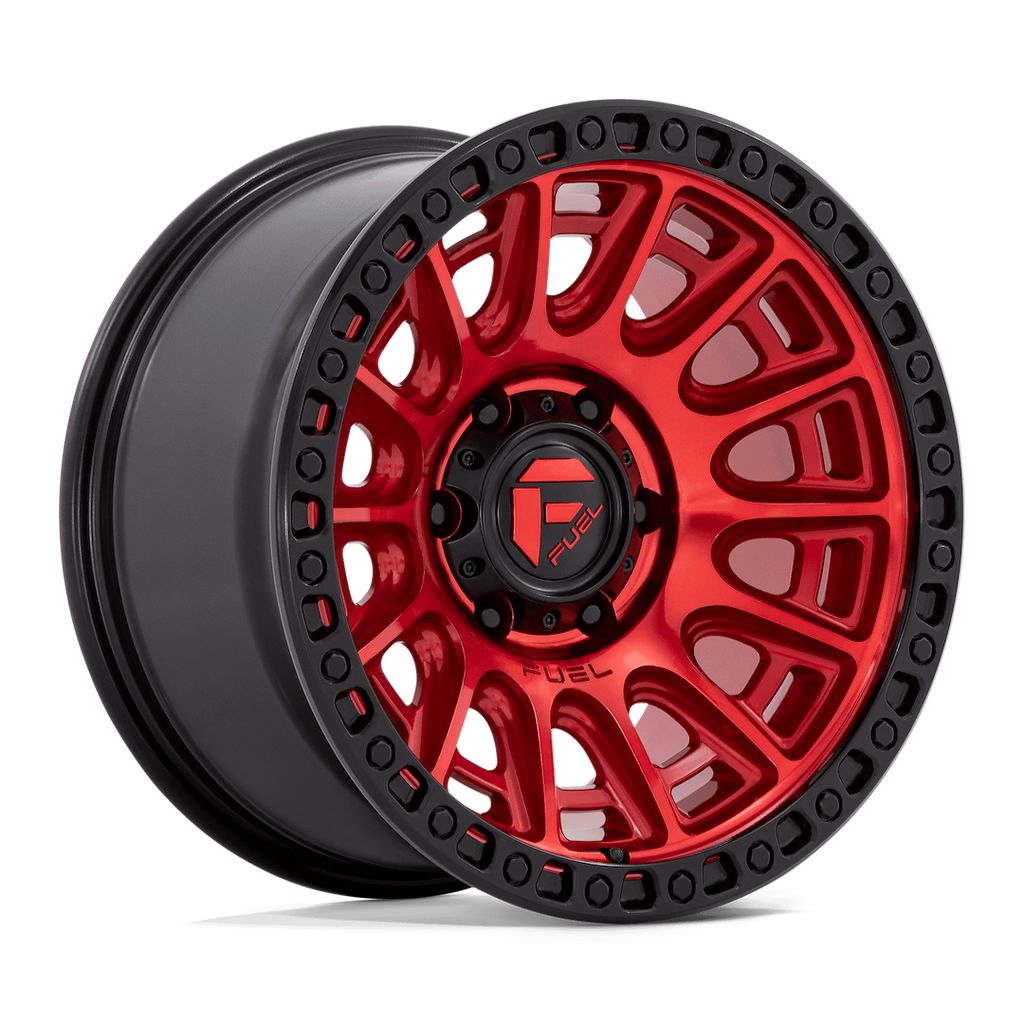

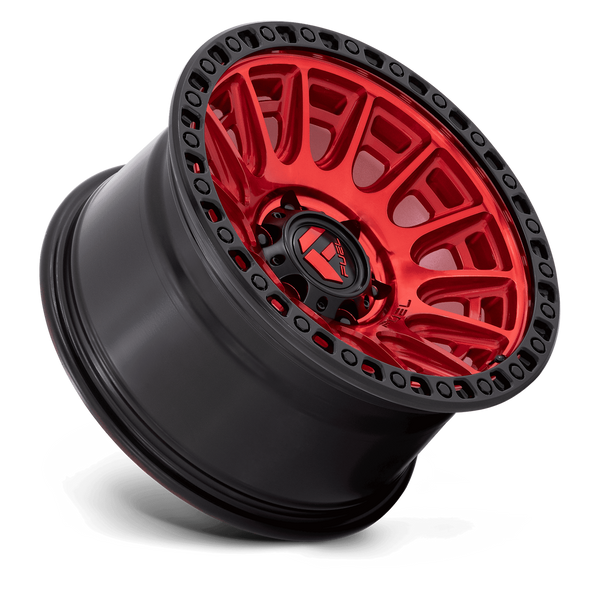

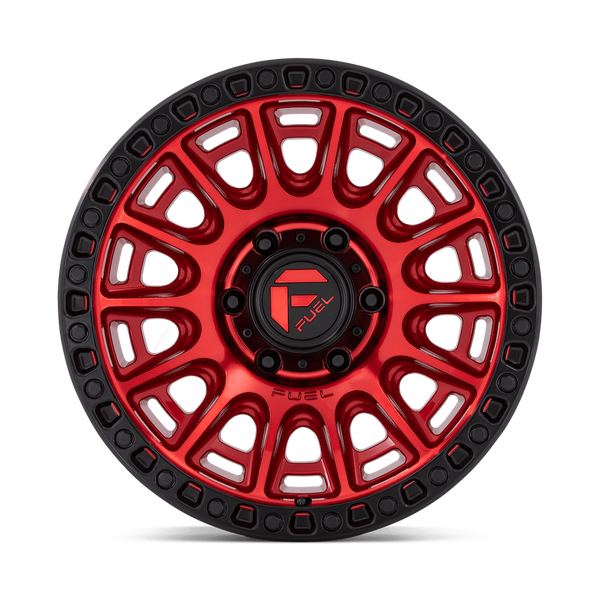

The Fuel Off Road Wheel D834 is engineered for modified trucks and Jeeps, providing a robust solution for off-road enthusiasts. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 6 x 114.3 millimeter bolt pattern and a 34 millimeter offset, ensuring compatibility with a wide range of vehicles. The one-piece cast aluminum construction offers a load capacity of 2500 pounds, making it suitable for heavy-duty applications.
The striking candy red finish with a black beadlock ring not only enhances the aesthetic appeal but also provides additional functionality. This wheel is designed to accommodate a maximum tire diameter of 40 inches and is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring optimal performance and safety. The 14 spoke design adds to the wheel's rugged look while maintaining structural integrity.
Included with the wheel is a Fuel logo center cap, which adds a touch of branding to your vehicle. The 60 degree conical seat lug nut design ensures a secure fit, while the 66.06 millimeter center bore allows for easy installation. The Fuel Off Road Wheel D834 is a reliable choice for those looking to enhance their vehicle's performance and appearance.
Features
- Candy Red With Black Beadlock Ring Finish
- 1 Piece Cast Aluminum Construction
- Compatible With Tire Pressure Monitoring System
- With Fuel Logo Center Cap
- 2500 Pound Load Capacity
Specifications
- Manufacturer: Fuel Off Road
- Manufacturer Part Number: D83417858760
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 8.5
- Offset: 34
- Backspacing: 6.09
- Finish: Painted
- Color: Candy Red With Black Beadlock Ring
- Material: Aluminum
- Bolt Pattern Inch: 6x4.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6x114.3
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 66.06
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 14 Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 17x8.5
- Max Tire Diameter: 40
- Center Cap Design: FUEL Logo
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
