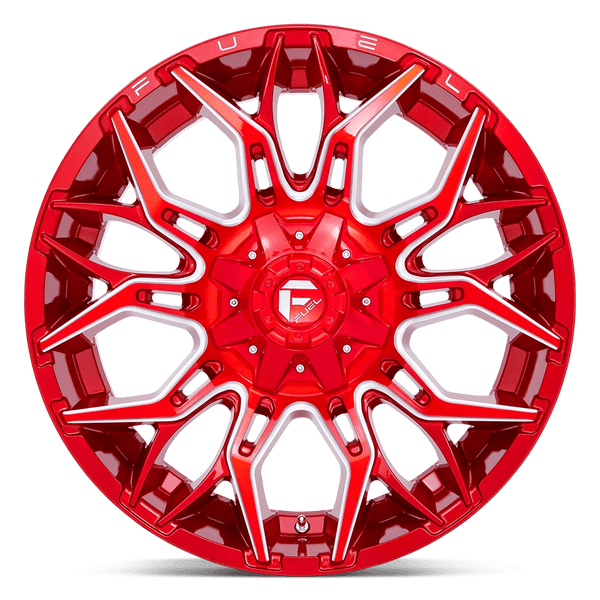

Fuel Off Road Wheel D771 (MPN: D77122007047)

Advanced off-road wheel with striking design and robust performance.

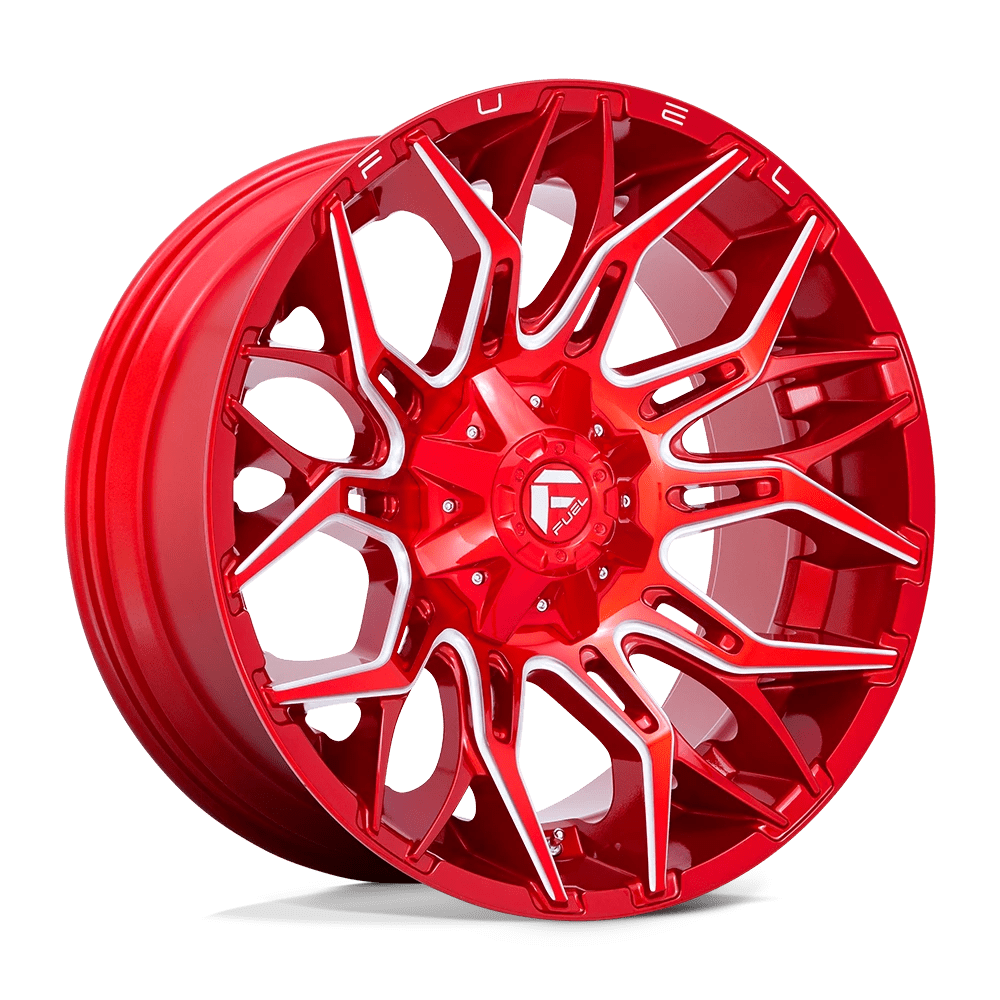

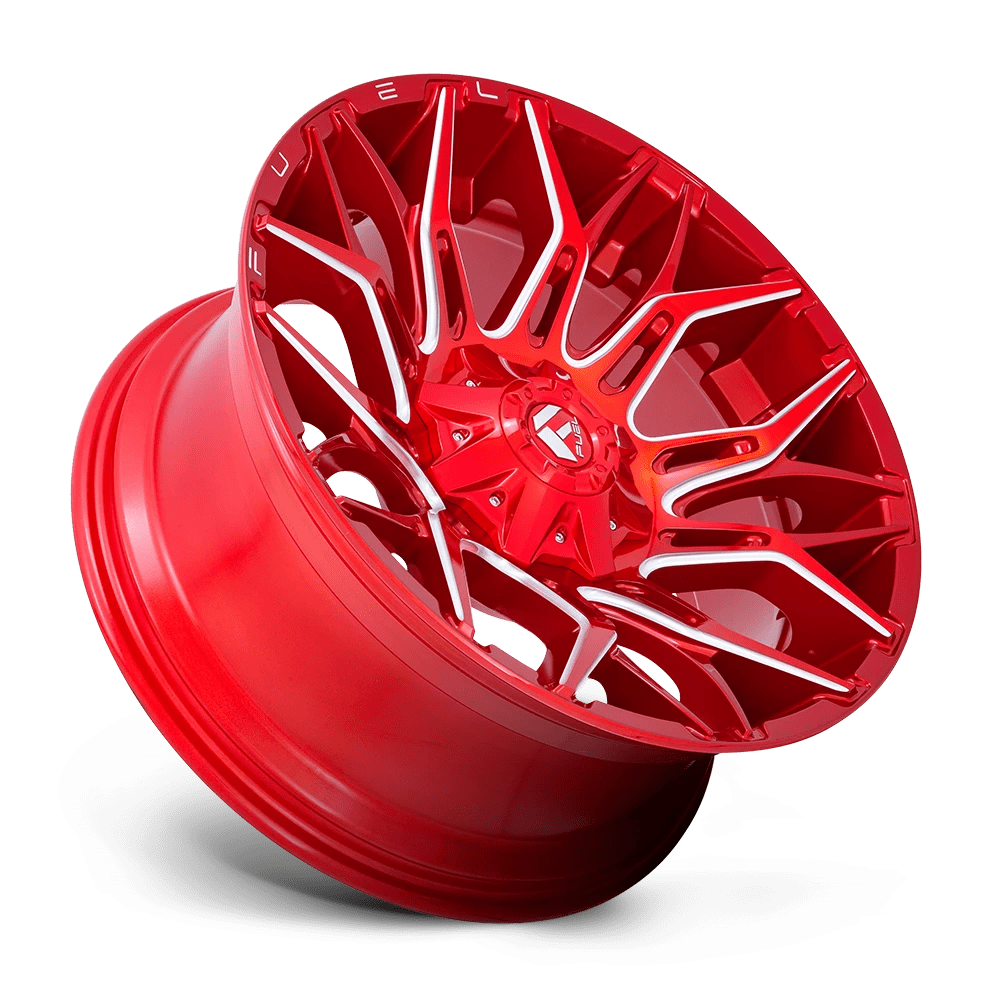

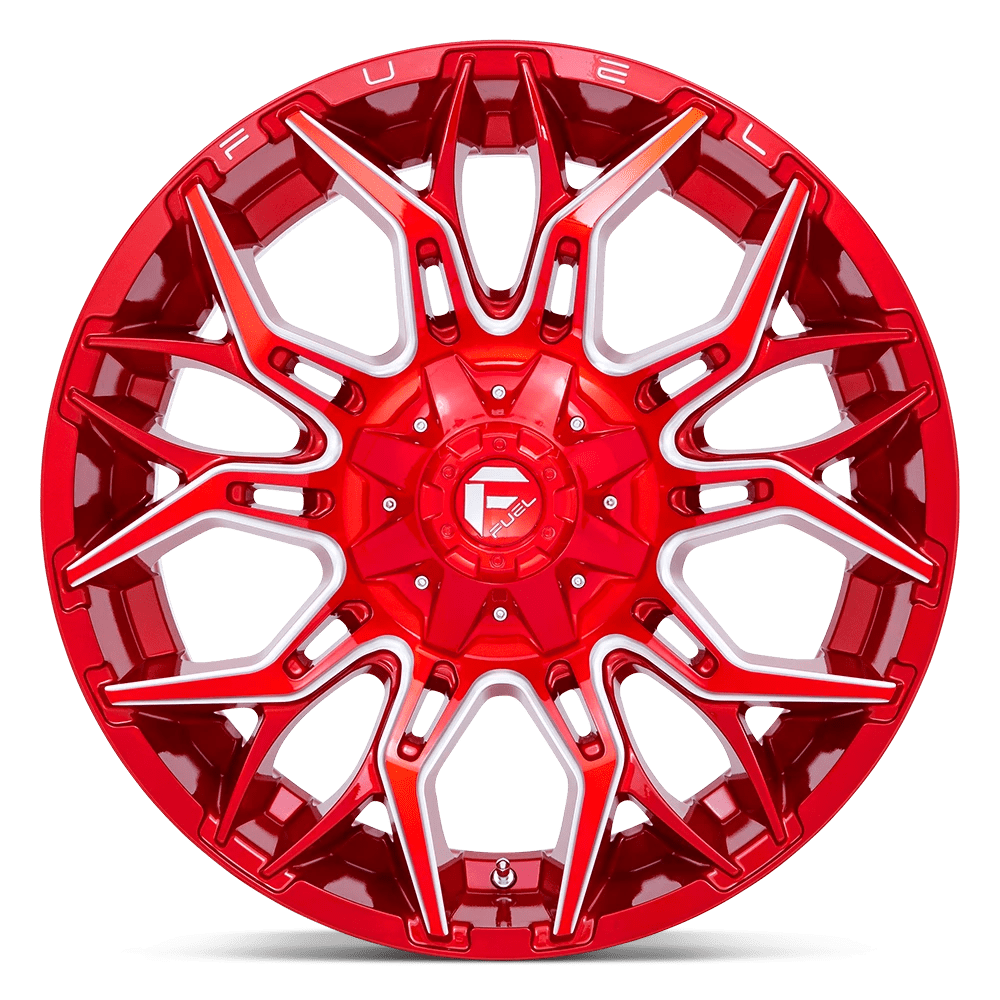

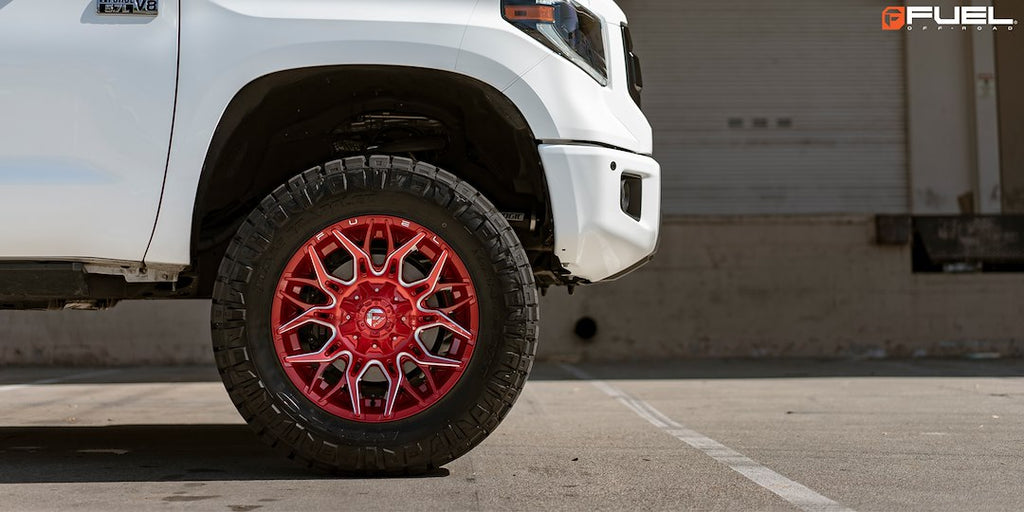

The Fuel Off Road Wheel D771 features a 22 inch diameter and 10 inch width, designed for off-road enthusiasts seeking both style and functionality. Constructed from a single piece of cast aluminum, this wheel offers a candy red finish with milled accents, ensuring a visually appealing look while maintaining durability. With a load capacity of 2500 pounds, it is engineered to support heavy-duty applications and withstand challenging terrains.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and performance during off-road adventures. The 5 split spoke design not only adds to its aesthetic appeal but also contributes to its structural integrity. The wheel accommodates various bolt patterns, including 5 x 139.7 millimeter and 5 x 150 millimeter, making it versatile for different vehicle fitments.

With a -18 millimeter offset and 4.79 inch backspacing, the D771 is designed to provide optimal clearance and stability. The 60 degree conical seat lug nut design ensures a secure fit, while the 110.10 millimeter center bore allows for easy installation. This wheel is a reliable choice for those looking to enhance their off-road vehicle's performance and appearance.

Features

• Candy Red Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D77122007047
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: 5x5.91
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: 5x150
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 22x10
• Max Tire Diameter: 37
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1996 Ford Bronco
• 1980-1983 Ford F-100
• 1980-1994 Ford F-150
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
