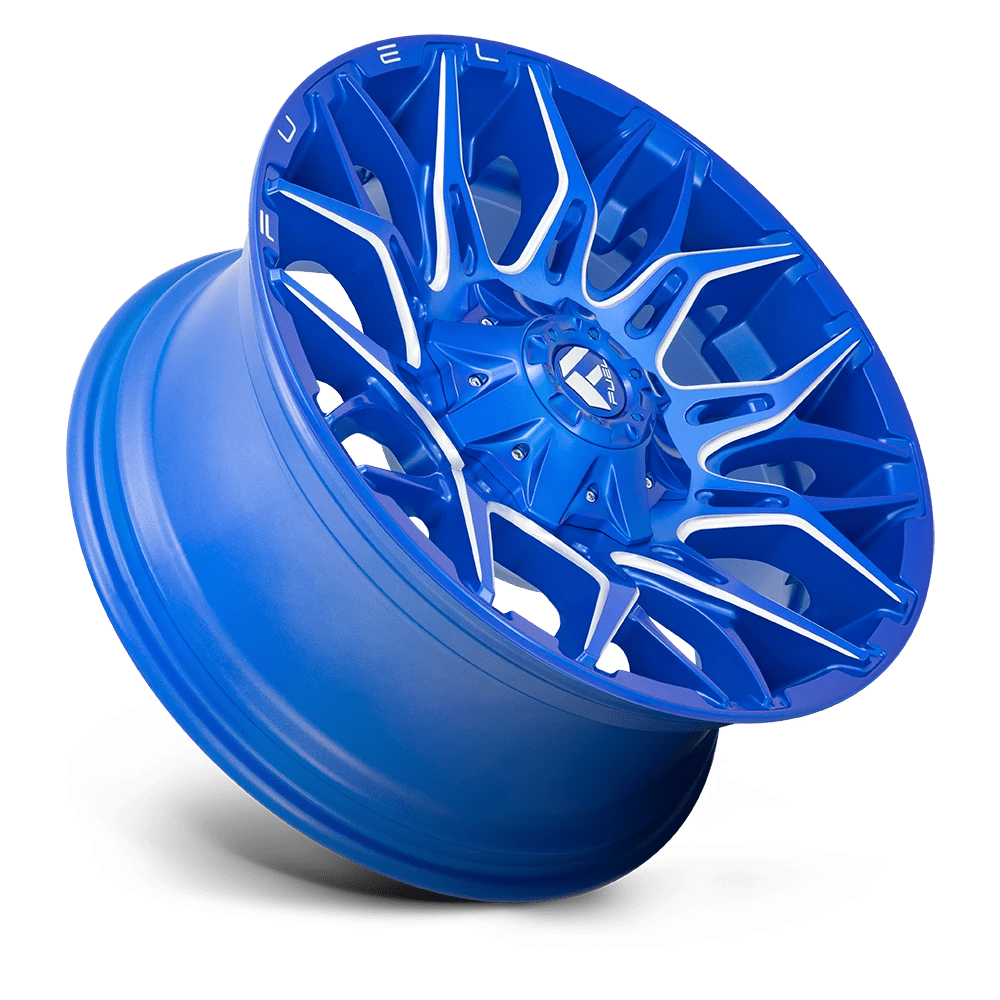

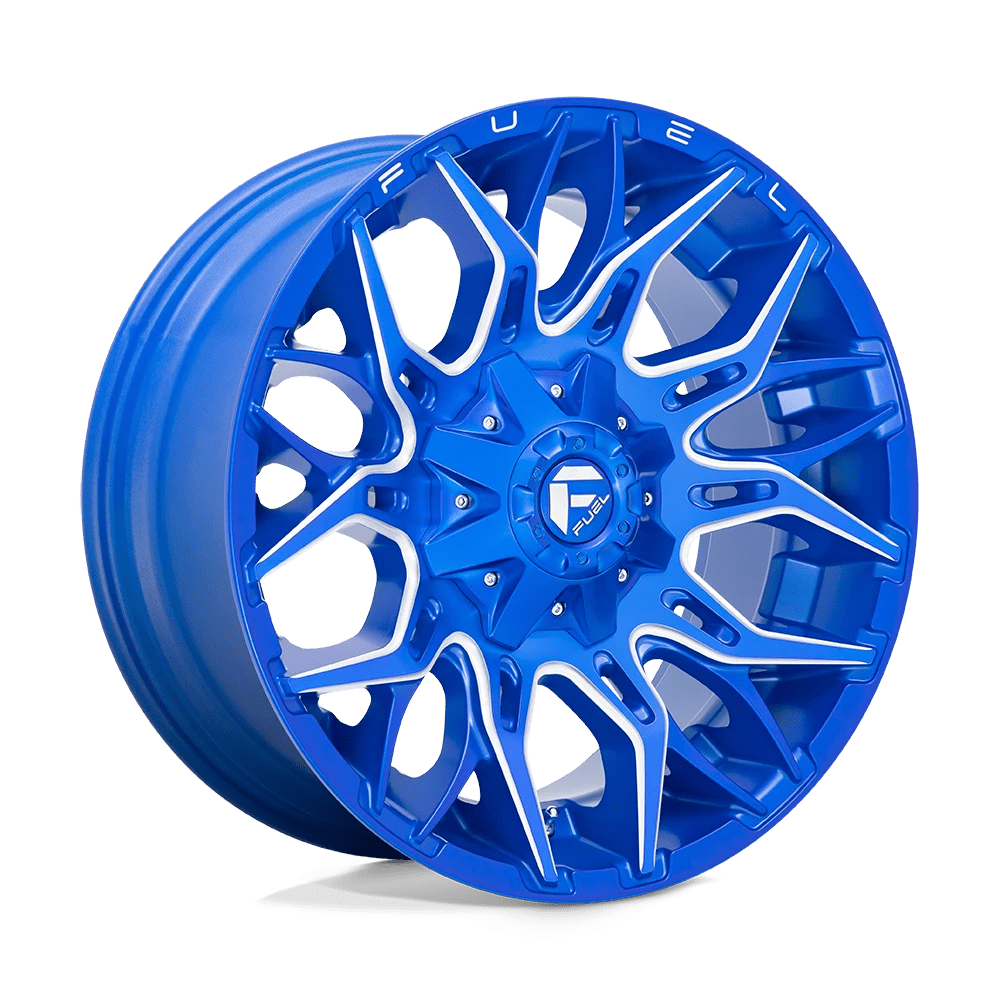

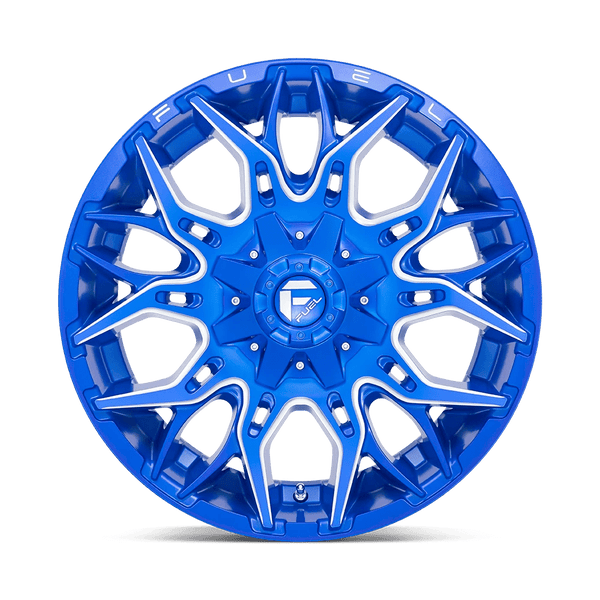

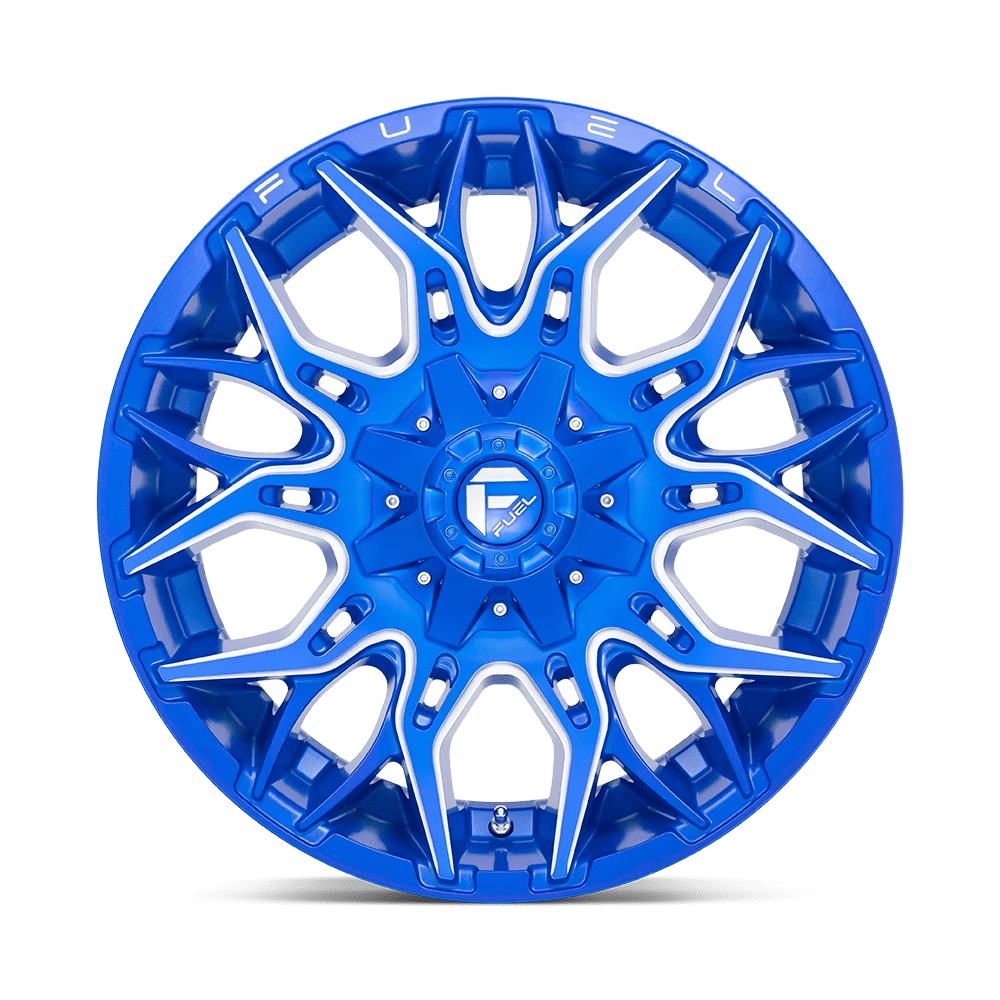

Fuel Off Road Wheel (MPN: D77020002647)

Advanced off-road wheel with innovative design and durability.

The Fuel Off Road Wheel is engineered for off-road enthusiasts seeking both style and performance. With a diameter of 20 inches and a width of 10 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength. The anodized blue finish with milled accents not only enhances its aesthetic appeal but also provides resistance against wear and tear. Designed with a load capacity of 2500 pounds, it is compatible with Tire Pressure Monitoring Systems, ensuring optimal performance during off-road adventures.

This wheel incorporates a 5 split spoke design and is available with a Fuel logo center cap, adding a distinctive touch to any vehicle. The wheel's specifications include a -18 millimeter offset and 4.79 inches of backspacing, making it suitable for a variety of applications. The 60 degree conical seat lug nut design ensures a secure fit, while the 78.10 millimeter center bore accommodates a wide range of vehicles. With a maximum tire diameter of 42 inches, this wheel is designed to meet the demands of serious off-road driving.

Features

• Anodized Blue Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D77020002647
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Anodized With Milled Accents
• Color: Blue With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x4.50
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Millimeter: 5x114.3
• Bolt Pattern Millimeter: 5x127
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1989-1991 Chevrolet V1500 Suburban
• 1994-1994 Ford Explorer
• 1981-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 2000-2000 Jeep Wrangler TJ
• 2005-2006 Jeep Wrangler TJ
• 2000-2015 Toyota Tacoma
