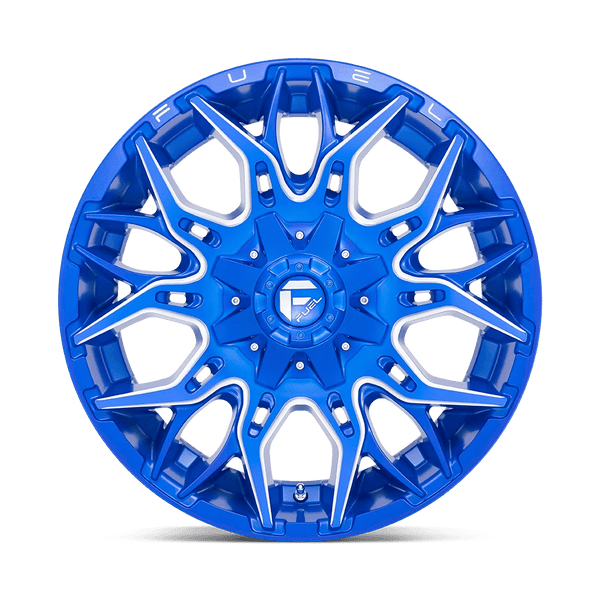

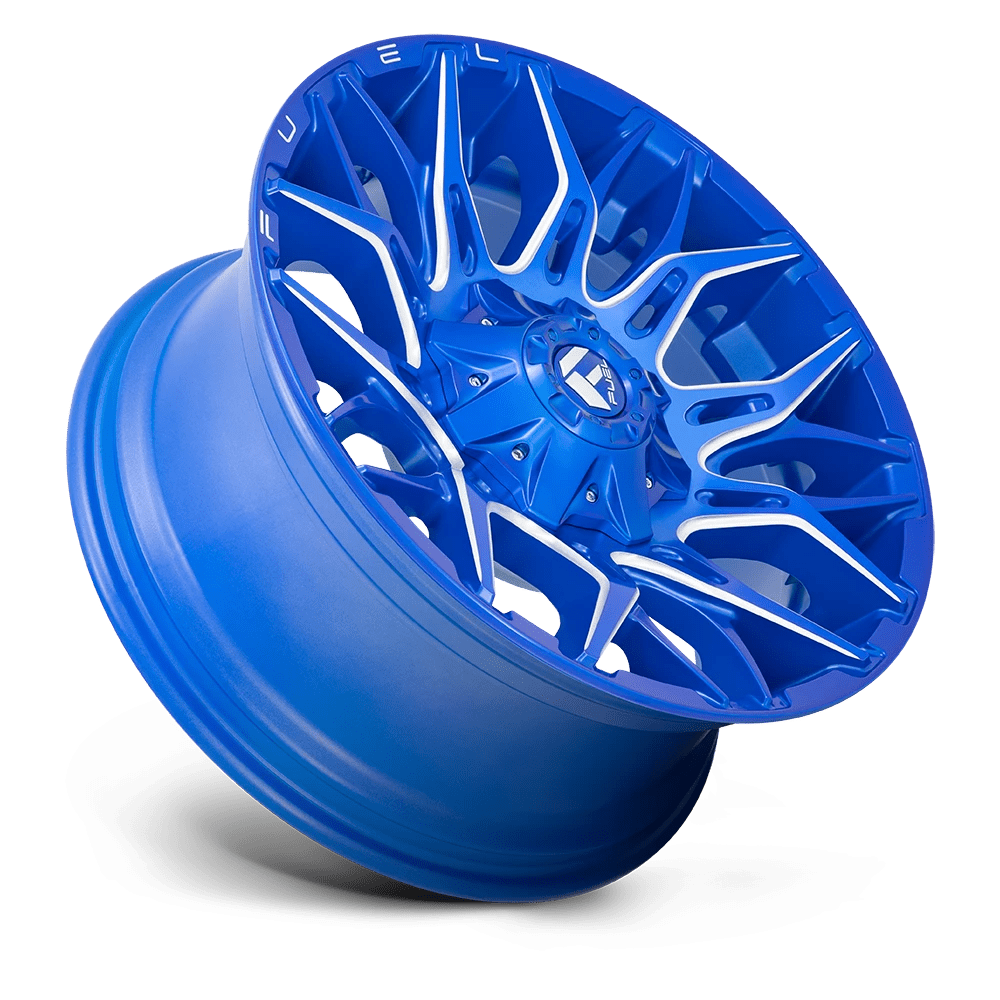

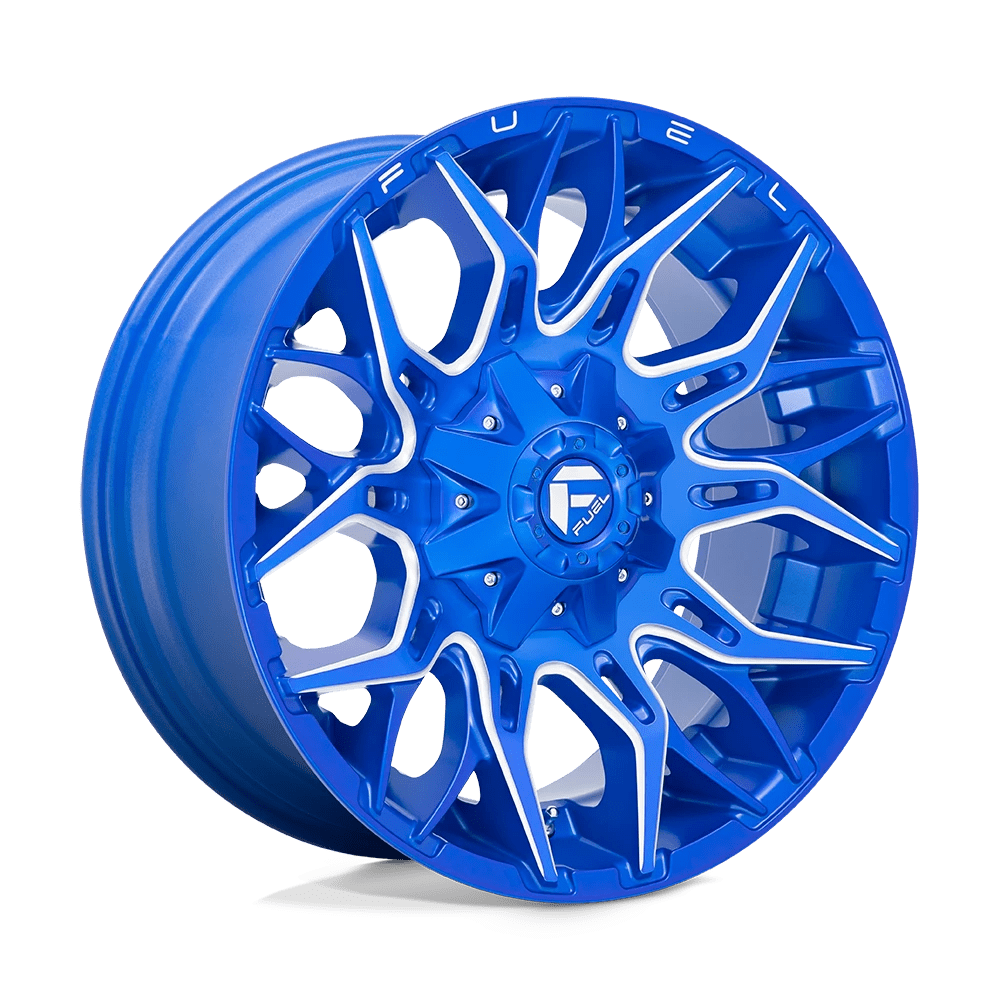

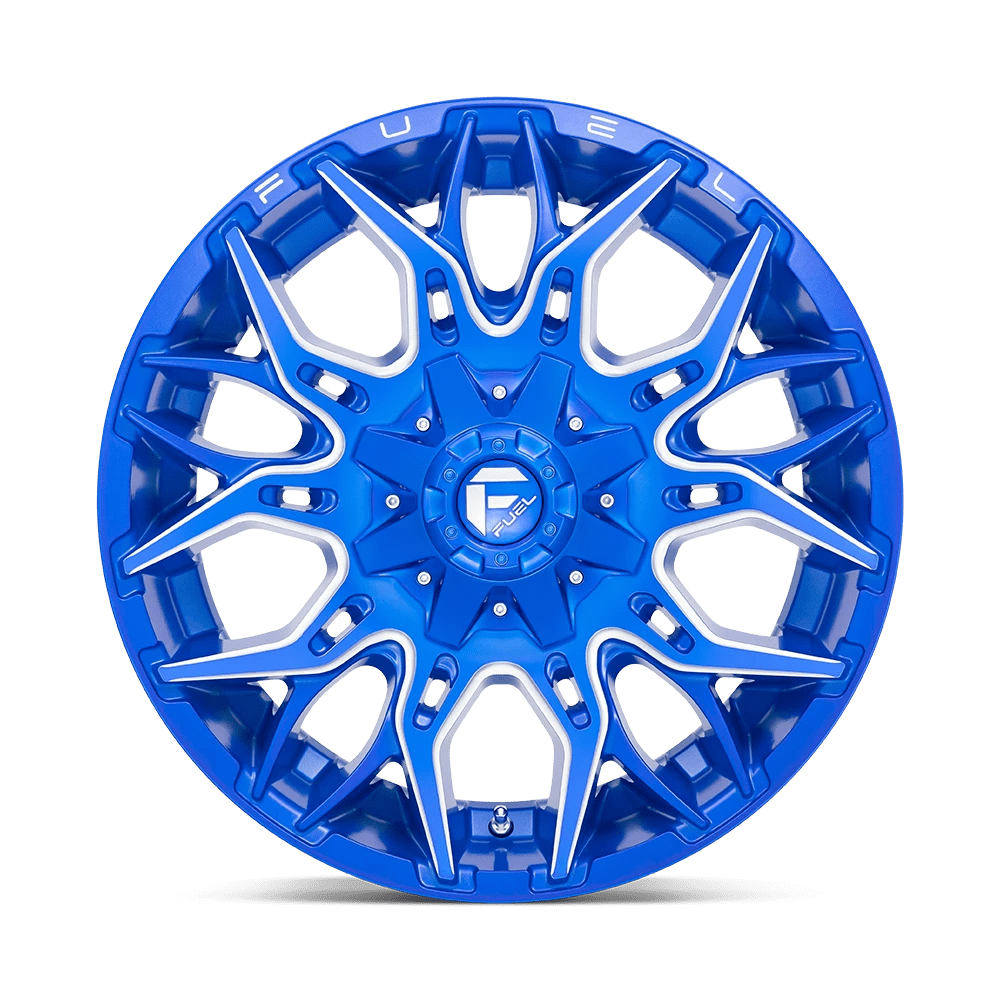

Fuel Off Road Wheel D770 (MPN: D77022207047)

Advanced off-road wheel with innovative design and durability.

The Fuel Off Road Wheel D770 is engineered for off-road enthusiasts seeking a blend of style and performance. With a diameter of 22 inches and a width of 12 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength. The anodized blue finish with milled accents not only enhances its aesthetic appeal but also provides resistance against the elements, making it suitable for various terrains.

Designed with a 5 split spoke pattern, the D770 accommodates multiple bolt patterns including 5 x 139.7 millimeter and 5 x 150 millimeter, offering versatility for different vehicle applications. The wheel has a -44 millimeter offset and 4.77 inches of backspacing, optimizing fitment for enhanced handling and stability. Additionally, it supports a maximum tire diameter of 40 inches and has a load capacity of 2500 pounds, making it a reliable choice for heavy-duty off-road use.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can maintain optimal tire pressure for safety and performance. The included Fuel logo center cap adds a touch of branding, while the 60 degree conical seat lug nut design ensures secure installation. With a lifetime structural warranty and a 1 year finish warranty, the Fuel Off Road Wheel D770 is built to withstand the rigors of off-road adventures.

Features

• Anodized Blue Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D77022207047
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Anodized With Milled Accents
• Color: Blue With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: 5x5.91
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: 5x150
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 110.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
