Fuel Off Road Unit Beadlock D120 Wheel (MPN: D12017907545)

Advanced off-road wheel with innovative design and high load capacity.

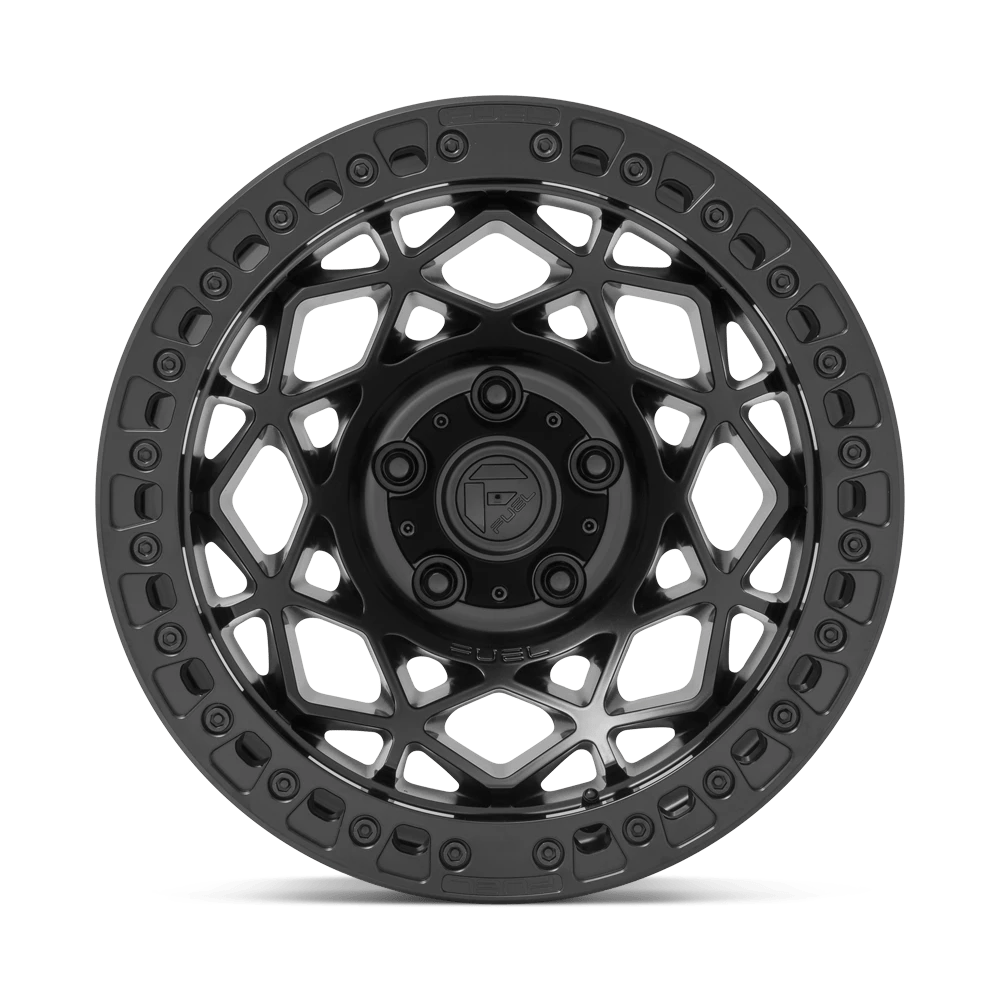

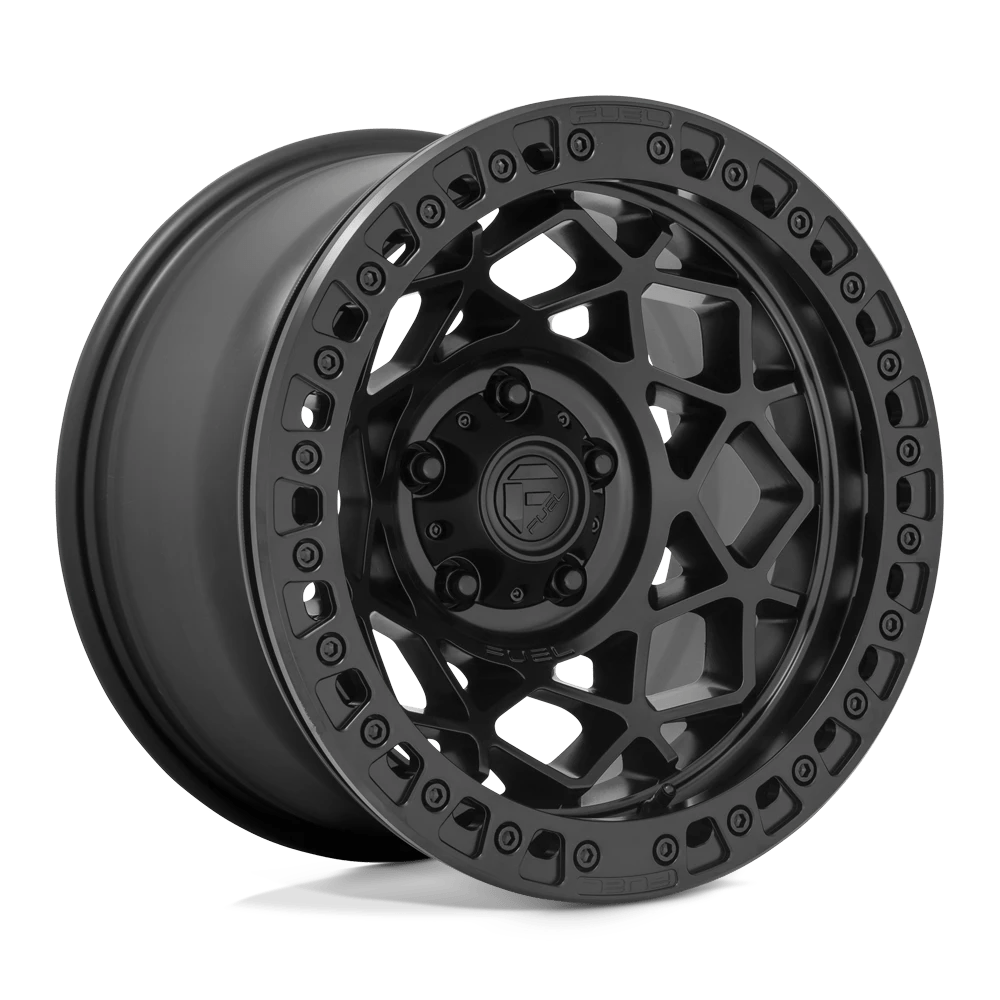

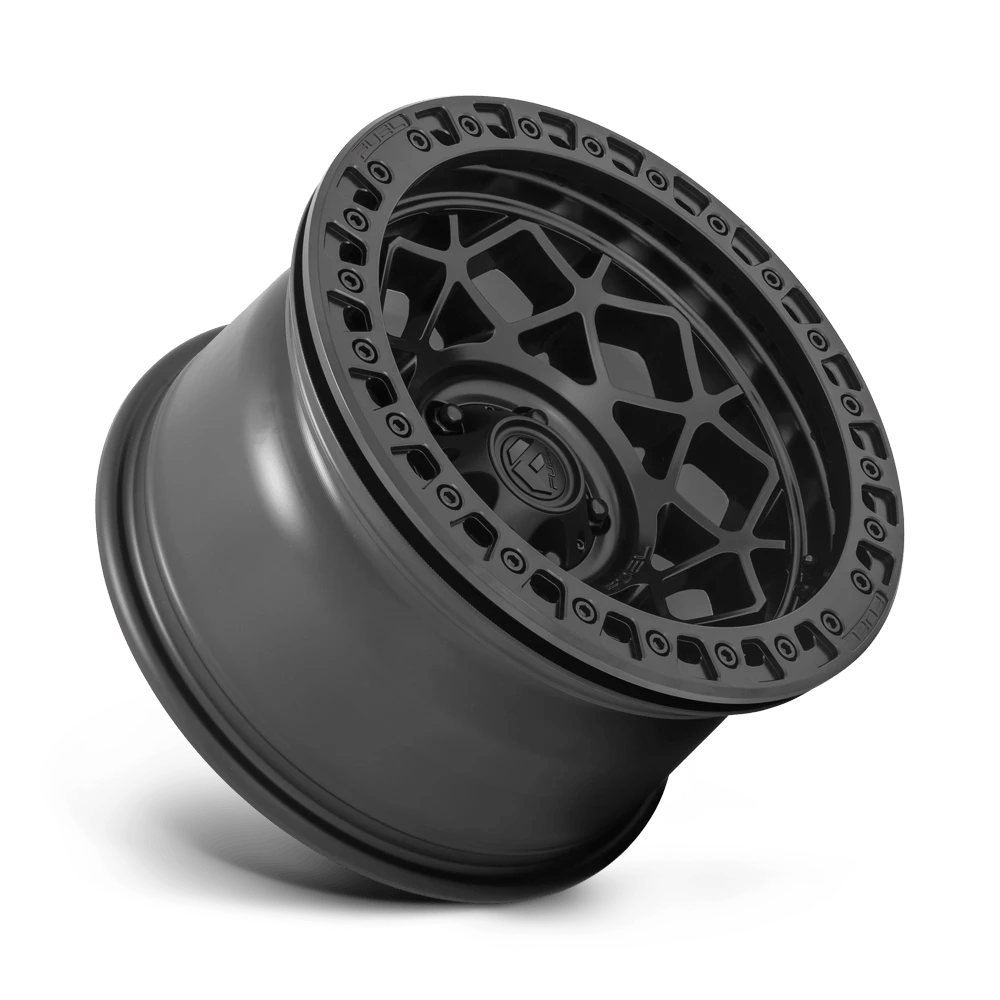

The Fuel Off Road Unit Beadlock D120 Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 17 inches and a width of 9 inches, this wheel features a robust 1 piece cast aluminum construction that ensures longevity and performance under demanding conditions. The black finish not only enhances its aesthetic appeal but also provides resistance against the elements, making it suitable for various terrains.

Designed with a 5 x 127 millimeter bolt pattern and a -15 millimeter offset, this wheel accommodates a wide range of vehicles while maintaining optimal handling characteristics. The 60 degree conical seat lug design ensures a secure fit, while the 71.50 millimeter center bore allows for easy installation. With a load capacity of 2500 pounds, the D120 is capable of supporting larger tires, with a maximum tire diameter of 40 inches, making it a versatile choice for off-road applications.

Additionally, the Fuel Off Road Unit Beadlock D120 Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. The included Fuel logo center cap adds a touch of branding, further emphasizing the wheel's quality and design. This wheel is backed by a lifetime structural warranty, ensuring peace of mind for users who demand reliability in their off-road adventures.

Features

• Blackout Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D12017907545
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -15
• Backspacing: 4.41
• Finish: Painted
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
