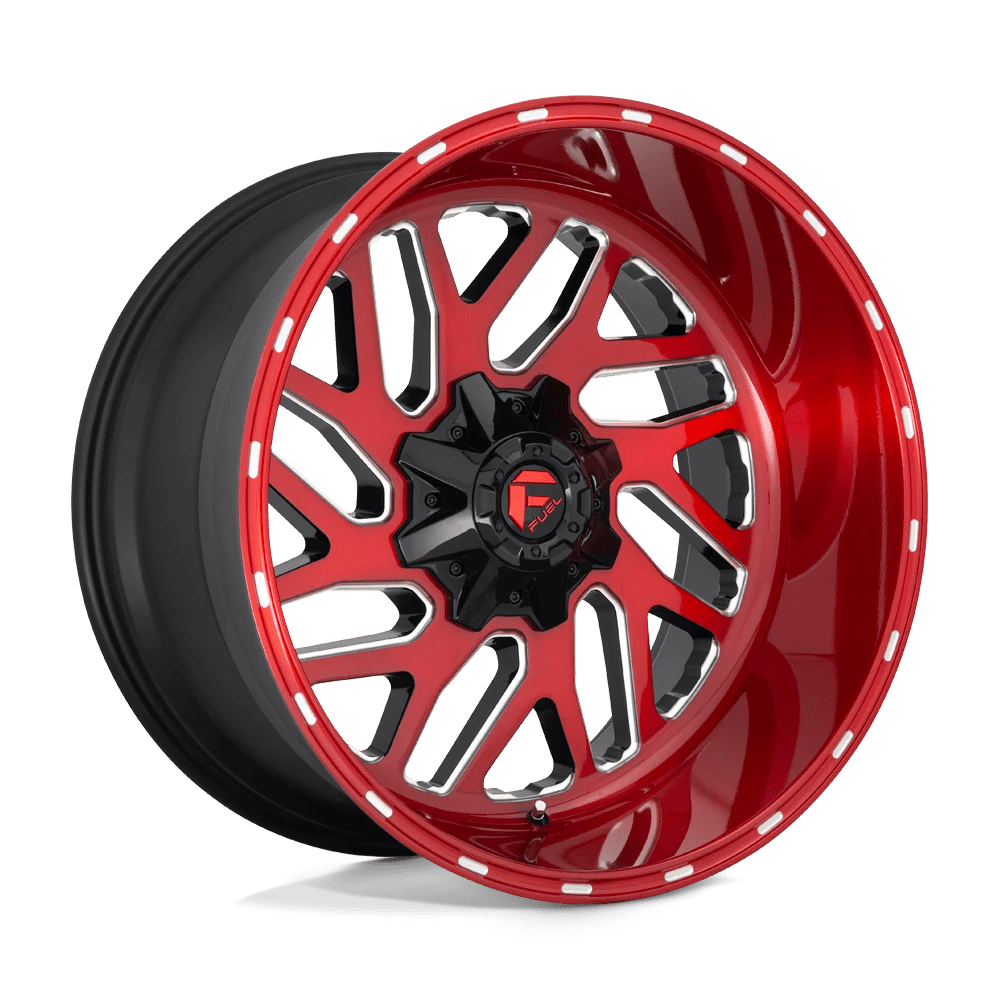

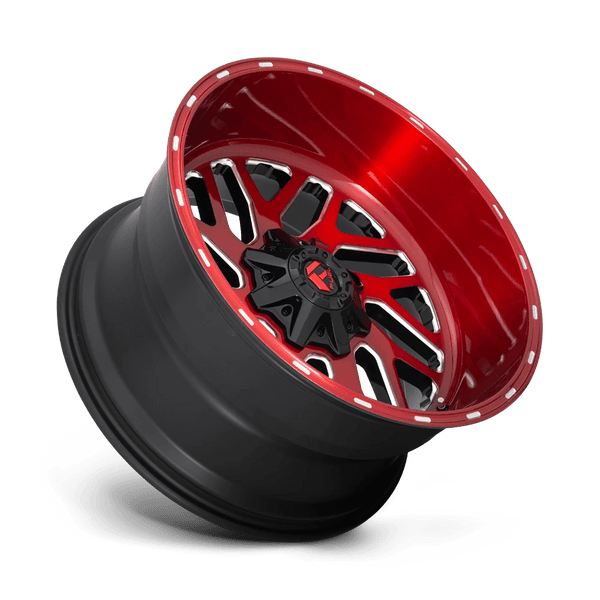

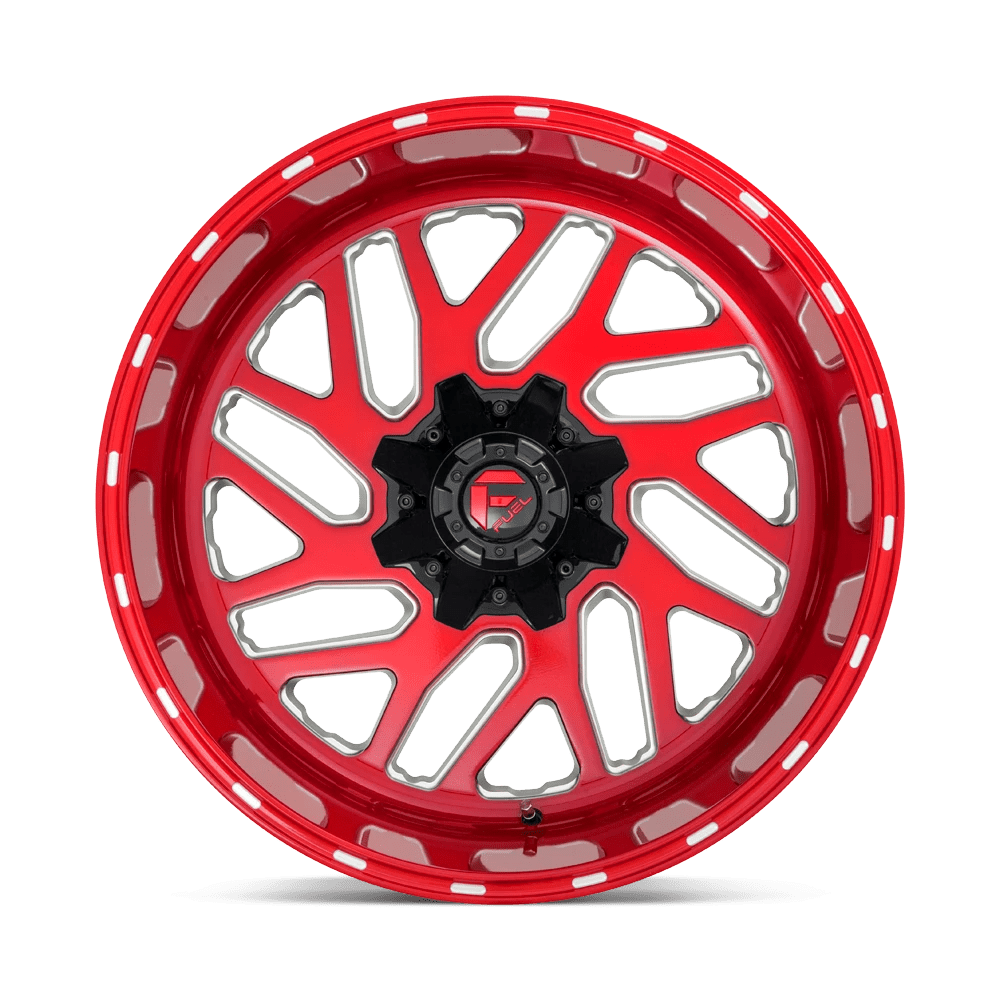

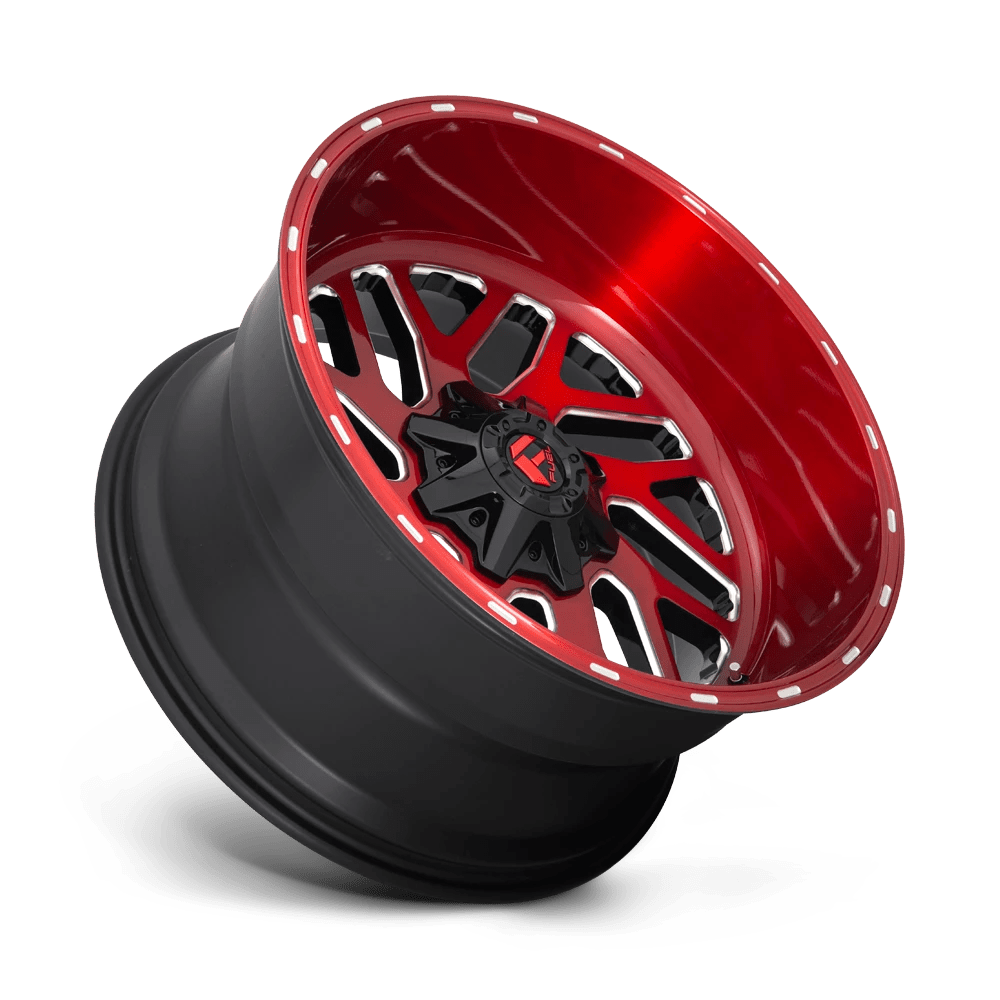

Fuel Off Road Triton D691 Wheel (MPN: D69124205747)

Advanced off-road wheel with striking design and robust performance.

The Fuel Off Road Triton D691 Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 24 inches and a width of 12 inches, this wheel features a unique 8 split spoke design that enhances both aesthetics and performance. Constructed from a single piece of cast aluminum, it offers a load capacity of 2500 pounds, making it suitable for various off-road applications.

The wheel is finished in a candy red color with milled accents, providing a bold look that stands out on any vehicle. It is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can maintain optimal tire performance. The -44 millimeter offset and 4.77 inch backspacing contribute to improved handling and stability on rugged terrains.

Designed with a 60 degree conical seat lug nut design and an 87.10 millimeter center bore, the Triton D691 Wheel is versatile, accommodating multiple bolt patterns including 5x127, 5x5.00, 5x139.7, and 5x5.50 inches. This wheel is not only a functional component but also a stylish upgrade for any off-road vehicle.

Features

• Candy Red Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D69124205747
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 24
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Brushed With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 24x12
• Max Tire Diameter: 36
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2006-2008 Dodge Ram 1500
• 2011-2018 Ram 1500
• 2019-2019 Ram 1500 Classic- Old Model
