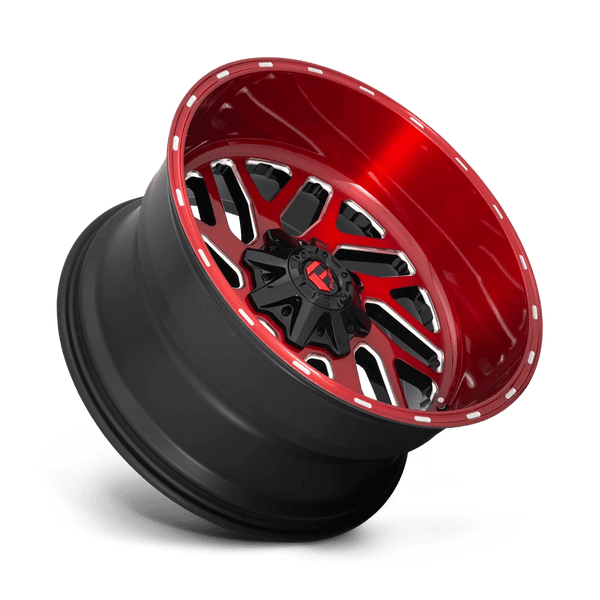

Fuel Off Road Triton D691 Wheel (MPN: D69120001847)

Advanced off-road wheel with striking design and robust performance.

The Fuel Off Road Triton D691 Wheel is engineered for off-road enthusiasts seeking both style and functionality. With a diameter of 20 inches and a width of 10 inches, this wheel features a unique 8 split spoke design that enhances its aesthetic appeal while maintaining structural integrity. Constructed from a single piece of cast aluminum, it offers a load capacity of 3700 pounds, making it suitable for various off-road applications.

The wheel is finished in a candy red color with milled accents, providing a bold look that stands out on any vehicle. It is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can monitor tire health effectively. The 60-degree conical seat lug design and a center bore of 124.20 millimeters contribute to a secure fit and reliable performance.

With an offset of -18 millimeters and backspacing of 4.79 inches, the Triton D691 is designed to accommodate larger tires, with a maximum tire diameter of 42 inches. This wheel not only enhances the vehicle's appearance but also improves handling and stability on rugged terrains. The included Fuel logo center cap adds a finishing touch to its striking design.

Features

• Candy Red Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 3700 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D69120001847
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Brushed With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 8x7.09
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x180
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 124.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2026 Chevrolet Silverado 2500 HD
• 2011-2026 Chevrolet Silverado 3500 HD
• 2011-2026 GMC Sierra 2500 HD
• 2011-2026 GMC Sierra 3500 HD
