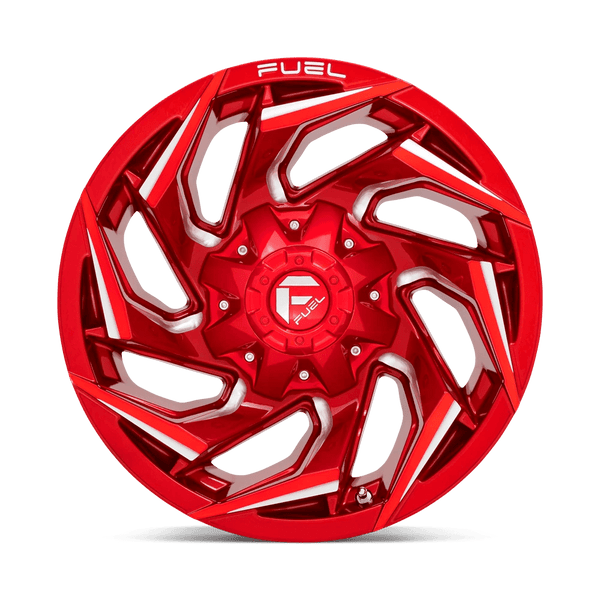

Fuel Off Road Reaction D754 Wheel (MPN: D75417902645)

Advanced off-road wheel with striking design and robust performance.

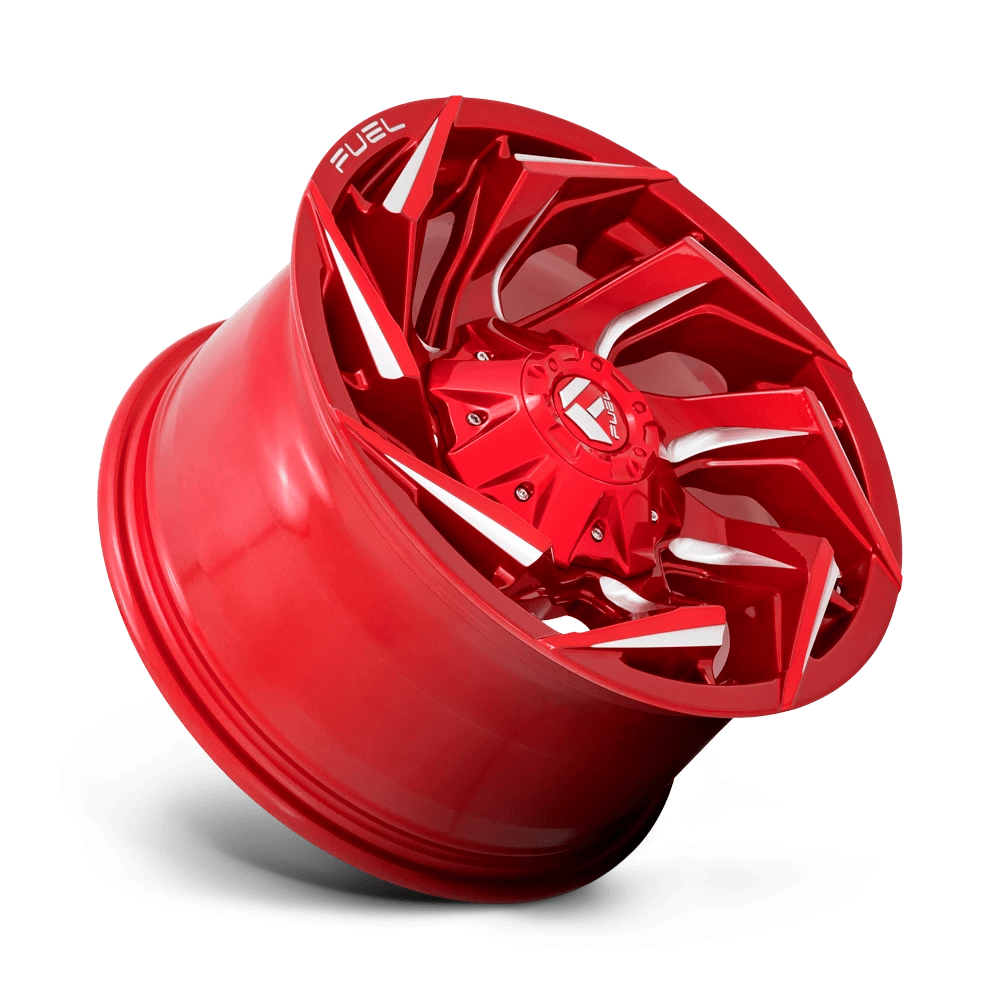

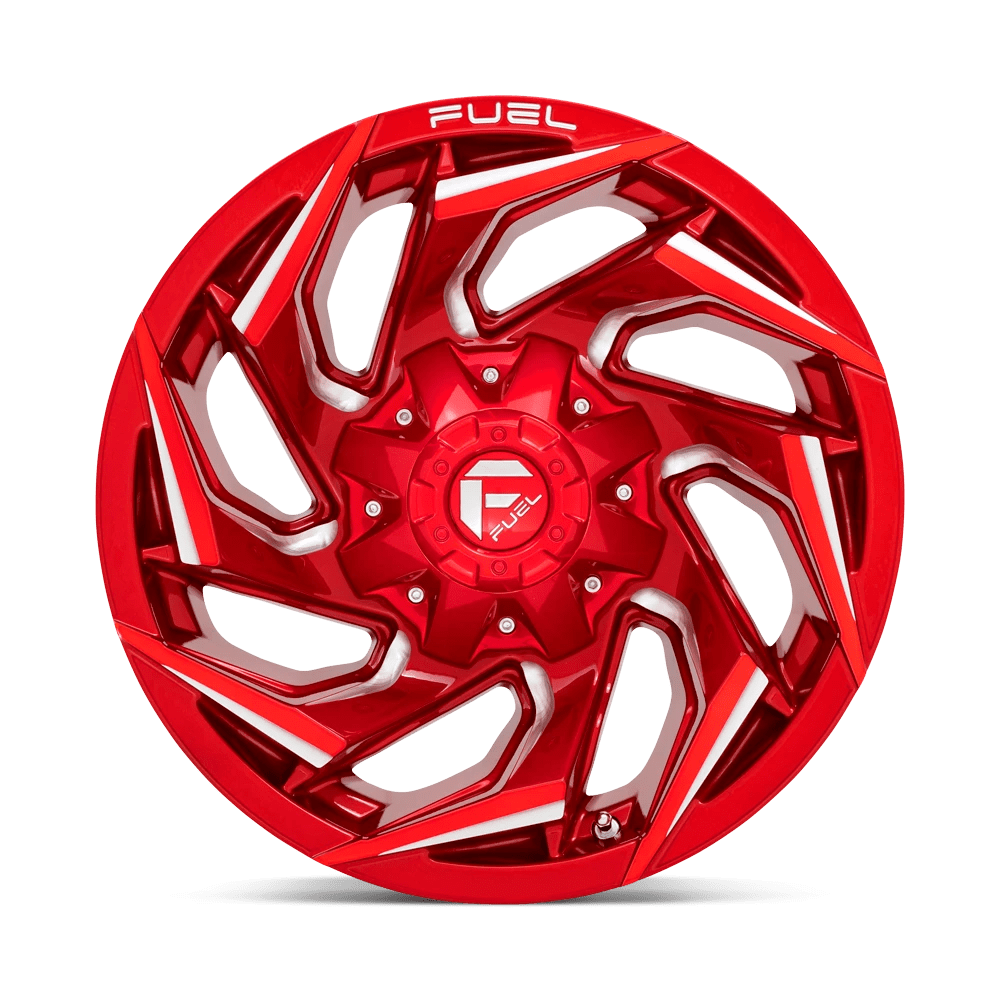

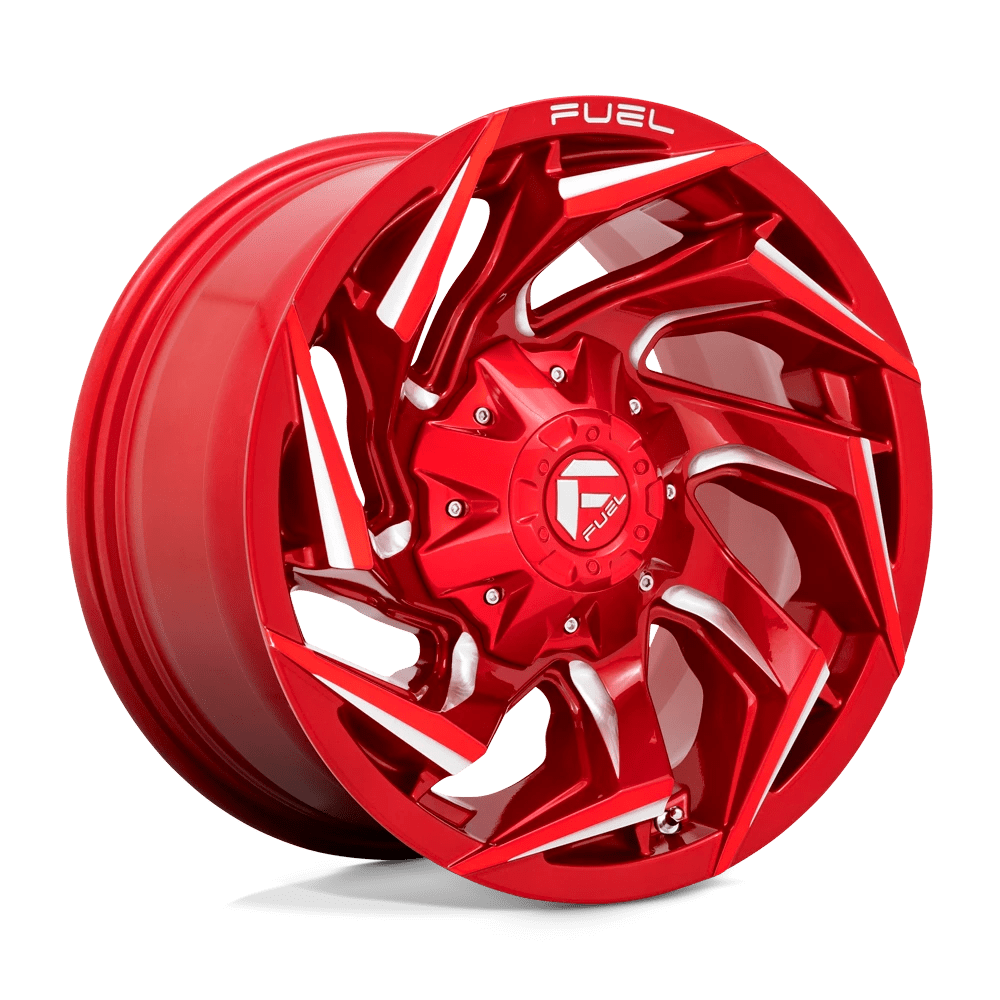

The Fuel Off Road Reaction D754 Wheel is engineered for off-road enthusiasts seeking both style and functionality. With a diameter of 17 inches and a width of 9 inches, this wheel features a bold 8 spoke design that is finished in a striking candy red with milled accents. Constructed from a single piece of cast aluminum, it offers a load capacity of 2500 pounds, ensuring durability and strength for demanding terrains.

This wheel is compatible with various bolt patterns including 5 x 114.3 millimeter, 5 x 127 millimeter, and 5 x 5.00 inch, making it versatile for different vehicle applications. The -12 millimeter offset and 4.53 inch backspacing provide an aggressive stance while maintaining optimal performance. Additionally, the 60 degree conical seat lug nut design ensures secure fitment.

Designed with modern technology, the Reaction D754 is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and performance. The center bore measures 78.10 millimeters and includes a Fuel logo center cap, adding to its aesthetic appeal. With a maximum tire diameter of 40 inches, this wheel is suitable for a variety of off-road tires, making it a practical choice for serious off-roaders.

Features

• Candy Red Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D75417902645
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.53
• Finish: Painted With Milled Accents
• Color: Candy Red With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x4.50
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Millimeter: 5x114.3
• Bolt Pattern Millimeter: 5x127
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1975-1986 Chevrolet C10
• 1967-1974 Chevrolet C10 Pickup
• 1970-1979 Chevrolet C10 Suburban
• 1981-1981 Chevrolet C10 Suburban
• 1993-1999 Chevrolet C1500 Suburban
• 1980-1990 Chevrolet Caprice
• 1996-1999 Chevrolet Express 1500
• 1971-1975 Chevrolet Impala
• 1987-1987 Chevrolet R10
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1970-1981 Chrysler Newport
• 1971-1974 Dodge B100 Van
• 1975-1979 Dodge D100
• 1985-1985 Dodge D100
• 1979-1984 Dodge Ramcharger
• 1984-1990 Ford Bronco II
• 1970-1974 Ford E-100 Econoline
• 1994-1994 Ford Explorer
• 1962-1962 Ford Fairlane
• 1968-1970 Ford Fairlane
• 1972-1974 Ford Gran Torino
• 1970-1982 Ford LTD
• 1970-1977 Ford Maverick
• 1970-1974 Ford Ranch Wagon
• 1970-1979 Ford Ranchero
• 1983-2011 Ford Ranger
• 1955-1963 Ford Thunderbird
• 1970-1976 Ford Thunderbird
• 1968-1976 Ford Torino
• 1975-1978 GMC C15
• 1967-1974 GMC C15/C1500 Pickup
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 1992-1992 Jeep Cherokee
• 2020-2025 Jeep Gladiator JT
• 1993-1998 Jeep Grand Cherokee
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1997-2006 Jeep Wrangler TJ
• 1987-1995 Jeep Wrangler YJ
• 1994-1996 Mazda B3000
• 1998-2007 Mazda B3000
• 1994-2009 Mazda B4000
• 1971-1977 Mercury Comet
• 1966-1966 Mercury Cyclone
• 1970-1971 Mercury Cyclone
• 1975-1997 Mercury Grand Marquis
• 1967-1970 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
• 2000-2015 Toyota Tacoma
