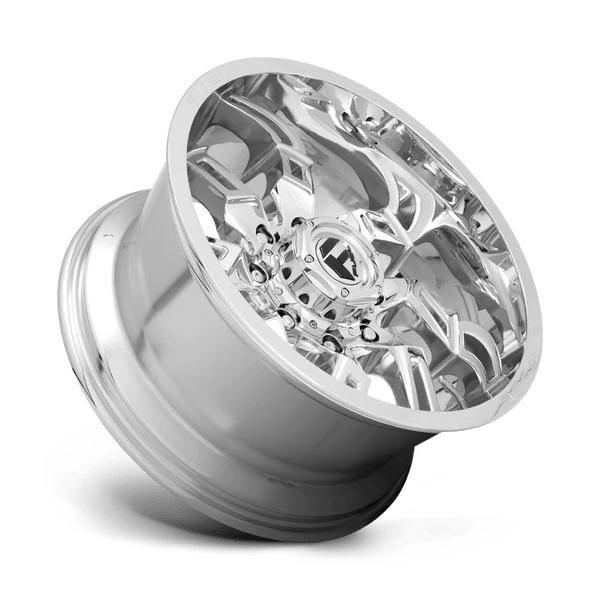

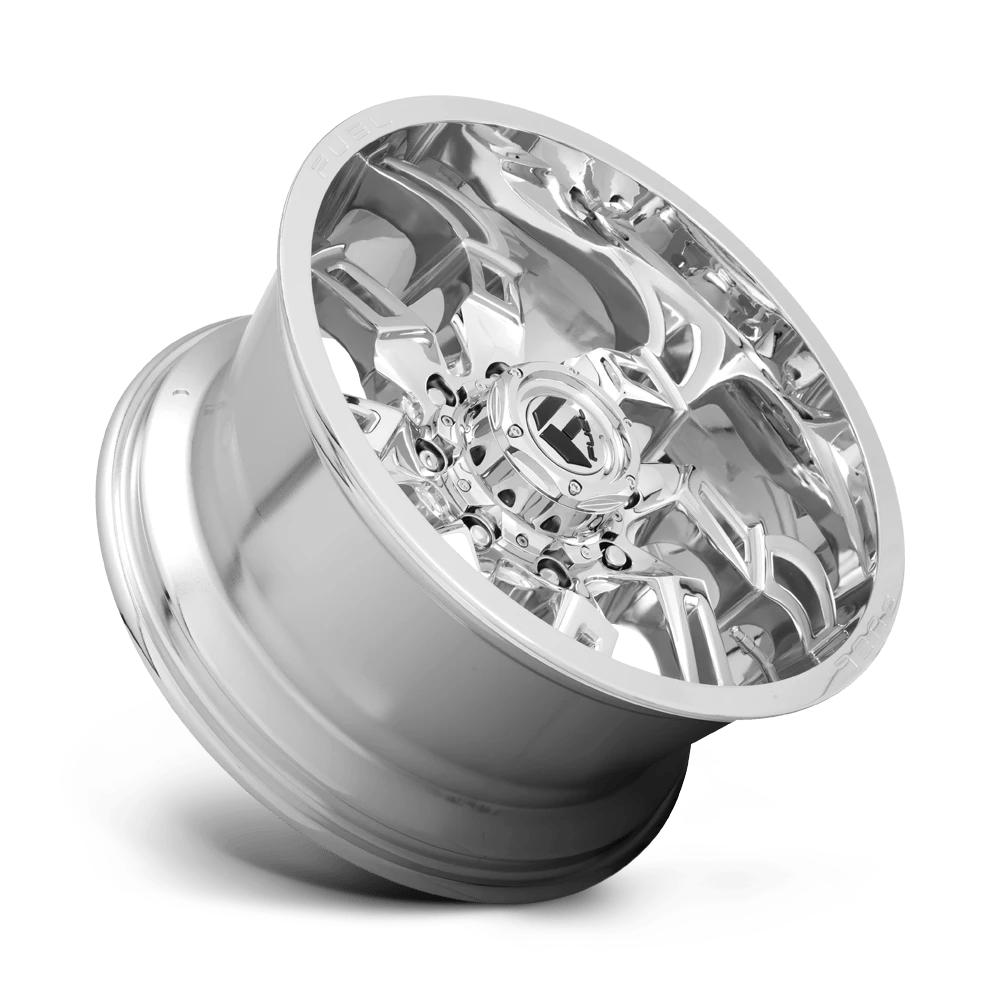

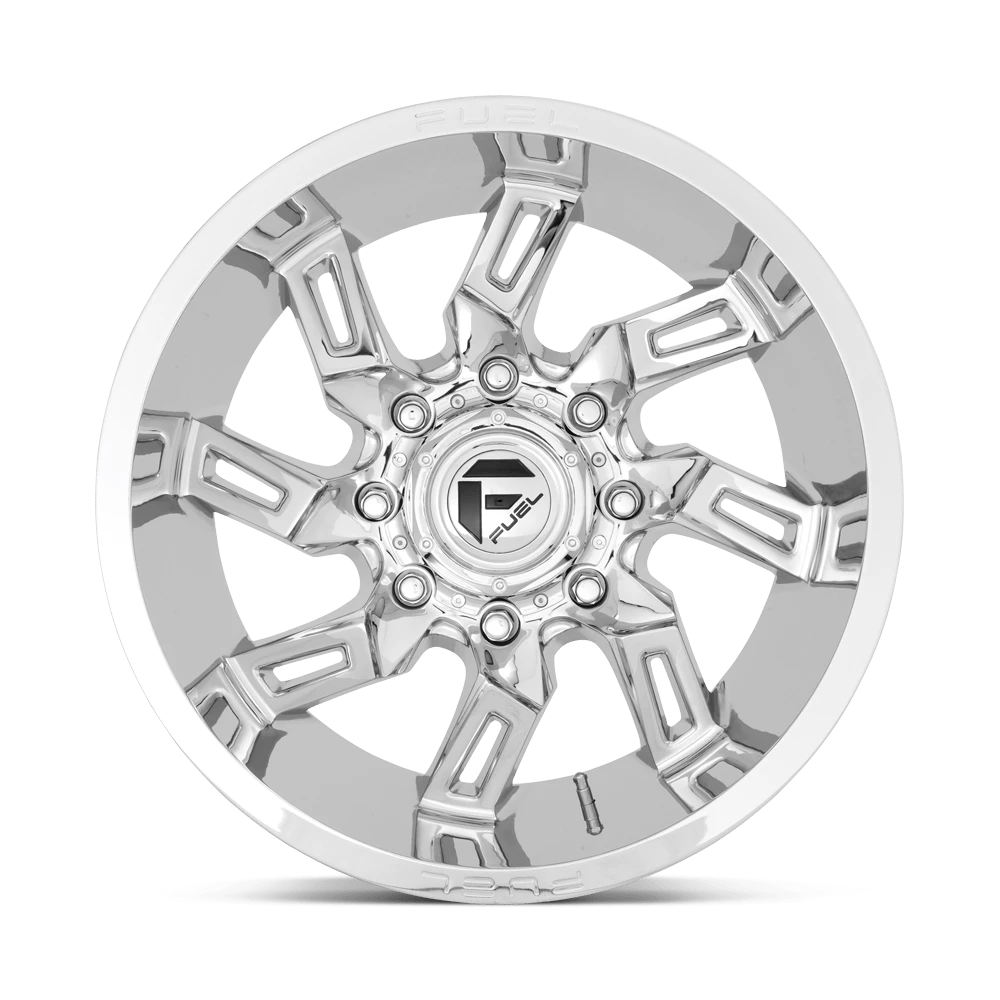

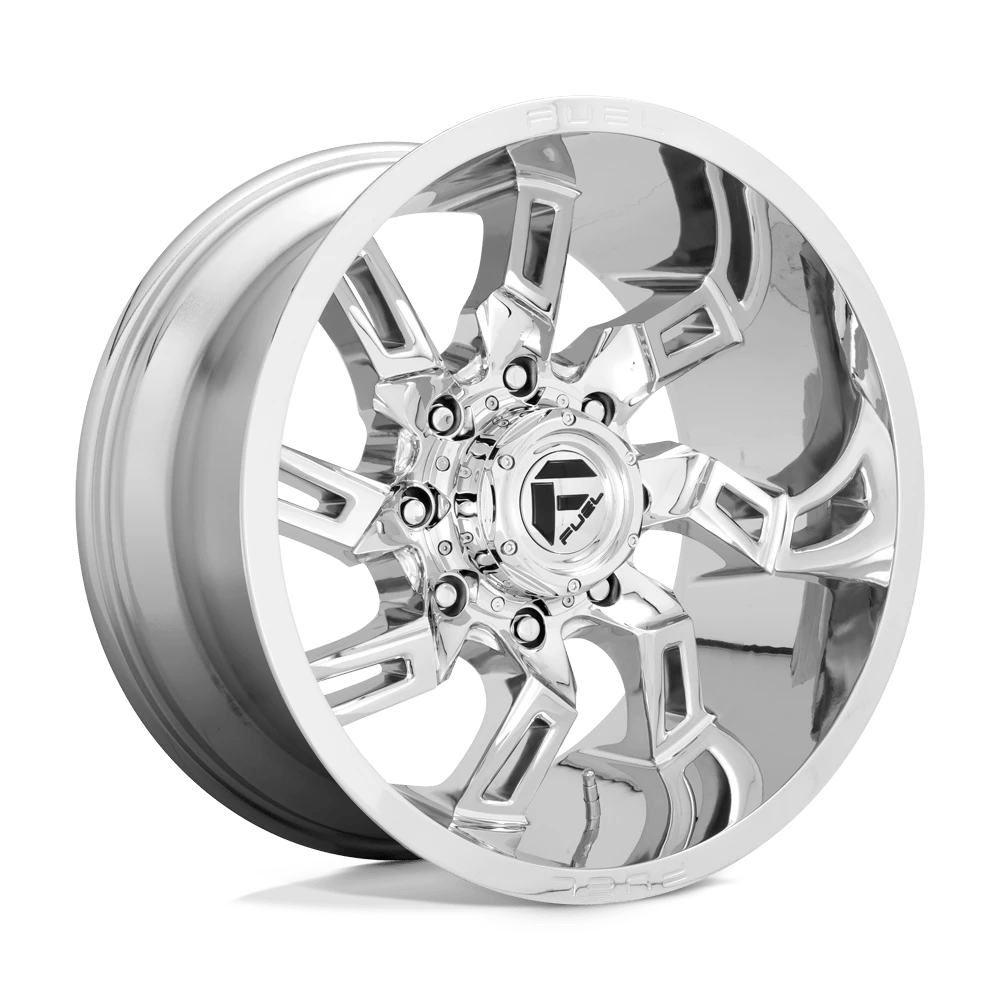

Fuel Off Road Lockdown Wheel (MPN: D74620908450)

Advanced off-road wheel with innovative design and high load capacity.

The Fuel Off Road Lockdown Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 20 inches and a width of 9 inches, this wheel features a robust 1 piece cast aluminum construction that ensures longevity and performance under demanding conditions. The chrome plated finish not only enhances its aesthetic appeal but also provides resistance against corrosion and wear, making it suitable for various terrains.

Designed with an 8 split spoke pattern, the Lockdown Wheel supports a load capacity of 2500 pounds, making it a reliable choice for heavy-duty applications. It is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for real-time monitoring of tire pressure, which is crucial for maintaining optimal performance and safety. The wheel's specifications include a 6 x 139.7 millimeter bolt pattern, a 1 millimeter offset, and a 5.04 inch backspacing, ensuring a precise fit for a wide range of vehicles.

Additionally, the Lockdown Wheel features a 60 degree conical seat lug design and a center bore of 106.10 millimeters, facilitating easy installation and secure mounting. The included Fuel logo center cap adds a touch of branding while maintaining the wheel's sleek look. With a maximum tire diameter of 40 inches, this wheel is designed to accommodate larger tires, enhancing off-road capability and performance.

Features

• Chrome Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D74620908450
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 1
• Backspacing: 5.04
• Finish: Chrome Plated
• Color: Silver
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 106.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• NPR_Fuel_Lockdown.pdf
