Advanced off-road wheel with striking design and robust performance.

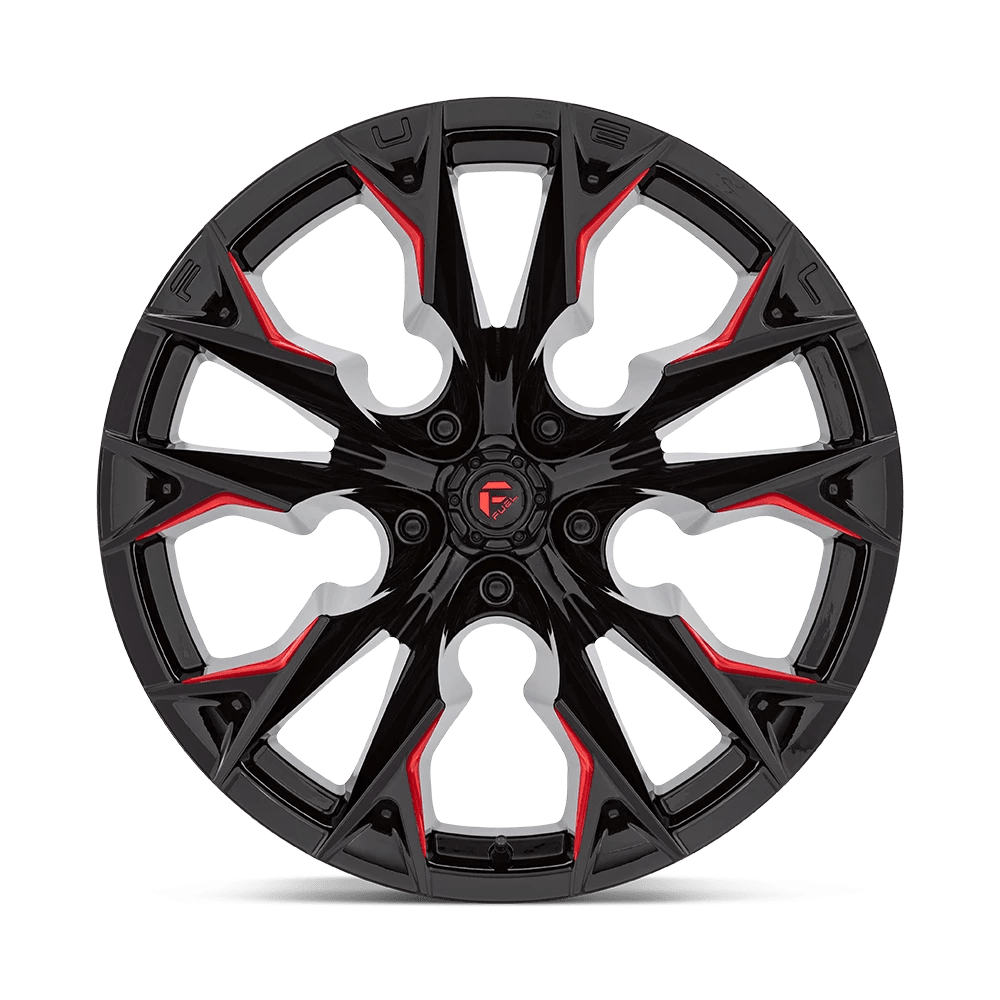

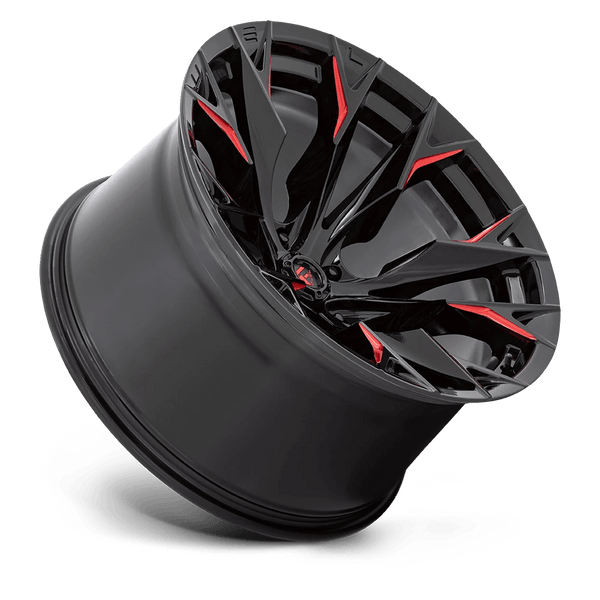

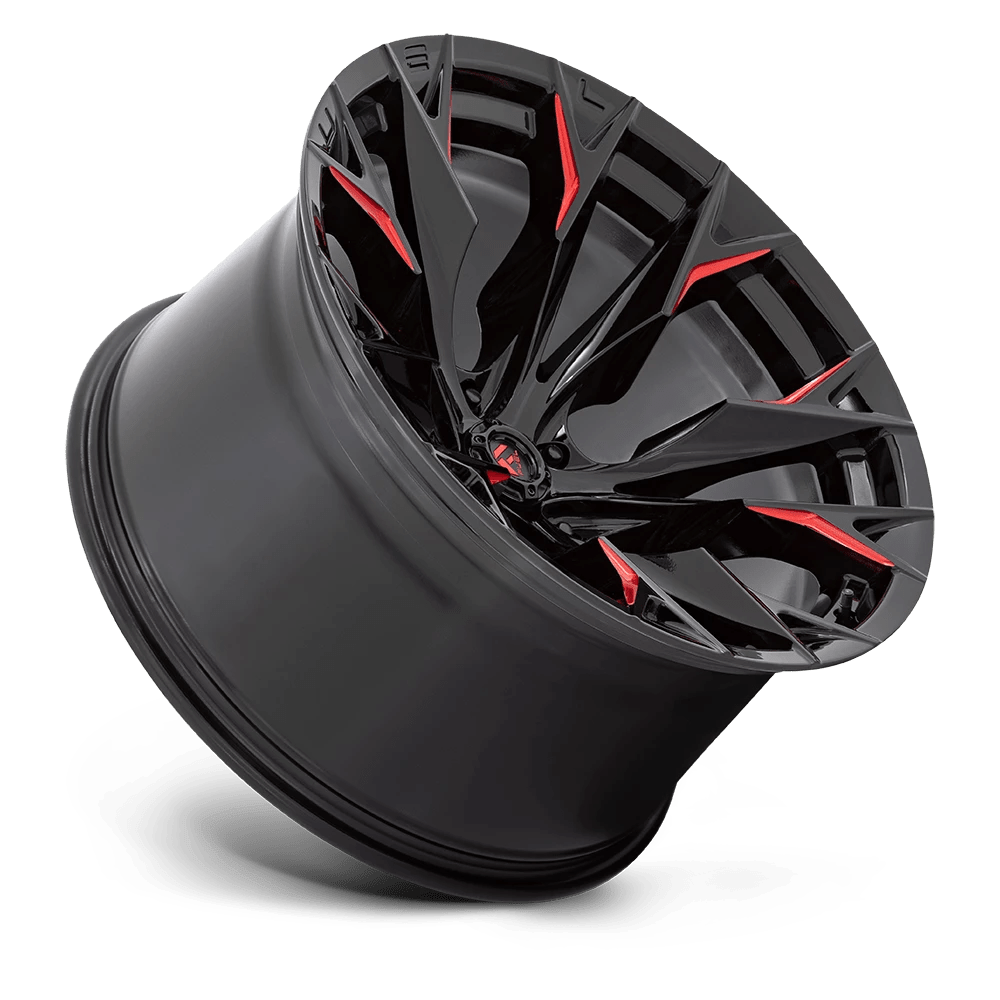

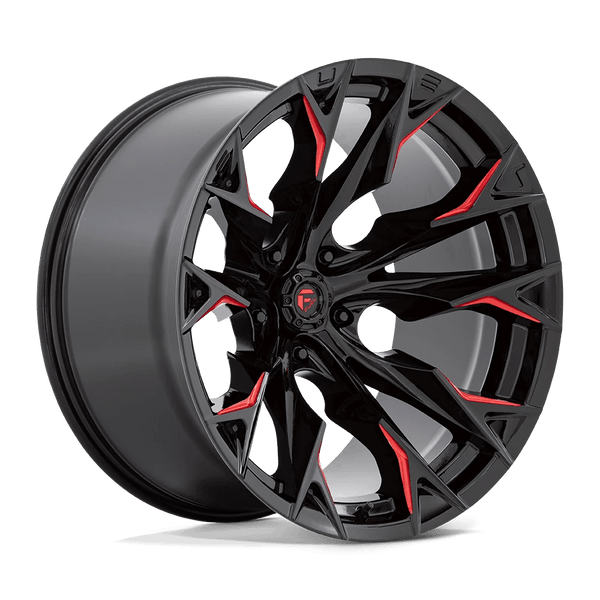

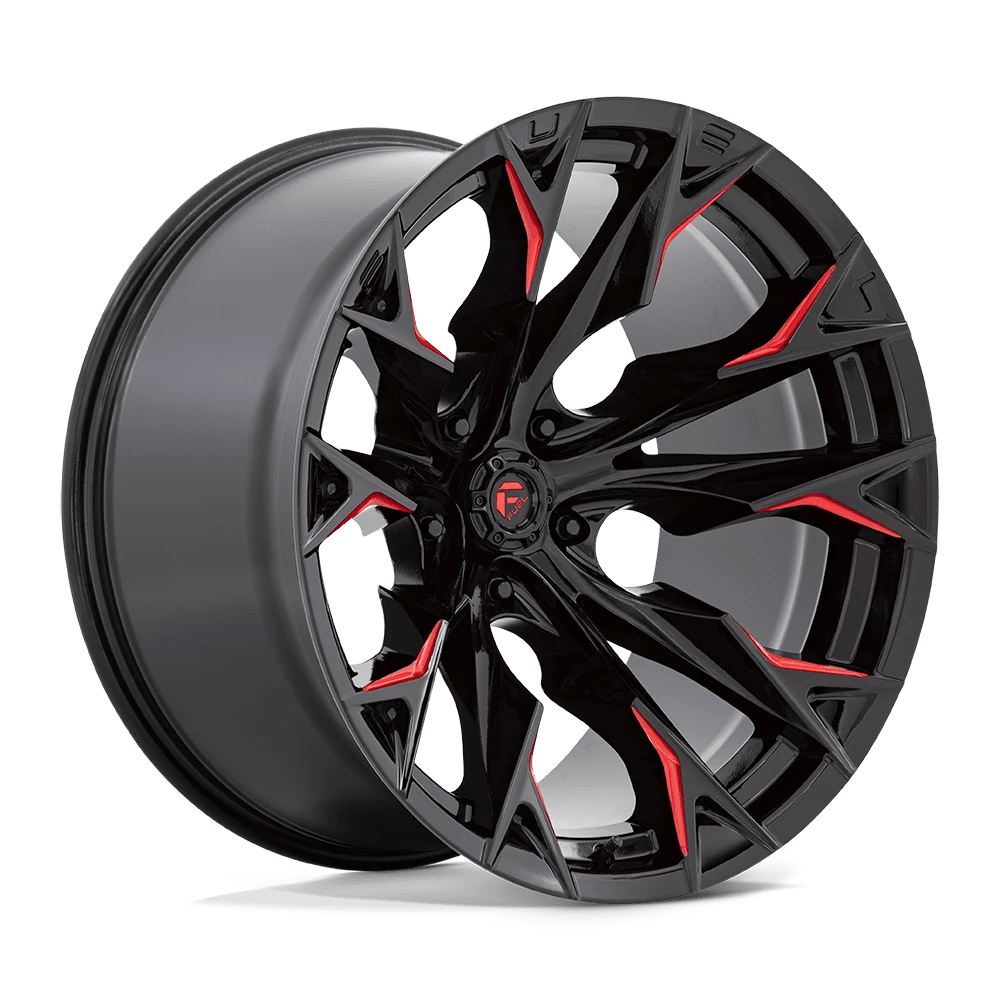

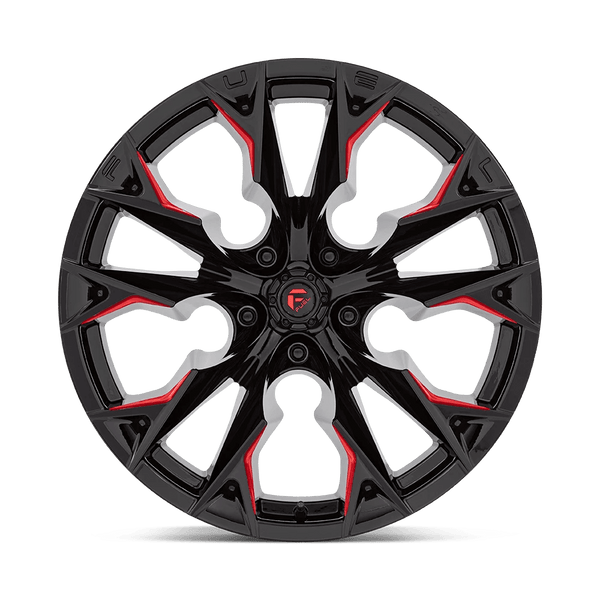

The Fuel Off Road Flame 5 Wheel is engineered for off-road enthusiasts seeking both style and functionality. With a diameter of 24 inches and a width of 12 inches, this wheel features a 5 split spoke design that enhances its aesthetic appeal while ensuring durability. Constructed from one piece cast aluminum, it offers a load capacity of 2500 pounds, making it suitable for various off-road applications.
The wheel is finished in a gloss black with candy red accents, providing a bold look that stands out on any vehicle. It is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can maintain optimal tire performance. The 60 degree conical seat lug design and a center bore of 71.50 millimeters contribute to a secure fit and reliable performance on rugged terrains.
With a negative offset of -44 millimeters and backspacing of 4.77 inches, the Flame 5 Wheel is designed to accommodate larger tires, with a maximum tire diameter of 36 inches. This wheel not only meets the demands of off-road driving but also enhances the overall appearance of your vehicle. Fuel Off Road continues to push the boundaries of wheel design and engineering, making this wheel a top choice for serious off-roaders.
Features
- Gloss Black Milled With Candy Red Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With Fuel Logo Center Cap
- 2500 Pound Load Capacity
Specifications
- Manufacturer: Fuel Off Road
- Manufacturer Part Number: D82324207547
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 24
- Width: 12
- Offset: -44
- Backspacing: 4.77
- Finish: Painted Gloss
- Color: Black With Candy Red Accents
- Material: Aluminum
- Bolt Pattern Inch: 5x5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 5 Split Spoke
- With Inserts: No
- Load Capacity: 2500
- Size: 24x12
- Max Tire Diameter: 36
- Center Cap Design: FUEL Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
