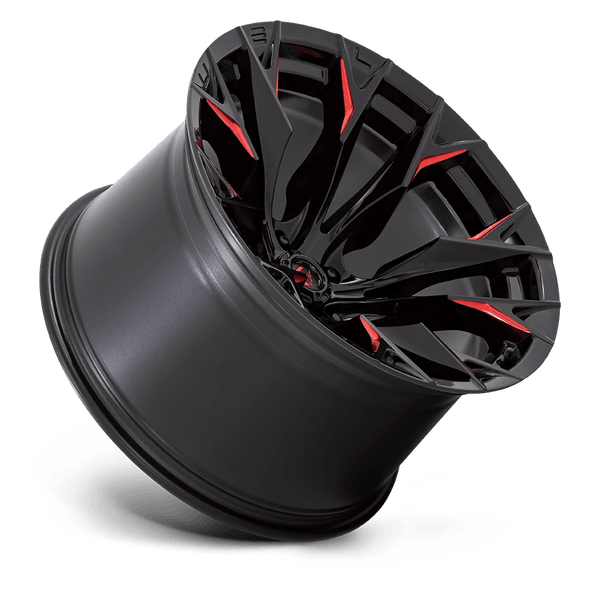

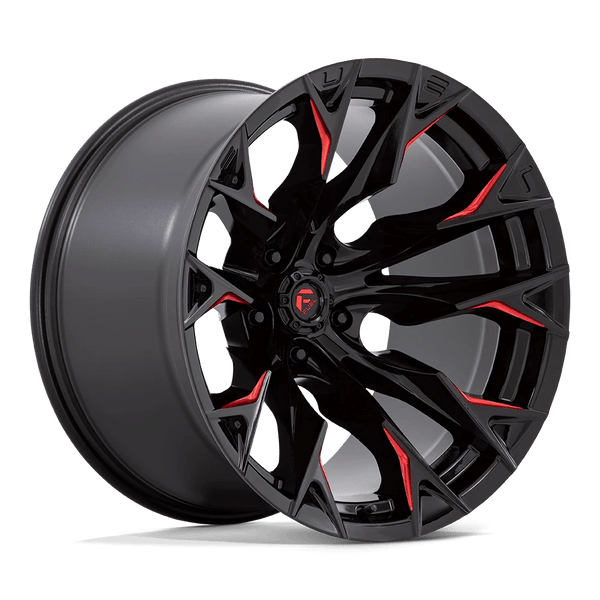

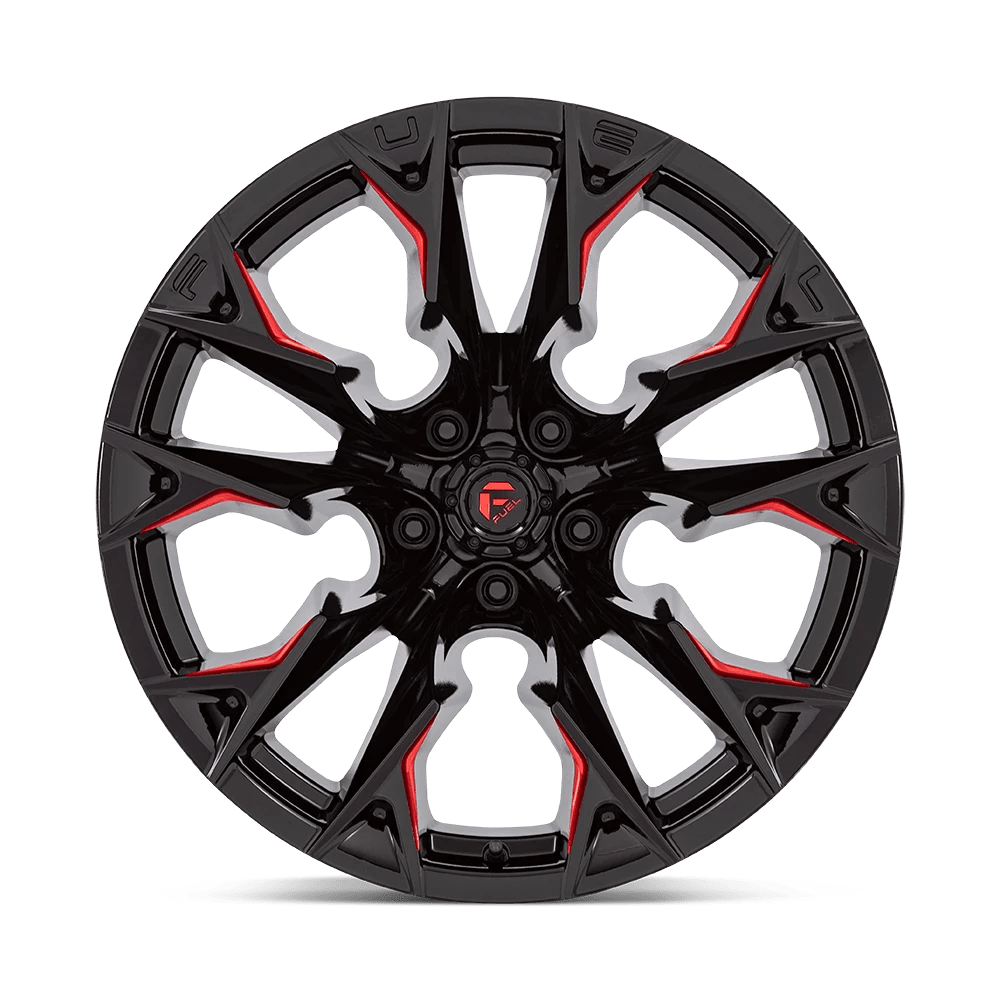

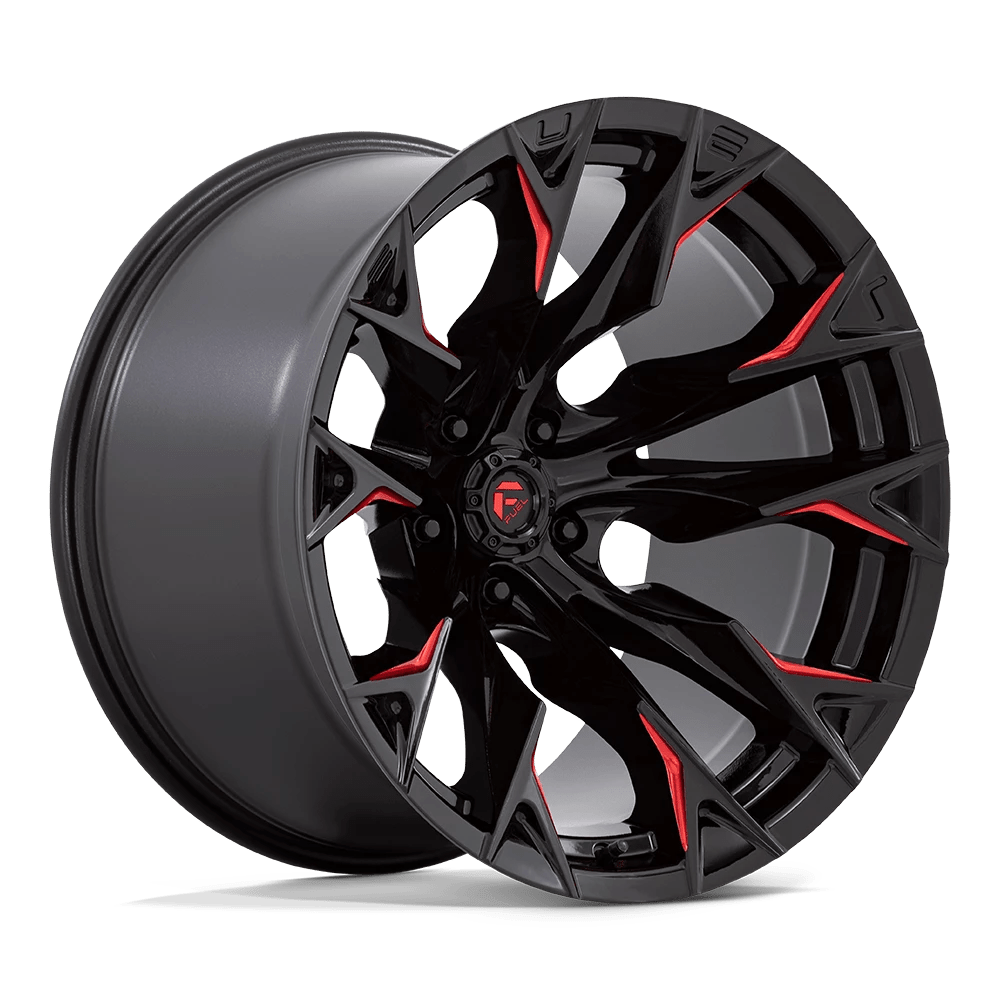

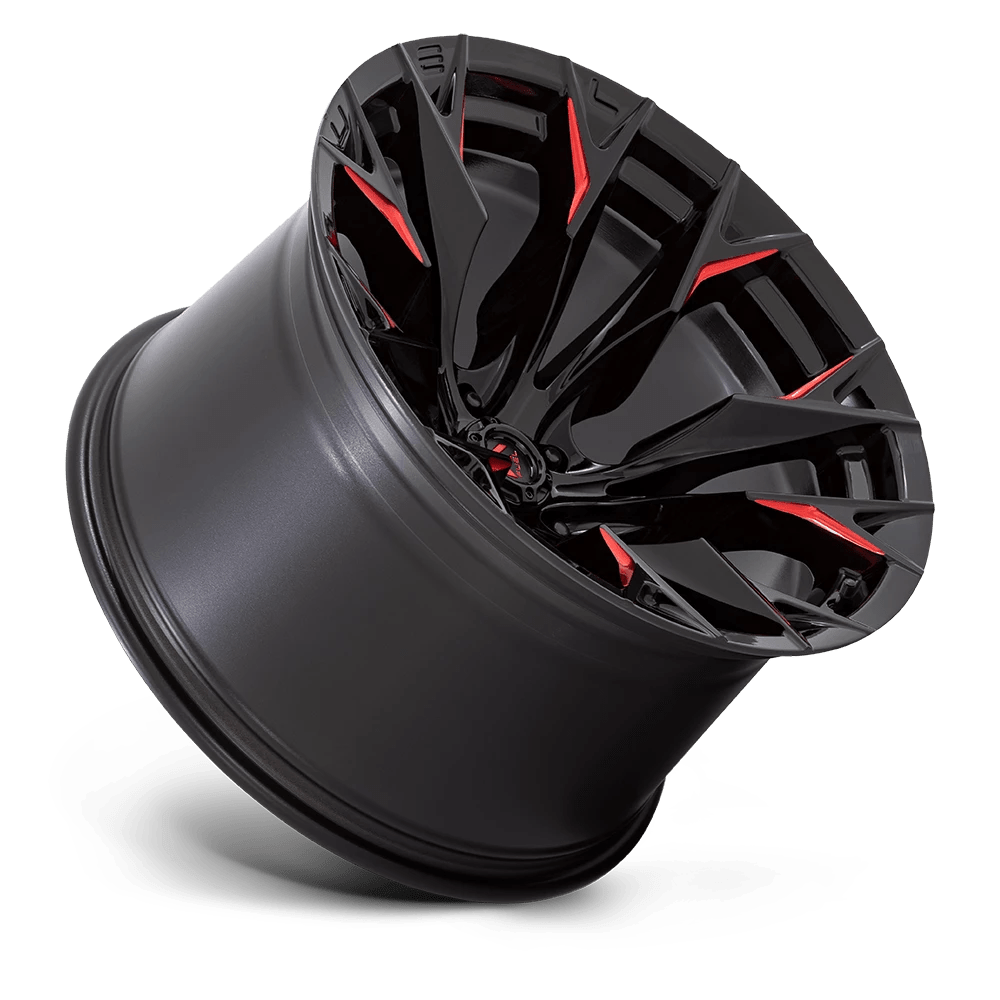

Fuel Off Road Flame 5 Wheel (MPN: D82320207547)

Advanced off-road wheel with striking design and robust performance.

The Fuel Off Road Flame 5 Wheel is engineered for off-road enthusiasts seeking both style and functionality. With a diameter of 20 inches and a width of 12 inches, this wheel features a 5 split spoke design that enhances its aesthetic appeal while ensuring durability. Constructed from one-piece cast aluminum, it offers a load capacity of 2500 pounds, making it suitable for various off-road applications.

The wheel is finished in a gloss black with candy red accents, providing a bold look that stands out on any vehicle. It is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can maintain optimal tire performance. The 60-degree conical seat lug design and a center bore of 71.50 millimeters contribute to a secure fit and reliable performance on rugged terrains.

With a negative offset of -44 millimeters and backspacing of 4.77 inches, the Flame 5 Wheel is designed to accommodate larger tires, with a maximum tire diameter of 42 inches. This wheel not only enhances the vehicle's appearance but also improves handling and stability on challenging surfaces. The Fuel logo center cap adds a finishing touch to this high-quality wheel, making it a perfect choice for those looking to elevate their off-road experience.

Features

• Gloss Black Milled With Candy Red Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D82320207547
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Painted Gloss
• Color: Black With Candy Red Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x12
• Max Tire Diameter: 42
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
