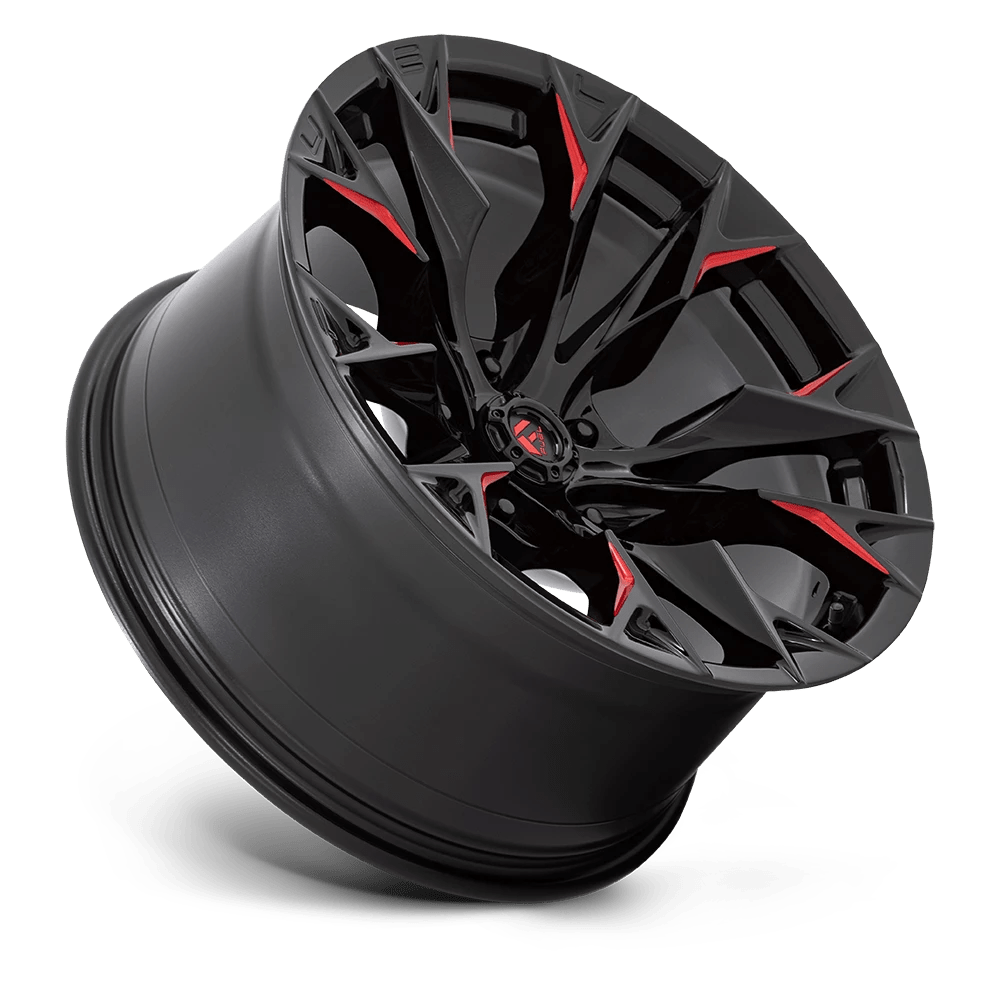

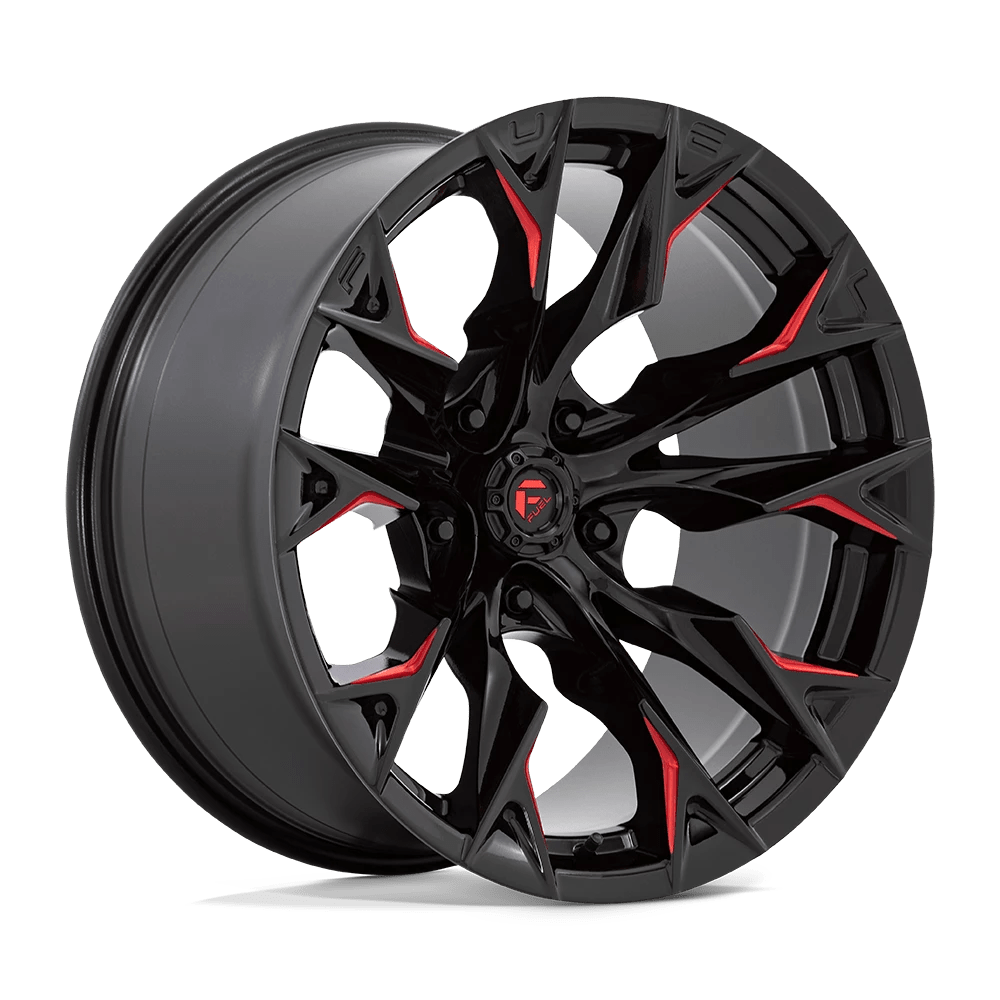

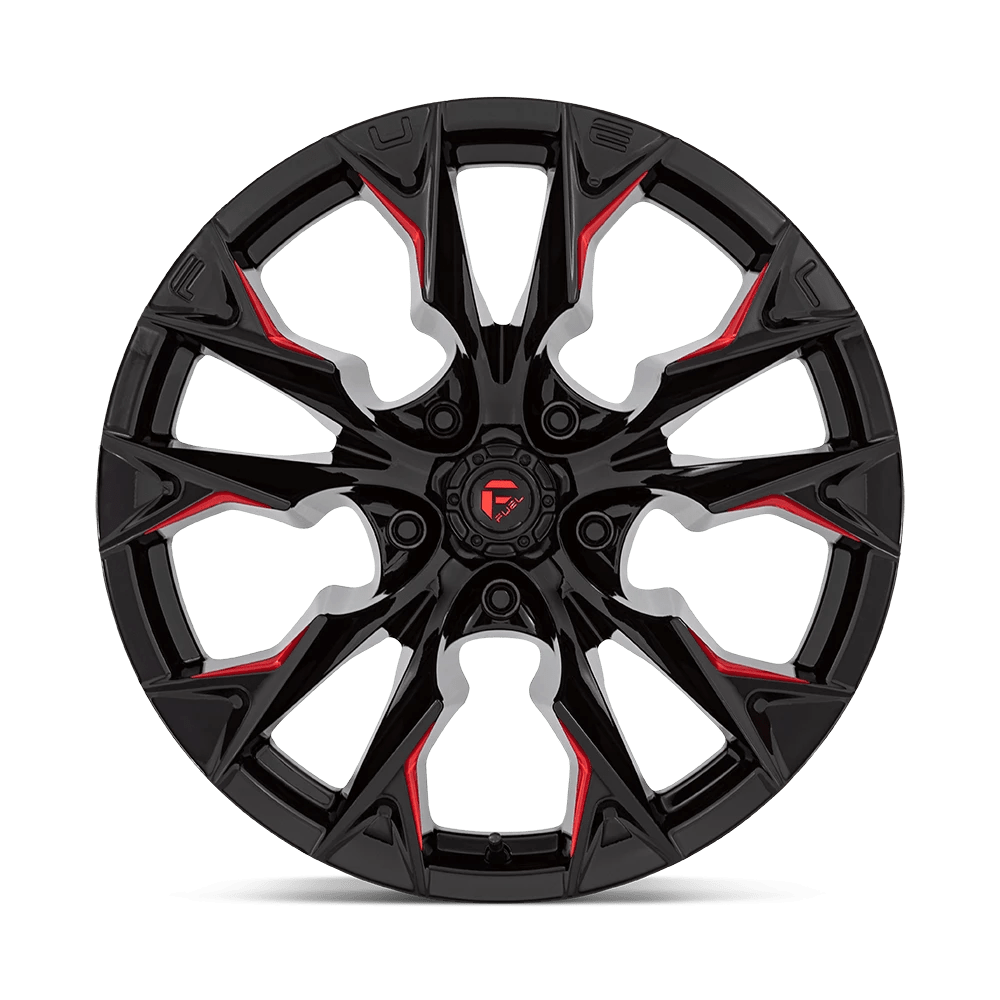

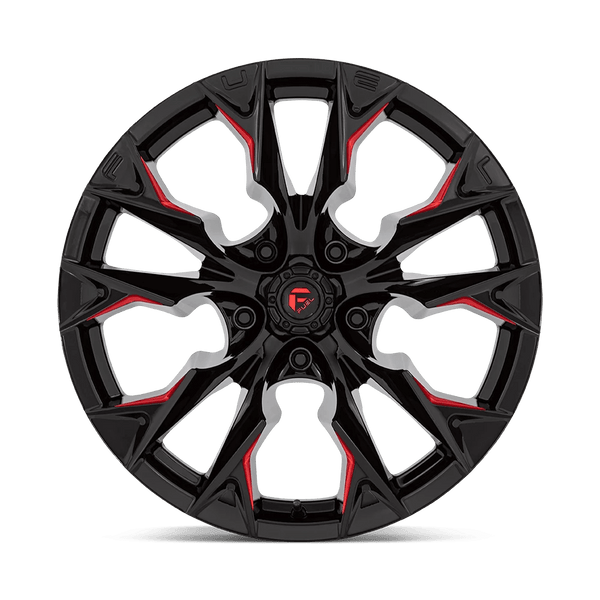

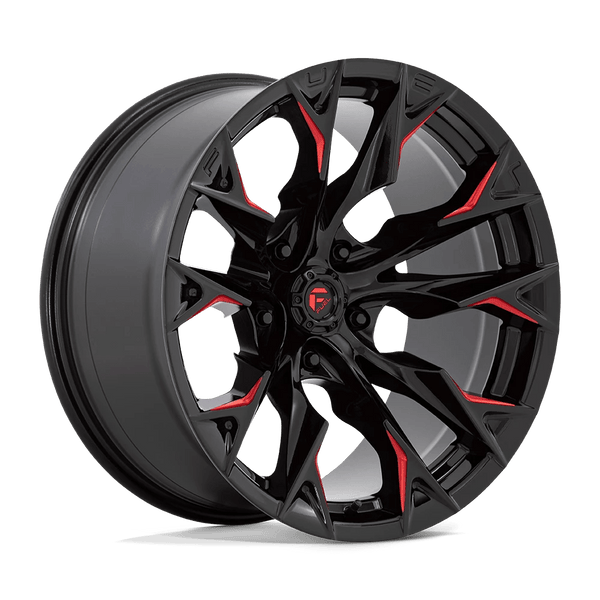

Fuel Off Road Flame 5 Wheel (MPN: D82320007547)

Advanced off-road wheel with striking design and robust performance.

The Fuel Off Road Flame 5 Wheel is engineered for off-road enthusiasts seeking both style and functionality. With a diameter of 20 inches and a width of 10 inches, this wheel features a 5 split spoke design that enhances its aesthetic appeal while ensuring durability. Constructed from a single piece of cast aluminum, it boasts a load capacity of 2500 pounds, making it suitable for various off-road applications.

The wheel is finished in a gloss black with candy red accents, providing a bold look that stands out on any vehicle. It is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that users can maintain optimal tire pressure for safety and performance. The 60 degree conical seat lug design and 71.50 millimeter center bore further enhance its compatibility with a wide range of vehicles.

Designed with a -18 millimeter offset and 4.79 inches of backspacing, the Flame 5 Wheel is optimized for stability and handling on rugged terrains. With a maximum tire diameter of 42 inches, it accommodates larger tires for improved traction and control. The inclusion of the Fuel logo center cap adds a touch of branding to this high-performance wheel.

Features

• Gloss Black Milled With Candy Red Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D82320007547
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.79
• Finish: Painted Gloss
• Color: Black With Candy Red Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
