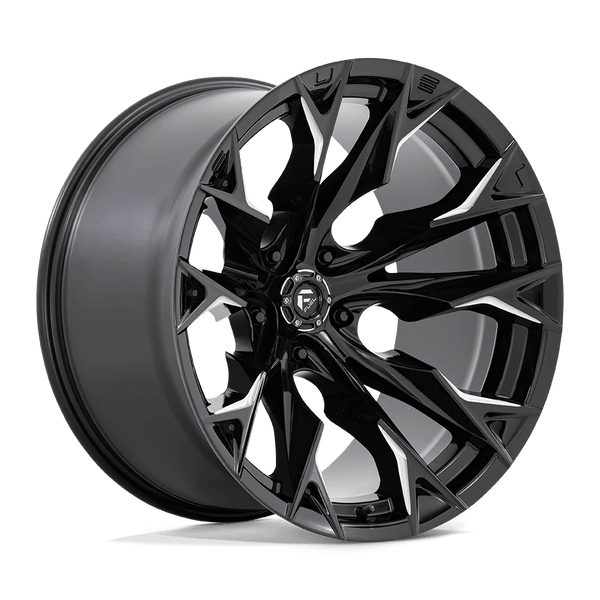

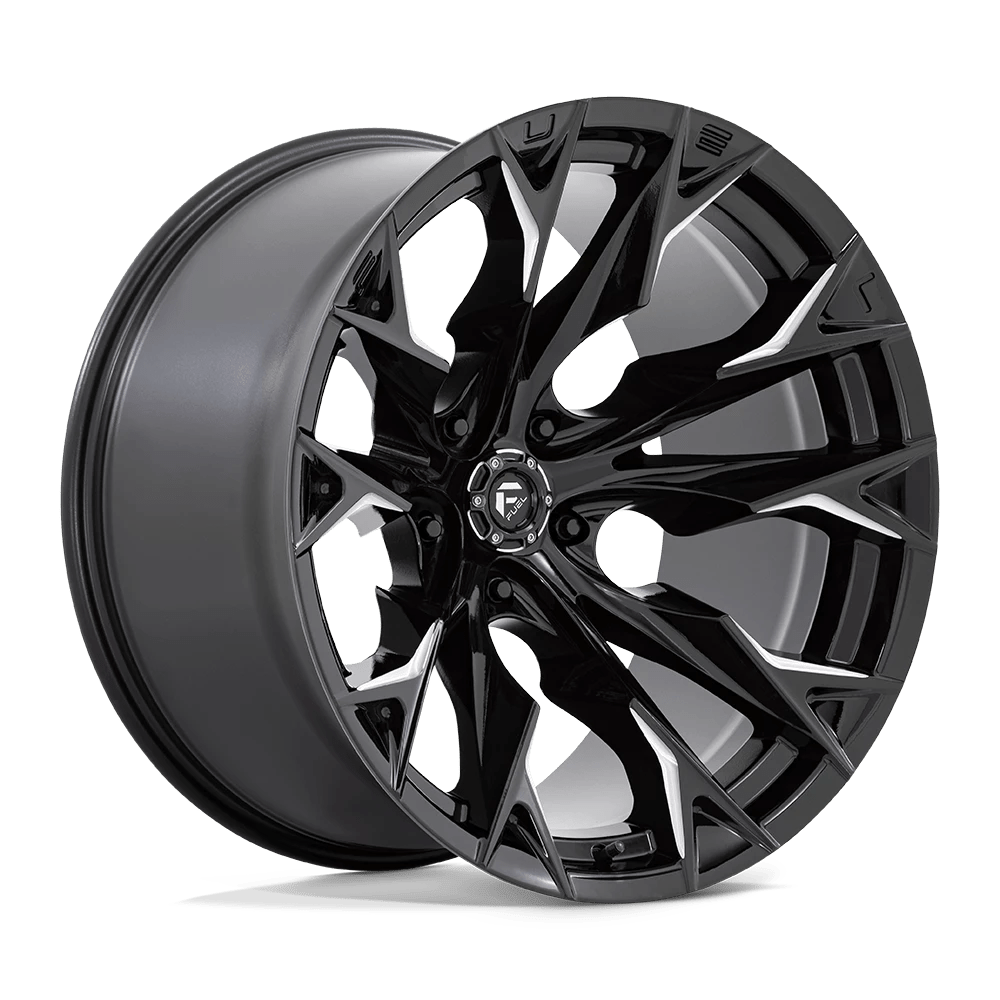

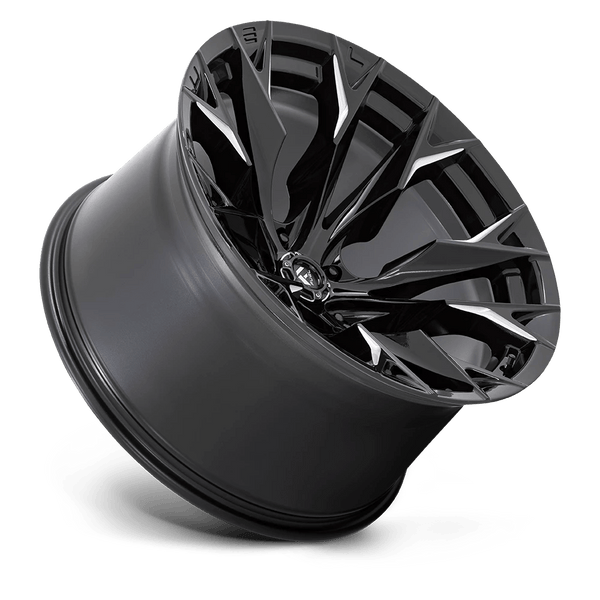

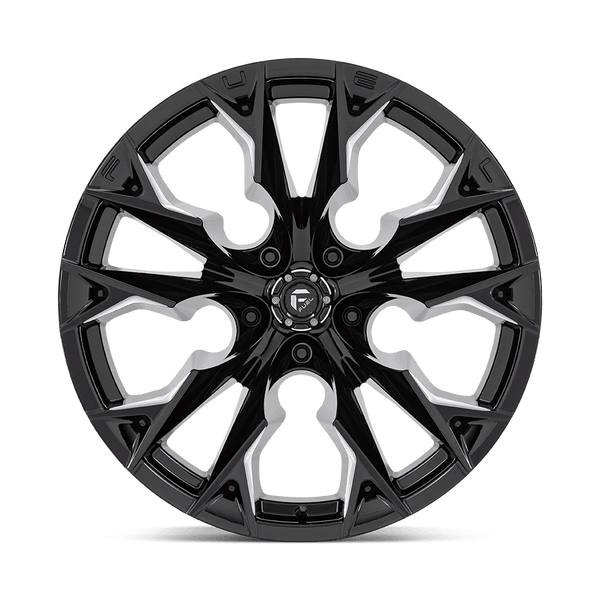

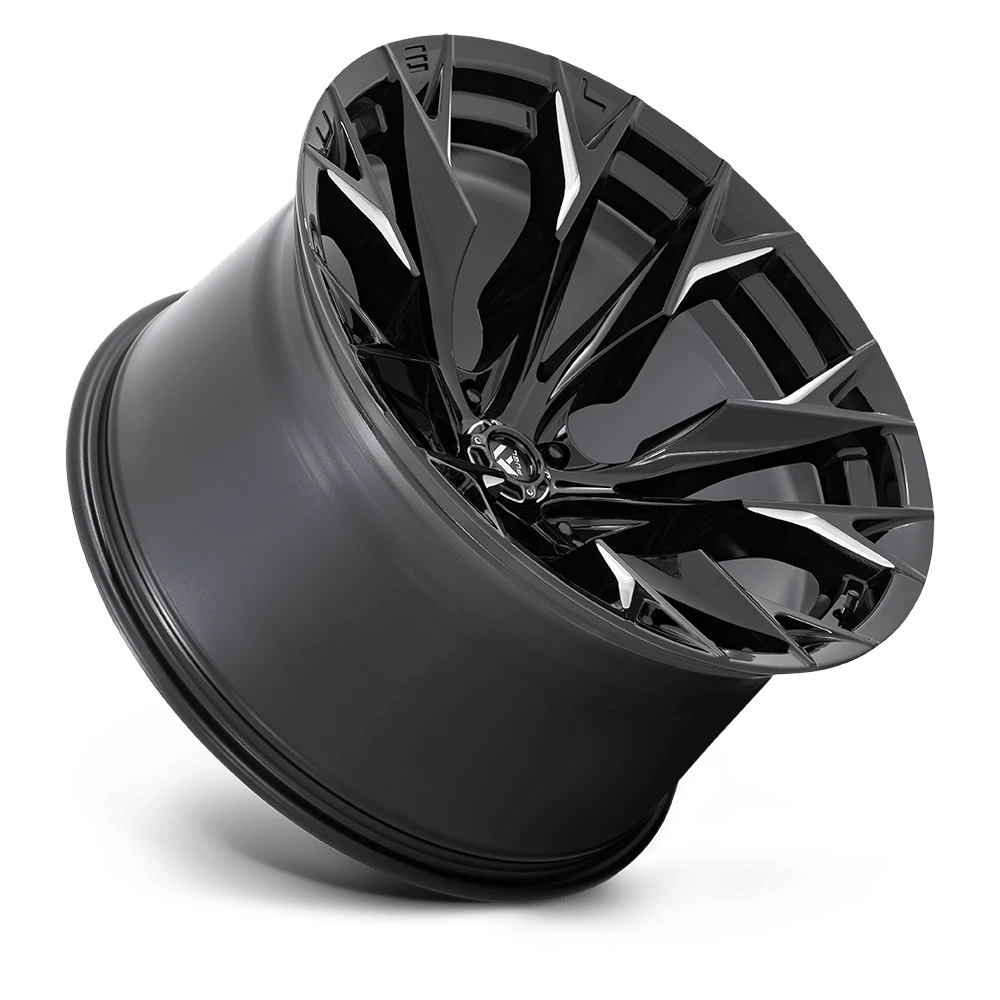

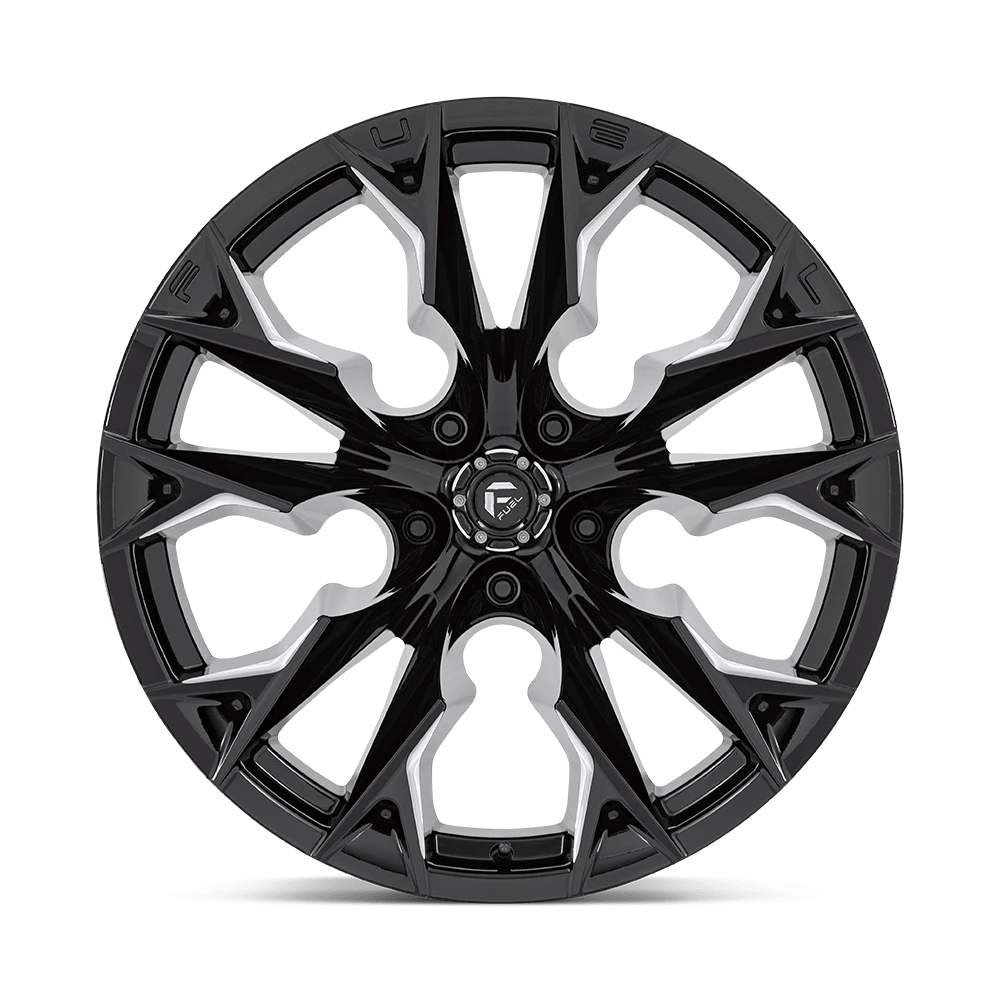

Fuel Off Road Flame 5 D803 Wheel (MPN: D8032220B447)

Advanced off-road wheel with stylish design and high load capacity.

The Fuel Off Road Flame 5 D803 wheel is engineered for off-road enthusiasts seeking both style and performance. With a diameter of 22 inches and a width of 12 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength. The gloss black finish with milled accents not only enhances its aesthetic appeal but also provides resistance against the elements, making it suitable for various terrains.

Designed with a 5 x 139.7 millimeter bolt pattern and a -44 millimeter offset, this wheel accommodates a wide range of vehicles while maintaining optimal handling characteristics. The 60 degree conical seat lug nut design ensures a secure fit, while the 78.10 millimeter center bore allows for easy installation. With a load capacity of 2500 pounds, the Flame 5 D803 is capable of supporting heavy-duty applications.

Additionally, this wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing real-time tire pressure data for enhanced safety. The maximum tire diameter of 40 inches allows for versatile tire options, making it a practical choice for off-road adventures. The included Fuel logo center cap adds a touch of branding to the overall design, making it a standout choice for those looking to enhance their vehicle's appearance.

Features

• Gloss Black Milled Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D8032220B447
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
