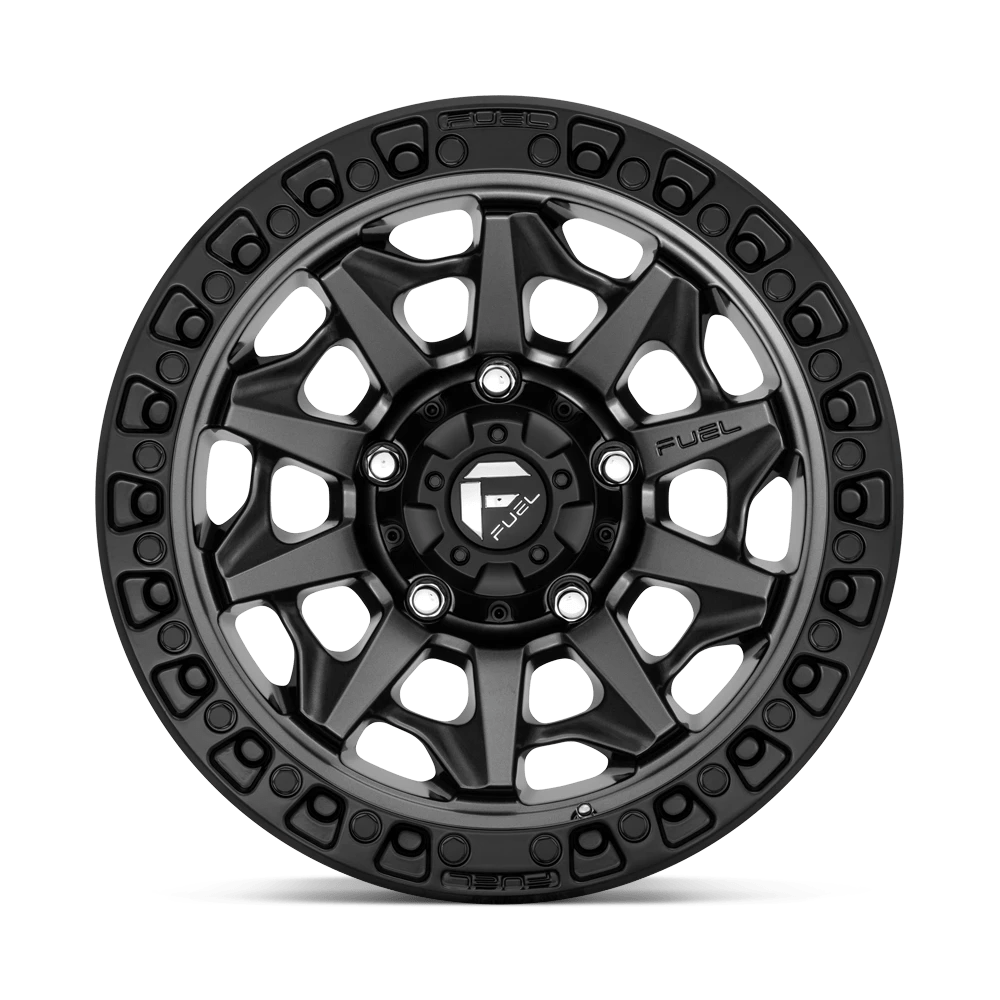

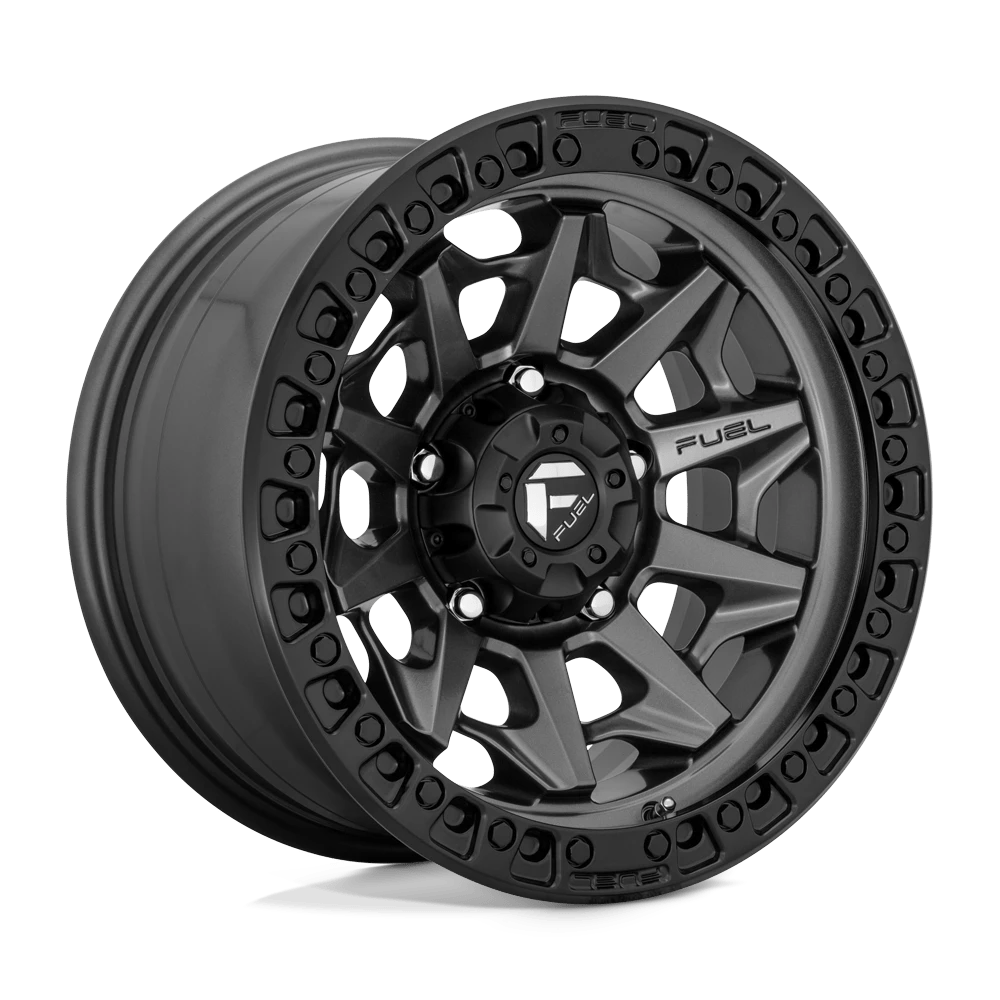

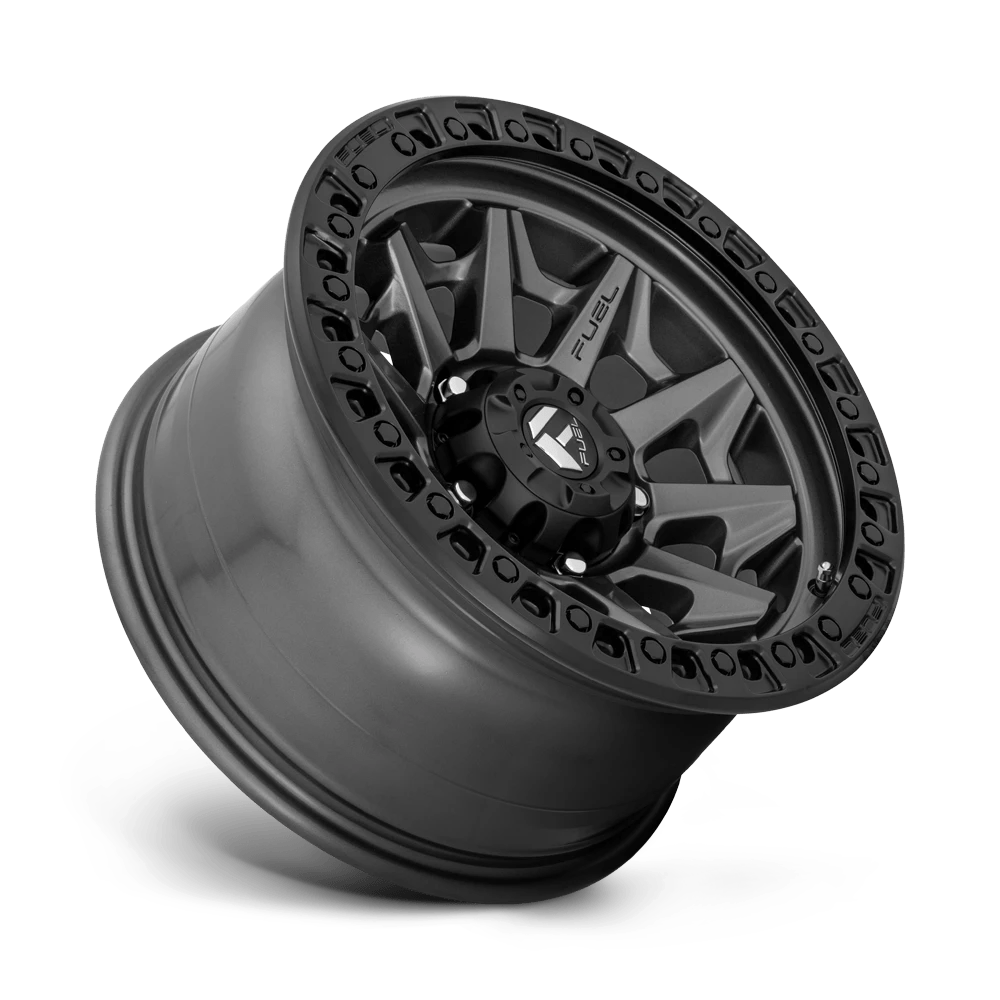

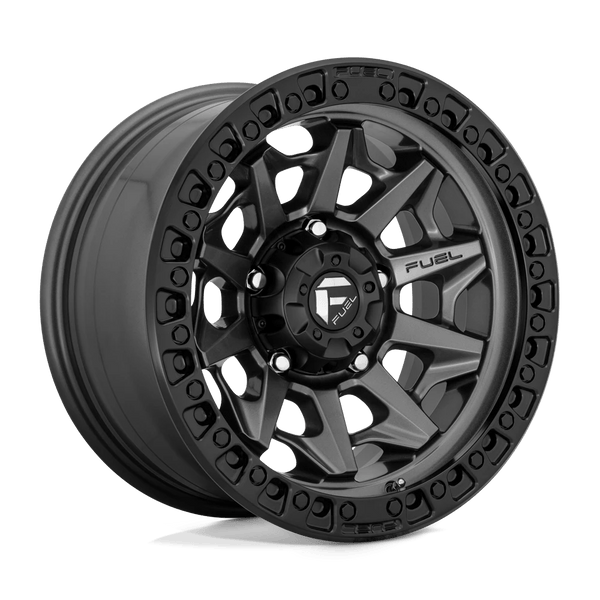

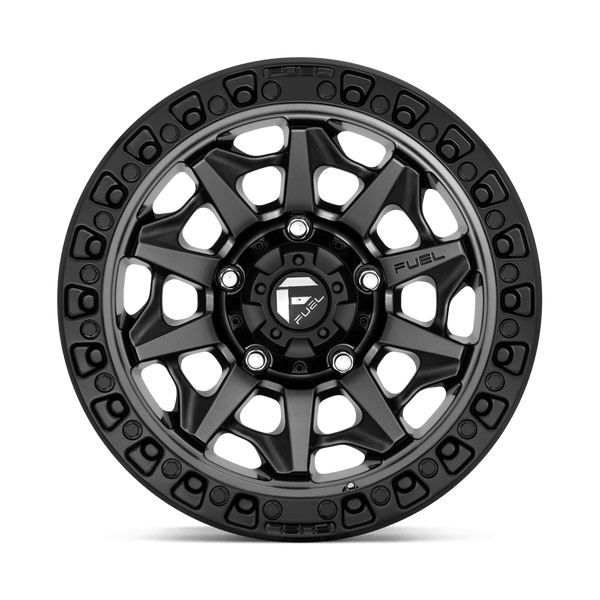

Fuel Off Road Covert D716 Wheel (MPN: D7162090B457)

Advanced off-road wheel with innovative design and robust construction.

The Fuel Off Road Covert D716 Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 20 inches and a width of 9 inches, this wheel features a 10 spoke design crafted from one piece cast aluminum, ensuring strength and reliability under demanding conditions. The matte gunmetal finish, complemented by a black beadlock ring, enhances the aesthetic appeal while providing functional benefits.

Designed with a 5 x 139.7 millimeter bolt pattern and a 20 millimeter offset, the Covert D716 Wheel is compatible with a variety of vehicles. It supports a maximum tire diameter of 40 inches and has a load capacity of 2500 pounds, making it suitable for heavy-duty applications. The wheel also includes a 60 degree conical seat lug and a center bore of 78.10 millimeters, ensuring a secure fit.

Additionally, the Covert D716 is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for real-time monitoring of tire pressure. The inclusion of a Fuel logo center cap adds a touch of branding to the wheel's design. With a structural warranty for life and a finish warranty of one year, this wheel is built to withstand the rigors of off-road driving while maintaining its visual appeal.

Features

• Matte Gunmetal Black Bead Ring Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D7162090B457
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 20
• Backspacing: 5.79
• Finish: Painted Matte
• Color: Gunmetal
• Material: Aluminum
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2009 Chrysler Aspen
• 1986-1989 Dodge D100
• 1981-1993 Dodge D150
• 2005-2010 Dodge Dakota
• 2004-2009 Dodge Durango
• 1994-2010 Dodge Ram 1500
• 1982-1984 Dodge W150
• 1986-1993 Dodge W150
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2011-2011 Ram Dakota
• 2022-2024 Rivian R1S
• 2022-2024 Rivian R1T
