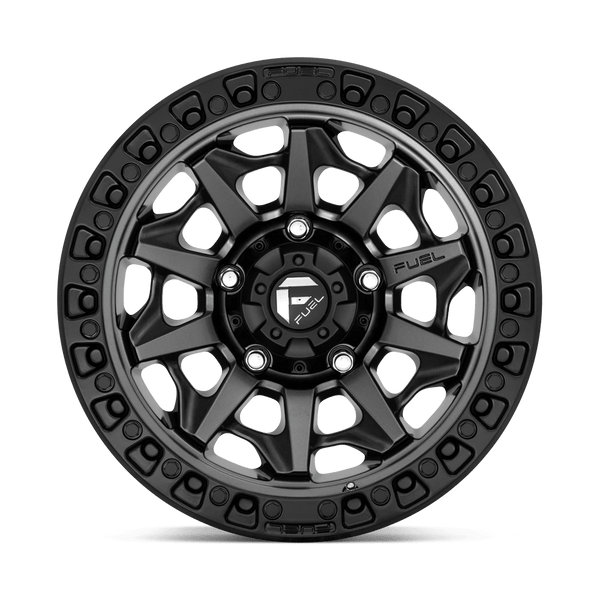

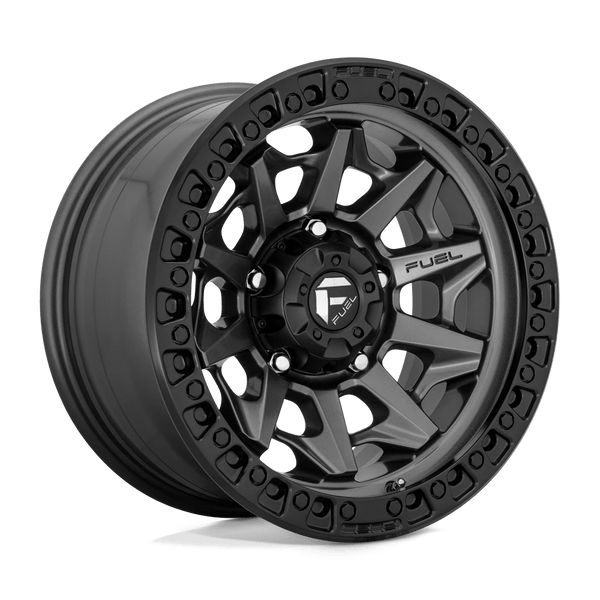

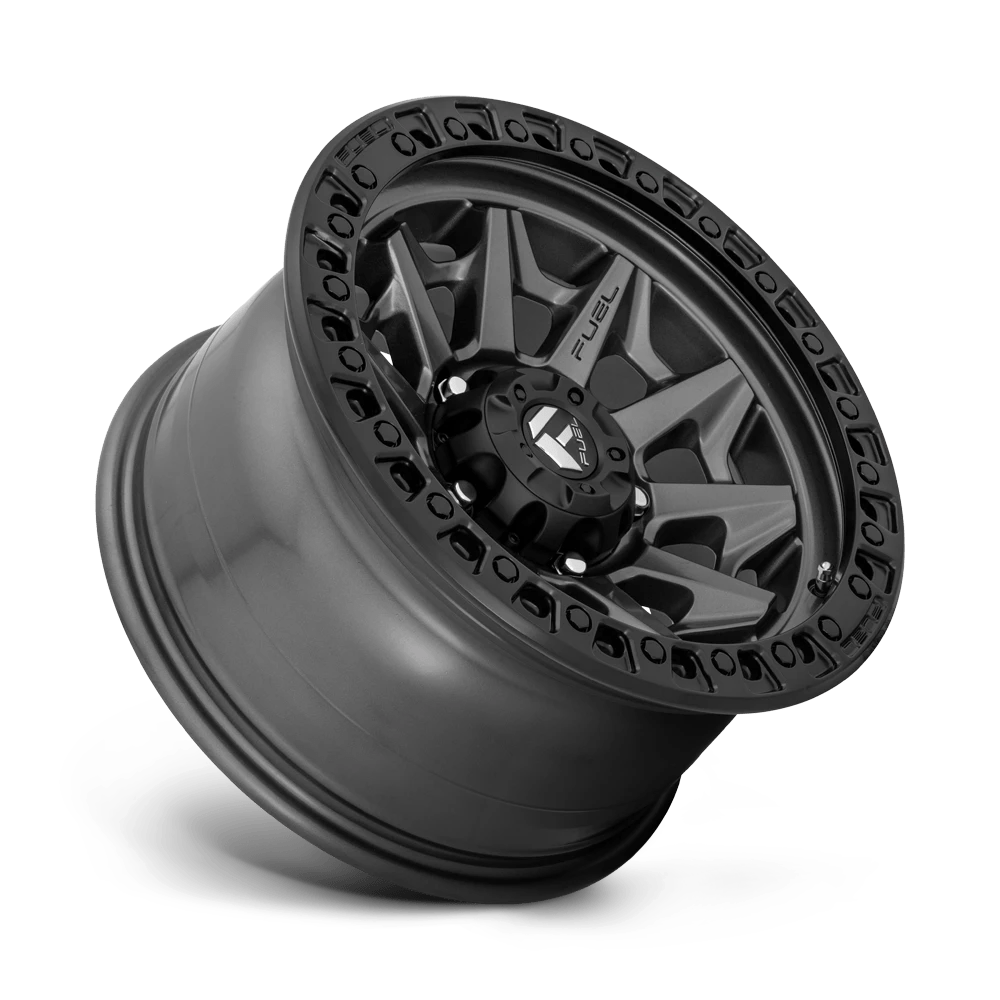

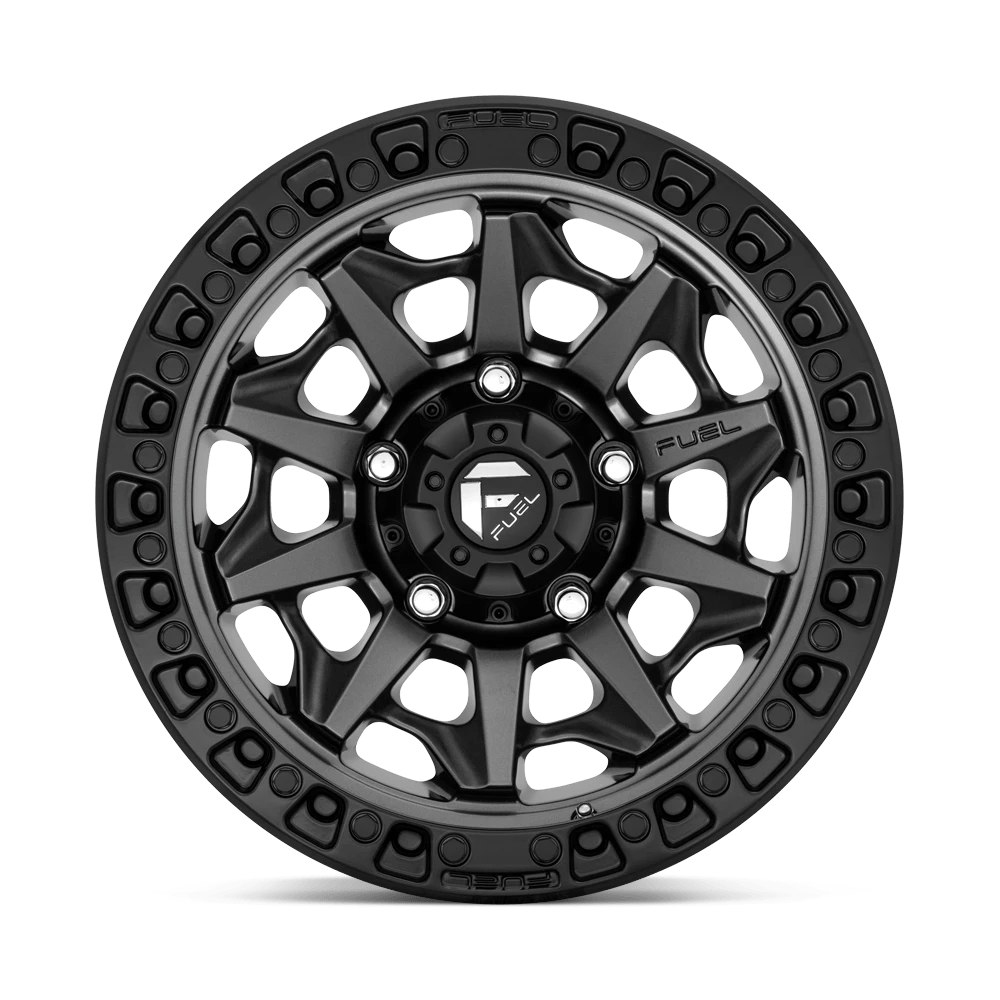

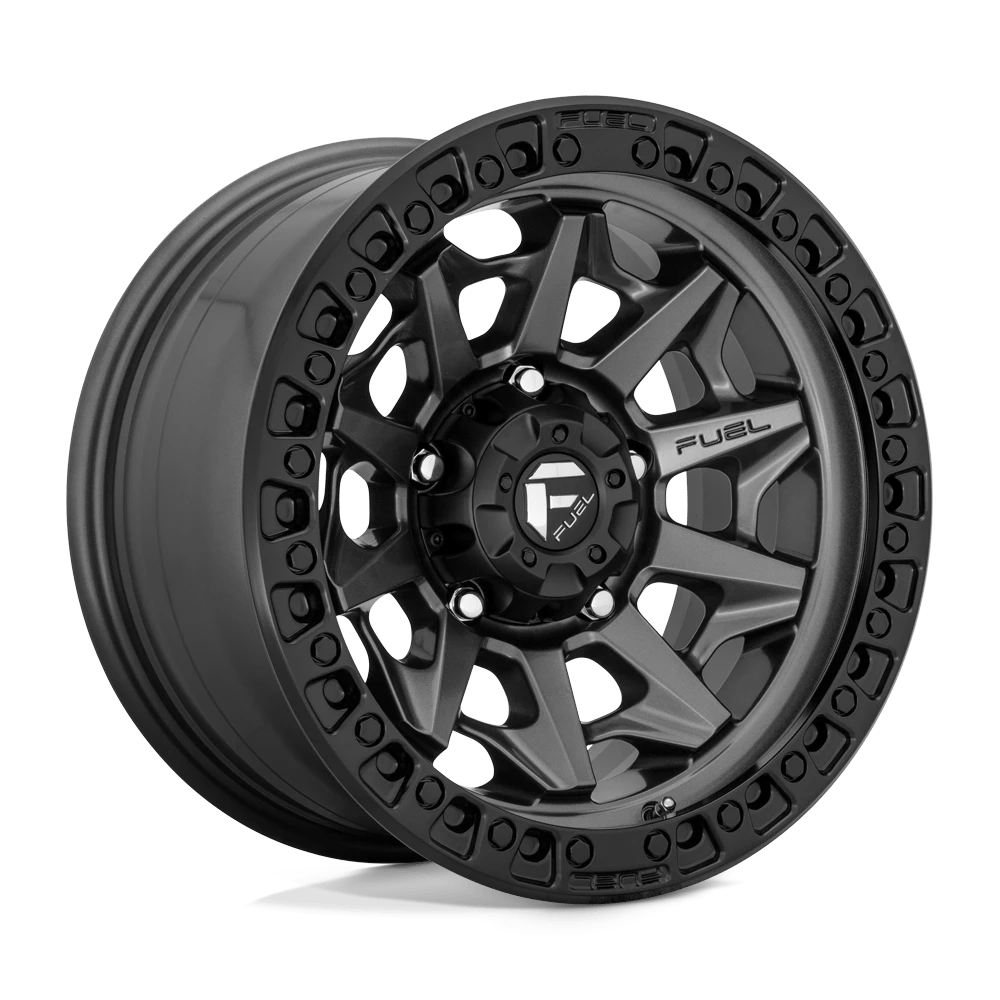

Fuel Off Road Covert D716 Wheel (MPN: D71618907550)

Advanced off-road wheel with innovative design and high load capacity.

The Fuel Off Road Covert D716 Wheel is engineered for off-road enthusiasts seeking durability and style. With an 18 inch diameter and 9 inch width, this wheel features a robust 1 piece cast aluminum construction, ensuring strength and longevity under demanding conditions. The matte gunmetal finish, complemented by a black beadlock ring, provides a modern aesthetic while enhancing performance.

Designed with a 5 x 127 millimeter bolt pattern and a 1 millimeter offset, the Covert D716 is compatible with a variety of vehicles. It boasts a load capacity of 3700 pounds, making it suitable for heavy-duty applications. The wheel also accommodates a maximum tire diameter of 38 inches, allowing for versatile tire options.

Additional features include a 60 degree conical seat lug nut design and a center bore of 71.50 millimeters, ensuring a secure fit. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. With the Fuel logo center cap included, this wheel combines functionality with a distinctive look.

Features

• Matte Gunmetal Black Bead Ring Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 3700 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D71618907550
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 18
• Width: 9
• Offset: 1
• Backspacing: 5.04
• Finish: Painted Matte
• Color: Gunmetal
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 18x9
• Max Tire Diameter: 38
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1962-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1970-1972 Chevrolet Brookwood
• 1980-1990 Chevrolet Caprice
• 1967-1969 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• D716_COVERT_NPR.pdf
