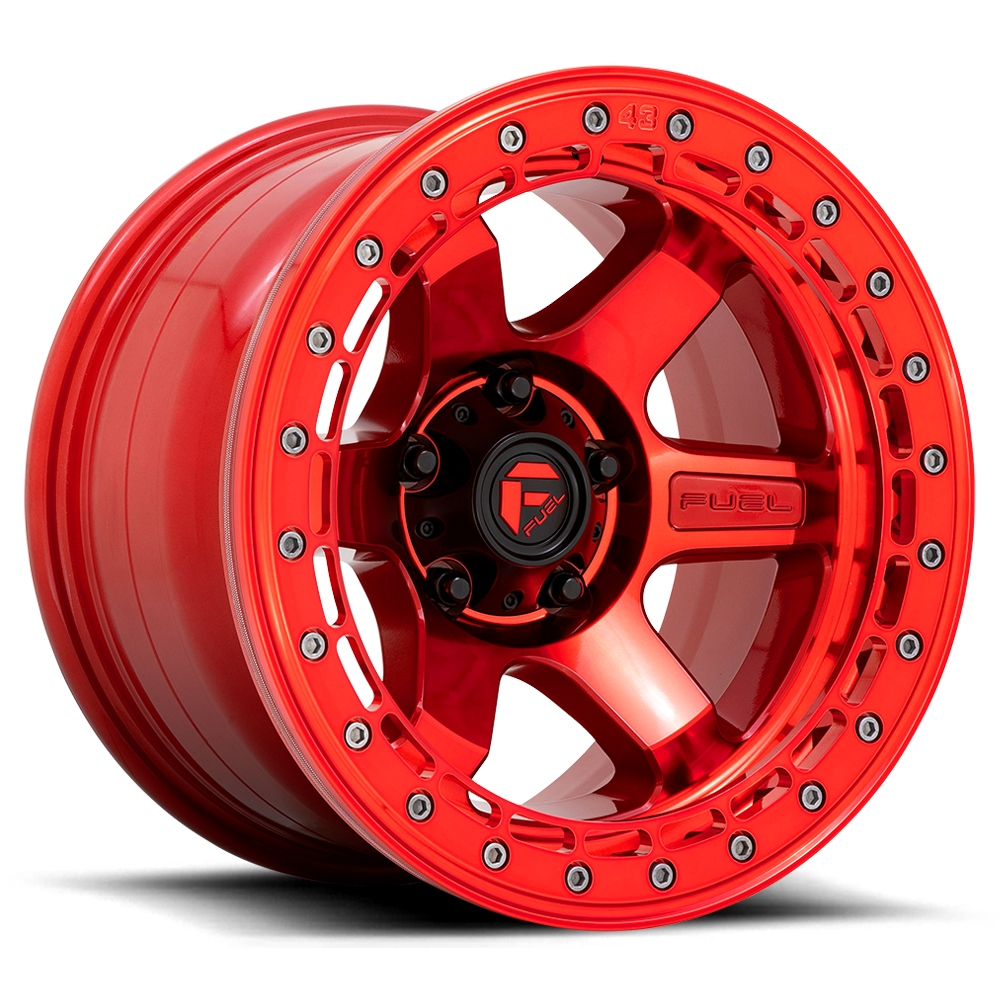

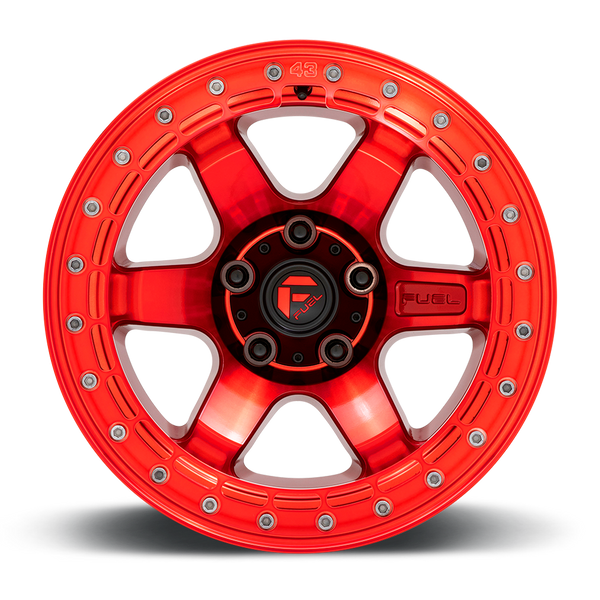

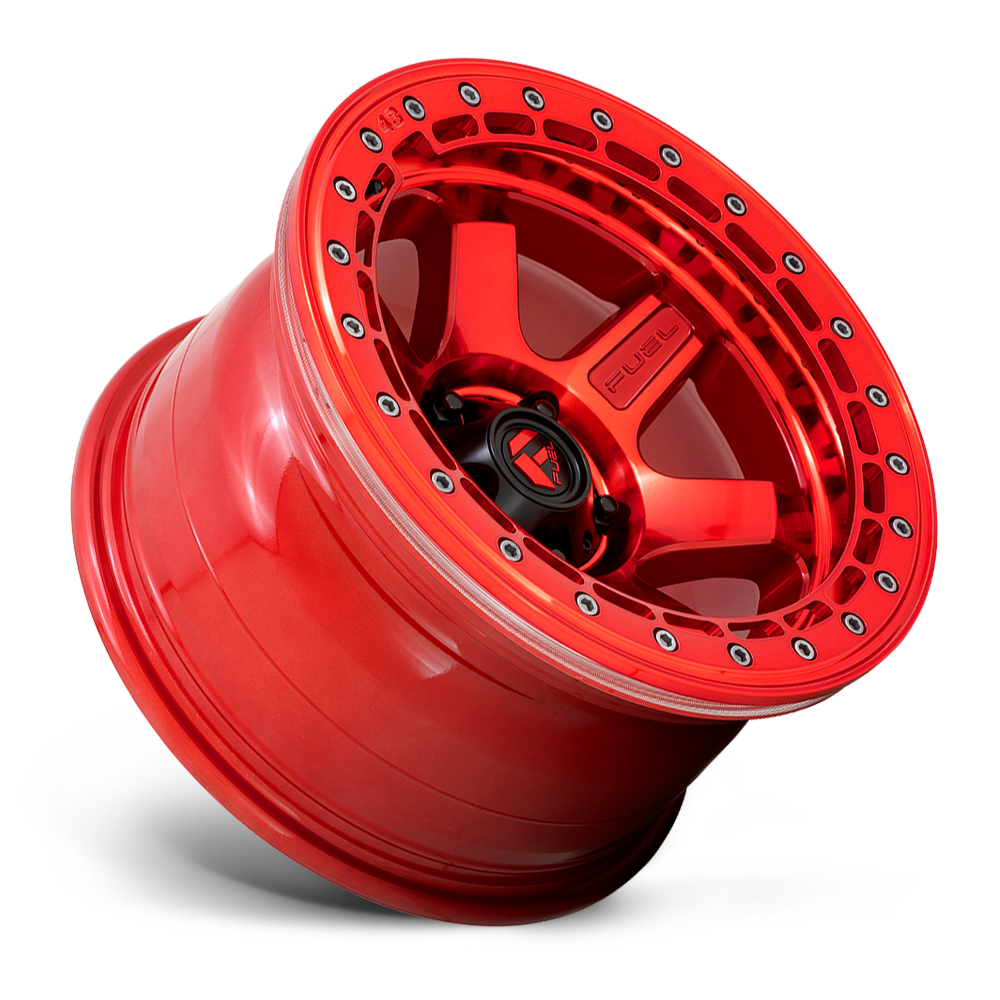

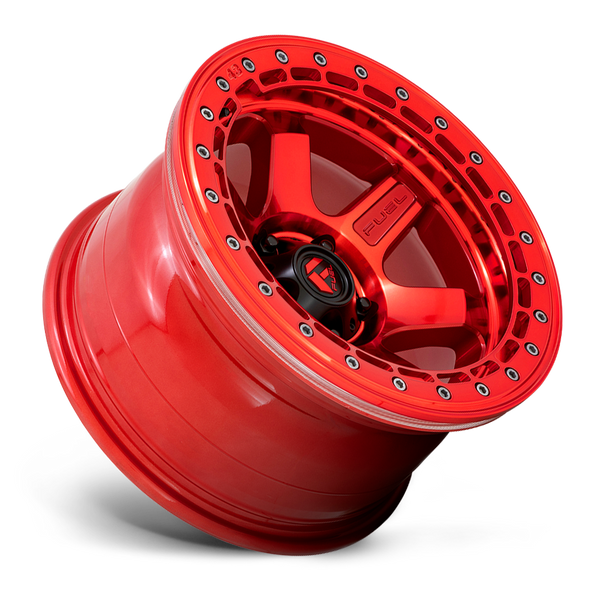

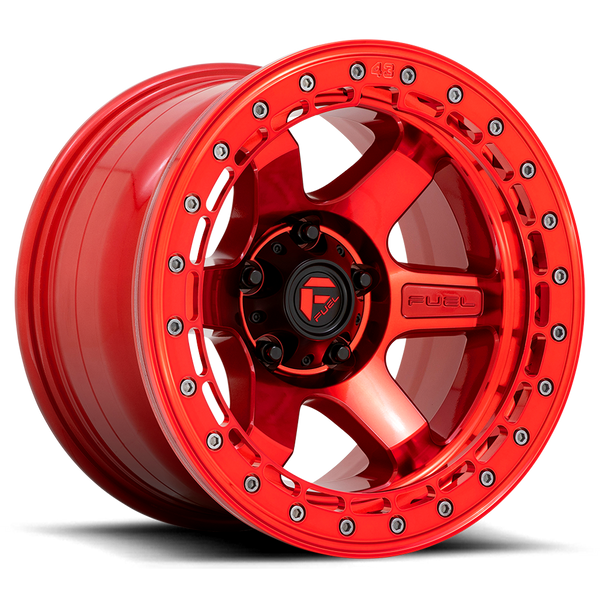

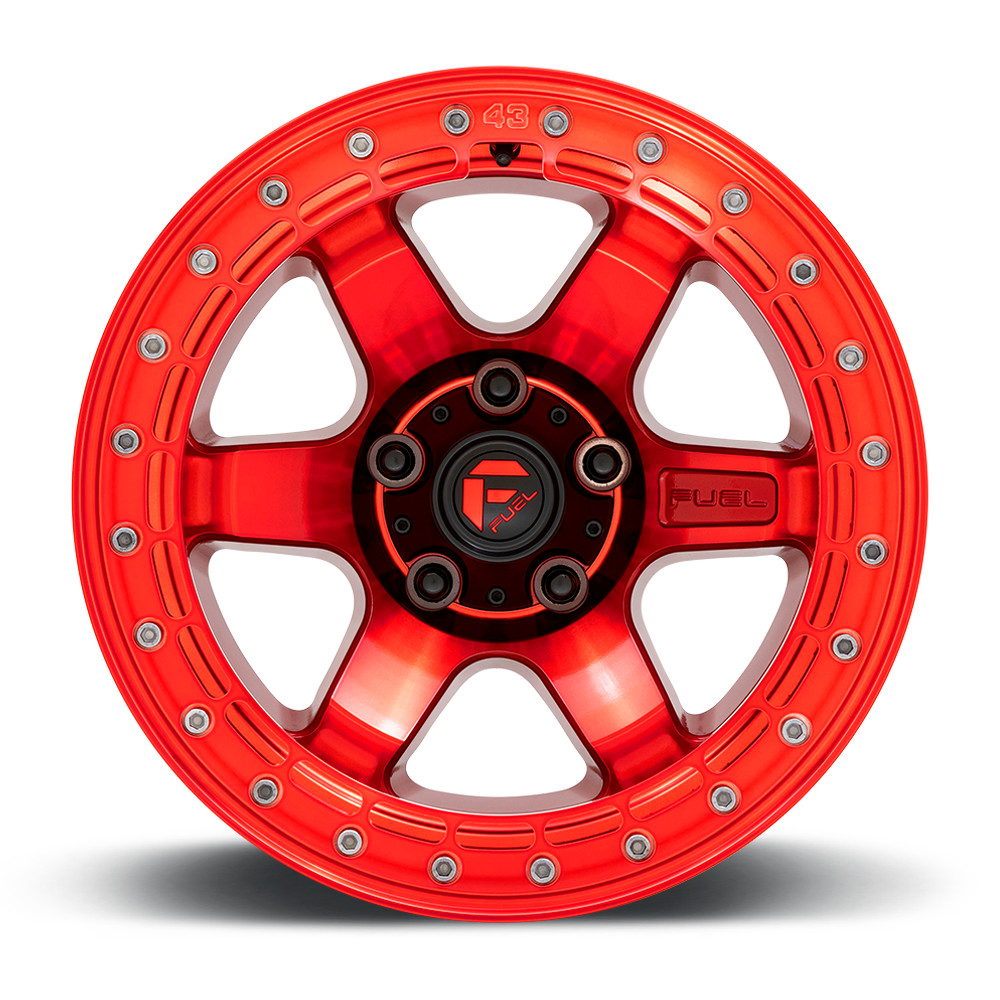

Fuel Off Road Block Beadlock Wheel (MPN: D12317908945)

Advanced off-road wheel with innovative design and high load capacity.

The Fuel Off Road Block Beadlock Wheel is engineered for off-road enthusiasts seeking durability and style. With a diameter of 17 inches and a width of 9 inches, this wheel features a robust 1 piece cast aluminum construction that ensures longevity and performance under demanding conditions. The candy red finish, complemented by a matching beadlock ring, provides a striking appearance while maintaining functionality.

Designed with a 6 x 135 millimeter bolt pattern and a -15 millimeter offset, this wheel is compatible with a variety of vehicles. It supports a maximum tire diameter of 40 inches and has a load capacity of 2500 pounds, making it suitable for heavy-duty applications. The 60 degree conical seat lug nut design and 87.10 millimeter center bore enhance the wheel's fitment and stability.

Additionally, the Fuel Off Road Block Beadlock Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is easily monitored for optimal performance. The inclusion of a Fuel logo center cap adds a touch of branding to the overall aesthetic. This wheel is backed by a lifetime structural warranty, reflecting the manufacturer's commitment to quality and customer satisfaction.

Features

• Candy Red With Candy Red Ring Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Fuel Logo Center Cap
• 2500 Pound Load Capacity

Specifications

• Manufacturer: Fuel Off Road
• Manufacturer Part Number: D12317908945
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -15
• Backspacing: 4.41
• Finish: Painted Gloss
• Color: Candy Red
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: FUEL Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2026 Ford Bronco
• 2004-2026 Ford F-150
