Advanced shock technology for enhanced ride quality and handling.

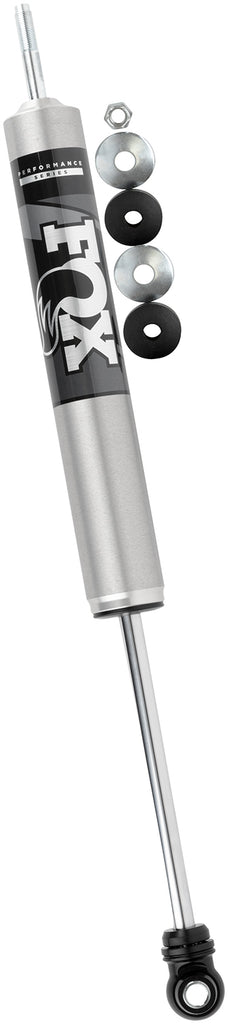

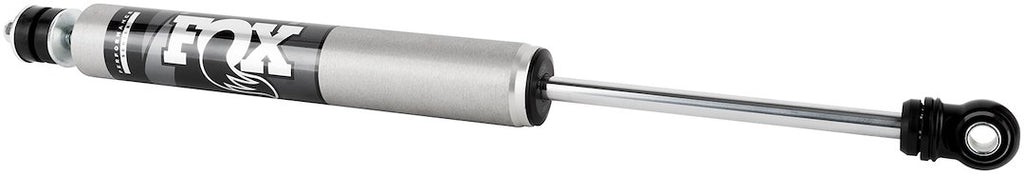

The Fox Shocks Performance Series 2.0 IFP is engineered to elevate the performance of trucks and SUVs. Utilizing a hydraulic and nitrogen gas charged design, this shock absorber features an Internal Floating Piston (IFP) mono-tube construction that effectively separates shock oil from the gas chamber, preventing oil aeration and ensuring consistent performance. The precision valving is factory-tuned to deliver a smooth on-road experience while maintaining predictable handling in off-road conditions.
Constructed from high-quality materials, the shock features a 2.0 inch impact extruded and CNC machined aluminum body that is clear-anodized for durability and resistance to rust. The race-developed high-flow damping piston, combined with application-specific valving, provides a reliable ride quality capable of withstanding rough terrains. The redundant sealing pack system enhances longevity and performance, while the use of advanced JM92 suspension fluid ensures optimal operation across varying temperatures.
This single shock absorber is designed for vehicle-specific applications and does not include a remote reservoir or shock boots. The robust construction includes a 5/8 inch hard chrome plated heat-treated alloy steel shaft and black-anodized CNC-machined components, making it a reliable choice for those seeking to improve their vehicle's suspension system.
Features
- Body : 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
- Body Plating : Clear-Anodized For A Durable Finish
- Reservoir : Internal IFP Mono-Tube Reservoir Design
- Components :Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft : 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Piston : Race-Developed High-Flow Piston Design
- Seals : Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Oil : JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Bushing : Quiet Nitrile Rubber Allows For Increased Suspension Articulation
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 985-24-169
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.65 Inch
- Compressed Length (IN): 15.55 Inch

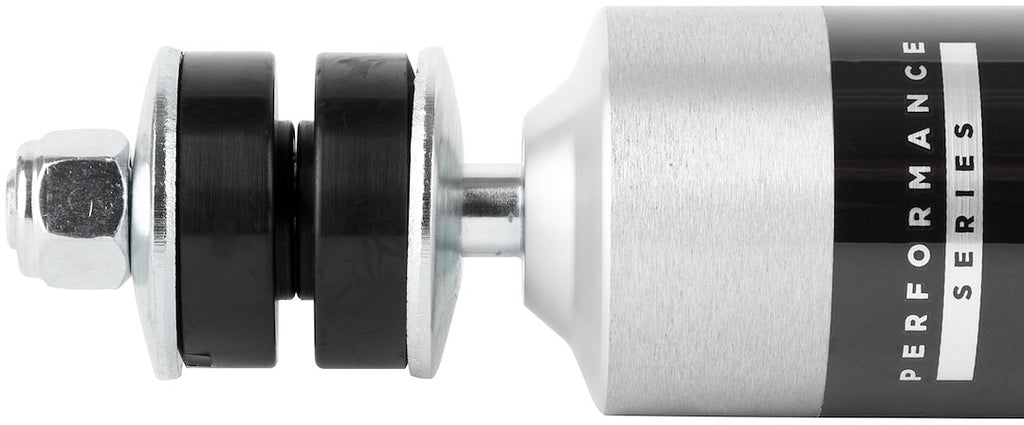

- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2015 Ram 2500
- 2020-2025 Ram 2500
- 2017-2017 Ram 3500
- 2020-2025 Ram 3500
