Advanced shock technology for enhanced on and off-road performance.

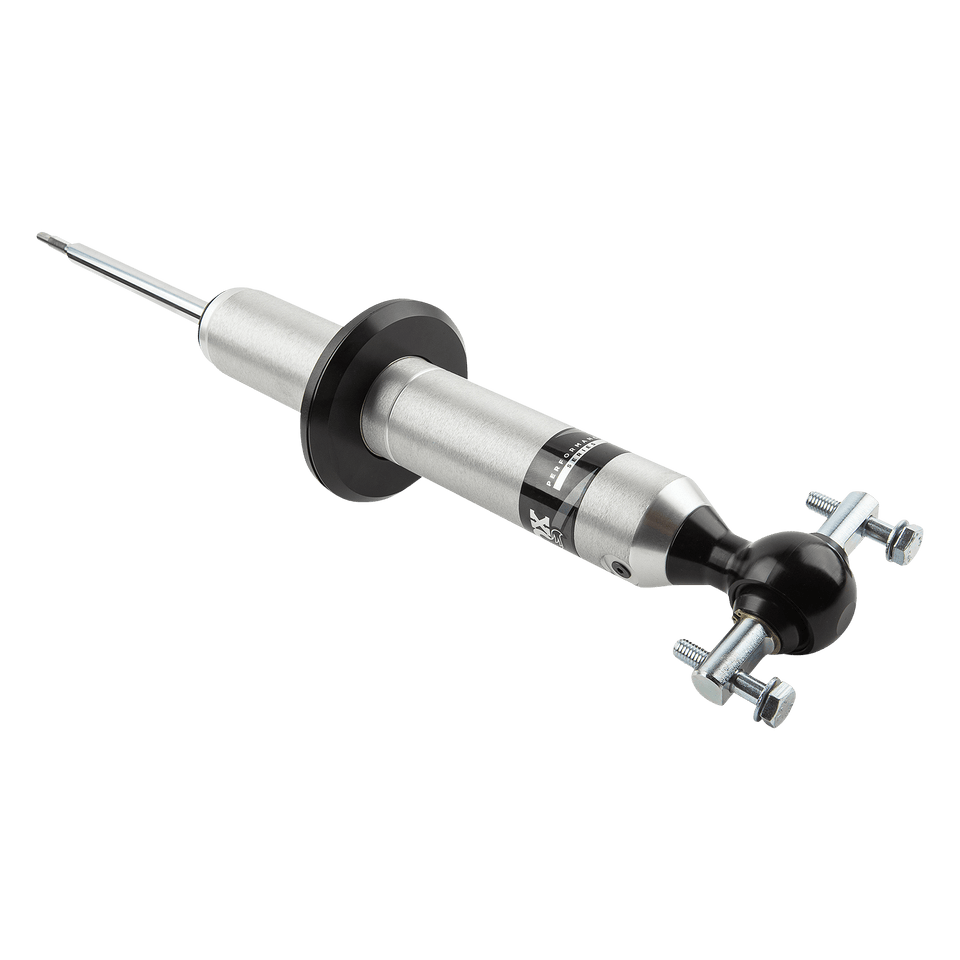

The Fox Shocks Performance Series 2.0 Coil-Over Snap Ring IFP shock is engineered for superior performance in various driving conditions. This shock features a lightweight, rust-resistant aluminum body that is precision impact-extruded and CNC machined, ensuring durability and longevity. The internal nitrogen-charged gas reservoir, separated by an internal floating piston, prevents oil and gas mixing, which enhances the shock's performance compared to traditional twin tube designs.

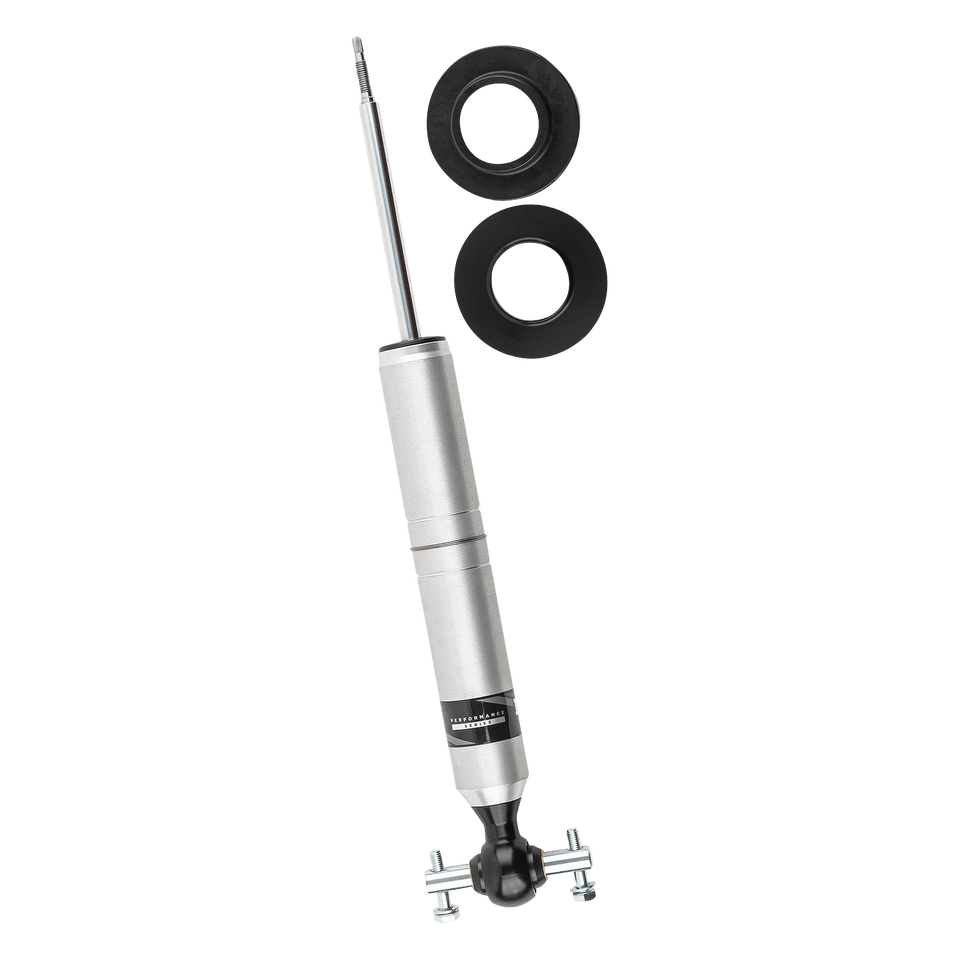

Designed for easy installation, this shock allows for the reuse of the original equipment coil spring and mounting hardware, making it a practical choice for vehicle-specific applications. With three predetermined preload settings, users can select between 0 Inch, 1 Inch, or 2 Inch of lift, providing versatility for different driving needs. The race-developed high-flow piston design and application-specific valving maximize performance, ensuring a comfortable ride on the road and reliable handling off-road.
The shock's construction includes a 5/8 Inch hard chrome plated heat-treated alloy steel shaft and a redundant sealing pack system that enhances reliability. The clear-anodized finish not only adds to the aesthetic appeal but also contributes to the shock's resistance to corrosion over time. This product is a single unit, designed for vehicle-specific applications, and does not include a remote reservoir or shock boots.
Features
- 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
- Components Are Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft Constructed From 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
- Body Plating: Clear-Anodized For A Durable Finish
- Race-Developed High-Flow Piston Design
- Application Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 985-62-014
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 20.73 Inch
- Compressed Length (IN): 15.48 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Cross Pin
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: No
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2021-2026 Ford F-150
